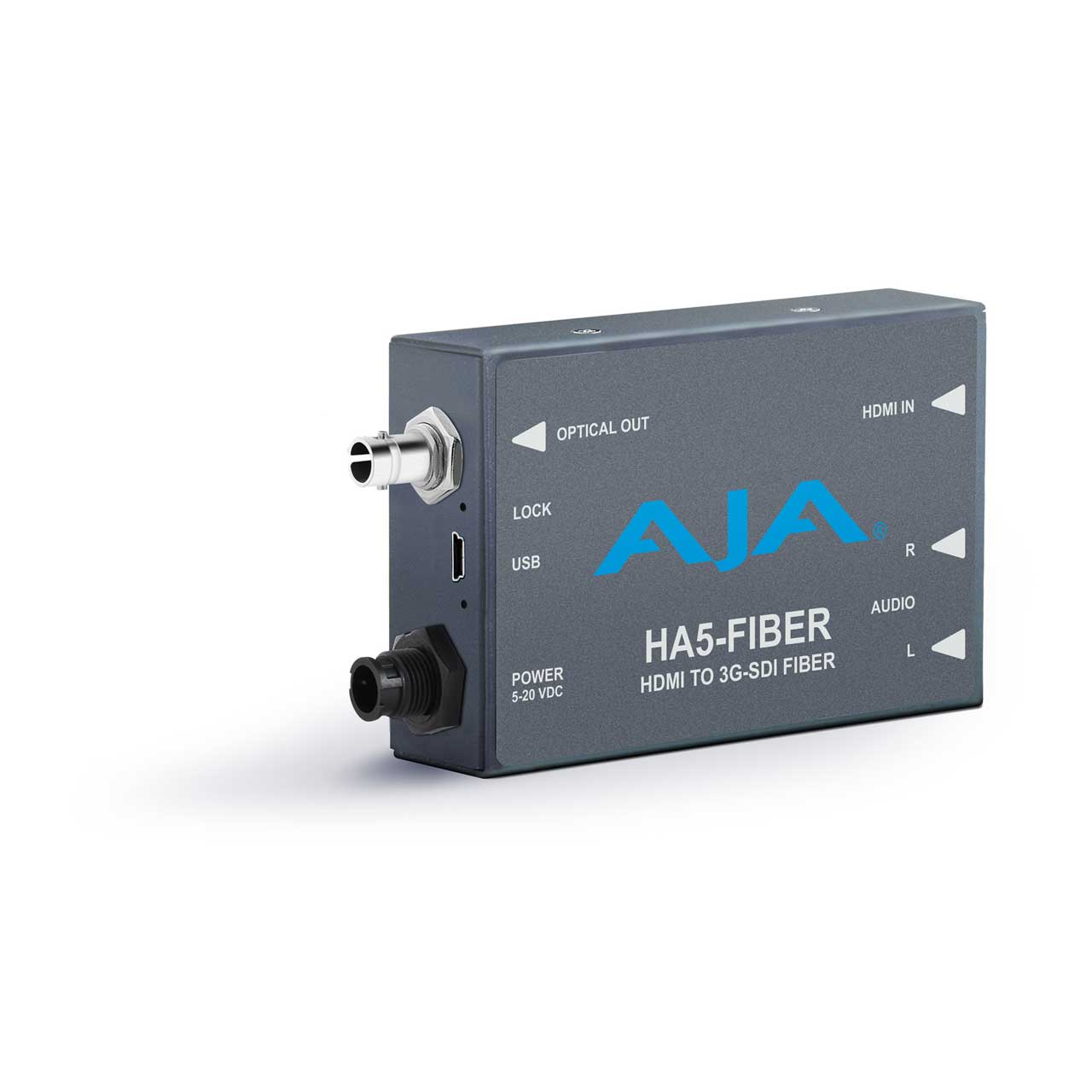

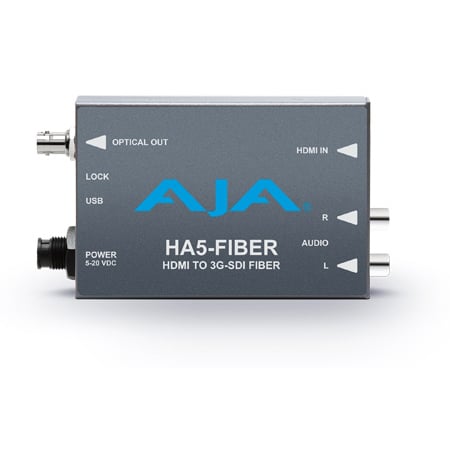

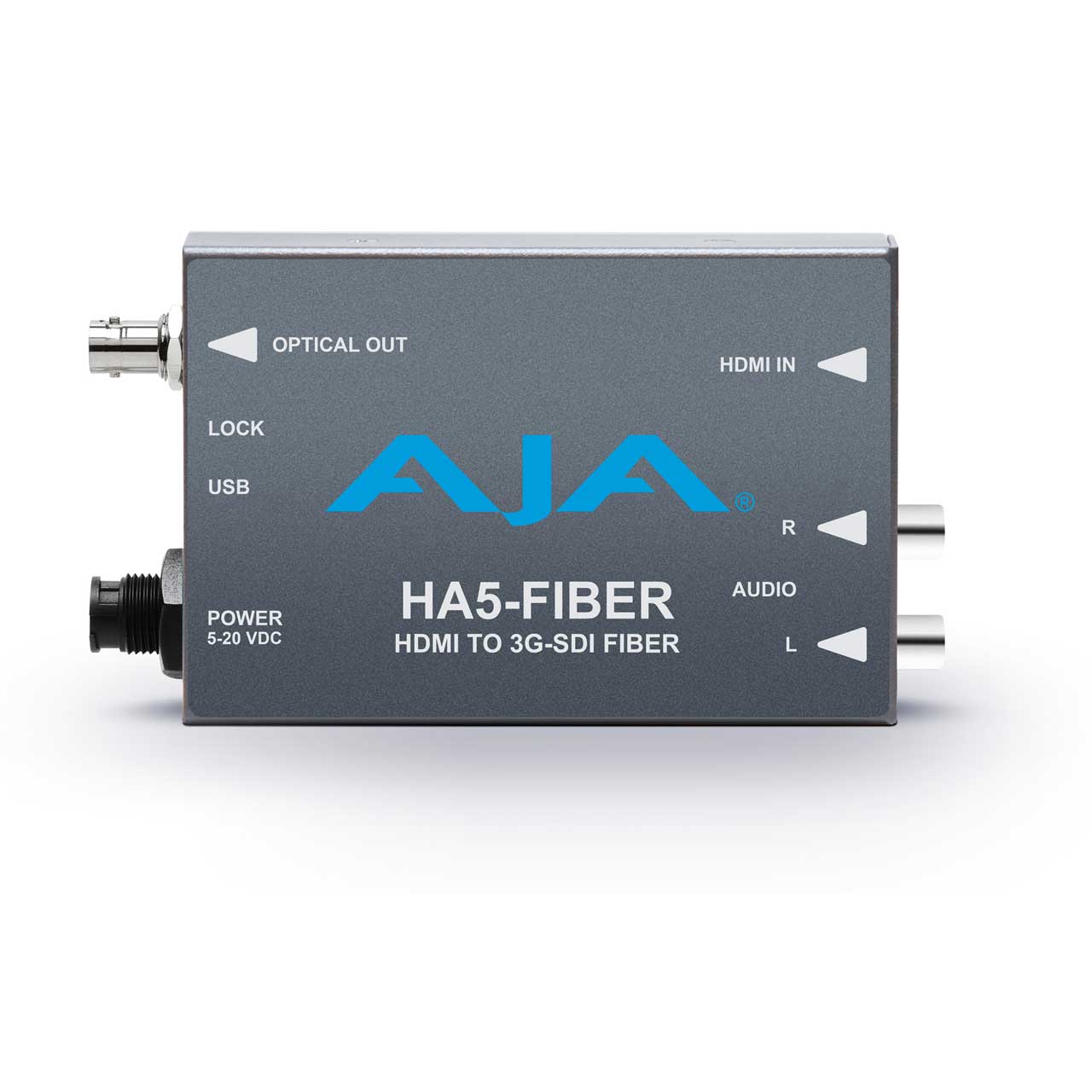

AJA HA5-FIBER HDMI to 3G-SDI Over Fiber Video and Audio Converter (Single Mode - ST)

ITEM #: AJA-HA5-FIBER MFG #: HA5-FIBER

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$879.00

Availability: In Stock
iAvailability Description Popup


    HA5-FIBER - Overview

    The HA5-Fiber converts a HDMI input to 3G-SDI over single mode 1310 nm fiber optic cable (ST-style fiber connector) for transporting HDMI sources over fiber. The small form factor enables this Mini-Converter to easily fit onto the back of a camera or neatly behind an equipment rack. Embedded 8-Channel audio is supported in the fiber output allowing a convenient single cable audio/video connection up to 10km. The HA5-Fiber also provides 2-Channel RCA style audio inputs for a stereo audio input when needed.

    Compact and Portable
    AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

    Universal Power Supply
    All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

    • Features:

      • HDMI to 3G-SDI over fiber
      • Supports single mode 1310 nm fiber optic cable with ST transmitter
      • Full HDMI input support including embedded audio
      • Additional 2-Channel RCA style analog audio (-10dBu nominal) input
      • No configuration necessary
      • 1m HDMI cable included
      • 5 year warranty

    • Specifications:

      • Input Formats
      • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (HD) 1080i 50, 59.94, 60
      • (HD) 720p 50, 59.94, 60
      • (SD) 625i
      • (SD) 625p
      • (SD) 576p
      • (SD) 525i
      • (SD) 525p
      • (SD) 480p

      • NOTE: HDCP content not supported

      • Output Formats
      • (HD) 1080i 25, 29.97, 30
      • (HD) 1080p 23.98, 24, 25, 29.97, 30
      • (HD) 1080p 50, 59.94, 60 - SMPTE 425-1 Level A mapping structure 1 (1920 x 1080 4:2:2 10-bit YCbCr)
      • (HD) 720p 50, 59.94, 60
      • (SD) 625i 25
      • (SD) 525i 29.97

      • Video Input
      • HDMI with embedded audio, up to 8-Channels

      • Video Output
      • Single mode optical fiber, ST connector supporting SMPTE-259/292/424 3G/HD/SD-SDI

      • Audio Input
      • 2-Channel RCA style analog audio (-10dBu nominal)

      • Audio Output
      • SDI embedded audio

      • Optical Output
      • Wavelength: 1310nm
      • Output Power: -2dBm typical

      • Power
      • Uses AJA power supply model DWP-U-R1, included with purchase
      • 100-240V, 50/60 Hz universal input
      • +5V DC regulated, 4.5 watts

      • Environment
      • Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
      • Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
      • Operating Relative Humidity: 10-90% noncondensing
      • Operating Altitude: <3,000 meters (<10,000 feet)
      • Size (w x d x h): 4.4" x 2.4" x 1.0" (112mm x 61mm x 25mm)
      • Weight: 0.3 lb (0.2 kg)

    • Item Includes:

      • HA5-FIBER HDMI to 3G-SDI over Fiber Video and Audio Converter
      • HDMI cable
      • Power supply

    • Warranty:

      • 5 Years

    • GTIN:

      0892448000687
