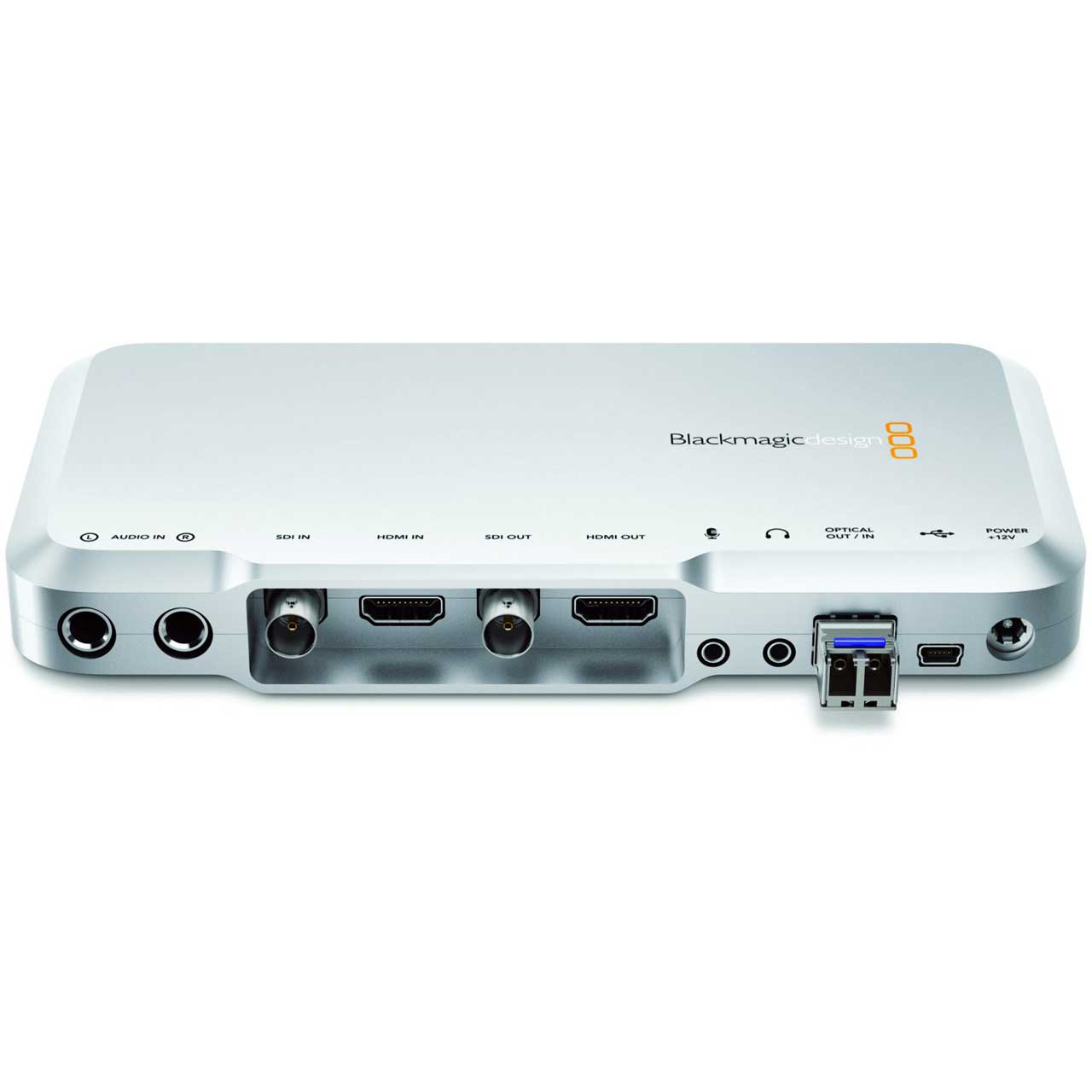

Blackmagic Design SWRCONV ATEM Camera Converter - SDI or HDMI to Optical Fiber

SWRCONV - Overview

Extend Your SDI and HDMI Cameras to an Amazing 28 Miles with Talkback and Tally!

• Specifications:

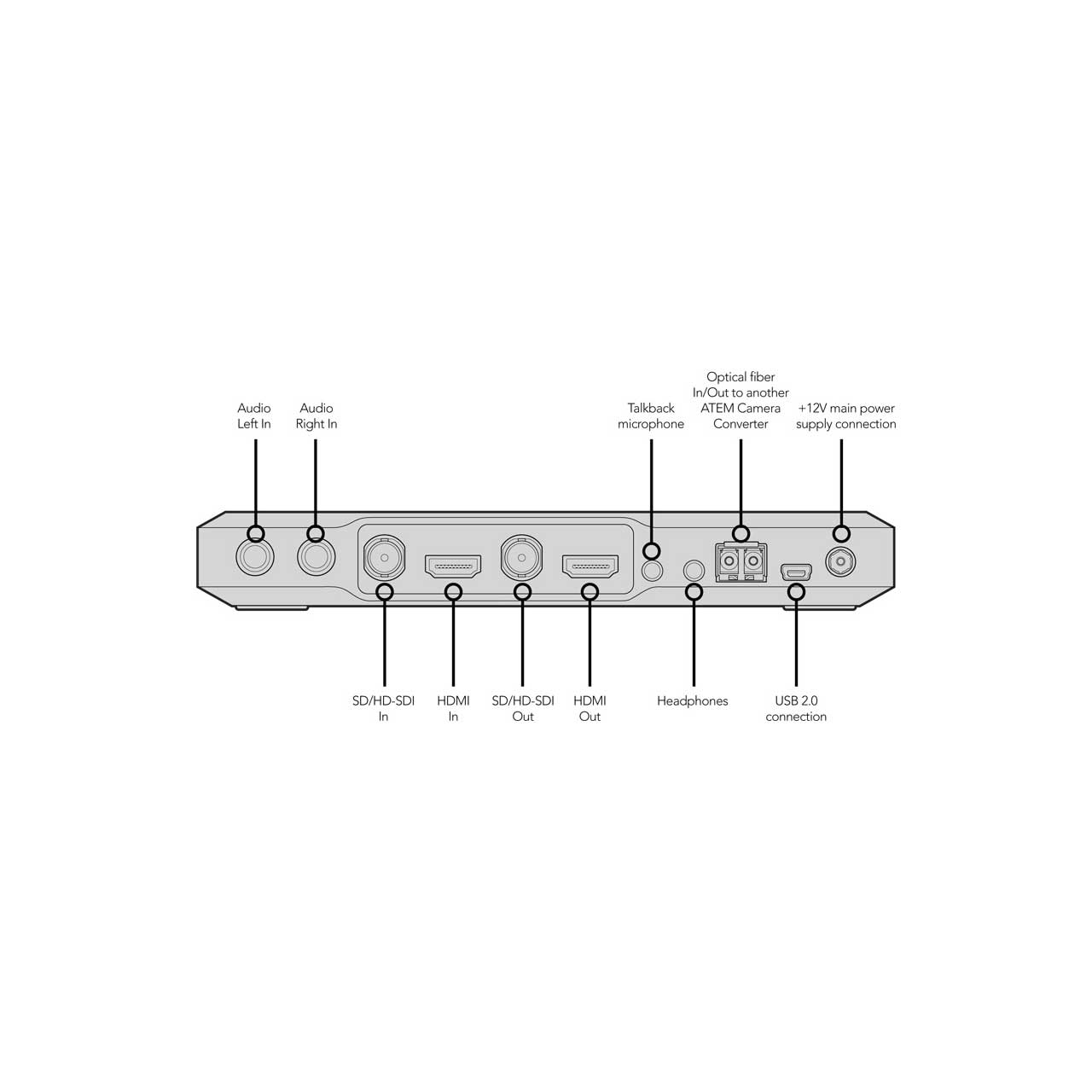

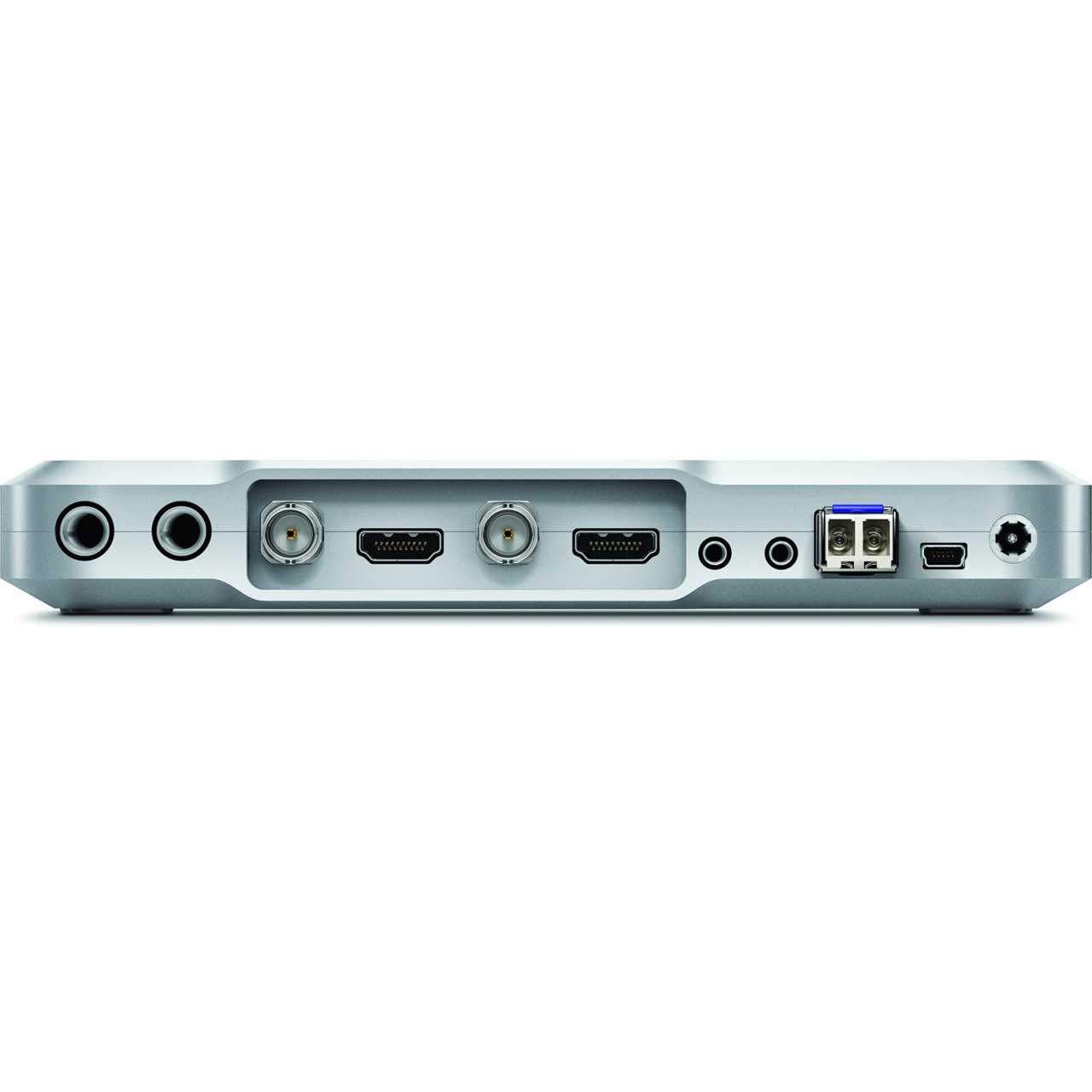

  • Connections
  • SDI Video Input: 1 x 10 bit SD/HD switchable
  • SDI Video Output: 1 x 10 bit SD/HD switchable
  • HDMI Video Input: 1 x HDMI type A connector
  • HDMI Video Output: 1 x HDMI type A connector
  • Optical Fiber Video Input: 1 x single mode SD/HD switchable with LC connector.
  • Optical Fiber Video Output: 1 x single mode SD/HD switchable with LC connector.
  • Analog Audio: 2 x balanced 1/4" TRS connectors (stereo) microphone level in. When connected, replaces audio from SDI In or HDMI In. 1 x 3.5mm stereo connector for talkback microphone. 1 x 3.5mm stereo connector for stereo headphones (compatible with iPhone compatible headsets).
  • Computer Interface: 1 x mini-B type USB 2.0 connector for initial setup, firmware updates and Converter Utility software control.
    Standards
  • SDI Compliance: SMPTE 259M, SMPTE 292M
  • Video Sampling: 4:2:2
  • Audio Sampling: Television standard sample rate of 48Khz, 24 bit A/D conversion
  • Color Precision: 10 bit
  • Color Space: REC 601, REC 709
  • Multiple Rate support: SDI and HDMI switches between SD and HD
    Extras
  • Software Included: Converter Utility
  • Firmware Upgrade: Firmware built into software driver. Loaded at system startup or via updater software
  • Operating System Compatibility: Microsoft Windows 7 and Apple Mac OS X
  • Power Supply: 12V power supply included with international socket adaptors for all countries
  • Product Warranty: 12 Months Limited Manufacturer's Warranty


• GTIN:

  9338716001310
