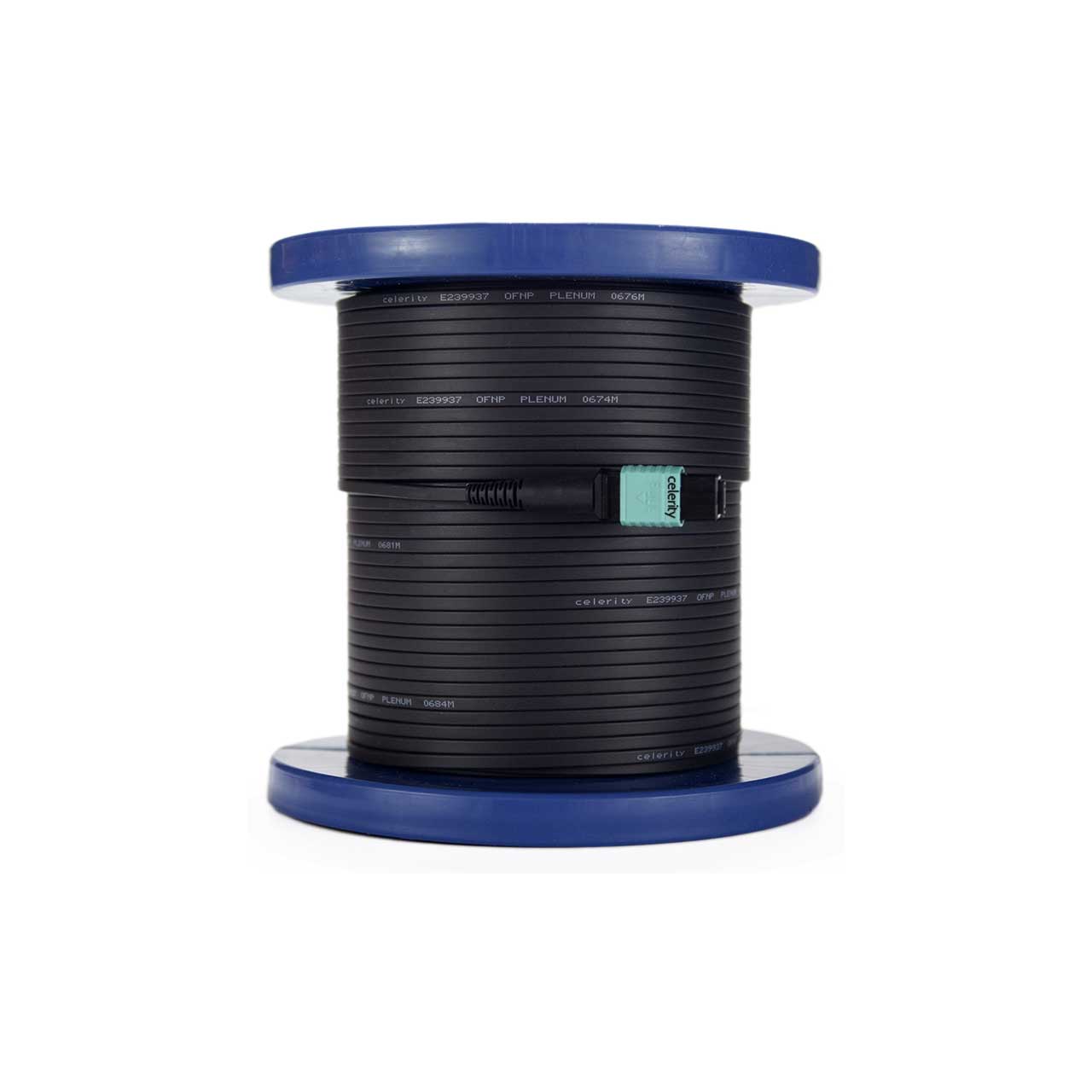

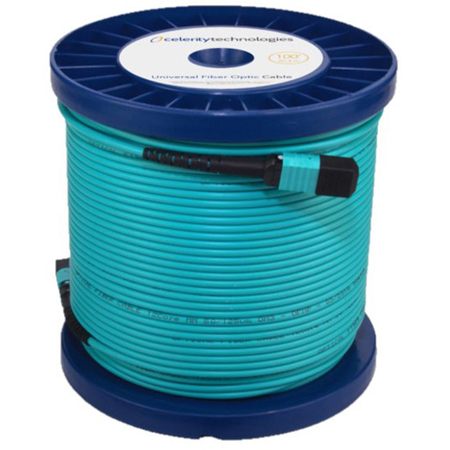

Celerity UFO-CABLE-1000P Universal Fiber Optic Extension Cable - 1000 Feet

ITEM #: UFO-CABLE-1000P MFG #: UFO-CABLE-1000P

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$910.00

Our Price:

$569.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


UFO-CABLE-1000P - Overview

Bi-Directional Cable
The Celerity UFO cable may be installed from any location between a source and display without the burden of ensuring the cable is in the correct direction. Celerity UFO is designed that each end of the UFO fiber cable acts as a precision optical pathway. Once the Celerity UFO cable has been installed the UFO cable is ready for source and display connections.

Celerity Fiber Optic cables are slim, easy to install, support HDMI 2.0, and DisplayPort 1.4. Our technology application over fiber optics makes this possible and provides for a higher performance connection than copper cables. There is no loss of signal over long distance and no EMI interference which makes Celerity the best choice for point-to-point and distributed ultra high definition video connections.

Celerity Fiber Optic cables feature a detachable connector allowing the fiber optic plug on each end of the fiber optic cable to be very small and easy to prewire through conduit and other concealed spaces.

All Celerity Fiber Optic cables are plenum rated with a bend radius of 5mm for durability and flexibility and available in finished lengths from 35' to 1000' and custom special-order 50' increments between 200' and 1000'.

It is recommended that Celerity Universal Fiber Optic Cable be ordered directly from Celerity for use with Celerity Connectors or accessories. MPO multi-mode compatible fiber optic cables (12 strand Type-A) from 3rd party manufacturers may also work with Celerity Connectors.

  • Features:

    • UFO Protective Caps: Celerity UFO cables and connectors are terminated with a precision optical lens that must be kept free from dust and debris. Each of these optical lenses are protected by a rubber cap that remains in place until the UFO cables are joined. The UFO Coupler then provides protection for the life of the cable connection.
    • UFO Couplers: Each Celerity UFO cables include a pair of locking couplers that have been designed to ensure correct optical alignment between the UFO cable and the UFO TX and RX connectors.
    • 5V Power: HDMI source components (TX) supply 5V power. Celerity UFO takes advantage of this feature to draw power for the source UFO TX connector. A blue LED on the HDMI connector confirms power. In rare instances, a source component may not provide this signal. For this condition, Celerity provides a hard- wired USB cable to draw power externally when necessary.
    • Plenum Cable Jacket: Celerity Fiber Optic Cable is plenum rated and UL certified as Optical Fiber Non-Conductive Plenum (OFNP).
    • HDMI 2.0, HDCP 2.3, and HDR: Celerity Fiber Optic HDMI supports HDMI 2.0, HDCP 2.3 and HDR.
    • HDMI Data Support: Celerity Fiber Optic HDMI supports Display Data Channel (DDC), High Bandwidth Digital Content Protection (HDCP) and Extended Display Information Data (EDID). Hot Plug is also supported.

  • Specifications:

    • Data rate: Up to 18 Gbps
    • Resolution: Up to 4K@60Hz
    • Supported Features: HDMI High Speed, HDCP 1.4/2.2/2.3, HDR, CEC, Up to 4:4:4 color sampling
    • Audio Return Channel
    • LED Status Indicator at T & R HDMI connectors, powered LED verifies connectivity
    • Power T: 0.5W R: 0.5W; 5V DC
    • Temperature: -4° to 158°F (-20° to 70°C)
    • Humidity: 0 to 90% RH
    • Fiber Optic Cable Pull Strength: 60 pounds
    • UFO Cable Length: 1000'

  • Item Includes:

    • 1x Universal Fiber Optic Extension Cable - 1000 Feet

  • GTIN:

    6971254820475
