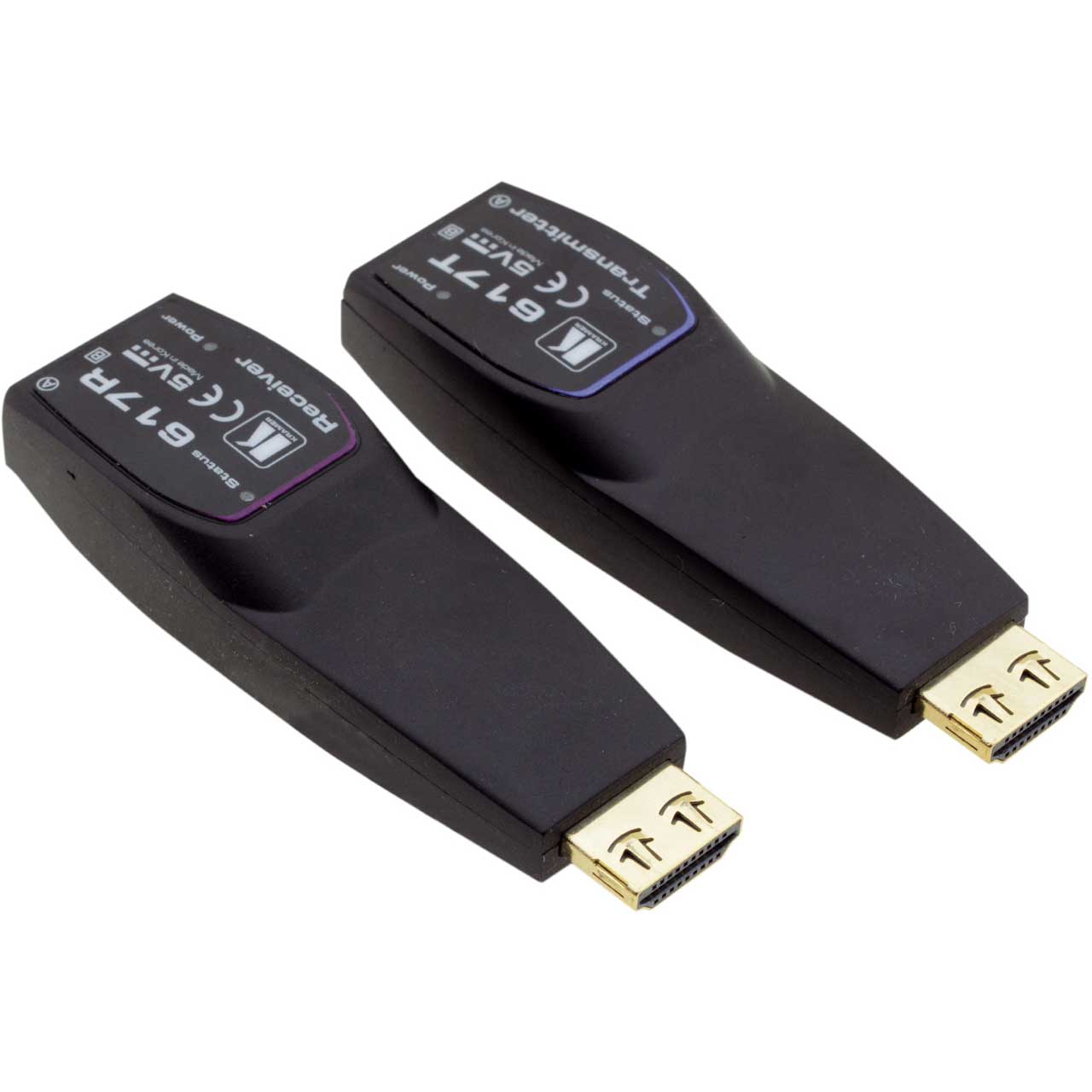

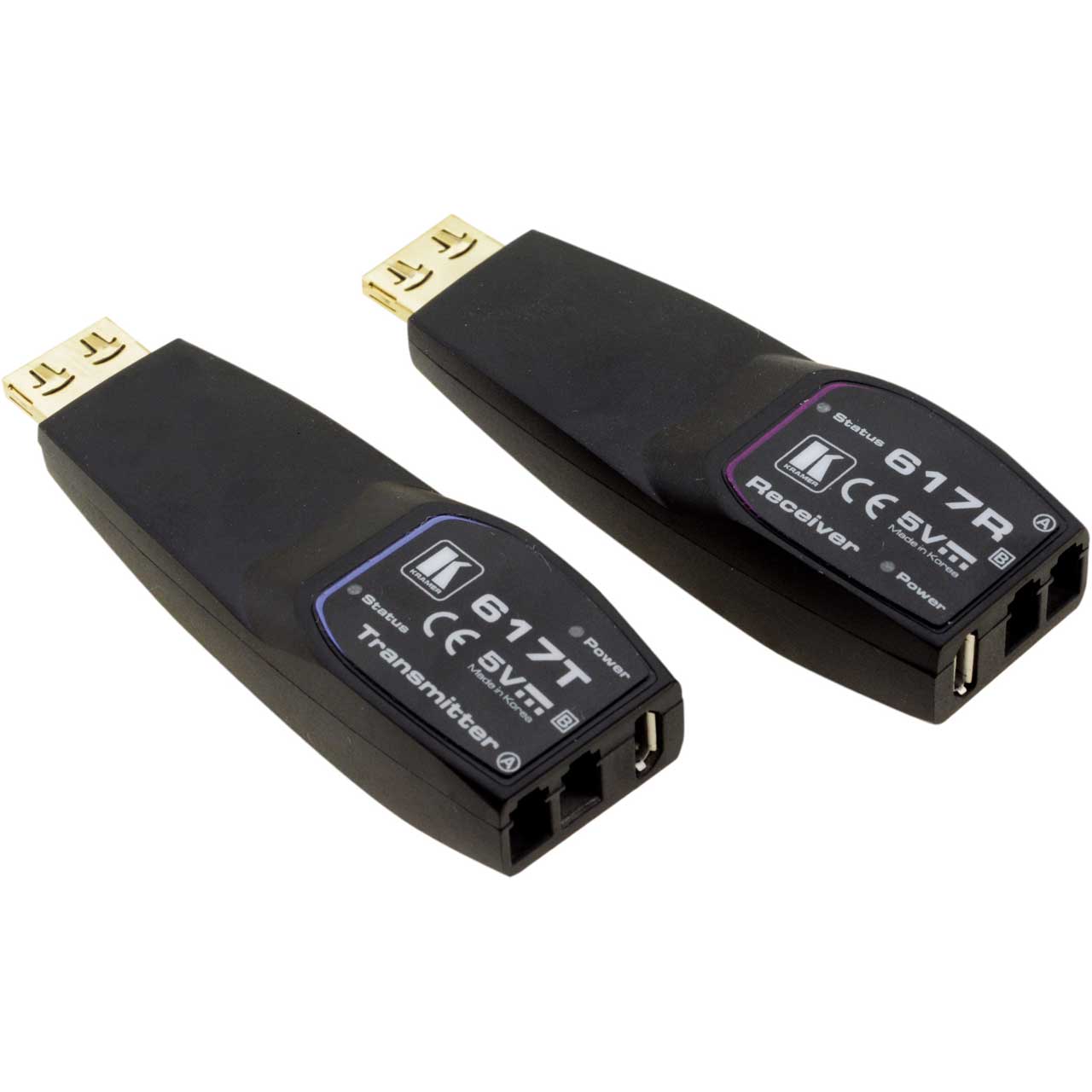

Kramer 617R/T 4K HDR HDMI Transmitter and Receiver over Extended-Reach Dual LC MM Fiber Optic

617R-T - Overview

Max. Resolution - 4K@60(4:4:4)

• Features:

  • Max. Resolution - 4K@60(4:4:4).
  • Max. Data Rate - 18Gbps.
  • HDMI Support - HDCP 2.2, EDID and CEC. 18Gbps, 3D content transmission, and HDR10 as specified in HDMI 2.0.
  • High Quality Connectors - 24K gold-plated and corrosion-resistant for the best possible connectivity.
  • K-Lock Pull-Resistant Connectors - Provides 15 pounds of restraining force for a non-slip connection.

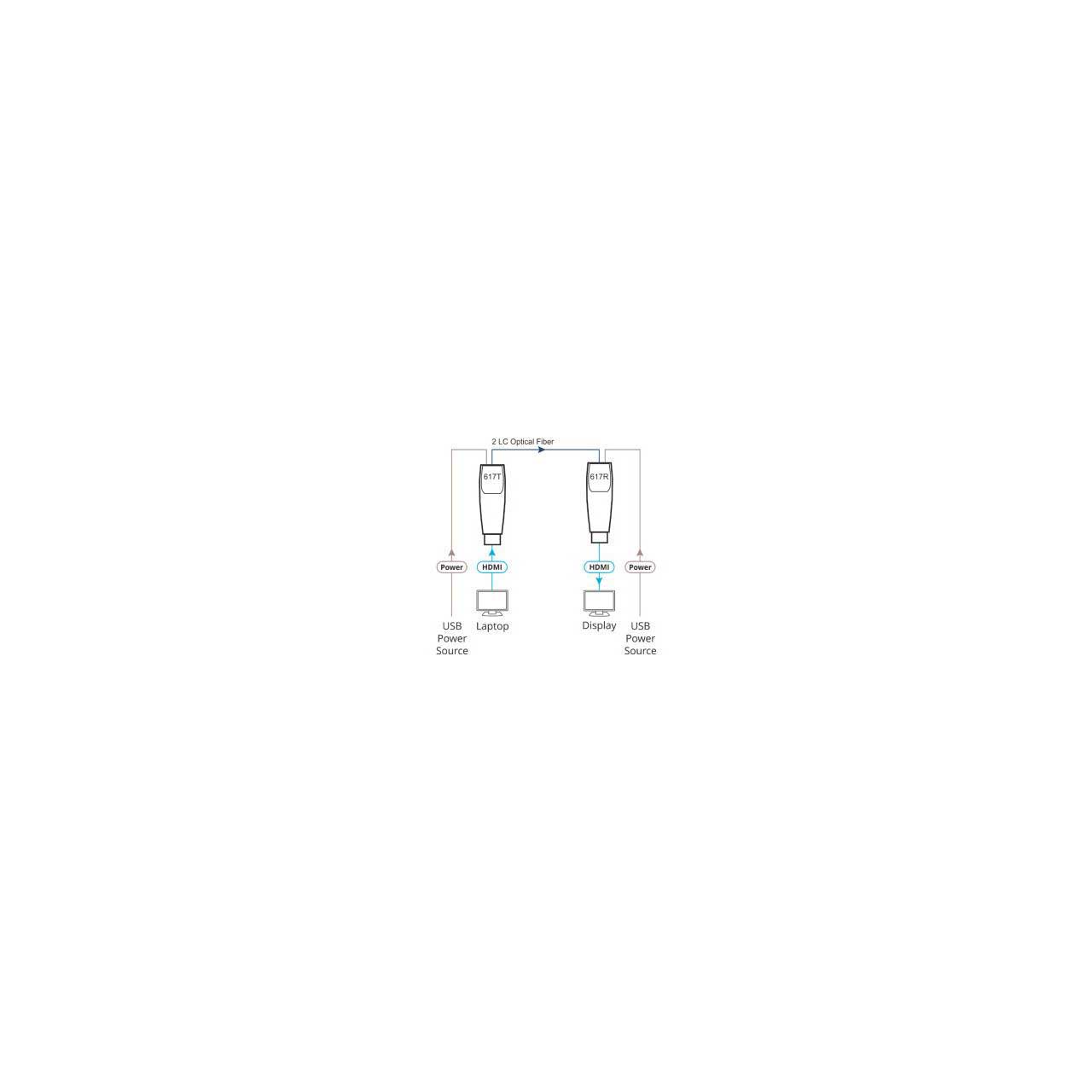

  • Max. Extension - 656ft (200m) over dual LC multi-mode OM3 fiber optic cable.
  • Compact Design - For easy plug and play installation.
  • Pure fiber connectivity for secure applications.


• Specifications:

  • VIDEO
  • Max. Resolution: 4K @60Hz 4:4:4 (4096x2160)
  • Data Rate: Maximum 6 Gbps per channel
  • Compliance: Supports HDMI 2.0, HDCP 2.2, EDID and CEC


  • PORTS
  • 617T (source end): Male HDMI connector
  • 617R (display end): Male HDMI connector
  • 617T (source end): Micro USB (for power supply)
  • 617R (display end): Micro USB (for power supply)


  • POWER
  • 5V: Via USB source, Via external source, or HDMI PIN #18 (617T only)
  • Consumption: <2.5W


  • RECOMMENDED CABLE
  • Structure: Dual Multi-mode OM3 (50/125um) glass fiber
  • Optical Connectors: Duplex LC connectors
  • Max. Fiber Cable Attenuation (λ=850nm): 2.5dB/KM
  • Max. Skew: 0.4ns
  • Max. Insertion Attenuation: 0.5dB
  • Total Optical Attenuation: 1dB max @ 656ft (200m) extension
  • Maximum Length: 656ft (200m)


  • ENVIRONMENTAL CONDITIONS
  • Operating Temperature: 0° to +50°C (32° to 122°F)
  • Storage Temperature: -30° to +70°C (-22° to 158°F)
  • Operating Humidity: 0 to 85%


  • STANDARDS COMPLIANCE
  • CE: EN 55032:2012/AC: 2013 (Class A), EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010
  • FCC: CFR 47 part 15 SUBPART B Class B, Section 15.101
  • Environmental: RoHS (2011/65/ EU)


• Item Includes:

  • Kramer 617R/T 4K HDR HDMI Transmitter and Receiver Pair
  • Micro USB to USB type-A cables (2)
  • Wall-mount power adaptors (2)


• Warranty:

  • Standard one (1) year warranty


• GTIN:

  7291063086527
