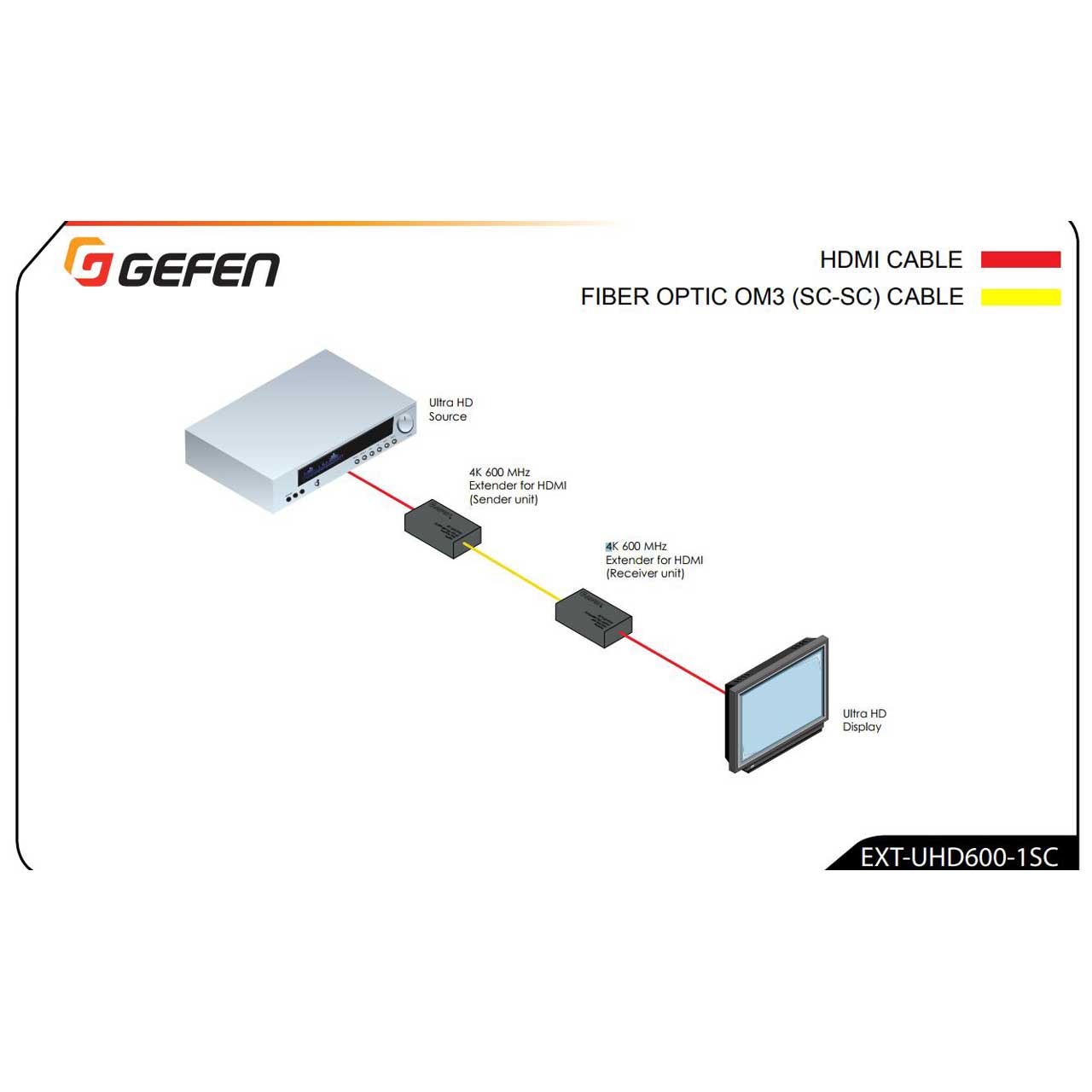

The EXT-UHD600-1SC is a compact, high-performance solution for extending uncompressed, full-bandwidth HDMI 2.0 audio and video with High Dynamic Range (HDR) up to 200 meters (656 Feet) over a single strand of SC-terminated multimode fiber-optic cable.
The new 4K Ultra HD 600 MHz Extender for HDMI over one Fiber-Optic Cable supports 18.2 Gbps of bandwidth and 600 MHz TMDS Clock frequency, the highest specified under the HDMI 2.0 standard. Full bandwidth support allows the EXT-UHD600-1SC to accommodate resolutions up to 4K Cinema-DCI (4096 x 2160 up to 60 Hz 4:4:4), and 4K Ultra HD (3860 x 2160 up to 60 Hz, 4:4:4) along with High Dynamic Range HDR-10 and Dolby VisionT. HDCP 2.2 and the legacy HDCP 1.4 are both supported. The EXT-UHD600-1SC also supports 1080p Full HD, WUXGA (1920 x 1200), 3DTV, and Deep Color (up to 1080p resolution).
Highest performance multichannel digital audio, including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats, such as Dolby Atmos, Dolby TrueHD, DTS:XTM, and DTS-HD Master AudioTM, are passed through to the HDMI outputs.

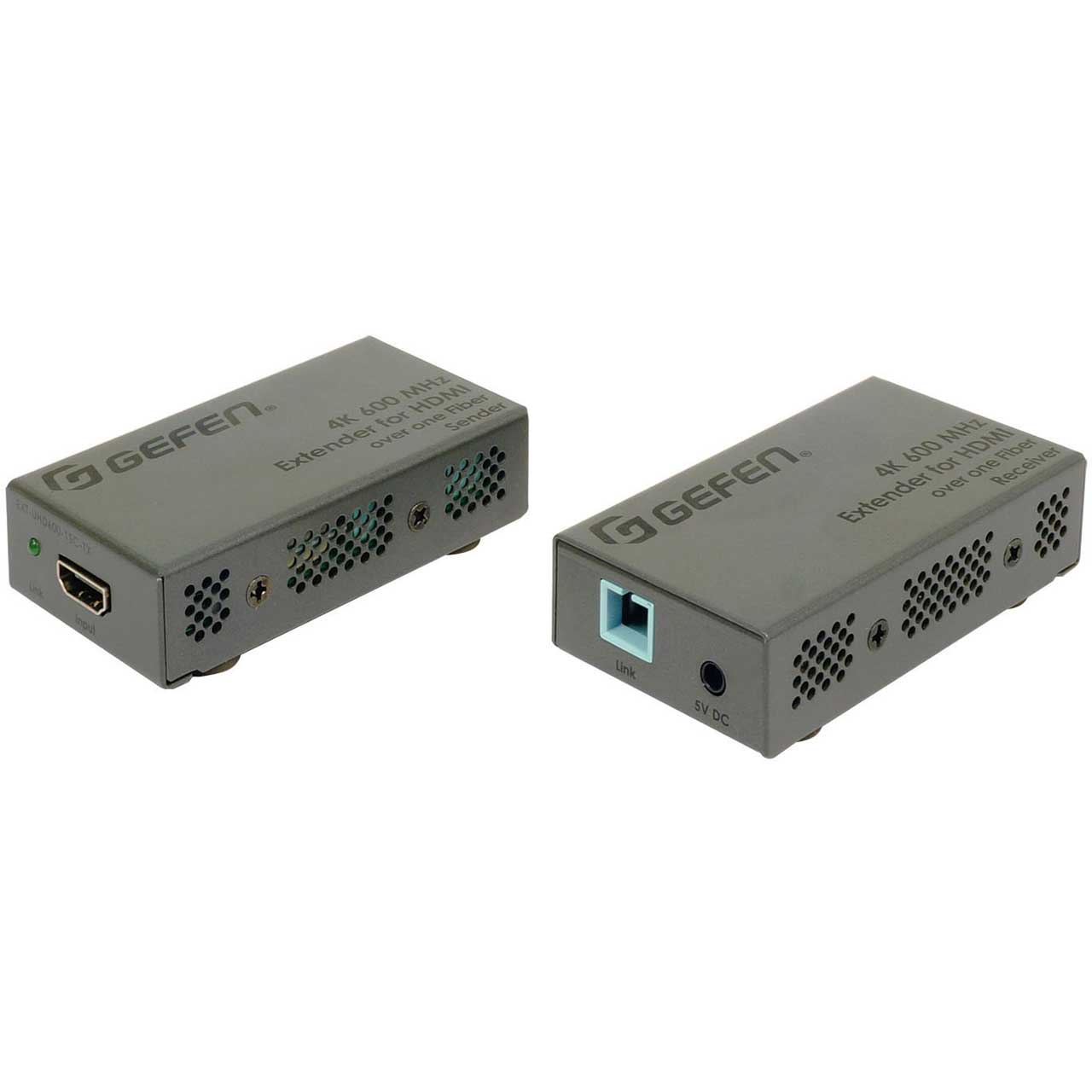

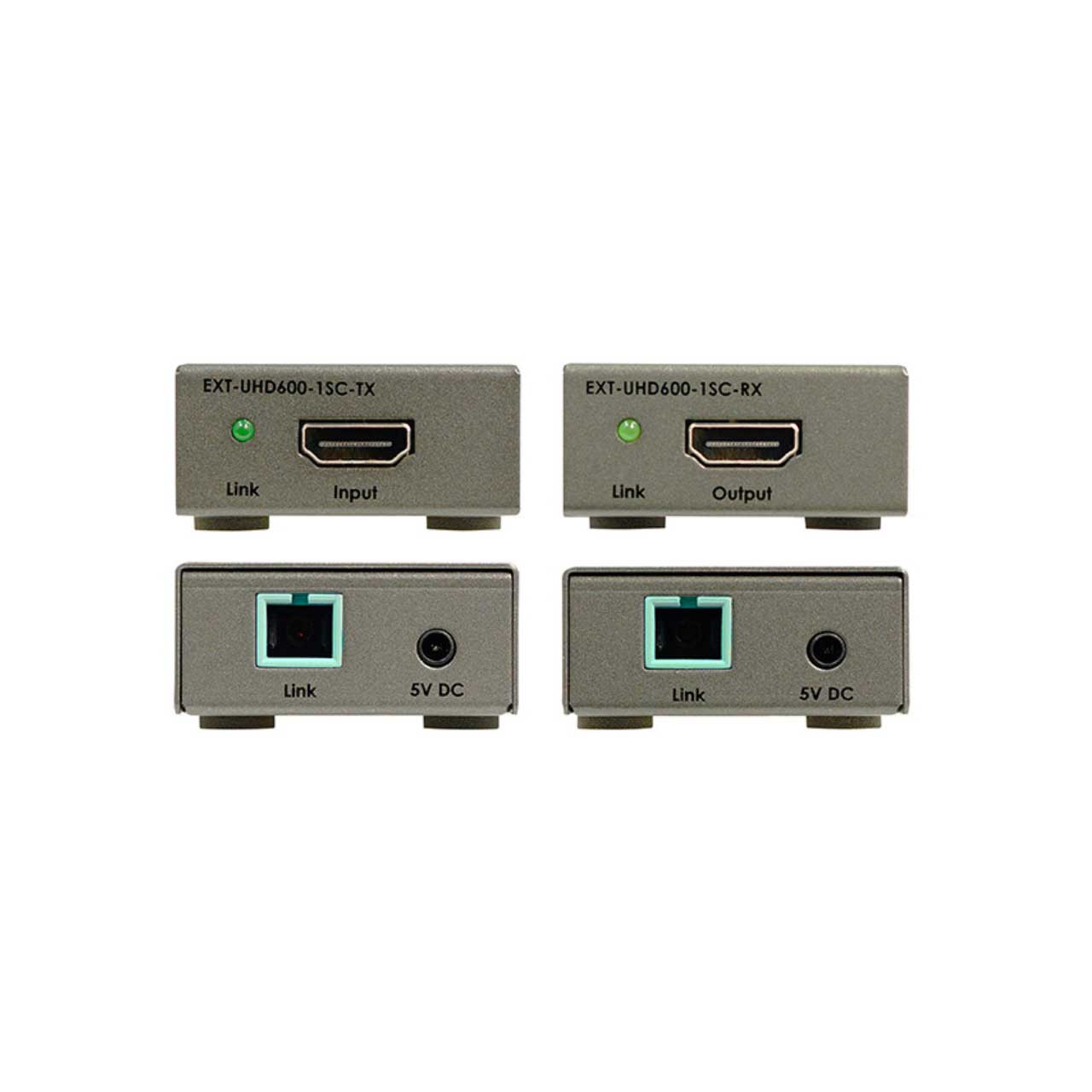

The EXT-UHD600-1SC guarantees electrical isolation between the Sender and the Receiver, meeting the stringent safety and EMC requirements for critical applications. This extender can be powered from sources and displays featuring powered USB ports, or by using external power supplies. The Sender and Receiver are plug-and-play, and work without any set-up. Compact enclosures are easy to install and can be hidden away. Their sturdy metal enclosures help provide further immunity against Electro-Magnetic Interference (EMI) and radiated noise (RFI).
