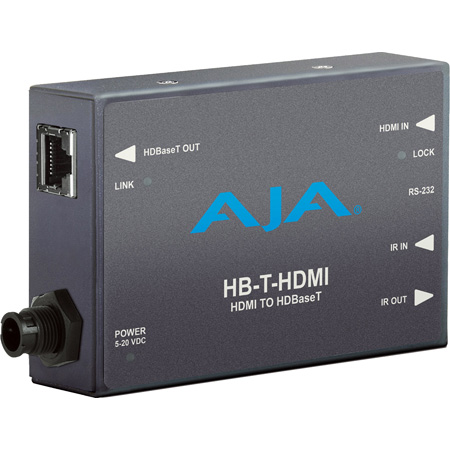

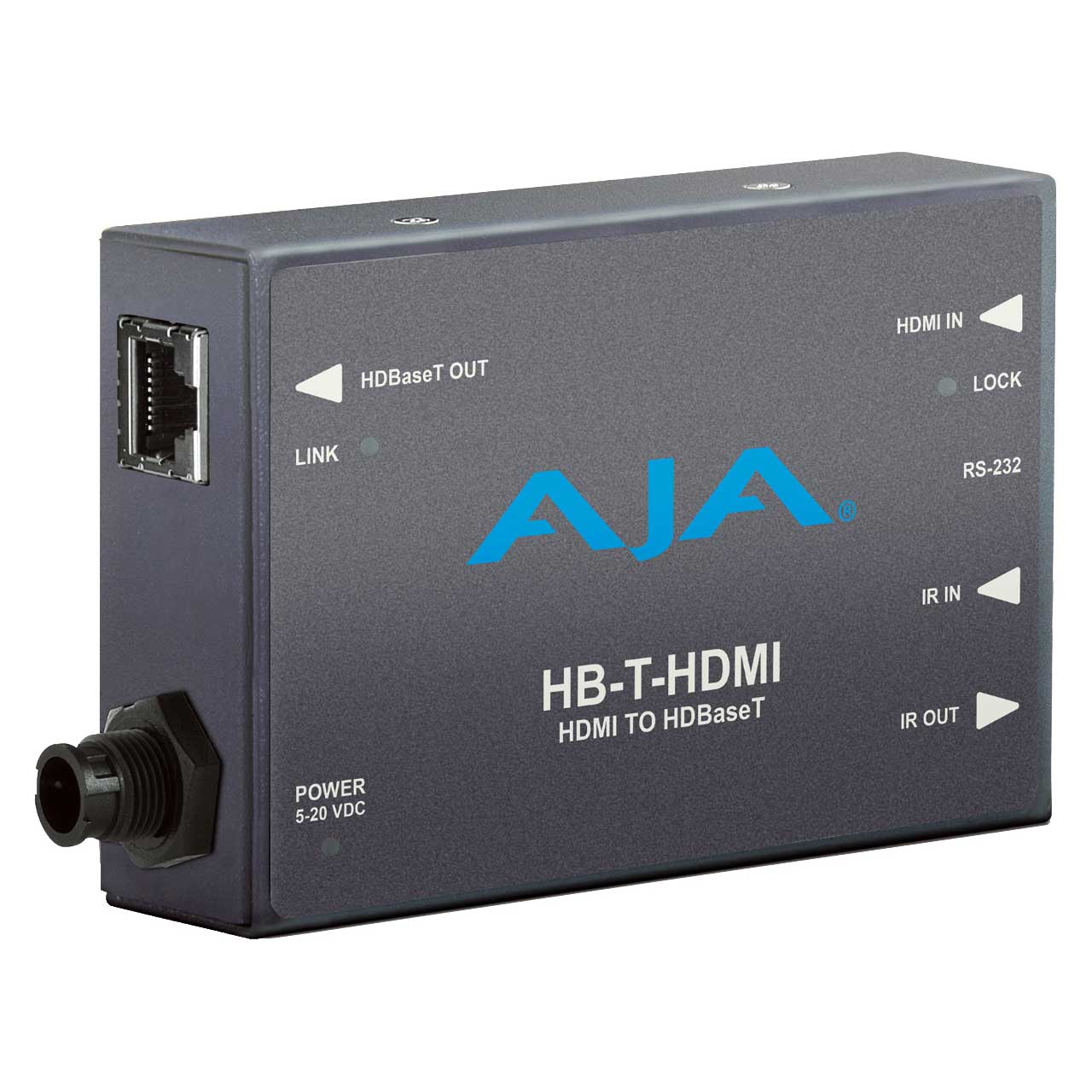

AJA HB-T-HDMI 4K HDMI to HDBaseT Transmitter/Mini-Converter

ITEM #: AJA-HB-T-HDMI MFG #: HB-T-HDMI

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AJA-HB-T-HDMI

HB-T-HDMI - Overview

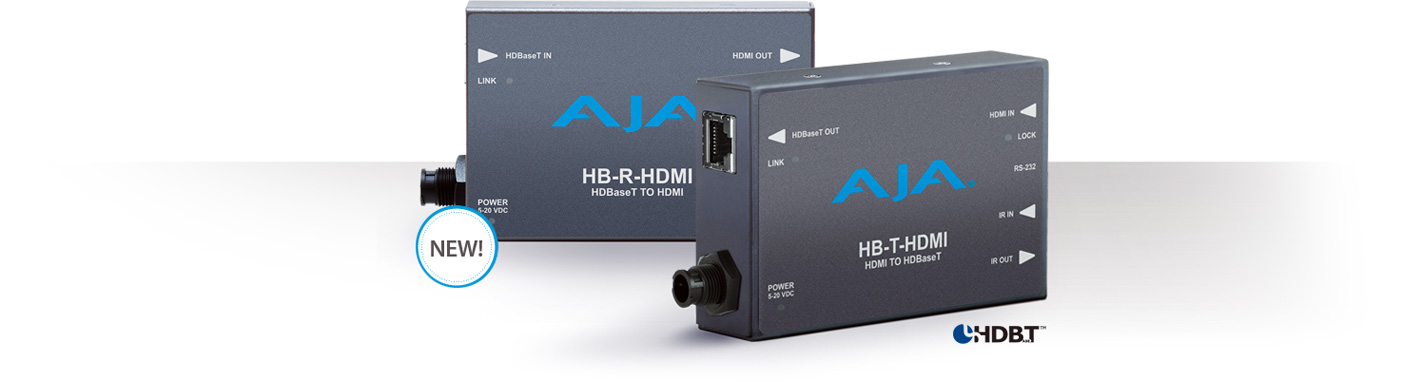

The AJA HB-T-HDMI is a HDMI to HDBaseT Transmitter Mini-Converter that teams up with the HB-R-HDMI Receiver to offer an easy solution for extending UltraHD or HD HDMI signals over existing Cat5 or better cable. Utilizing industry standard HDBaseT protocol you get Bi-directional IR and RS-232 for device control. That makes these Mini-Converters ideal for fixed installation AV, digital signage, live events, post production/network/studio environments and on set.

  • Features:

    • HDBaseT certified 4K/UltraHD signal extender
    • Converts UltraHD, 4K or HD HDMI to HDBaseT
    • Extend uncompressed 4K or HD HDMI signal up to 100m over Cat 5 (or better) cable
    • Wide support for VESA (Computer) formats and DVI compatibility (with adapter)
    • IR IN and OUT
    • RS-232 device control connection


  • Specifications:

    • Video Formats
    • (4K) 4096 x 2160P 50, 59.94, 60 (8-bit 4:2:0)
    • (4K) 4096 x 2160P 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840 x 2160P 50, 59.94, 60 (8-bit 4:2:0)
    • (UltraHD) 3840 x 2160P 23.98, 24, 25, 29.97, 30
    • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1080p 23.98, 24, 25, 29.97, 50, 59.94, 60
    • (HD) 1080i 25, 29.97
    • (HD) 720p 25, 29.97, 50, 59.94, 60
    • (SD) 625i
    • (SD) 525i
    • Note: Wide range of VESA formats supported for pass through see associated chart on VESA formats

      Video Input
    • HDMI 1.4b

      Video Output
    • HDBaseT (RJ-45)
    • CAT 5e 70m (230 ft) or CAT 6a 100m (328 ft)
    • 4K/UltraHD signals require Cat 6a to achieve 100m cable run (HD signals can run the full 100m on Category 5e cable)

      Video Formats
    • (4K) 4096 x 2160P 50, 59.94, 60 (8-bit 4:2:0)
    • (4K) 4096 x 2160P 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840 x 2160P 50, 59.94, 60 (8-bit 4:2:0)
    • (UltraHD) 3840 x 2160P 23.98, 24, 25, 29.97, 30
    • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1080p 23.98, 24, 25, 29.97, 50, 59.94, 60
    • (HD) 1080i 25, 29.97
    • (HD) 720p 25, 29.97, 50, 59.94, 60
    • (SD) 625i
    • (SD) 525i
    • Note: Wide range of VESA formats supported for pass through see associated chart on VESA formats

      Video Input
    • HDMI 1.4b

      Audio Input
    • 8-channels (4 pairs) of embedded audio supported
    • Rates supported: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz

      Audio Output
    • HDBaseT embedded audio

      RS-232
    • 1 x 3.5mm TRS Input for RS-232/VISCA bidirectional signals

      IR
    • 1 x 3.5mm TRS Input for IR Input
    • 1 x 3.5mm TRS Input for IR Output

      Size (w x d x h)
    • 4.25" x 3.125" x 1.0" (108mm x 79.4mm x 25mm)

      Weight
    • 0.4 lbs (0.2 kg)

      Power
    • +5 to 20V DC regulated, 6 watts max., AJA external power supply model DWP-U-R1, 100-240V, 50/60 Hz universal input


  • Item Includes:

    • All AJA Mini-Converters ship with a Universal Power Supply that includes international plug connections for use around the world.


  • Warranty:

    • 5-year warranty


  • GTIN:

    0892448000175
