Wallplate Transmitter for USB-C®

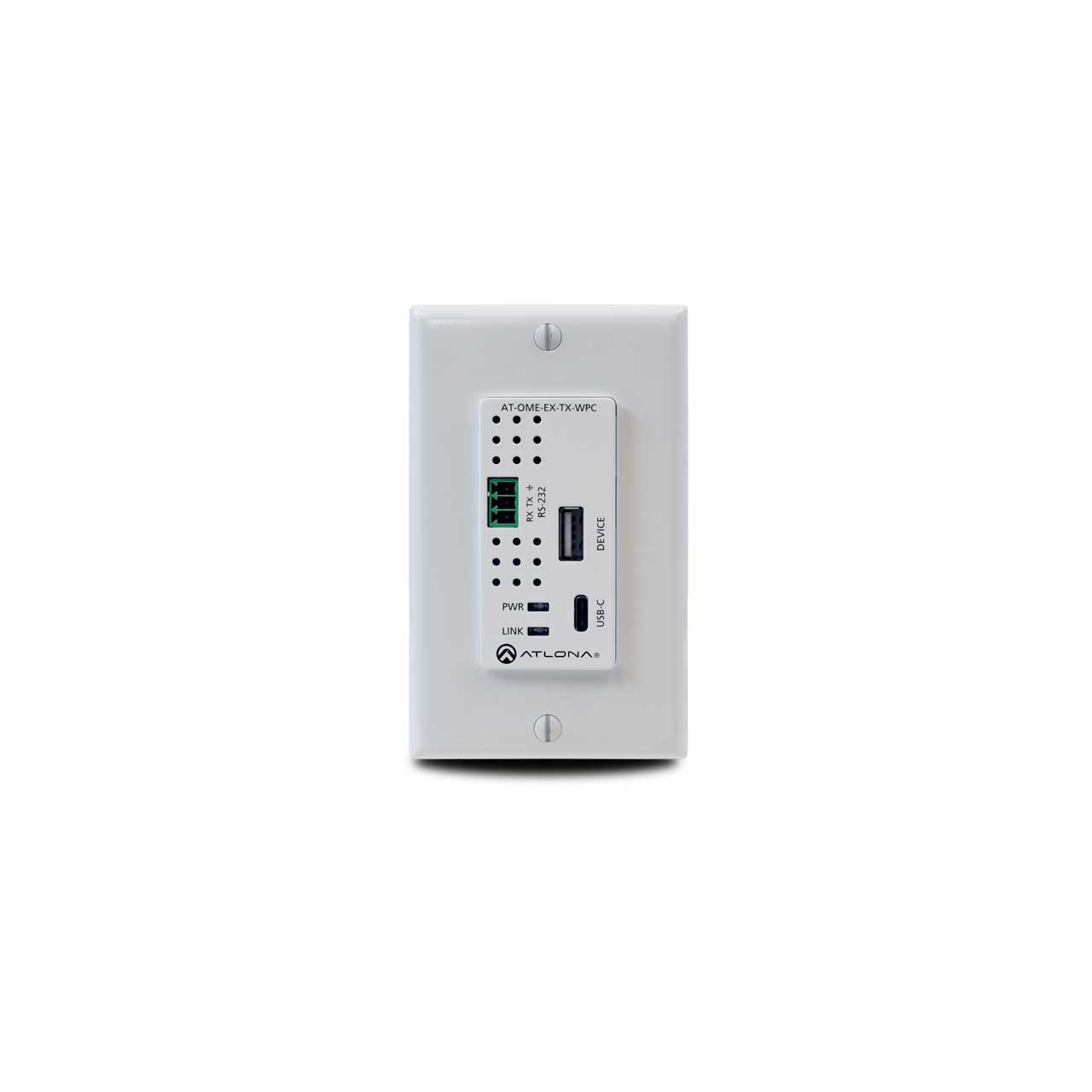

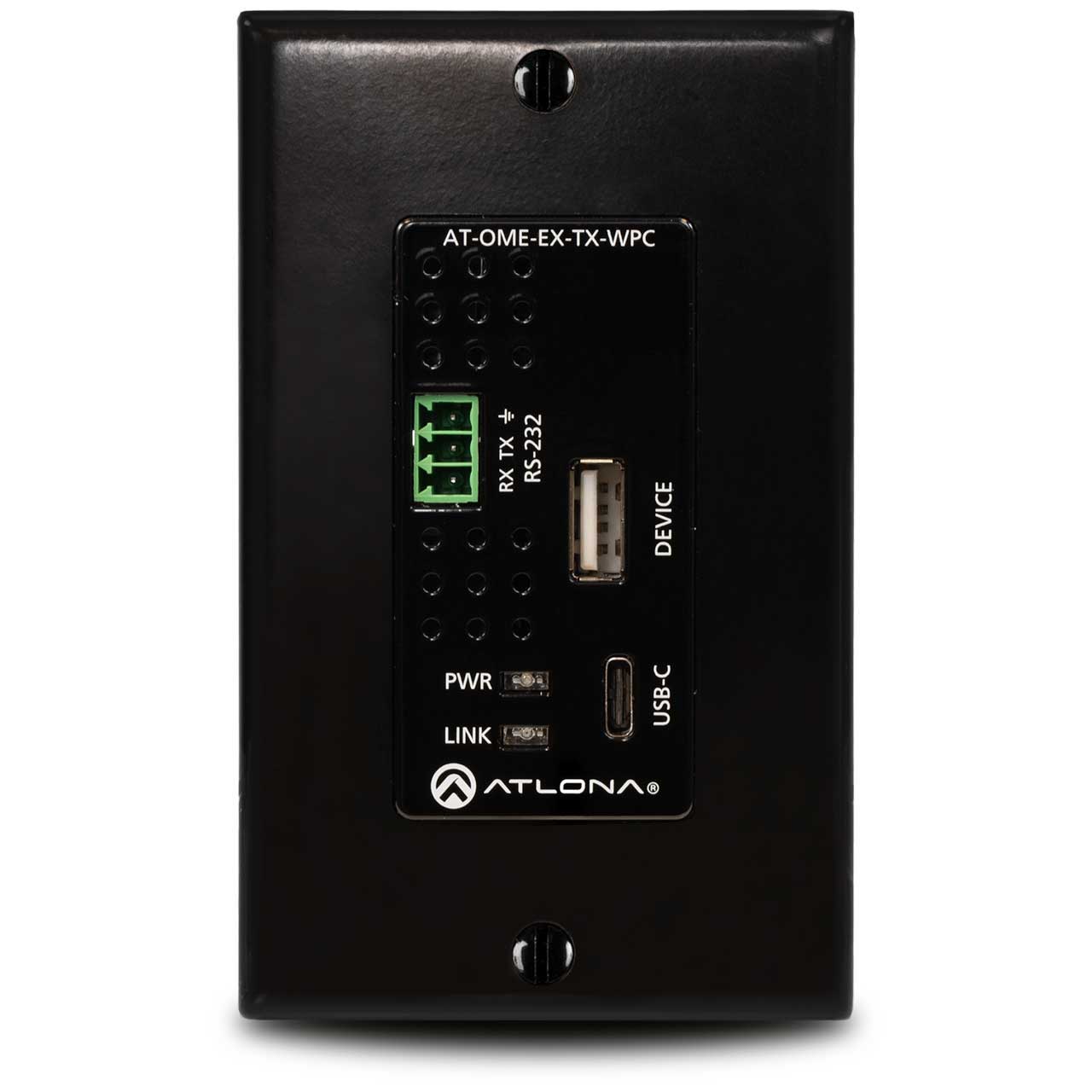

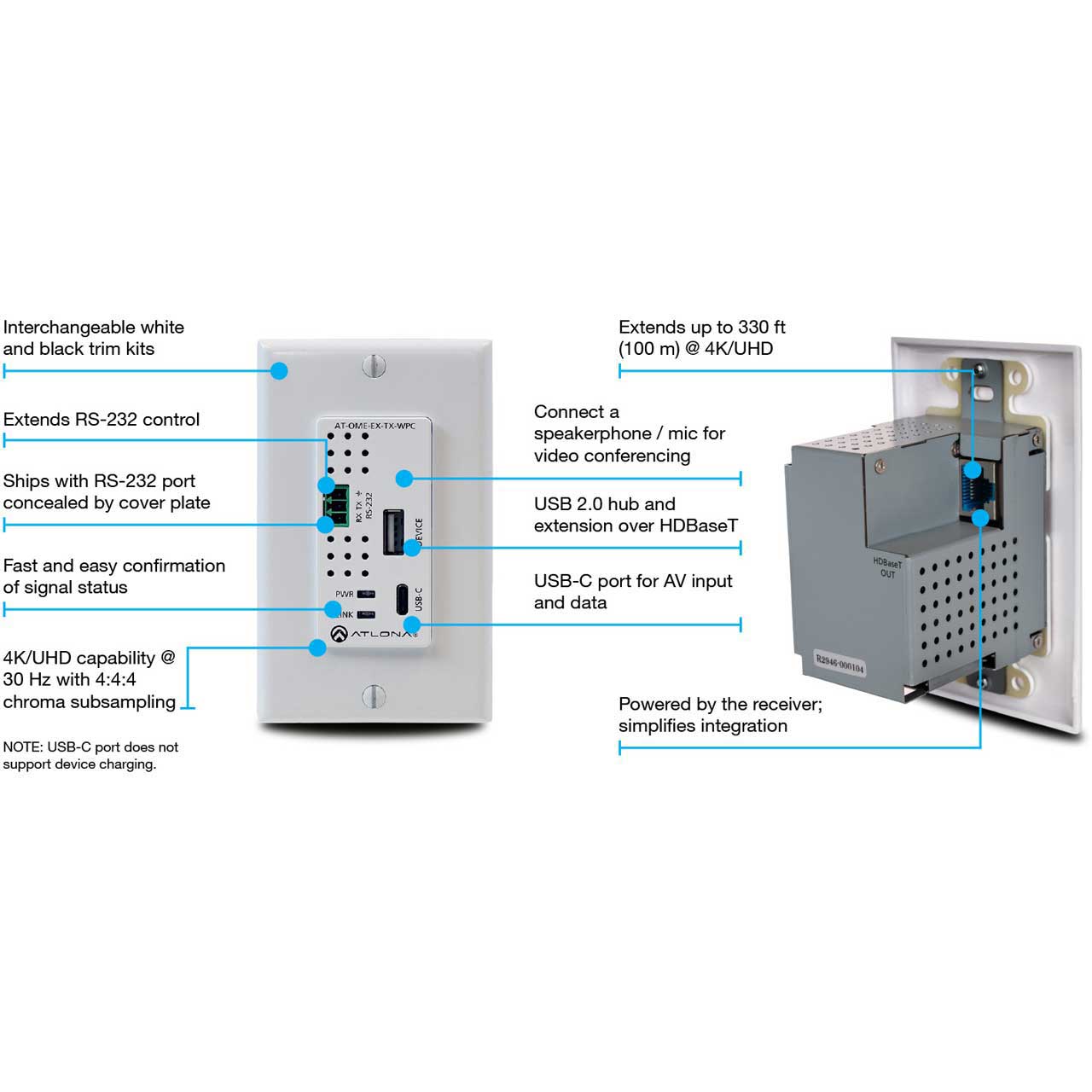

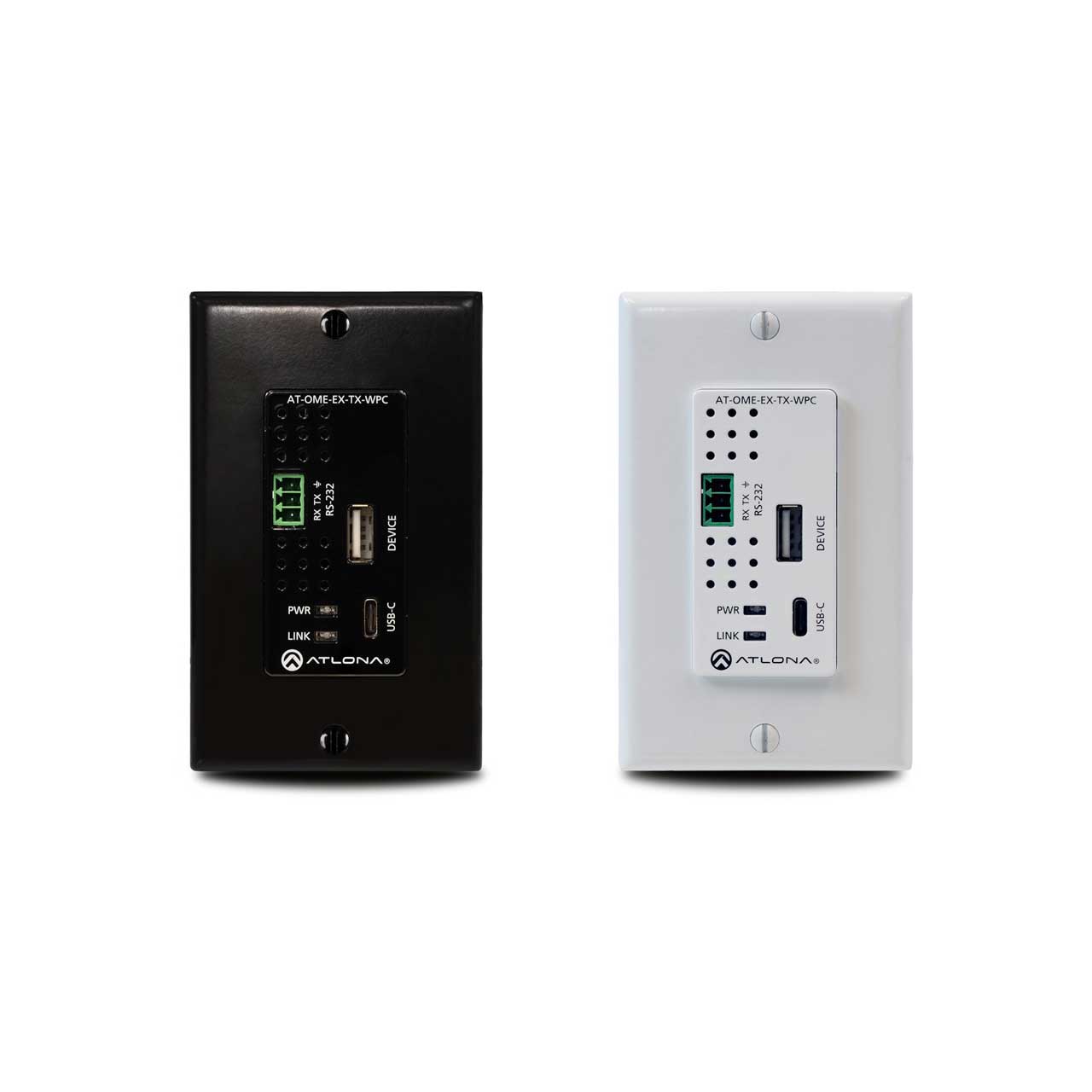

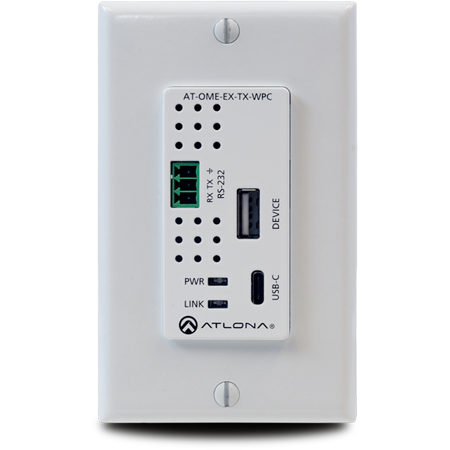

The Atlona AT-OME-EX-TX-WPC is an HDBaseT transmitter with USB-C input. It sends video up to 4K/30 4:4:4, plus embedded audio, control, and USB over distances up to 330 feet (100 meters). It features a US one-gang, wallplate form factor, and includes interchangeable black and white wallplates and faceplates. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-EX-TX-WPC is HDCP 2.2 compliant and extends RS-232 control signals. The USB-C input is ideal for AV interfacing with newer Mac®, Chromebook™, and Windows® PCs, as well as smartphones and tablets. With a matching HDBaseT receiver, the integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-EX-TX-WPC includes a PC host interface over USB-C, plus a USB 2.0 interface for a peripheral device such as a speakerphone, microphone, or keyboard and mouse. This transmitter is ideal for use with Omega Series receivers as well as switchers with HDBaseT inputs.
The OME-EX-TX-WPC incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation and video conferencing applications. The OME-EX-TX-WPC can be remotely powered by the OME-EX-RX, OME-SR21, OME-PS62, or other Omega Series receiver or switcher.
Applications

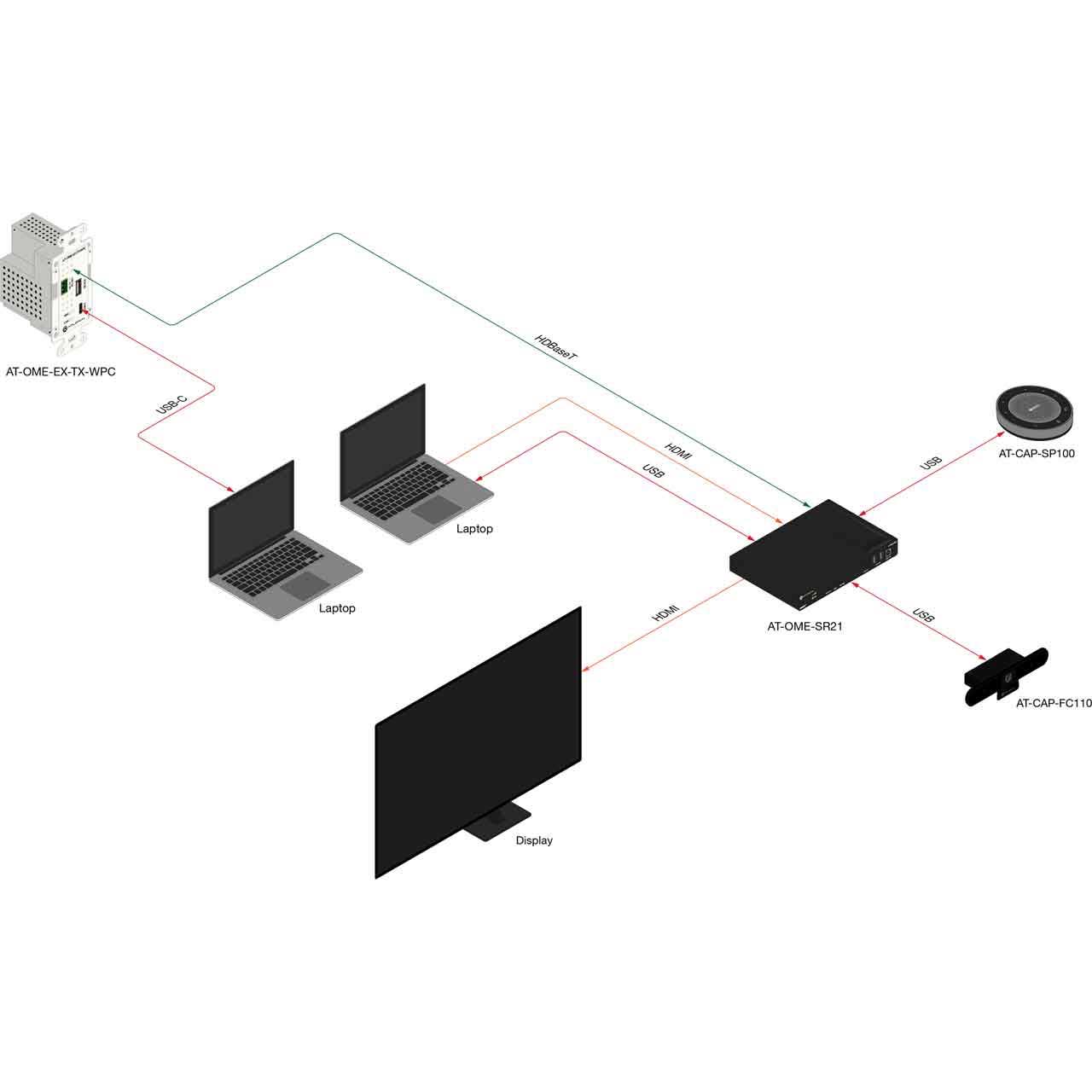

Complete system integration - The OME-EX-TX-WPC and OME-SR21 together provide a compact, yet comprehensive and cost-effective integration solution, with 4K scaling, display control, HDBaseT link testing, and audio system interfacing provided by the receiver.
Lecture hall and training room applications - This transmitter is ideal for extending AV connectivity from an OME-PS62 in a central equipment rack to lecterns as well as remote wall and floor box locations, where presenters can easily access the system.
Video conferencing - The OME-EX-TX-WPC and a compatible Omega Series receiver or switcher are ideal for soft codec and web-based conferencing applications, with the ability to integrate with PCs, cameras, speakerphones, and microphones.
Notes:
The OME-EX-TX-WPC is not compatible with the Atlona HDVS-300 system for USB extension.
USB-C port does not support device powering.
Maximum 120 Mbps data rate supported over HDBaseT.
