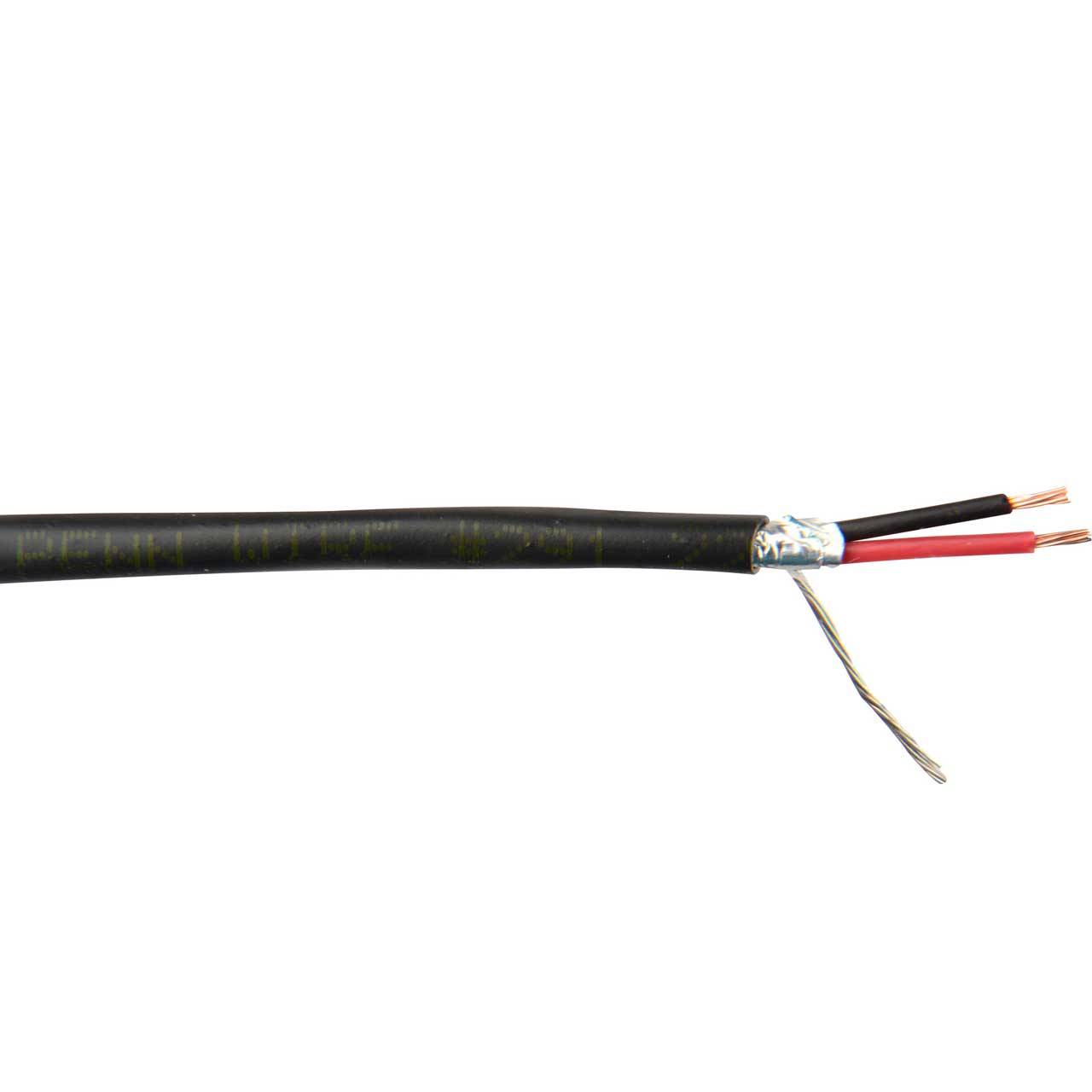

West Penn Wire 291 2 Conductor Shielded Mic/Low Voltage Communication and Control Cable 500 Foot Black Reel-In-Box

WP-291-500BK - Overview

• Specifications:

  • Construction Parameters:
  • Conductor 22 AWG Bare Copper
  • Stranding 7x30
  • Insulation Material Polypropylene
  • Insulation Thickness 0.007'' Nom.
  • Number of Conductors 2
  • Shield 100% Aluminum Polyester Foil
  • Drain Stranded Tinned Copper
  • Jacket Material PVC
  • Jacket Thickness 0.017'' Nom.
  • Overall Cable Diameter 0.127'' Nom.
  • Approximate Cable Weight 10.4 Lbs/1M' Nom.
  • Flame Rating UL 1666 Riser Flame Test


  • Electrical & Environmental Properties:
  • Temperature Rating -20°C To +60°C
  • Operating Voltage 300 V RMS
  • Max.Capacitance Between Conductors @ 1 KHz 34 pf/ft Nom.
  • Capacitance Between Conductors to Shield @ 1 KHz 67 pf/ft Nom.
  • DC Resistance per Conductor @ 20deg C 17 Ohms/1M' Nom.
  • Insulation Colors Black ,Red
  • Jacket Color Gray, Black, Green, Brown, Orange,
  • Red, Yellow, Violet, Blue
  • RoHS Compliant Yes


  • Mechanical Properties:
  • Max. Recommended Pull Tension 23.7 lbs.
  • Min. Bend Radius (Install) 1.3"


• GTIN:

  0612825051626
