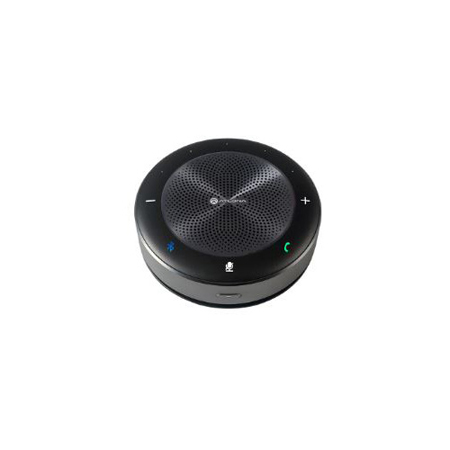

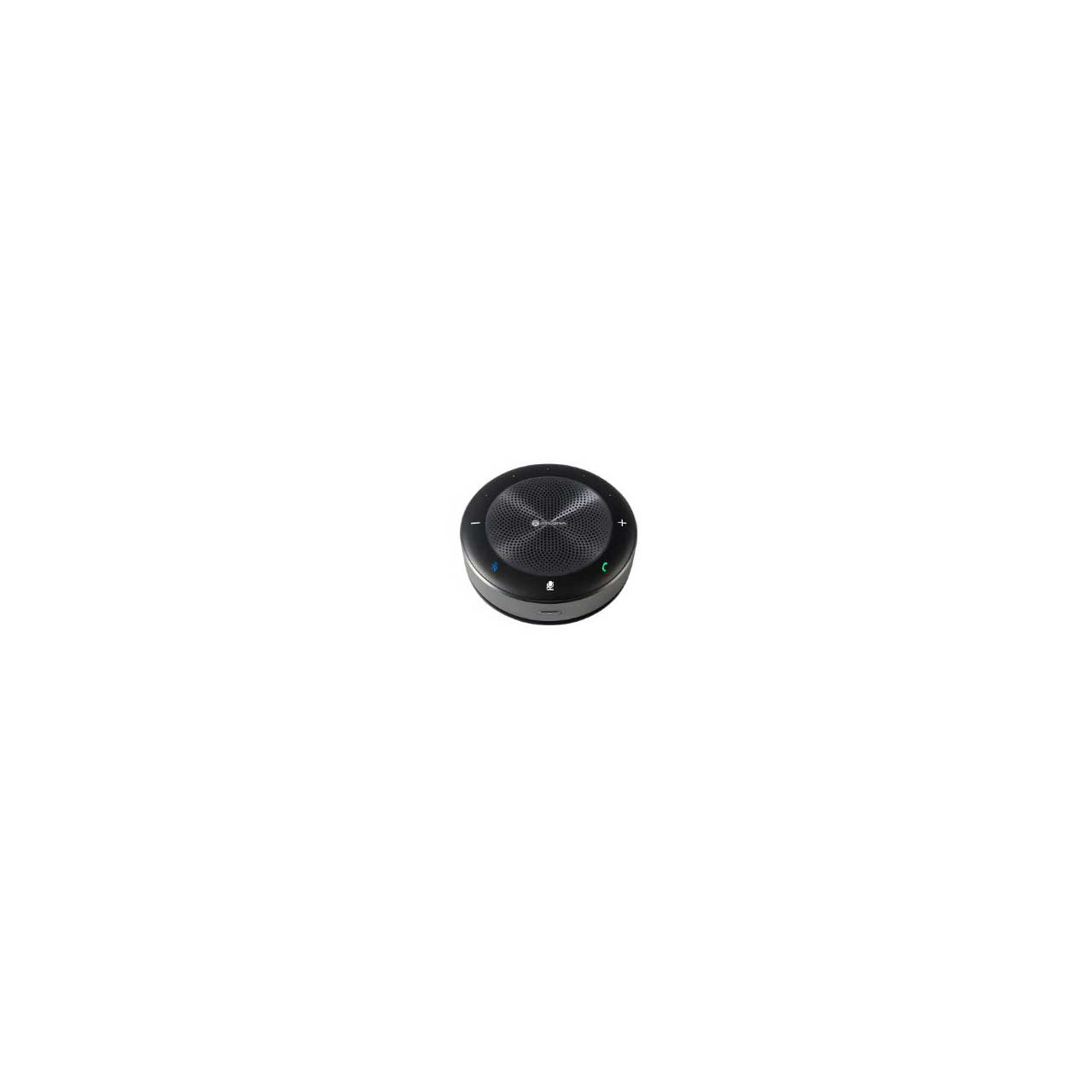

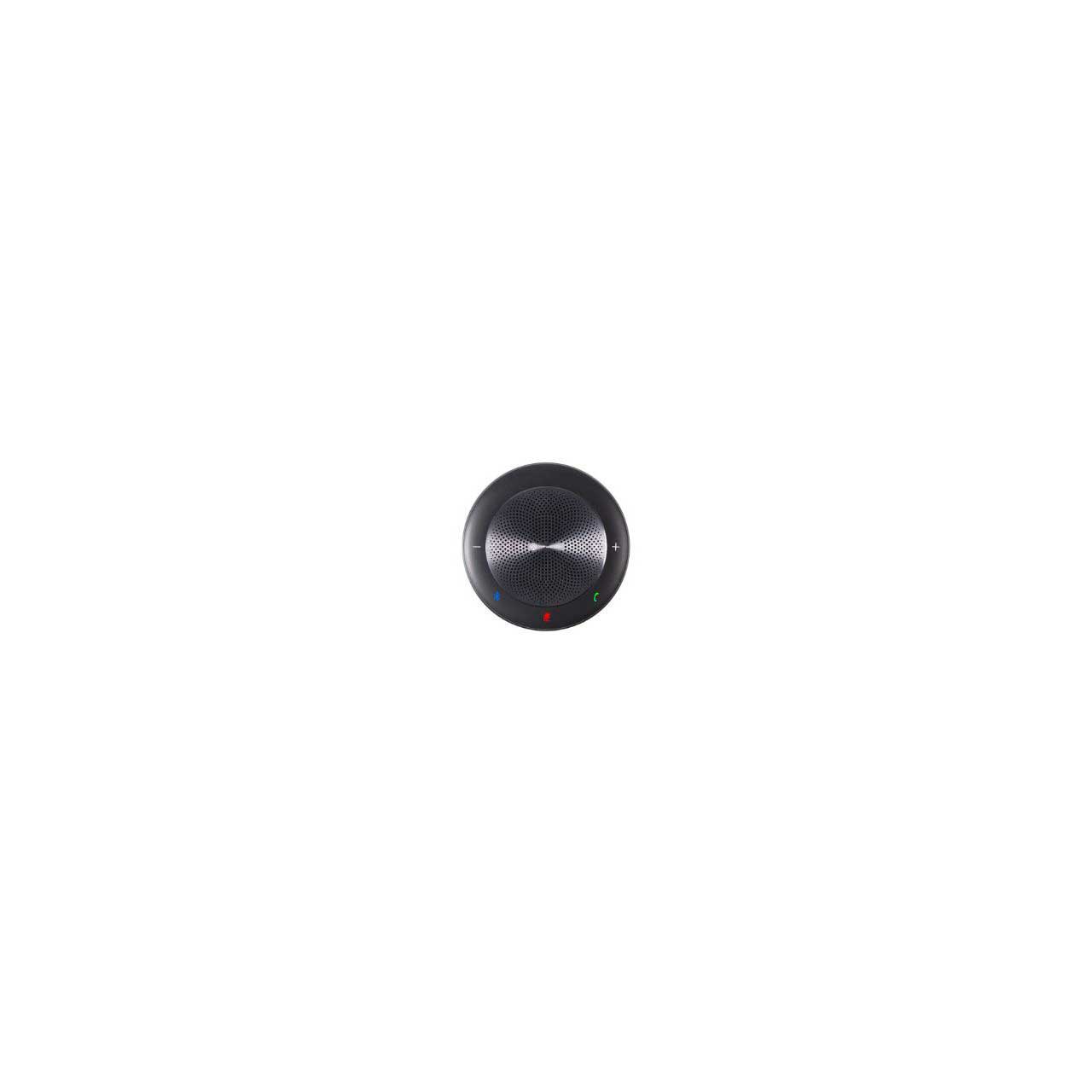

Atlona AT-CAP-SP100 Captivate USB/Bluetooth Speakerphone with Li-Ion Battery

ITEM #: ATNO-AT-CAP-SP10 MFG #: AT-CAP-SP10

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$288.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Item restricted to Contiguous United States ground shipment only.


AT-CAP-SP10 - Overview

The Atlona Captivate™ AT-CAP-SP100 is a USB / Bluetooth® speakerphone for use with popular video conferencing and unified communications platforms including Zoom™ and Microsoft® Teams.

The CAP-SP100 provides microphone and speaker audio in a single elegant enclosure suitable for meeting rooms as well as executive and home office environments. USB, Bluetooth, and analog audio connectivity ensures compatibility with a wide array of computers, laptops, and mobile devices.

The CAP-SP100 features a 6-element microphone array for 360-degree voice capture as well as the ability to concentrate audio pickup on individual talkers while suppressing background noises. Sophisticated audio processing optimized for voice intelligibility allows meeting participants to be heard loud and clear. The included battery allows the speakerphone to operate for up to 8 hours without a power connection.

The CAP-SP100 speakerphone is an ideal addition to video conferencing system designs based on the Omega™ Series of switching, extension, and video processing solutions.

Applications Include:
Executive or Home Office: The CAP-SP100 speakerphone provides a superior video conference audio performance over the native capabilities of laptops.

Huddle Room: The CAP-SP100 speakerphone, AT-CAP-FC110 4K ePTZ auto-framing camera, and an Omega extender are an ideal AV solution for BYOD video conferencing in smaller spaces. (all items sold separately)

Conference Room: Use a CAP-SP100 speakerphone, or two connected with the optional cascade cable, as well as the AT-HDVS-CAM PTZ camera and an Omega switcher for larger meeting spaces. (all items sold separately)

PLEASE NOTE: This product contains a Lithium-Ion Battery. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

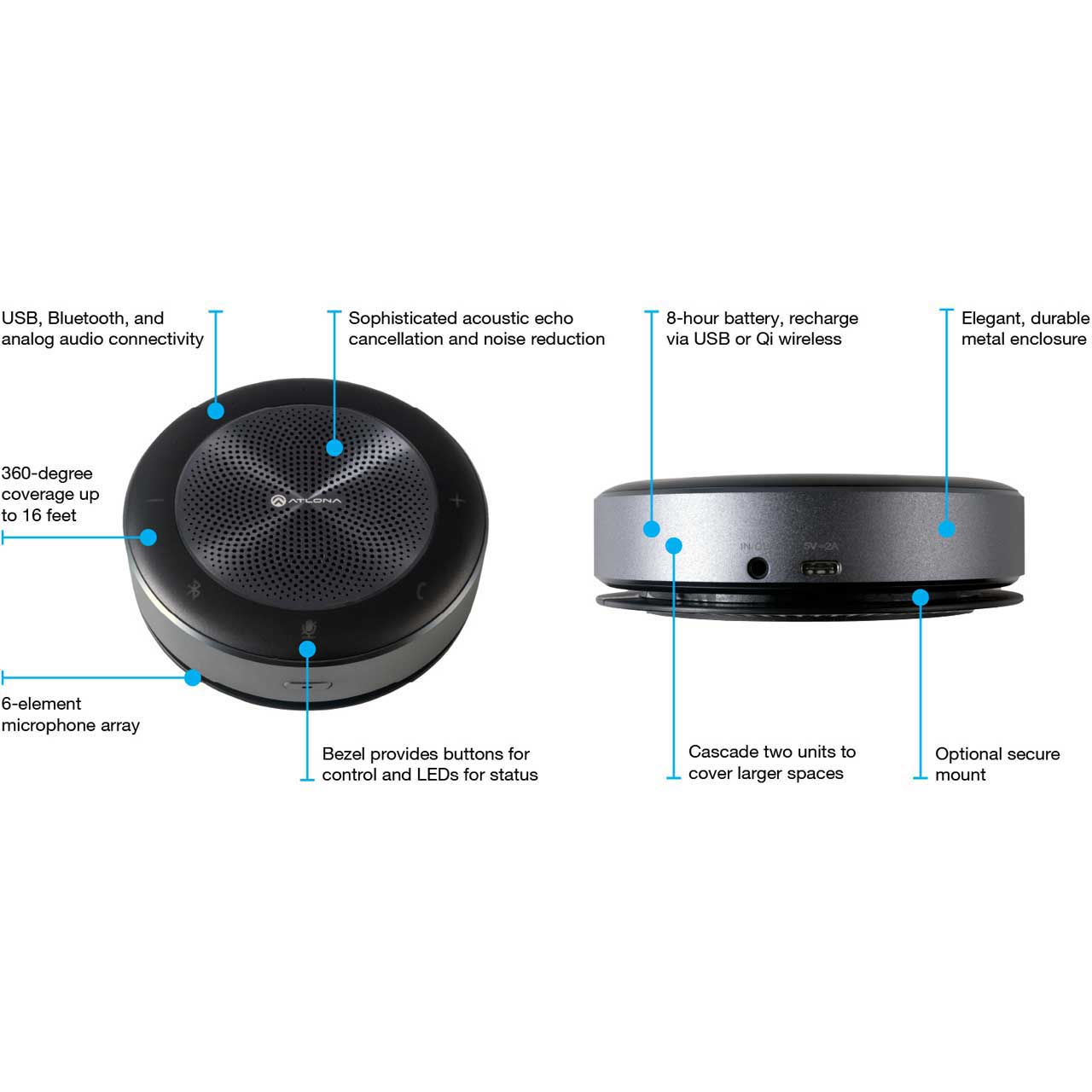

  • Features:

    • USB, Bluetooth, and analog audio connectivity
    • 360-degree coverage /up to a 16 foot (5 meter) radius
    • 6-element microphone array
    • Sophisticated acoustic echo cancellation and noise reduction
    • Access to volume, microphone mute, answer / hang up, and Bluetooth directly from the device
    • Bezel LEDs display status of audio and battery levels
    • Battery supports 8-hours of operation on a single charge
    • Supports both USB and Qi wireless charging
    • Using Bluetooth and Qi
    • Elegant design
    • Durable metal enclosure

  • Specifications:

    • System Requirements
    • Operating System w/USB: Windows 10+, macOS 11+, chromeOS
    • Operating System w/Bluetooth: Windows 10+, macOS 11+, iOS 14+, Android 11+

      Conferencing
    • Compatibility: All platforms (e.g. Microsoft Teams, Zoom, Skype, FaceTime, etc)
    • Control Synchronization: Microsoft Teams via USB only

      Audio
    • Microphone Type: 6-element microphone array
    • Microphone Pickup: 5m radius
    • Microphone Frequency Response: 105Hz - 8kHz
    • Speaker Max SPL: 80 dB SPL @ 1m
    • Speaker Frequency Response: 150 Hz - 16 kHz
    • Processing: Acoustic Echo Cancellation, Noise Reduction

      USB
    • Port: 1x Type C USB
    • Signal: 1x 2.0
    • Maximum Data Rate: 2.5 Mbps

      Bluetooth
    • Interface: Wireless
    • Signal: Bluetooth 4.2

      Connectors
    • 5V 2A USB-C: 1x USB Type-C v2.0, 24-pin female
    • Audio In/Out: 3.5 mm, unbalanced 2-channel

      Temperature
    • Operating Temperature: 23 to 104°F (-5 to 40 °C)
    • Storage Temperature: -4 to 140°F (-20 to 30°C)
    • Humidity (RH): 10% to 90%, non-condensing

      Power
    • USB: USB-C, 5V 2A
    • Wireless: Qi (7.5W)
    • Battery: Lithium Ion, 8 hour use - single charge

      Physical
    • Dimensions (H x D): 1.39 x 4.73" (35.2 x 120mm)
    • Weight: 0.87lbs (0.40kg)
    • Certification: CE, FCC, UKCA, RCM, China RoHS

  • Item Includes:

    • 1x AT-CAP-SP100
    • 1x AUX Cable
    • 1x USB-C to USB A Cable
    • 1x Installation Guide

  • Warranty:

    • 2-year limited
