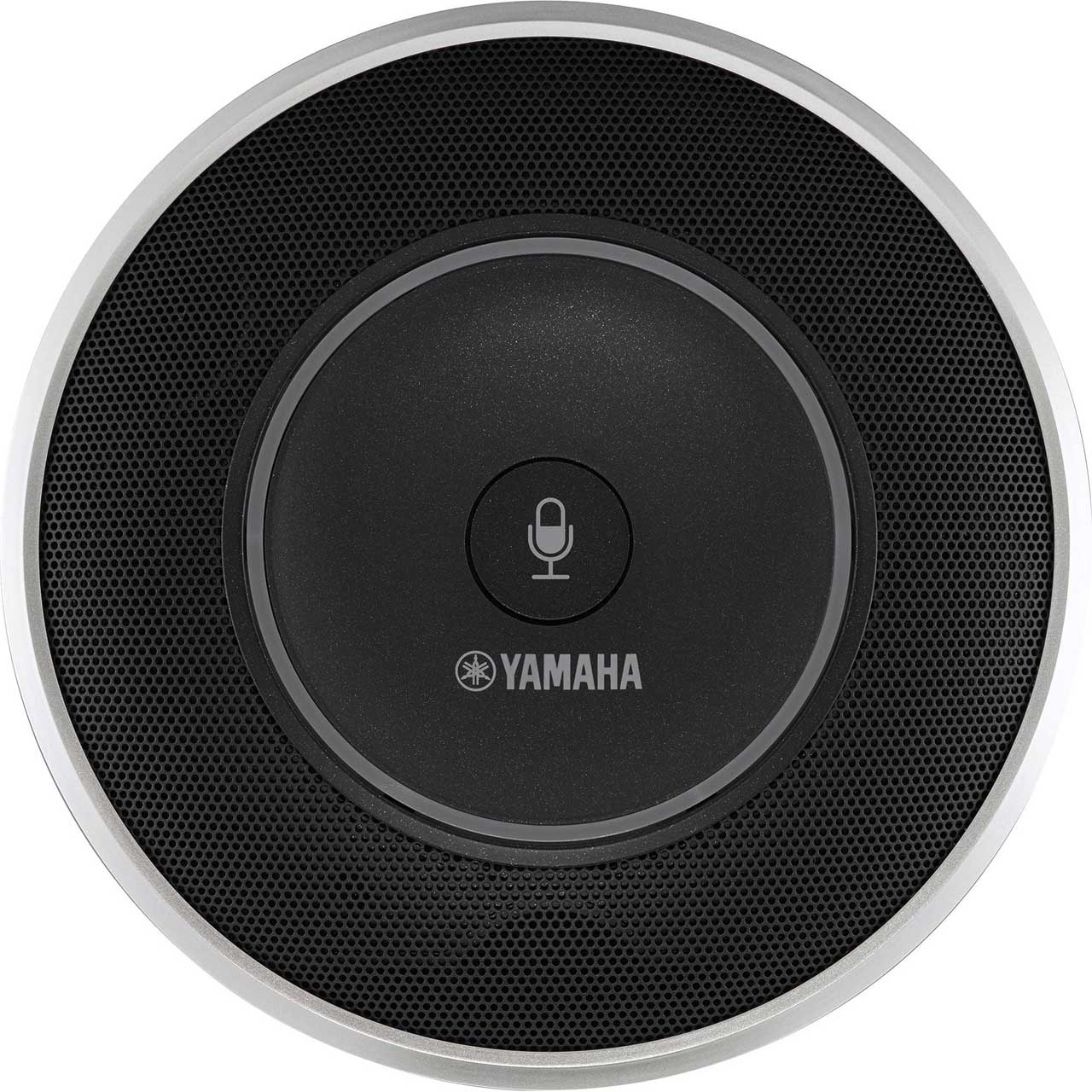

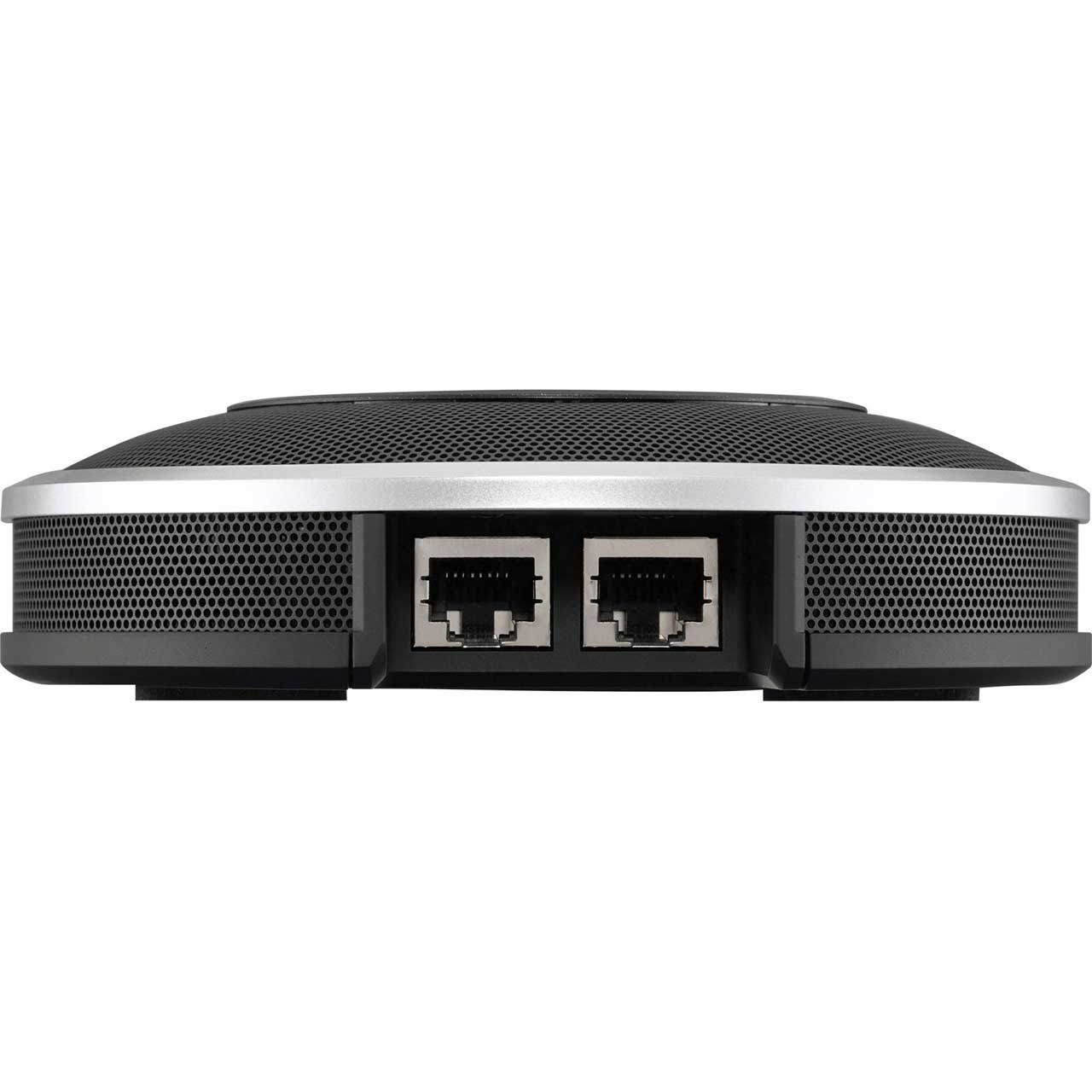

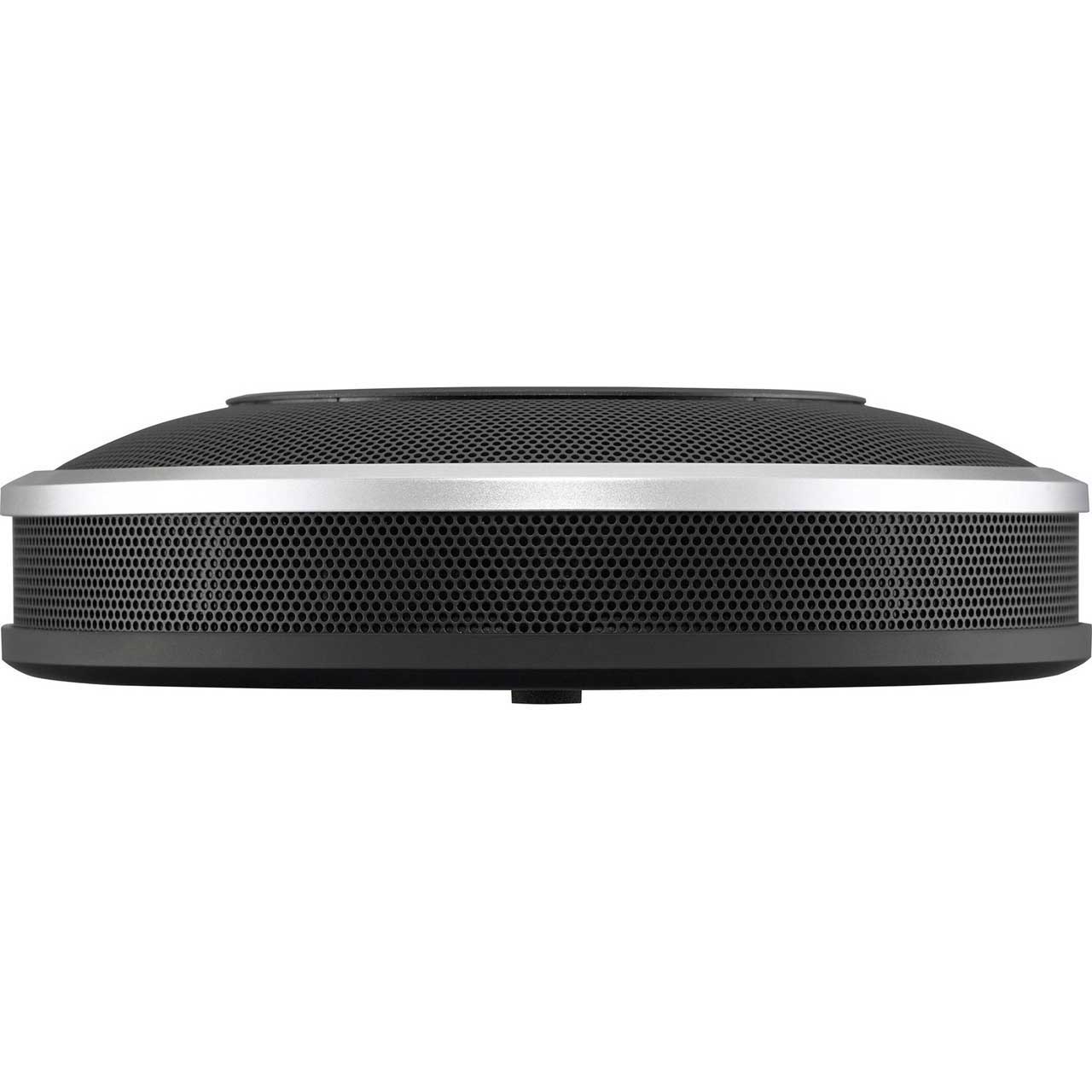

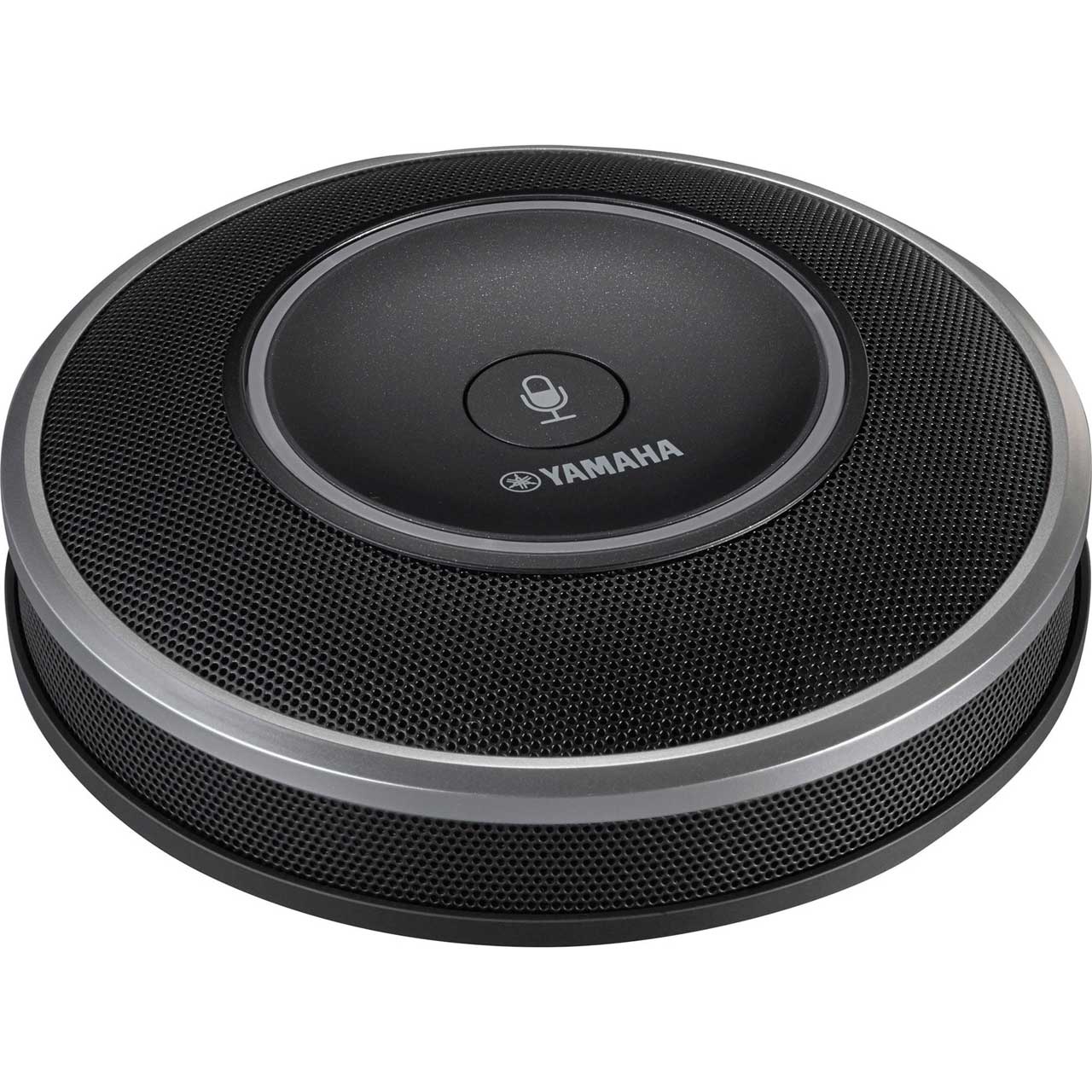

Yamaha YVC-1000 Omnidirectional Extension Microphone

ITEM #: YVC-MIC1000EX MFG #: 10-YVCMIC1000EX

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Yamaha Unified Communications
Free Shipping with $49 Minimum Order

Our Price:

$349.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

10-YVCMIC1000EX - Overview

Ideal for medium and large spaces, this intuitive communications system features separate microphone and speaker units for flexibility during audio, web, and video conferencing.

Yamaha YVC-1000 was designed to support 2 external speakers and 5 daisy-chained microphones, it's the perfect scalable solution for accommodating larger meeting rooms and additional participants. The YVC-MIC1000EX is an extension microphone for the YVC-1000.

Adaptive echo cancellation and human voice activity detection (HVAD) minimize background noise, facilitating natural, stress-free conversation during every call.

ZOOM Certified
With Yamaha's audio technology and expertise, the YVC-1000 will help us in bringing more powerful and scalable collaborations to our customers' Zoom Rooms experience, Eric Yu, hardware partnership manager, Zoom.

Automatic auto-tuning measures and analyzes the room environment and adjusts acoustic settings to the optimal level

Automatic system warnings to help with poor microphone placement

  • Features:

    • Multiple connection options via Bluetooth® and USB
    • Ability to daisy chain up to 5 microphone pods (per base unit) for a total of 15 microphones (3 internal mics per pod)
    • Speaker tracking
    • Scalability to fit various and ever-changing table configurations
    • Flexible alternative to installed audio solutions for large conference rooms
    • Supports 2 external speakers
    • Certified for Zoom & Skype for Business


  • Specifications:

    • General
    • Interface: Control Unit: USB 2.0 High Speed, Bluetooth, NFC (Near Field Communication) Audio Input terminal (stereo RCA pin), Audio Output terminal (stereo RCA pin), External speaker terminal (RCA pin) x 2, Power terminal, Microphone terminal Microphone: Input and output terminals
    • Power consumption (max): 20 W (one connected microphone), 35 W (five connected microphones)
    • Radio interference standard: FCC (Part 15B) Class A, ICES-003
    • Operating Temperature: 32° to 104°F (0° to 40°C)
    • Operating Humidity: 20 to 85% (no condensation)
    • Dimensions:
      Control Unit (WxHxD): 13.1 x 3.74 x 6.3" (332 x 95 x 162mm)
      Microphone (WxHxD): 5.35 x 1.42 x 5.35" (136 x 36 x 136mm)
    • Weight:
      Control Unit: 1.8kg (4Lbs)
      Microphone: 0.4kg (0.9Lbs)
    • Power source: 120 V (60 Hz)
    • Supported OS: OS: 32-bit or 64-bit Windows 10, 32-bit or 64-bit Windows 8.1, 32-bit or 64-bit Windows 8, 32-bit or 64-bit Windows 7, Mac OS X 10.11, Mac OS X 10.10, Mac OS X 10.9, Mac OS X 10.8 USB: USB 2.0 or later
    • Bluetooth: Bluetooth specification version: 2.1 + EDR Supported profile: HFP (1.6), A2DP Supported Codec: SBC, mSBC Wireless output: Class 2 Maximum communication distance: 10 m (32.8 ft)
    • NFC: Compatible devices: NFC-compatible Android devices, versions 4.1, 4.2, 4.3 and 4.4
    • Voice guidance: English, Japanese, Chinese, Korean, French, Spanish, German
    • Others: Firmware update (transfer from PC through USB)
    • Microphone unit: Unidirectional x 3
    • Speaker unit: Full-range x 1
    • Maximum volume: 95 dB (0.5 m (1.6 ft))
    • Frequency Bandwidth:
      For sound pickup: 100 to 20,000 Hz
      For playback: 100 to 20,000 Hz
    • Signal Processing: Adaptive echo canceler, Noise reduction, Automatic tracking, Automatic gain control, Automatic room EQ, Dereverberation, Automatic audio tuning


  • :
