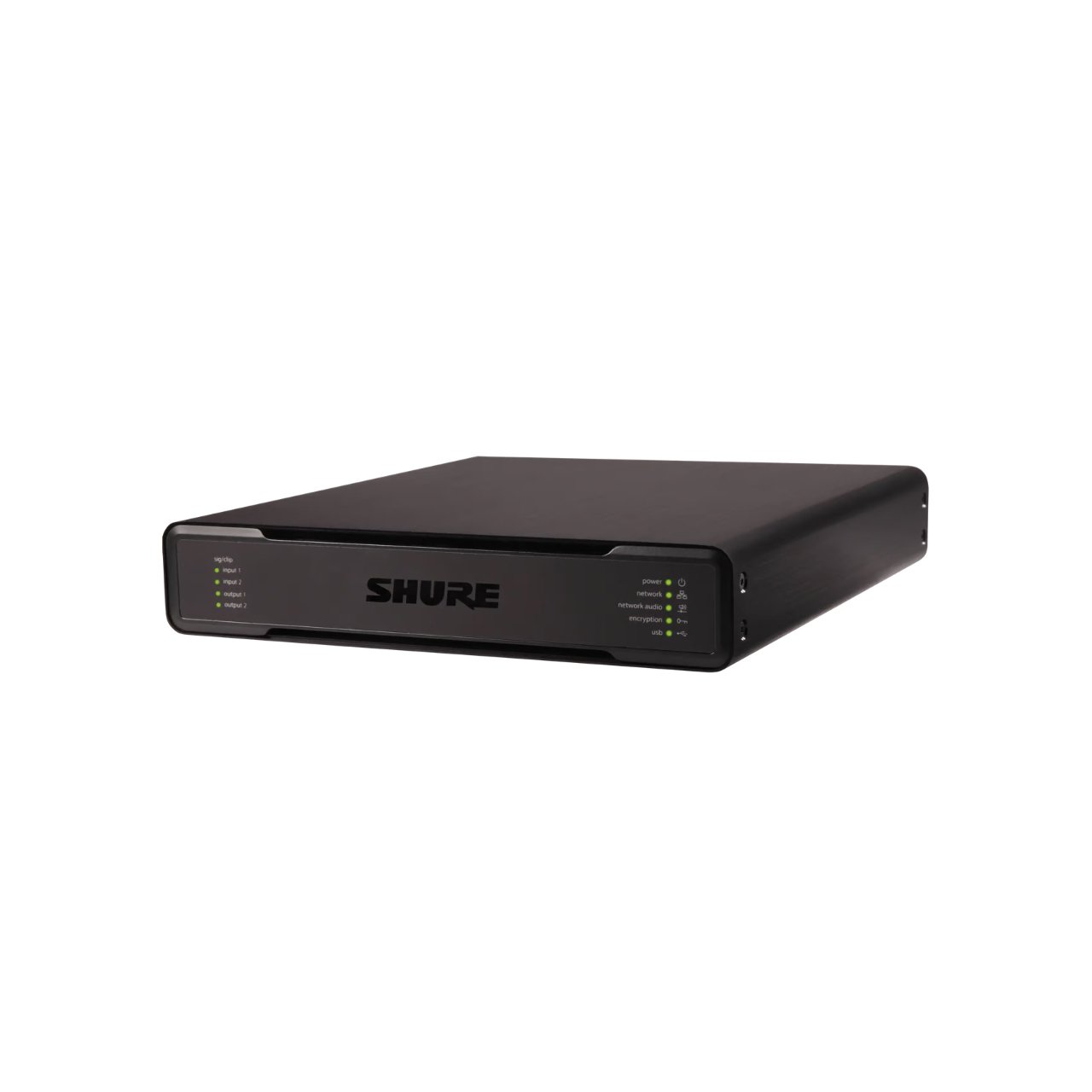

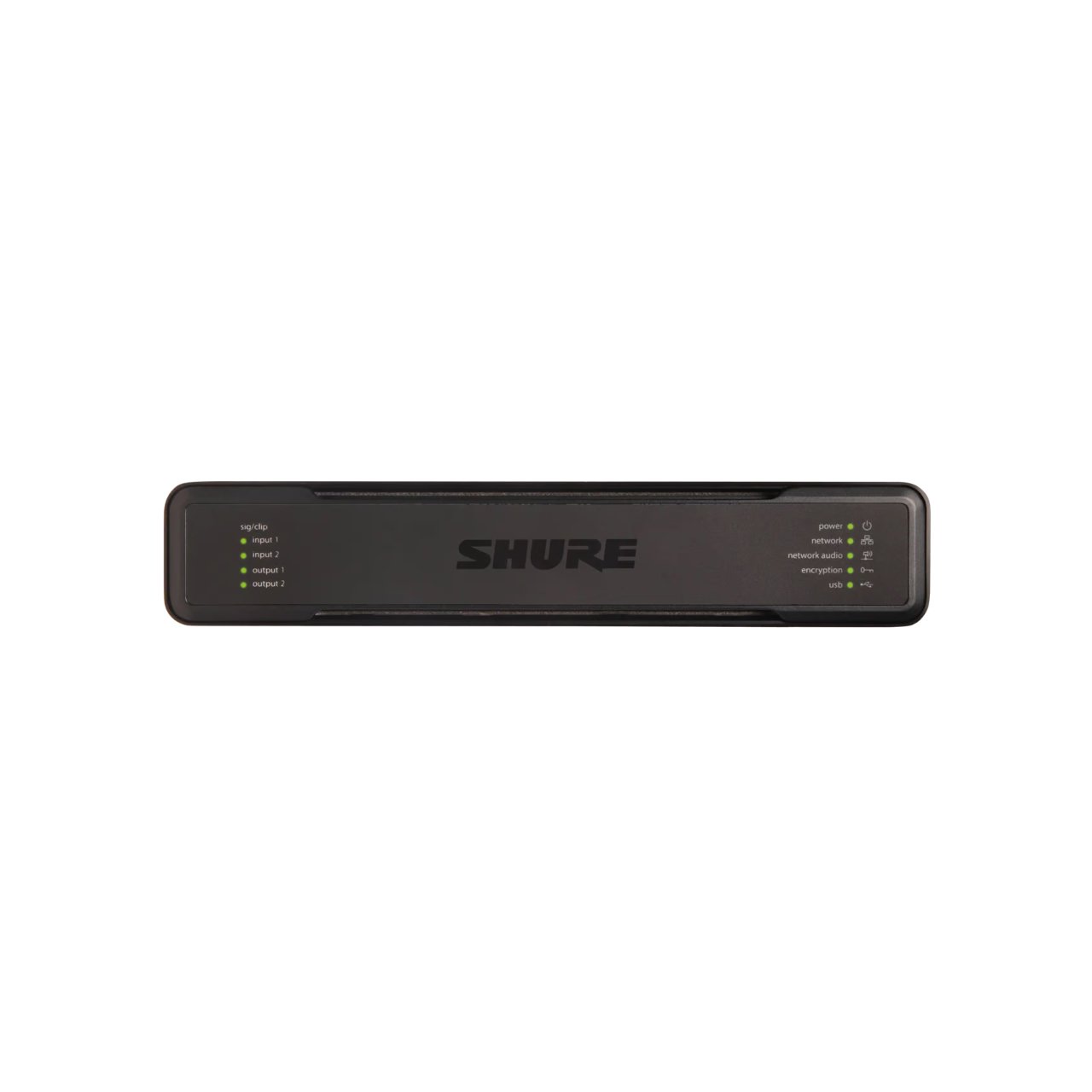

Shure IntelliMix P300 Audio Conferencing Processor with Automatic Mixing - up to 10 Dante Audio Inputs/2 Analog/USB

ITEM #: SH-P300-IMX MFG #: P300-IMX

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    P300-IMX - Overview

    Don't let echo, noise, or distortion take over the meeting. The Shure IntelliMix® P300 enhances every aspect of conference audio. Combined with Microflex® Advance™ or Microflex® Wireless microphones, the clear sound reproduction and intelligent mixing keeps the agenda on track with clear communication.

    The IntelliMix P300 Audio Conferencing Processor offers a predefined matrix and presets to simplify the set up process reducing the lengthy commissioning time often associated with DSP. The unobtrusive form factor allows discrete installations, making it compatible for a wider variety of meeting rooms. Versatile connectivity options provide freedom of choice when joining a room video system including via soft codec, or connecting laptops and mobile devices. Featuring acoustic echo cancellation, noise reduction and automatic gain control for up to 8 Dante channels, the P300 ensures echo- and noise-free conference room audio.

    • Features:

      • Connects 10 Dante audio inputs, 2 analog inputs, USB and a mobile device to an AV conferencing system or a PC-based videoconferencing application
      • Includes Shure developed DSP algorithms to enhance audio quality in AV conferences: 8 channels of microphone processing featuring AEC, noise reduction, and automatic gain control, IntelliMix automatic mixing, matrix mixing, delay, compressor and PEQ

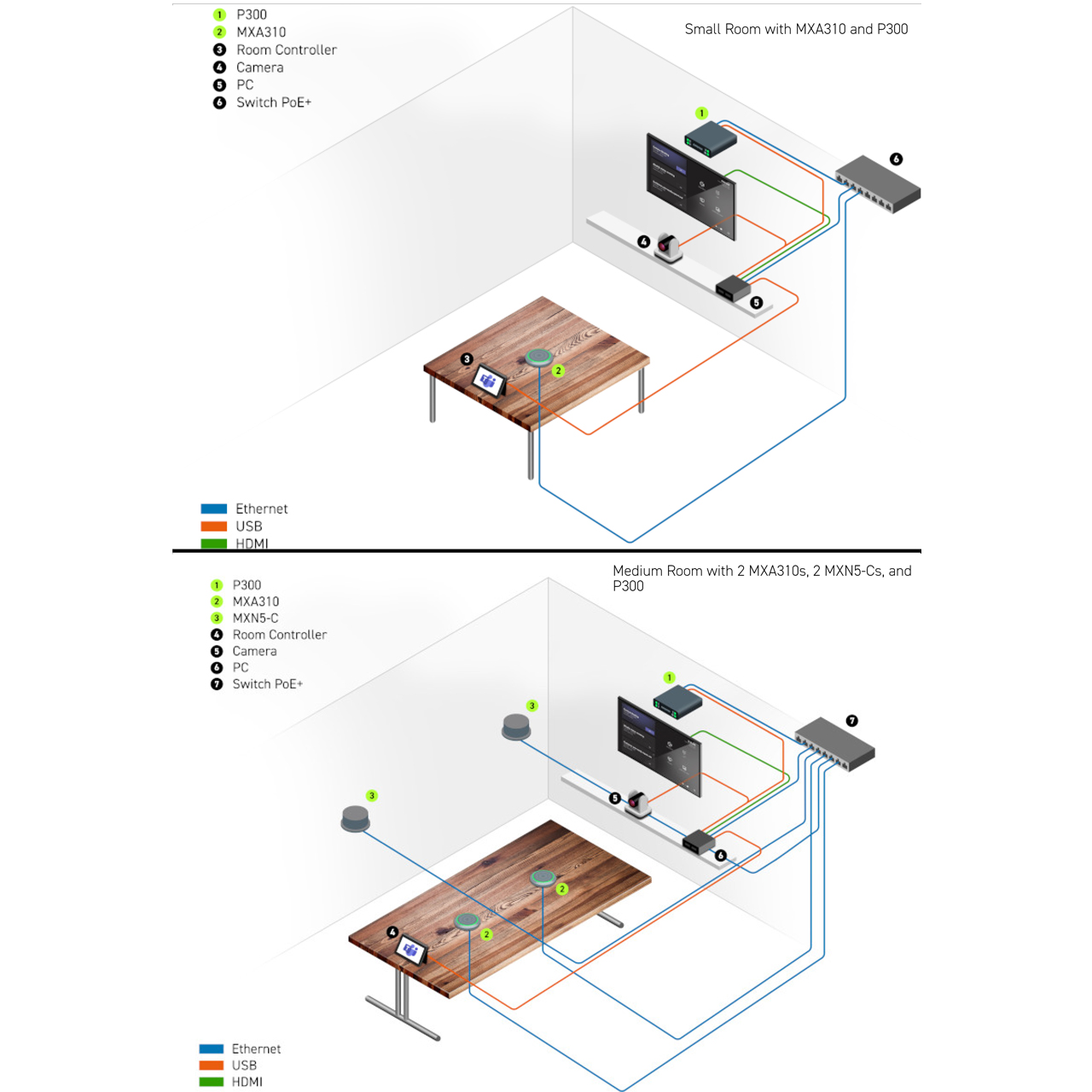

      • Flexible signal routing and connectivity: analog audio (2 block in / 2 block out) to connect to room AV conferencing system; USB (1 in/out) to connect to laptop or room PC; one 3.5 mm TRRS jack to connect to a mobile device to enable an additional participant to join
      • Power-over-Ethernet (PoE+) eliminates the need for an outboard power supply
      • Compact form factor is easy to mount without equipment rack

    • Specifications:

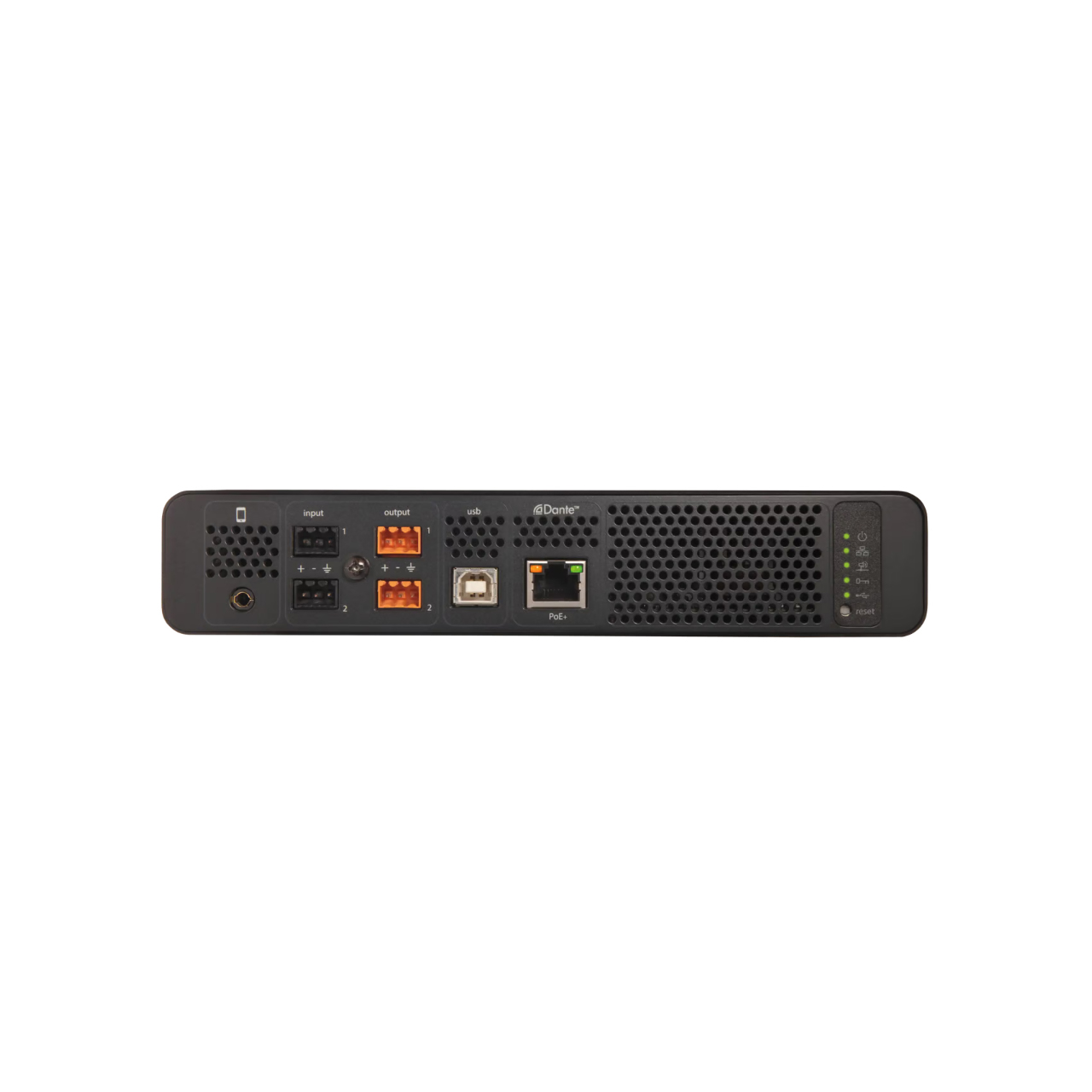

      • Input: (2) 3-pin block connector (Active Balanced)
      • Output: (2) 3-pin block connector (Impedance Balanced)
      • Mobile: (1) TRRS 3.5 mm (1/8")
      • USB Connections: (1) USB 2.0, Type B. Single port carries 2 input and 2 output channels (Summed mono)
      • Network Connections (Dante Digital Audio): (1) RJ45. 10 Dante Inputs, 8 Dante Outputs
      • Polarity: Non-inverting, any input to any output
      • Power Requirements: 802.3 at Type 2 (PoE Plus), Class 4
      • Power Consumption: 17.5 W, maximum
      • Weight: 3.8 lbs
      • Dimensions: 1.6 x 8.3 x 8.9 in.
      • Control Software: Shure Designer
      • Operating Temperature Range: 20°F to 122°F
      • Storage Temperature Range: -20°F to 165°F

        Thermal Power Dissipation
      • Maximum 17.5 W (60 BTU/hr)
      • typical 14.6 W (50 BTU/hr)

        Audio
      • Frequency Response: +1, -1.5: dB 20 to 20,000 Hz
      • Dante Digital Audio: Sampling Rate 48 kHz - Bit Depth 24
      • USB Audio: Sampling Rate 48 kHz - Bit Depth 16, 24

        Analog Connections (Block Connectors)
      • Dynamic Range 20 Hz to 20 kHz, A-weighted, typical: Analog-to-Dante: 113 dB, Dante-to-Analog: 117 dB
      • Equivalent Input Noise 20 Hz to 20 kHz, A-weighted, input terminated with 150Ω: Line -86 dBV / Aux -98 dBV
      • Total Harmonic Distortion @ 1 kHz, 0 dBV Input, 0 dB analog gain: <0.05%
      • Common Mode Rejection Ratio 150Ω balanced source @ 1 kHz: >50 dB
      • Input Impedance: 9.6 kΩ
      • Input Clipping Level: Line +27 dBV / Aux +15 dBV
      • Output Impedance: 80 Ω
      • Output Clipping Level: Line +20 dBV / Aux +0 dBV / Mic -26 dBV

        Mobile Connection (3.5 mm Connector)
      • Tip: Audio Input (Left)
      • Ring 1: Audio Input (Right )
      • Ring 2: Ground
      • Sleeve: Audio Output (To Phone)
      • Dynamic Range 20 Hz to 20 kHz, A-weighted, typical: Analog-to-Dante 99 dB / Dante-to-Analog 90 dB
      • Equivalent Input Noise 20 Hz to 20 kHz, A-weighted, input terminated with 20Ω: -95 dBV
      • Total Harmonic Distortion @ 1 kHz, 0 dBV Input, 0 dB analog gain: <0.05%
      • Input Impedance: 3.7 kΩ
      • Input Clipping Level: +4 dBV
      • Output Impedance: 1.4 kΩ
      • Output Clipping Level Output terminated with 2.2 kΩ: -20 dBV

        Networking
      • Cable Requirements: Cat 5e or higher (shielded cable recommended)

        System Requirements
      • Important: Do not run IntelliMix Room and Designer on the same PC. Performance may vary on unsupported systems even if they meet all of these system requirements. Refer to Supported Hardware Systems for help choosing a device to run IntelliMix Room. Virtual machines are not supported.
      • Processor: Intel (64 bit), 8th generation Core i5 or better, 2.0 GHz or better, 4 physical cores or better, 6 threads (logical processors) or better, AVX2 instruction set, FMA instruction set
      • Memory: 8 GB RAM
      • Storage: Solid State Drive (SSD) required
      • Supported Windows Editions: 10 Pro, 10 Education, 10 Pro Education, 10 Enterprise, 10 IoT Enterprise, 11 Pro, 11 Education, 11 Pro Education, 11 Enterprise, 11 IoT Enterprise
      • Computers: ASUS Mini PC PB60-B, Dell OptiPlex 7080 X, Dell OptiPlex 7080 XE, Lenovo ThinkSmart Core

    • Item Includes:

      • 1x Shure P300-IMX IntelliMix Audio Conferencing Processor with Automatic Mixing

    • GTIN:

      0042406525206
