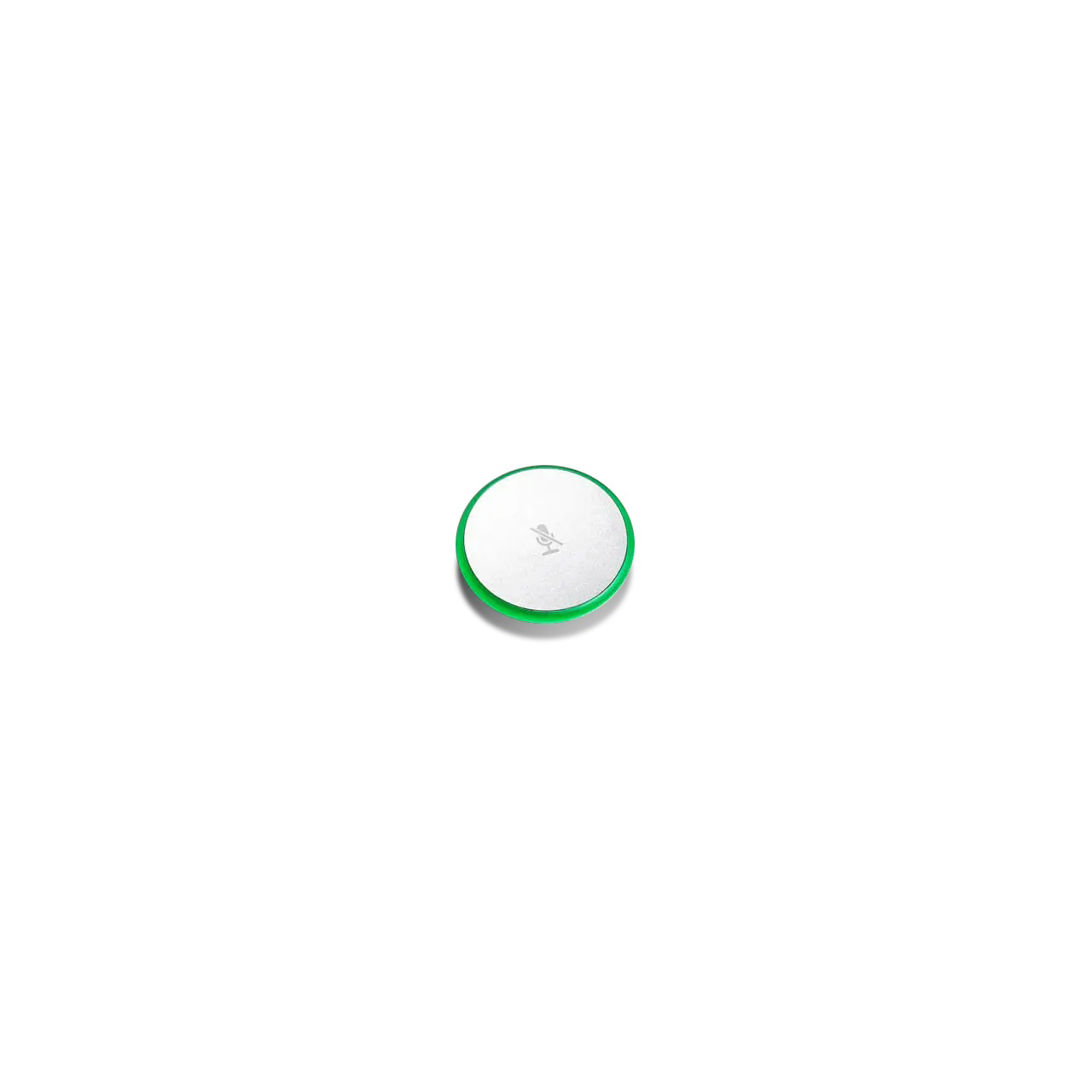

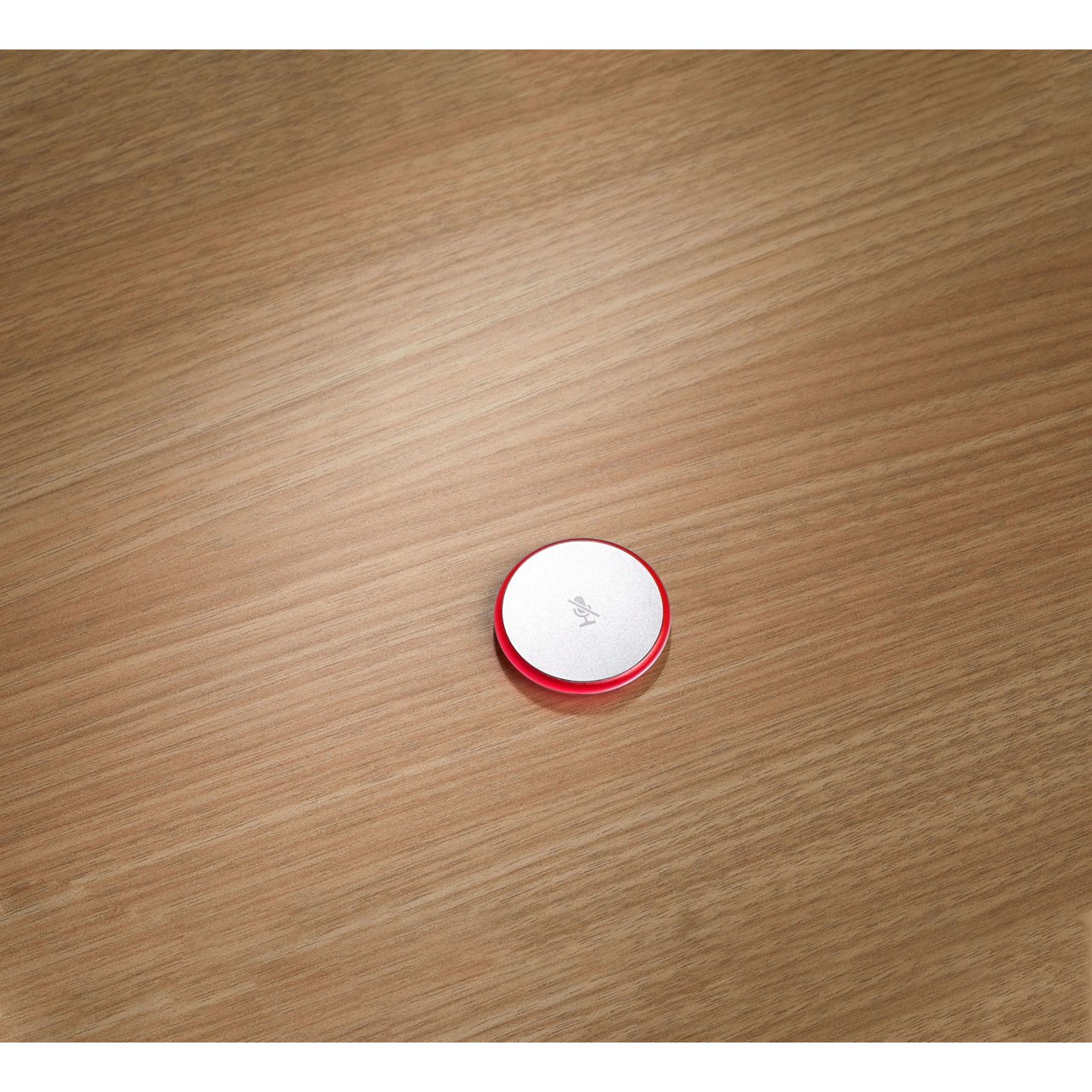

The Shure MXA-NMB configurable PoE-powered mute button accessory designed for Shure networked audio products, including Microflex® Advance™ Array Microphones as well as the IntelliMix® P300 and IntelliMix Room DSPs, and ANIUSB-MATRIX. One or many of the low-profile touch sensitive mute buttons can be configured to mute one or multiple microphones, depending on user needs or room configurations.
How The Network Mute Button Works
The network mute button is a simple muting solution for rooms with no microphone on the table, for when the microphone has no mute button, or for when you need another way to control muting. Use Shure Designer software to link mute buttons to a compatible device.
You can link mute buttons to Shure microphones or processors (such as DSPs or audio network interfaces). When you link mute buttons to a processor, any supported devices connected to the processor match the button's mute status.

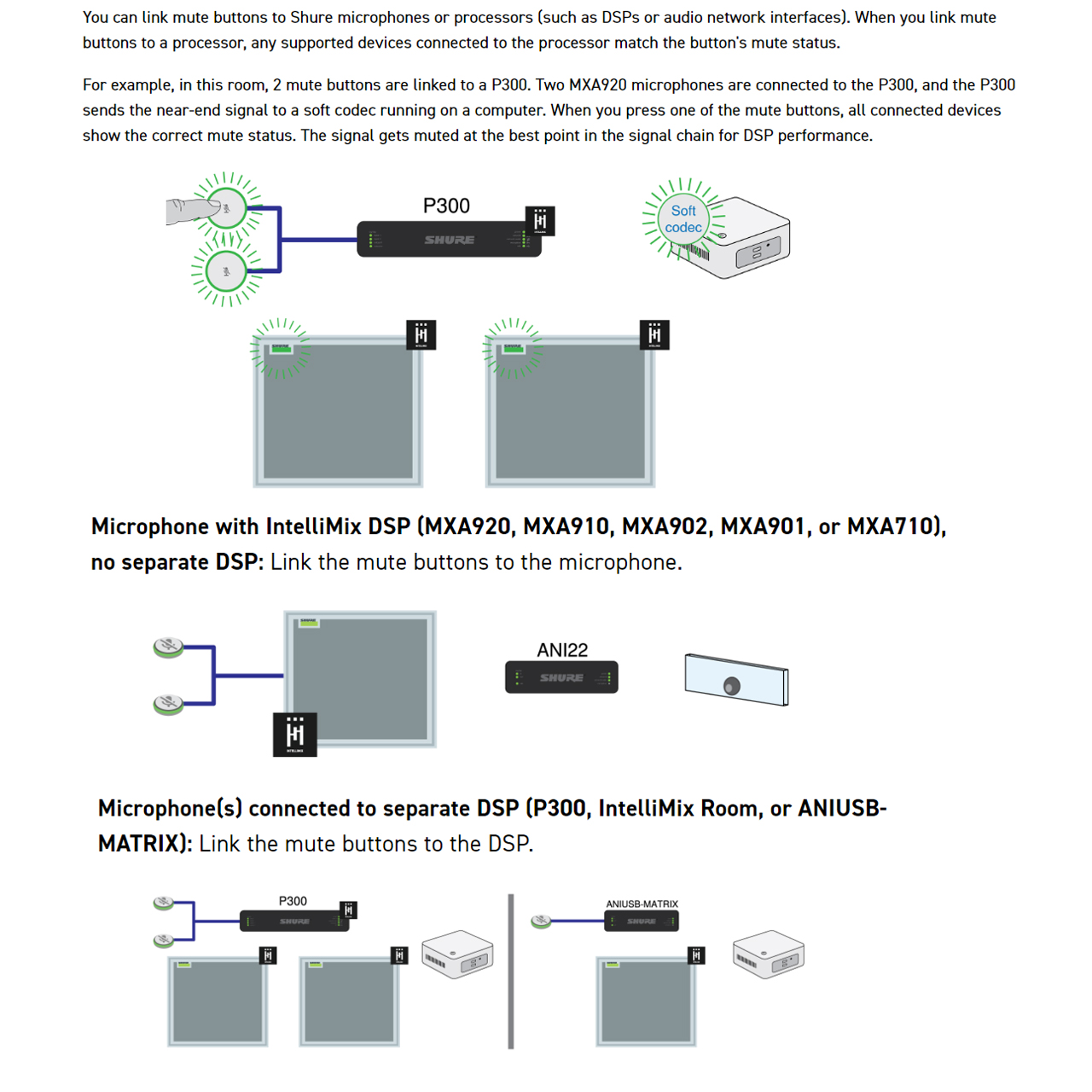

For example, in this room, 2 mute buttons are linked to a P300. Two MXA920 microphones are connected to the P300, and the P300 sends the near-end signal to a soft codec running on a computer. When you press one of the mute buttons, all connected devices show the correct mute status. The signal gets muted at the best point in the signal chain for DSP performance.
You can link the mute button to the following devices to control muting:
-MXA310
-MXA710
-MXA901
-MXA902
-MXA910
-MXA920
-ANIUSB-MATRIX (Also mutes supported soft codecs connected by USB)
-IntelliMix P300 (Also mutes supported soft codecs connected by USB)
-IntelliMix Room (Also mutes supported soft codecs connected by USB)
