Shure MXA902 Microflex Advance Audio Conferencing Kit - Ceiling Array & USB Audio Network Interface - Small/Medium Rooms

ITEM #: SH-MXA902W-S-USB MFG #: MXA902W-S-USB

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$5,911.00

Our Price:

$4,729.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


MXA902W-S-USB - Overview

Certified for Microsoft Teams, Zoom Rooms, and Works with Google Meet

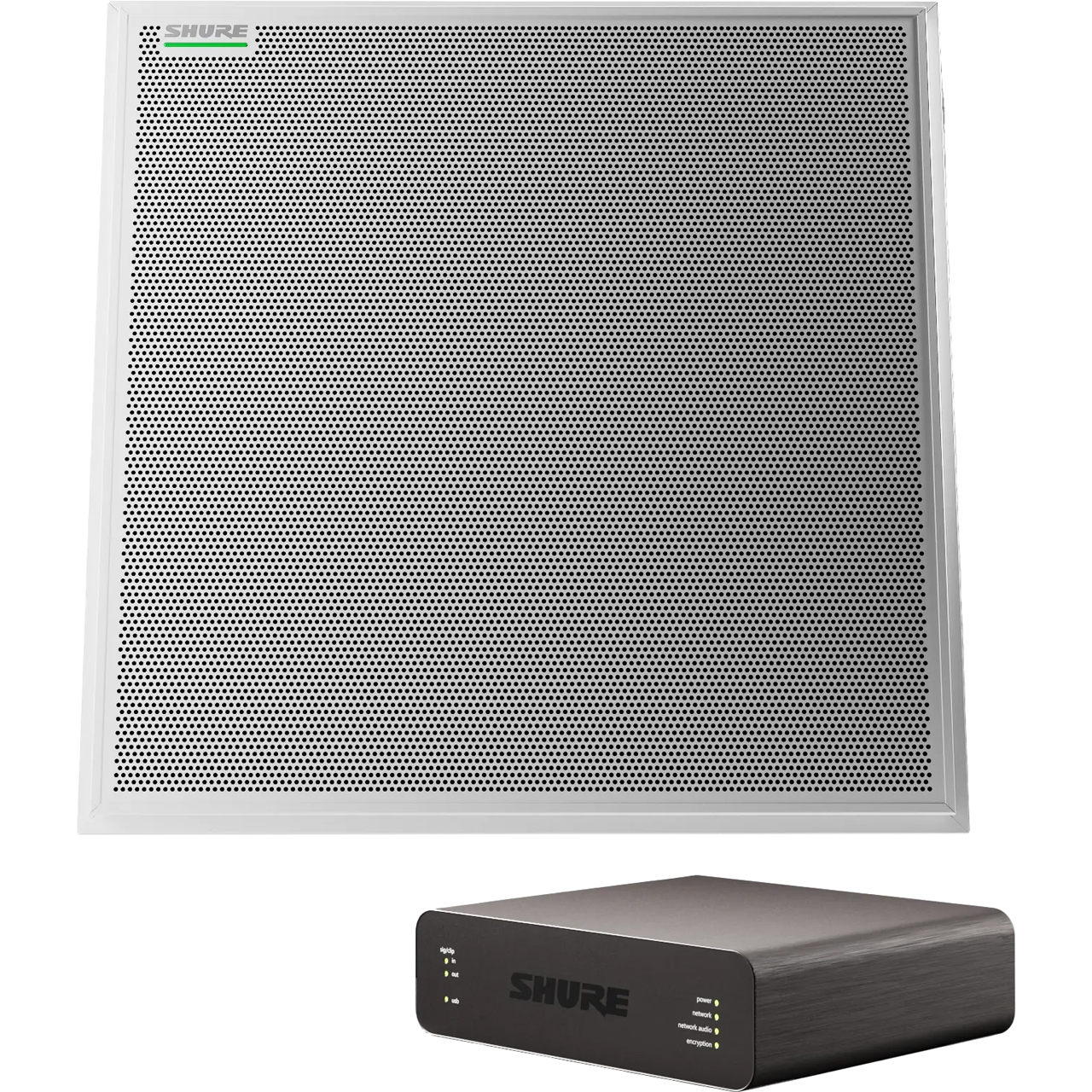

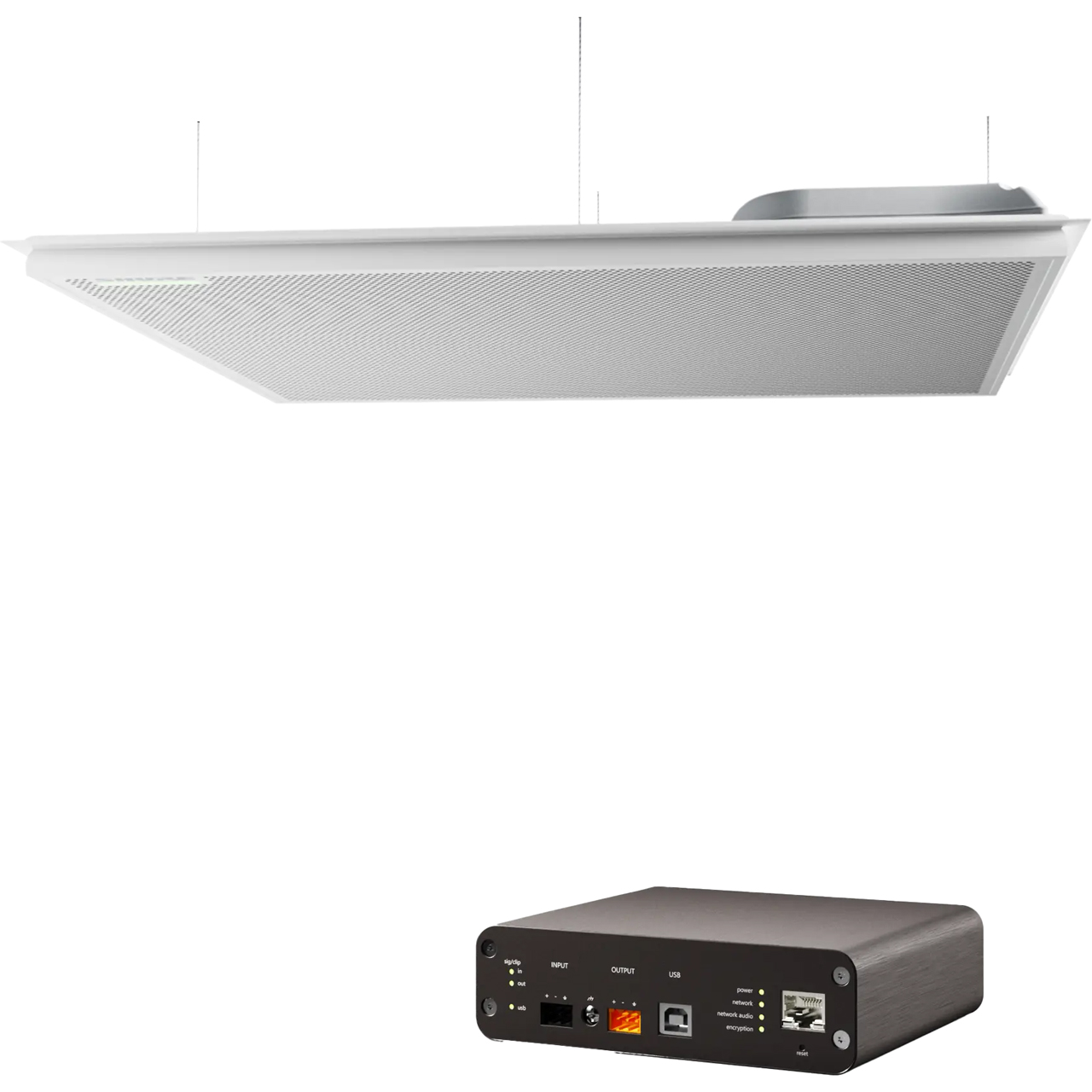

High-quality, reliable meeting room audio is now easier than ever. Certified for Microsoft Teams and Zoom Rooms, and Works with Google Meet, this Shure MXA902W-S-USB pre-routed Audio Conferencing Kit includes the MXA902 Integrated Ceiling Array Microphone + Loudspeaker, paired with the ANIUSB-MATRIX Audio Network Interface for a complete, easy-to-install and ready-to-use audio solution that ensures premium sound and full room coverage in small and medium-sized spaces, with quick, seamless connectivity to your preferred conferencing platform.

Designed for Effortless Installations
The pre-configured solution including the MXA902 and ANIUSB-MATRIX ensures seamless connectivity, reducing setup time and eliminating compatibility headaches. All the audio you need for your meeting room comes in one box, ready for rollout. Just connect the cables.

Perfect for Expanding Audio in Any Space

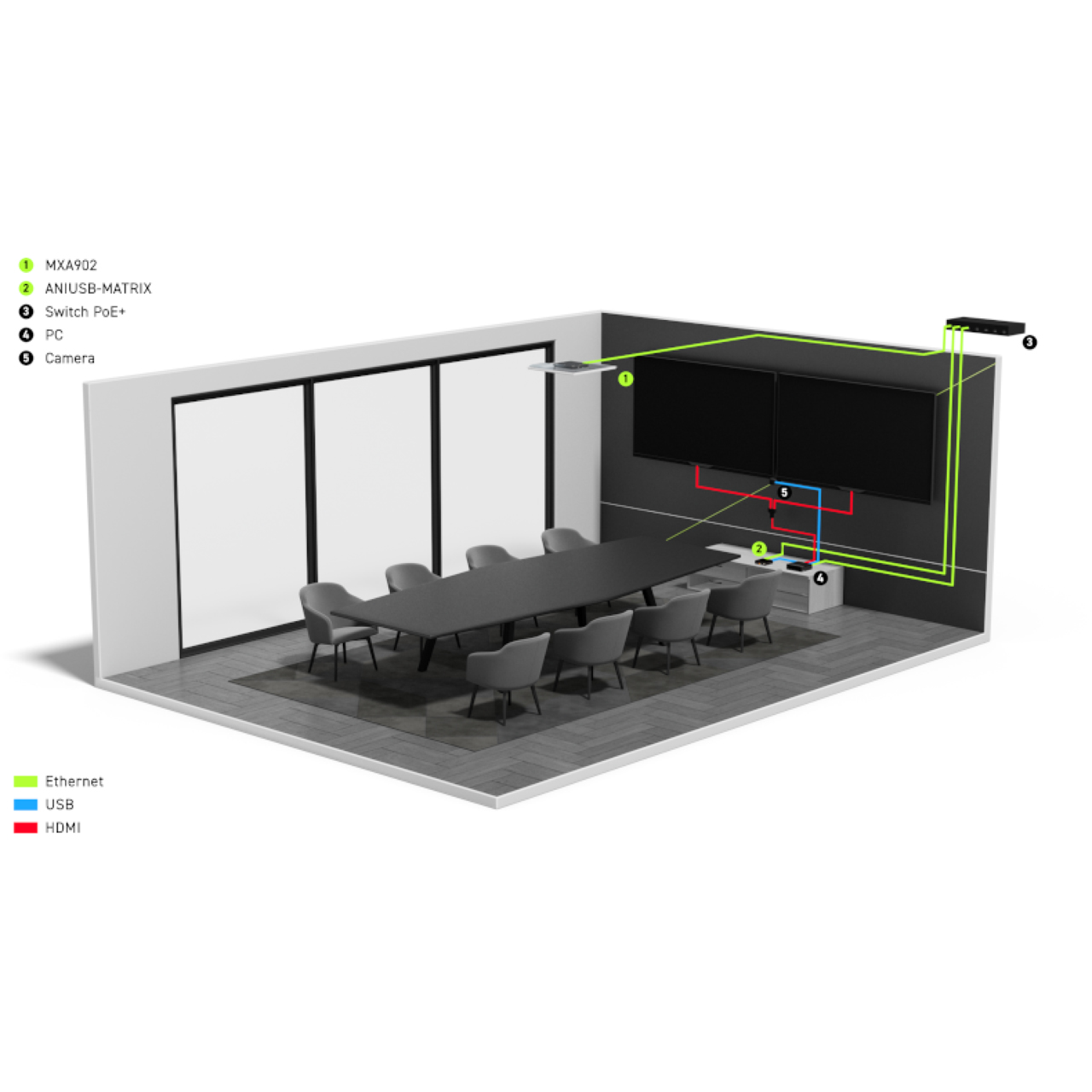

Connect the kit to tested and recommended all-in-one conferencing solutions to expand high-quality audio into larger and flexible spaces.

Pairing the MXA902 and ANIUSB-MATRIX Conferencing Kit with recommended all-in-one solutions offers a scalable, easy-to-install solution for large, acoustically challenging spaces enhancing meeting equity for all participants.

Perfect for Expanding Audio in Any Space
Connect the kit to tested and recommended all-in-one conferencing solutions to expand high-quality audio into larger and flexible spaces.

Pairing the MXA902 and ANIUSB-MATRIX Conferencing Kit with recommended all-in-one solutions offers a scalable, easy-to-install solution for large, acoustically challenging spaces enhancing meeting equity for all participants.

Microsoft Teams: Simple Setup with a Certified Solution
The MXA902 and ANIUSB-MATRIX Conferencing Kit offers a comprehensive, certified audio solution for small to medium-sized Microsoft Teams collaboration environments. High-quality audio is essential to maximize the potential of your meeting spaces, enabling your team to communicate effortlessly and sound extraordinary.

Zoom: Bi-directional Audio with Zoom and Dante
As one of Shure's latest products certified for Zoom Rooms, the MXA902 integrated ceiling microphone, DSP and loudspeaker, was designed with Zoom features in mind. The MXA902 provides users with a hands-free and streamlined standalone conference audio solution for small- to mid-sized spaces in the office or in the classroom.

Works with Google Meet for Reliable Performance Every Time
Works With Google Meet certifications for the MXA902 and the ANIUSB-MATRIX expands the flexibility of using Shure products with Google Meet in hybrid environments for a consistent and reliable audio performance every time.

  • Features:

    • Array microphone, loudspeaker and DSP integrated in a single ceiling-mounted unit for enhanced meeting audio with minimal installation time
    • Flawless integration and high-quality conferencing performance, certified for Microsoft Teams, Zoom Rooms, and Works with Google Meet
    • A complete, premium audio solution for small and medium-sized rooms that ready to go out of the box - no configuration required
    • Connect the Kit to all-in-one systems to expand and improve audio coverage in large rooms or challenging spaces

  • Specifications:

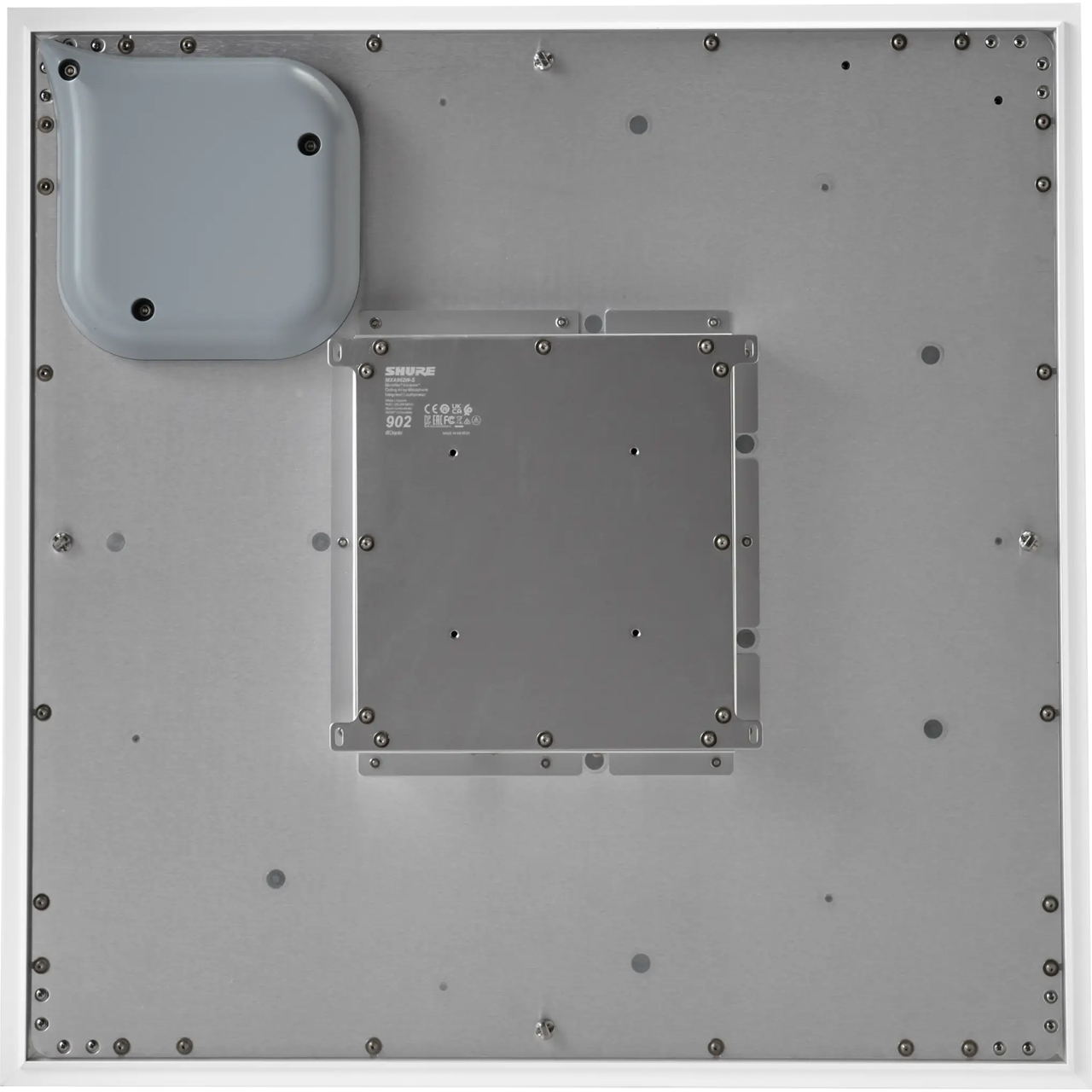

      MXA902 Ceiling Array Mic
    • Coverage Type: Automatic or steerable
    • Power Requirements: Power over Ethernet (PoE), Class 0
    • Power Consumption: 10.1W maximum
    • Control Software: Designer or web application
    • Cable Requirements: Cat5e or higher (shielded cable recommended)
    • Connector Type: RJ45
    • Dust Protection: IEC 60529 IP5X Dust Protected
    • Operating Temp: 20°F - 104°F
    • Storage Temp: -20°F - 165°F

      Audio
    • Microphone Elements: 113 MEMS
    • Frequency Response: 125Hz - 20kHz
    • AES67 or Dante Digital Output
    • Channel Count: Automatic coverage on 2 total channels / Automatic coverage off 10 total channels
    • Sensitivity at 1 kHz: -1.74 dBFS/Pa
    • Max SPL: Relative to 0 dBFS overload/95.74 dBSPL
    • Signal-to-Noise Ratio: Ref. 94 dBSPL at 1 kHz/75.76 dB A-weighted
    • Latency: Direct outputs: 15.9ms/Automix output: 26.6ms
    • Self Noise: 18.24 dB SPL-A
    • Dynamic Range: 77.5 dB
    • Digital Signal Processing: Automatic mixing, acoustic echo cancellation, noise reduction, automatic gain control, compressor, delay, equalizer, mute, gain
    • Acoustic Echo Cancellation Tail Length: Up to 250ms

      Physical
    • Dimensions: 2.4" x 25"
    • Weight: 12.7lbs

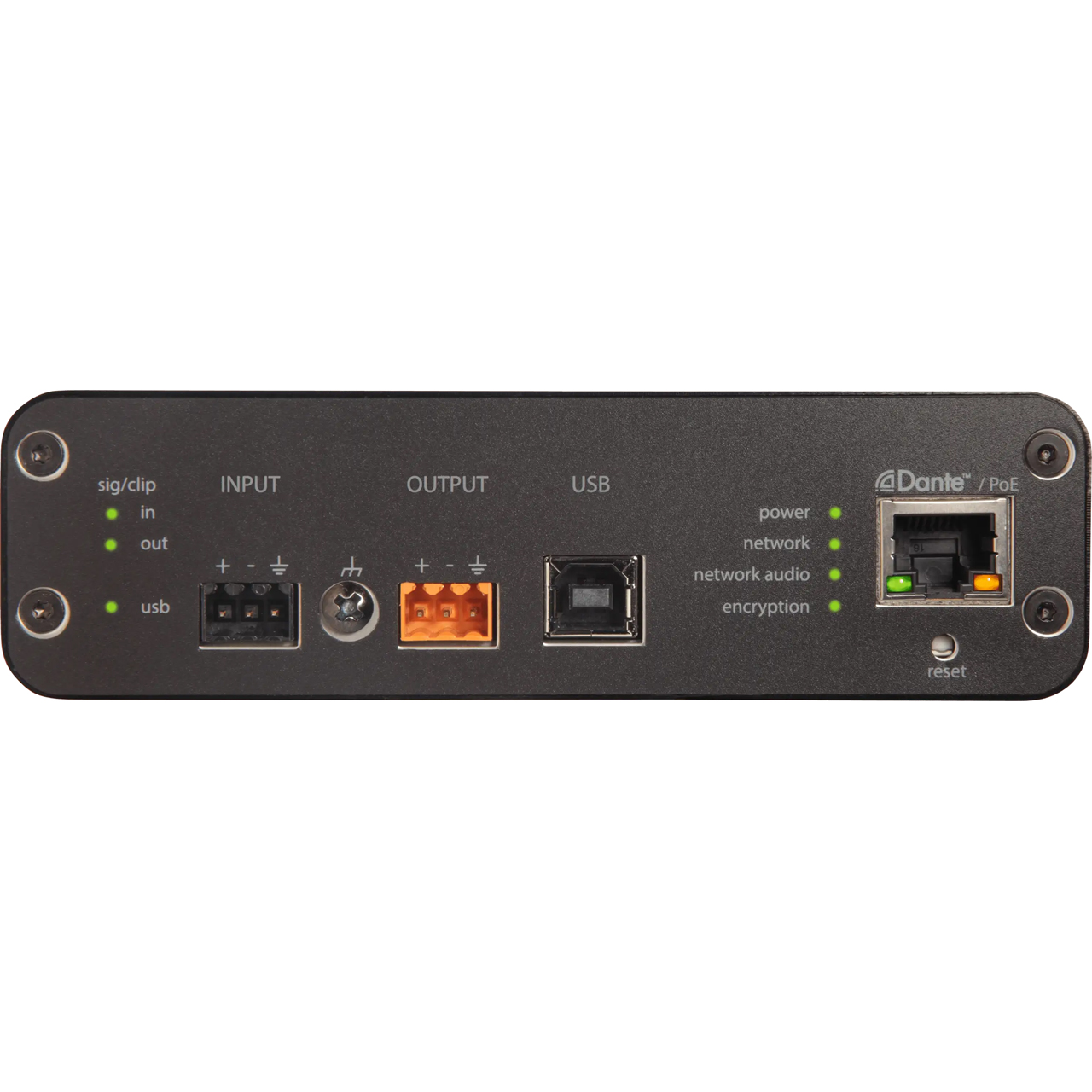

      ANIUSB-MATRIX Network Interface
    • Analog Connections:
      - Input: 1x 3-Pin block connector
      - Output: 1x 3-Pin block connector
    • USB Connections: USB 2.0, Type B - Single port carries 1 input and 1 output channel
    • Network Connections: 1x RJ45 - 4 Input channels and 2 output channels
    • Power Requirements: Power over Ethernet, Class 0
    • Power Consumption: 6.5W Maximum
    • Weight: 1.5lbs
    • Dimensions (HxWxD): 1.6" x 5.5" x 5.0"
    • Operating Temperature Range: 20°F - 104°F
    • Storage Temperature Range: -20°F - 165°F
    • Thermal Power Dissipation:
      - Max: 6.8W
      - Typical: 6.0W
    • Frequency Response: +1, -1.5dB/20Hz - 20kHz
    • Dante Digital Audio:
      - Sampling Rate: 48kHz
      - Bit Depth: 24
    • USB Audio:
      - Sampling Rate: 48kHz
      - Bit Depth: 16, 24
    • Latency:
      - Analog to Analog: 0.98ms
      - Analog to Dante: 0.39ms
      - Dante to Analog: 0.72ms
      - Dante to Dante: 0.14ms
    • Dynamic Range:
      - 20Hz - 20kHz, A-Weighted, Typical
      - Analog to Dante: 113dB
      - Dante to Analog: 117dB
    • Equivalent Input Noise:
      - 20Hz - 20kHz, A-weighted, input terminated with 150ω
      - Line: -86dBV
      - Aux: -98 dBV
    • Total Harmonic Distortion: @ 1kHz, 0dBV Input, 0dB analog gain/<.05%
    • Common Mode Rejection Ratio: 150ω balanced source @ 1kHz/>70dB
    • Impedance: 10.6kω
    • Input Clipping Level:
      - Line: +27dBV
      - Aux: +15dBV
    • Output Clipping Level:
      - Line: +20dBV
      - Aux: +0dBV
      - Mic: -26dBV
    • Signal Processing:
      - Per Channel: Equalizer, Mute, Limiter, Gain
      - System: Matrix mixer
    • Cable Requirements: Cat 5e of higher (Shielded cable recommended)

  • Item Includes:

    • 1x MXA902W-S Integrated Conferencing Ceiling Array
    • 1x MXA902 Hardware Kit, 8 Cable ties, 3 Strain relief tabs, 1 Rubber pad set
    • 1x ANIUSB-MATRIX Audio Network Interface
    • 1x ANIUSB-MATRIX Hardware Kit
    • 1x ANIUSB-MATRIX Mounting Bracket
    • 1x USB-B to USB-A Cable (10 ft)

  • GTIN:

    0042406861526
