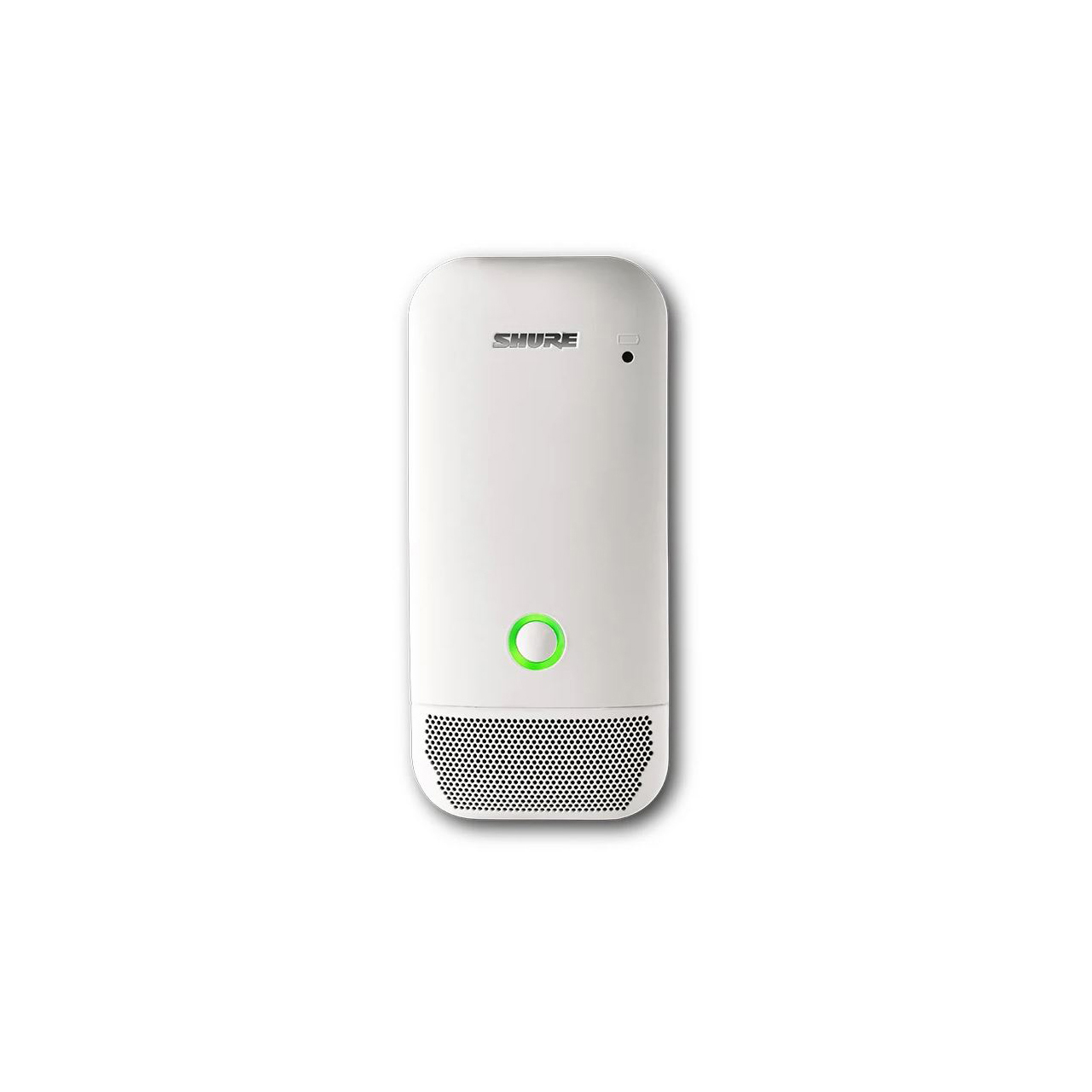

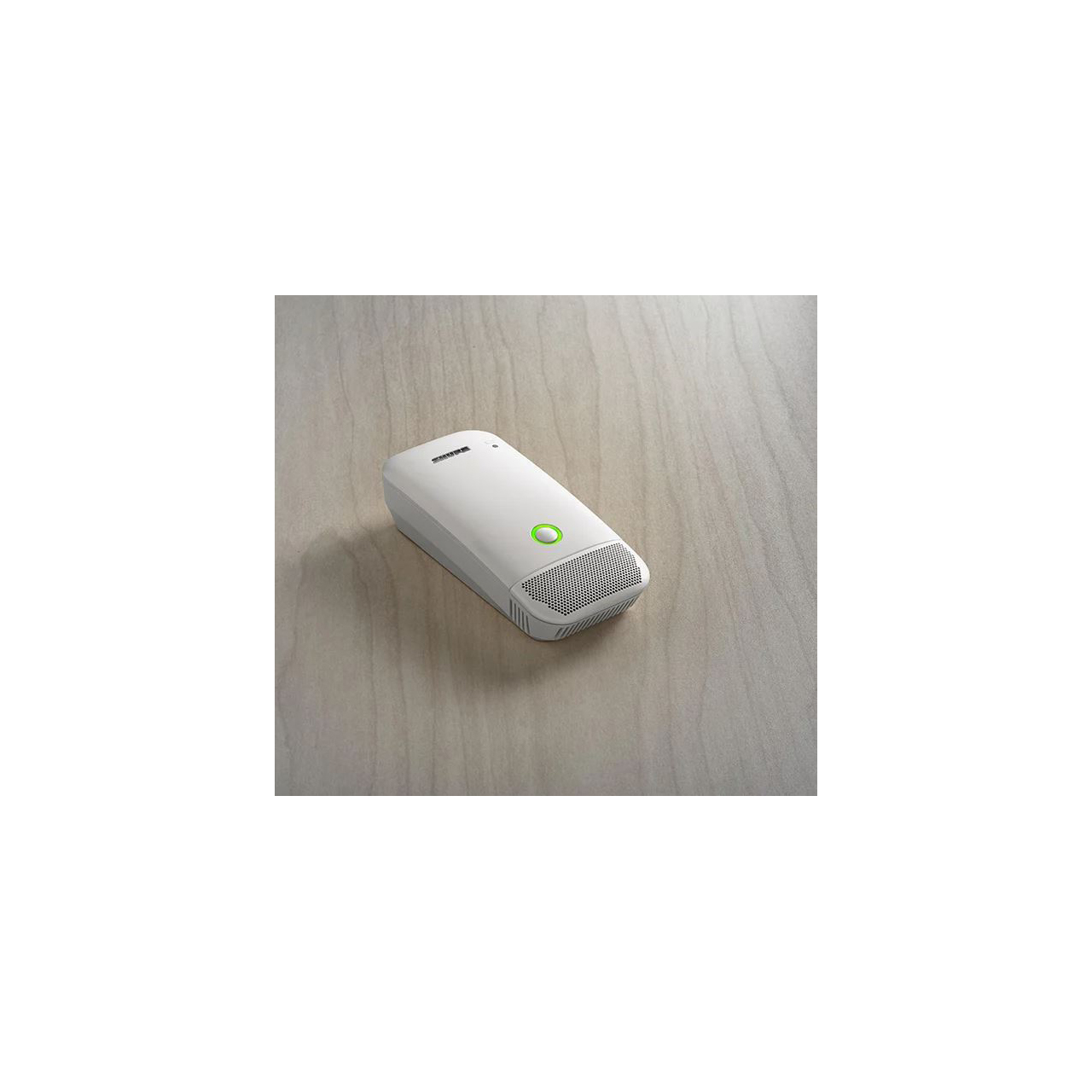

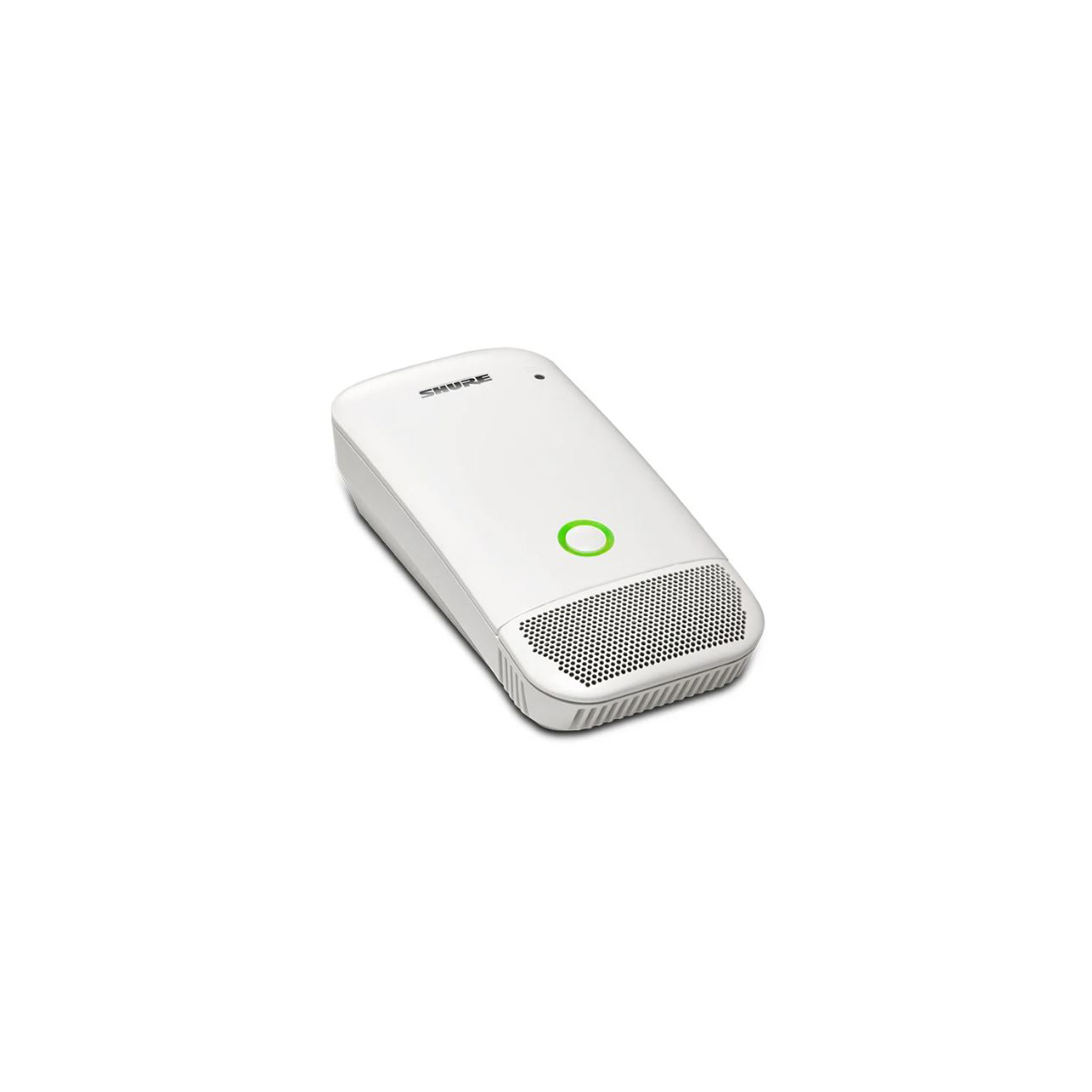

Shure ULXD6/C Cardioid Wireless Boundary Conference Microphone For ULXD And QLXD - G50 (470-534 MHz) - White

ITEM #: SH-ULXD6W-C-G50 MFG #: ULXD6W/C=-G50

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$852.00

Our Price:

$609.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ULXD6W/C=-G50 - Overview

Add high-quality, rock-solid wireless audio to your ULXD enterprise meeting or conference system with the Shure ULXD6 Boundary Microphone Transmitter. With a transmission range of up to 300 feet (100 meters), it guarantees reliable performance in large conference and convention applications. Compatible with Shure's full line of antennas and distribution components, the ULXD6 allows efficient setup with up to 200 transmitters using just one pair of receiving antennas. It works seamlessly with ULX-Dr and QLX-Dr digital receivers and offers optional SB900B rechargeable batteries for up to 9 hours of runtime. Additionally, it supports standard AA alkaline batteries and can be conveniently docked and charged with optional SBC250, SBC450, and SBC850 Networked Charging Stations. The ULXD6 features a configurable Mute button and LED behavior, along with adjustable RF power, high-pass filter, and power lock settings, providing versatile functionality to meet various audio needs. Its low-profile boundary form factor makes it perfect for tabletop use at meetings and events where wired microphones are impractical, ensuring exceptional performance in any large meeting venue. Note: When purchasing separate wireless components, ensure proper system operation by matching their frequency bands.

The ULXD6 Boundary Microphone Transmitter offers a low-profile boundary form factor that is ideal for tabletop use at meetings and events where wired microphones are impractical. Paired with a ULX-D or QLX-D digital receiver, the ULXD6 creates a system with low latency, long transmission range, and high channel count, delivering exceptional performance in large meeting venues where live sound reinforcement is required.

  • Features:

    • Very low latency makes the ULXD6 ideal for meetings that require live sound reinforcement.
    • Long transmission range (up to 300 feet/100 meters) for reliable performance in very large meetings at conference and convention centers.
    • Compatible with the full line of Shure antennas and distribution components, allowing up to 200 ULXD6 boundary microphone transmitters to be used with just one pair of receiving antennas for efficient setup.
    • Compatible with ULX-D and QLX-D digital receivers.
    • Optional SB900B rechargeable batteries provide up to 9 hours of runtime.
    • Compatible with standard AA alkaline batteries.
    • Optional SBC250, SBC450 (4-bay) and SBC850 (8-bay) Networked Charging Stations allow convenient docking and charging when transmitters are not in use.
    • Configurable Mute button (Toggle, Push-to-Mute, Push-to-Talk, disabled) and Mute LED behavior.
    • Adjustable RF power, high-pass filter, and power lock settings.

  • Specifications:

    • Gain Adjustment Range: 0dB to 21dB (in 3dB steps)
    • Battery Type: Shure SB900/SB900A Rechargeable Li-Ion or AA batteries 1.5V
    • Battery: Runtime @ 10mW
    • Shure SB900: Up to 9 hours 20 minutes
    • AA Batteries: Up to 8 hours 40 minutes
    • Dimensions (HxWxD): 4.48" x 2.43" x 1.35" (113.94mm x 61.83mm x 34.28mm)
    • Weight: 0.53lbs (241g)(with AA batteries)
    • Operating Temperature Range: 32°F - 113°F (0°C - 45°C)
    • Housing: Molded Plastic
    • RF Output Antenna Type: Integrated PIFA
    • Impedance: 50Ω
    • Occupied Bandwidth: G50 (470 - 534MHz)
    • Modulation Type: Shure proprietary digital
    • Power: 1mW, 10mW, 20mW
      Frequency Range and Output Power table, varies by region

  • Item Includes:

    • 1x ULXD6/C Cardioid Wireless Boundary Conference Microphone - G50 (470-534 MHz) - White
    • 2x AA Batteries

  • Warranty:

    • 2-year
