AIDA Imaging PTZ4K-NDI-X30W Broadcast/Conference NDIHX 4K NDI/IP/HDMI 30x Zoom PTZ Camera - White

ITEM #: AIDA-PTZ4KNDI30W MFG #: PTZ4K-NDI-X30W

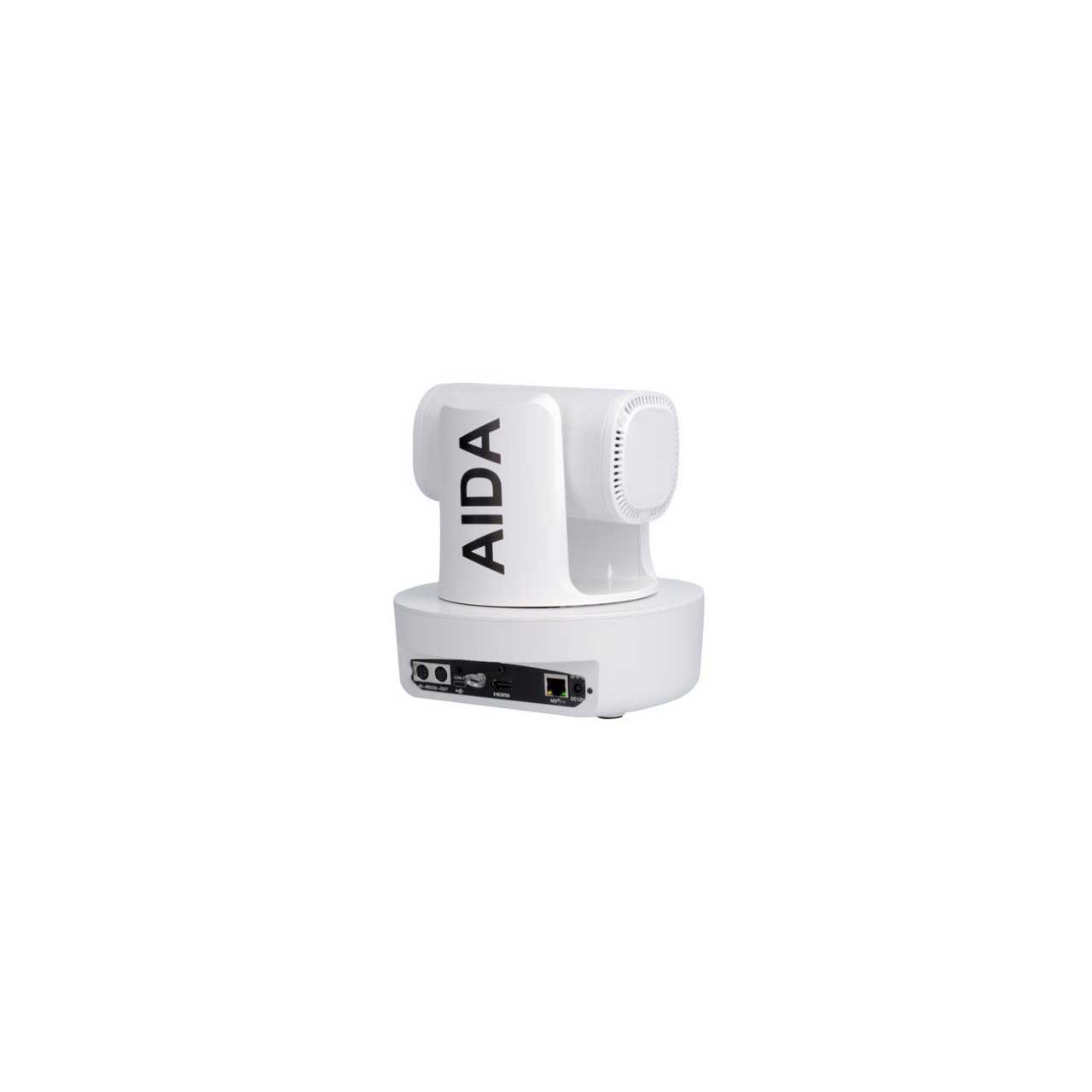

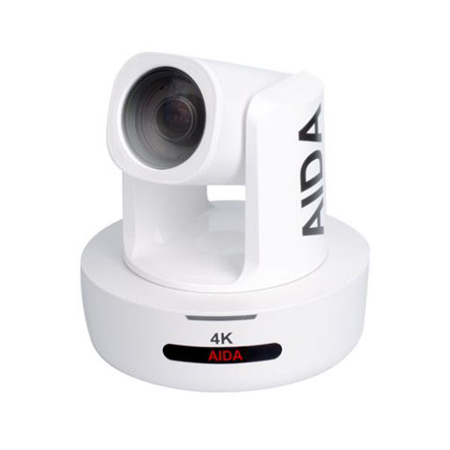

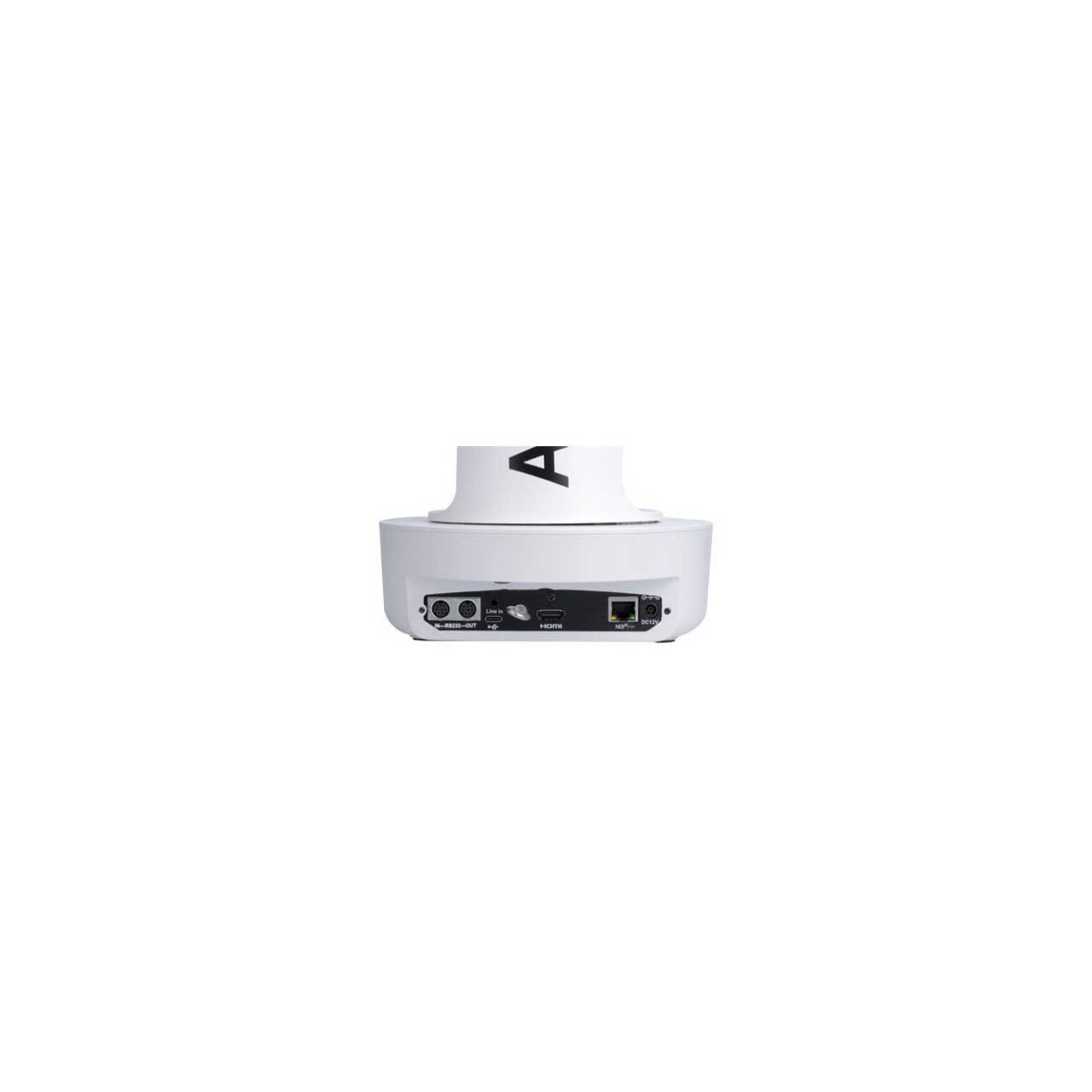

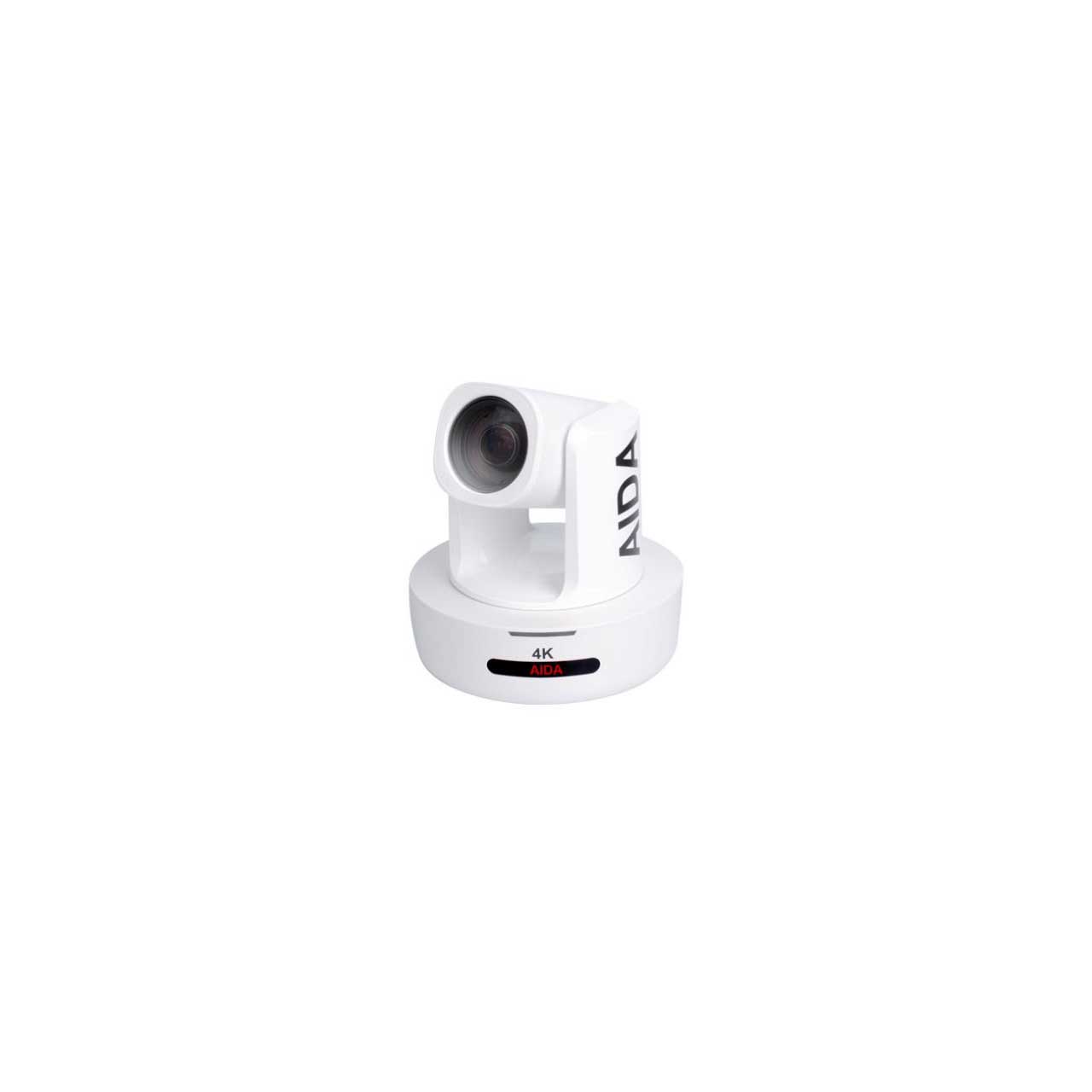

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$1,995.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PTZ4K-NDI-X30W - Overview

Reimagine Streaming in 4K, AIDA Style
With the rise of 4K being the new streaming standard, AIDA introduces the PTZ4K-NDI-X30. This powerful PTZ camera can output 4K60p through NDI®|HX, HDMI, USB 3.0, and IP formats. Coming in with a line level audio for total embedment over all protocols, this camera is truly one of their masterpieces!

The future of streaming has arrived. Don't miss out!

Now Auto-Tracking Capable!
AIDA Imaging has deployed an auto-tracking firmware upgrade! Using facial recognition AI, you can now automatically track a person effortlessly, without the need to control your camera. How it works is incredibly simple: first, head to the webUI and look for the Auto-Tracking Tab. Then, center the target you want to Auto Track, while making sure that it's in clear view and is alone. After that, just hit the "Enable Auto-Tracking" button, and you're good to go!

No-Hassle Integration
Never input NDI®|HX codes when you purchase AIDA PTZ's! They come preinstalled!

Stable, Silent, and Deadly
The PTZ4K-NDI-X30 is supported by a gorgeous double arm that allows for AIDA's unparalleled motion mechanism to stay silent!

4K Imaging, Meet AIDA Imaging
The PTZ4K-NDI-X30 comes packed with a 4K Sony CMOS sensor, able to capture gorgeous 4K Imaging in any lighting scenario. You may never see Full-HD imaging the same!

Stay in Control, Always
This PTZ is no stranger to communication, boasting SONY VISCA over RS232, VISCA over IP, NDI®, included IR remote, and web UI Control.

Almost like a Bird's Eye View
With a 4K 30x Optical Zoom module, you can capture imaging up to 150ft/30m. That's so far you may need a spotting scope to see your production!

Never Forget, PoE+
To be honest, after using PoE+ you can never go back to DC12V.. (Unless you really have to) So enjoy 1 cable setups!

Applications:
Education
Worship
Indoor Concerts
Podcasts
Cinematography

  • Features:

    • NDI®|HX streaming capable for low latency video streaming and PTZ control over NDI®|HX Protocol.
    • 4K SONY CMOS sensor for crystal clear video up to 60 frames, even in less than ideal video conditions.
    • Advanced digital image processor provides vivid and detailed images with full access feature sets.
    • Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion video without blur.
    • Simultaneous 4K60p over HDMI and NDI®|HX/SRT/RTSP/RTMP!*
    • Simultaneous 4K60p over HDMI and USB3.0* *(Disclaimer: USB and NDI®|HX/IP streams will not output simultaneously.)
    • 4K 30x Optical Zoom Module capable of capturing video up to 150ft/50 meters from your subject.
    • 3.5mm Line-in for no audio/video delay over IP/NDI protocols.
    • Built-in OSD controls for customizable image settings.
    • Cost-effective 4K PTZ for entry-level studios looking for UHD quality.
    • Comes in either a White or Black shell for further customization

  • Specifications:

    • Video
    • Image Sensor: 1/1.8" Progressive CMOS
    • Effective Pixels: Horizontal: 3840, Vertical: 2160
    • Pixel Size: 2.0 µm (H) x 2.0 µm (V)
    • Resolution: 2160, 1080p & 1080i: 3840x2160, 1920 x 1080
    • Resolution Rate: 2160 60p/59.94p/50p/30p/29.97p/25p, 24p/23.98p, 1080 60p/59.94p/50p/30p/29.97p/25p, 24p/23.98p, 1080 60i/59.94i/50i, 720 60p/59.94p/50p/30p/29.97p/25p
    • Output HDMI: NDI®|HX / RTSP / RTMP / SRT / USB 3.0
    • Color Space 4:2:2 (YCbCr) 10bit
    • Min. Illumination 0.1Lux

      Function
    • White Balance: Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor, Temperature
    • Focus: Auto, Manual
    • Shutter Speed: 1 to 1/10,000 Sec

      Lens
    • Lens: 30X 4K Optical Zoom
    • Focal Length: 6.91~214.64mm
    • Viewing Angle: 59° (wide) ~ 1.98° (tele)

      PTZ
    • Pan/Tilt Range: Pan: 340°, Tilt: +90 to -30°
    • Pan/Tilt Speed: Pan: 0° to +120°/s, Tilt: 0° to +80°/s
    • Presets: 128 Positions (via web), 10 Positions (via remote)

      Audio
    • Input: 3.5mm TRS Stereo Audio Port
    • Sample Rate: 16/24/32 Bits

      Physical
    • Camera Control: Protocol: VISCA, VISCA ovear IP, NDI, Interface: RS-232C IN & OUT, RJ-45, Remote Controller
    • Operation Temp: 32°F - 104°F
    • Dimension: 197mm x 197m x 186mm / 7.75" x 7.75" x 7.3"
    • Weight: 2.1kg / 4.63 lbs
    • Power: 12VDC (+9 - +15VDC), PoE+ (IEEE802.3at Standard Required)

  • Item Includes:

    • 1x Remote Controller
    • 1x Camera Mounting Bracket
    • 1x Power Adapter & Cable
    • 1x Safety Harness

  • GTIN:

    0783970764775
