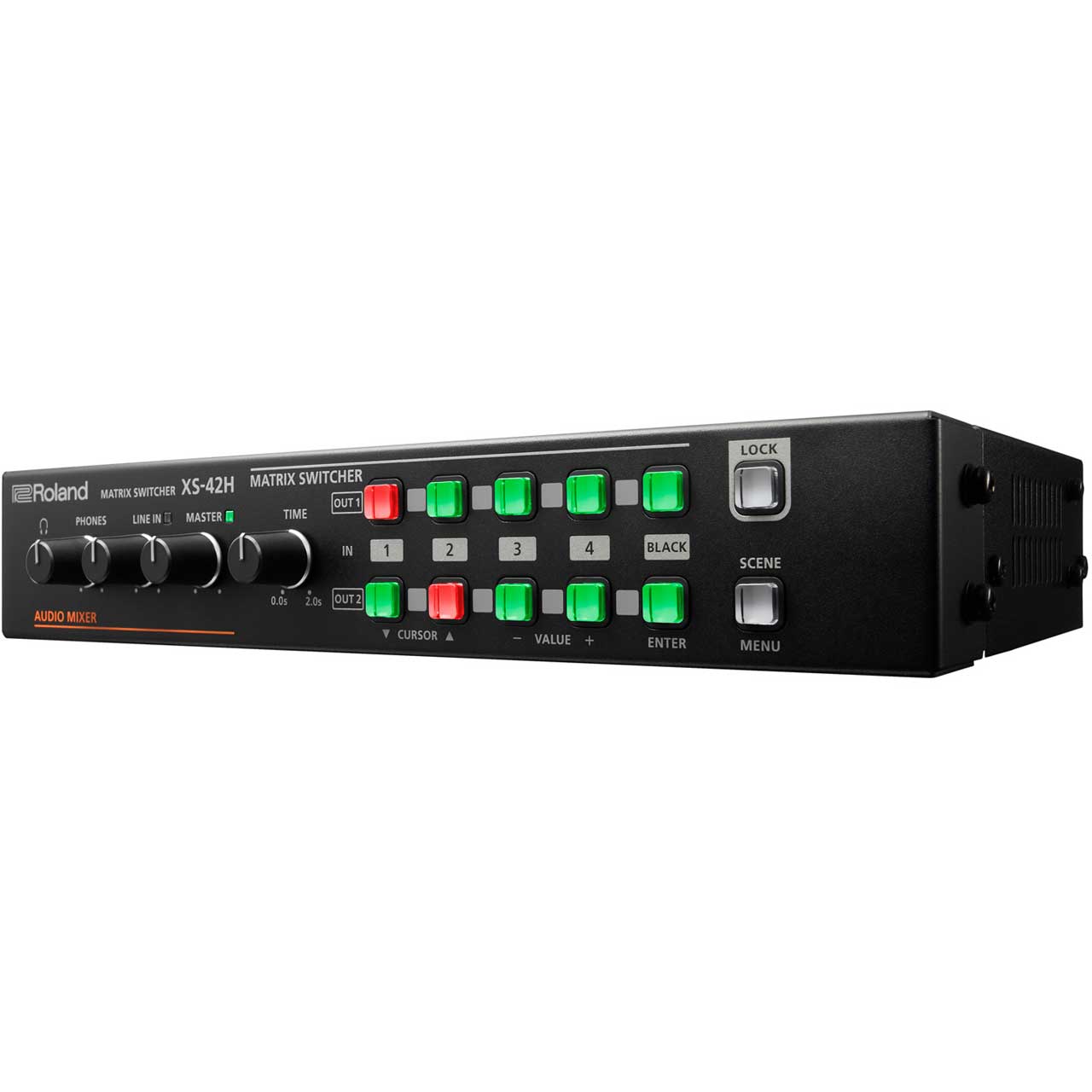

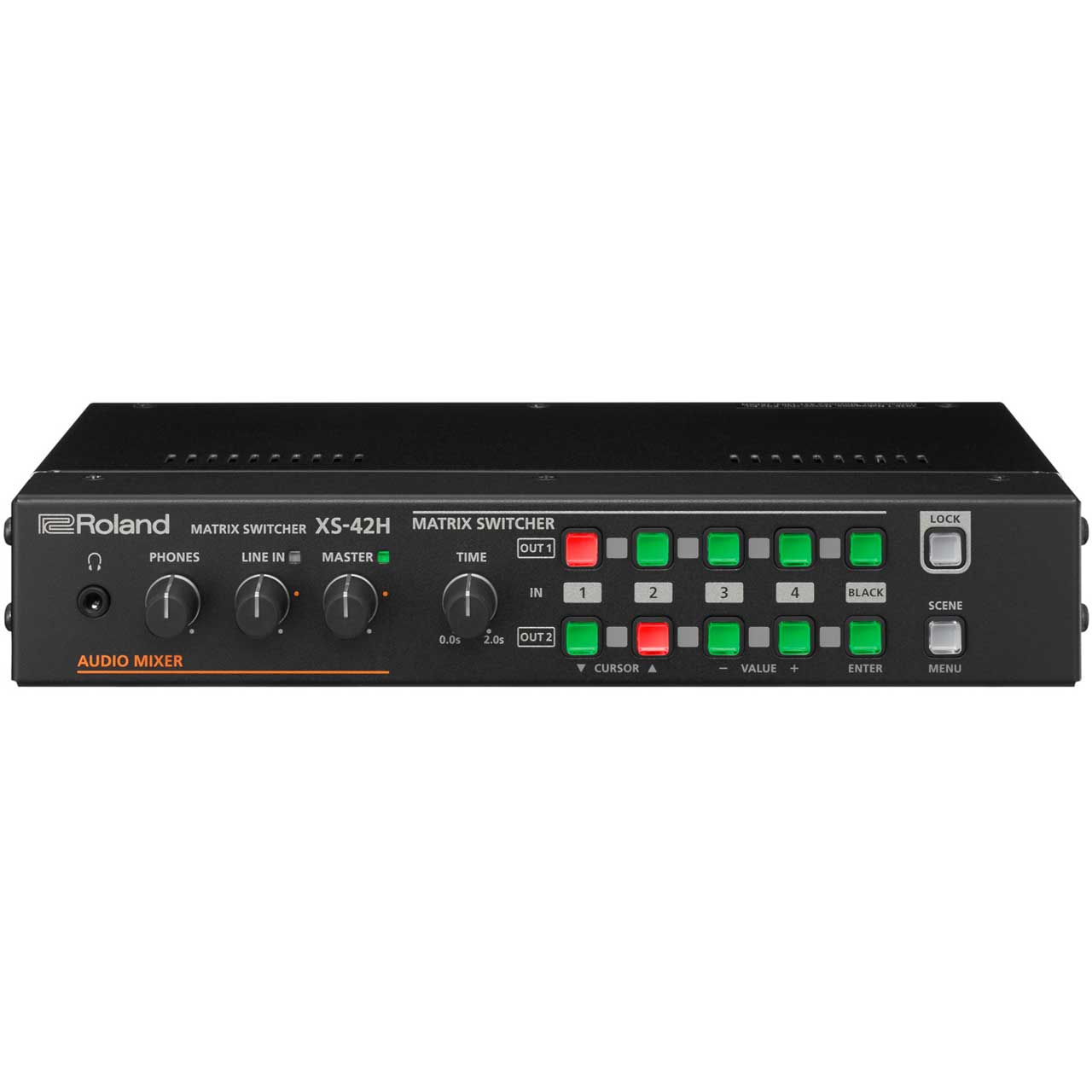

Roland Pro AV XS-42H Matrix Huddle Space Video Switching Solution

ITEM #: ROL-XS-42H MFG #: XS-42H

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,199.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


XS-42H - Overview

Meet. Share. Repeat.
The Roland XS-42H is the switcher anyone can connect to and immediately start sharing information to one or two screens for effective meetings and huddles. It is easily installed without any AV experience turns any flat panel TV into a meeting room system.

When it comes to sharing ideas and collaborating, it's important to create the right environment. The growing popularity of `huddle spaces' show that people need quick, flexible ways to meet and get things done. But how many times have you been in a meeting, only to waste the first 10 minutes trying to connect the laptop to the large screen or projector? And when `home' TVs are used for business, you quickly realize they're not up to the task - with clunky remote controls and user interfaces that are unsuitable for repeatedly switching inputs.

The Roland XS-42H gets your meetings started in no time, with fast seamless connection of up to four computers and tablets over HDMI. Installed in minutes, the XS-42H means you can lose the remote controls, forget `connection anxiety' and create a meeting space that anyone and everyone can use in seconds - without needing to call the IT department yet again.

DIY - Huddle without the hassle
Professionally installed huddle space AV systems aren't cheap - and for smaller companies the cost is often prohibitive. But if you can mount a TV on a wall, then you can install and set up the Roland XS-42H, giving you a huddle space that'll make everyone's lives easier. The XS-42H is small, light and easy to position, and the supplied mounting bracket means it can be located out of sight, but ready for action. You don't even need to physically press the button to change input sources, as the XS-42H can be controlled from a web browser on your computer, tablet or smartphone.

No more 'guess the input'
Even when successfully connected to a display, you may not see `your' screen because the correct input isn't selected. This triggers a cycle of chaos as you scramble for the right input settings, while everyone starts checking their smartphones. The XS-42H's auto input detection solves this problem by automatically switching to a newly connected device, making the transition to a new presenter incredibly smooth while keeping everyone focused on the meeting.

Connect with confidence
The XS-42H can connect and display a reassuring variety of sources. It achieves this in two ways; EDID and scaling. EDID (or Extended Display Identification Data) tells your PC or tablet the correct resolution to output, so you don't ever need to get involved. Scaling lets you connect, switch and display between a variety of different sources and resolutions - so no matter what's going in, it'll come out fine.

  • Features:

    • Switch up to four HDMI inputs to one or two displays
    • Run and switch the meeting from a web browser on a tablet, phone or PC (connected to same network)
    • Content displays automatically with Auto Input Detection
    • Arrange meeting presets for recalling common meeting set-ups with the push of a button
    • Automatic switching of audio along with video

  • Specifications:

    • Video
    • Processing: 4:4:4 (Y/Pb/Pr, RGB)/10 bits, 4:2:2 (Y/Pb/Pr)/10 bits
    • Input Connectors: HDMI type A x 4 (HDMI Input 1--4) * HDCP Supported
    • Output Connectors: HDMI type A x 2 (HDMI Output 1--2) * HDCP Supported
    • Formats: 480/59.94i (*1), 576/50i (*1), 480/59.94p (*1), 576/50p (*1), 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 800 x 600/60 (*1), 1024 x 768/60 (*2), 1280 x 720/60 (*2), 1280 x 800/60 (*2), 1366 x 768/60 (*2), 1280 x 1024/60 (*2), 1400 x 1050/60 (*2), 1600 x 1200/60, 1920 x 1080/60, 1920 x 1200/60 RB; *Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11; (*1) Input only.; (*2) Output refresh rate is 75 Hz when frame rate is set to 50 Hz.
    • Effects: Transition: Mix, Cut
    • Still Image: Internal Memory: 1; Maximum Size: 1920 x 1200 pixels; Format: Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed

      Audio
    • Sample Rate: 48 kHz, 24 bits
    • Input Connectors: HDMI: HDMI type A x 4
    • Audio Input: RCA pin type
    • Output Connectors: HDMI: HDMI type A x 2; Audio Output: RCA pin type; Phones: Stereo mini type
    • Input Level: Audio Input: -10 dBu (Maximum: +8 dBu)
    • Input Impedance: Audio Input: 15 k ohms
    • Output Level: Audio Output: -10 dBu (Maximum : +8 dBu); Phones: 72 mW + 72 mW (32 ohms)
    • Output Impedance: Audio Output: 1 k ohm; Phones : 10 ohms
    • Formats: HDMI: Linear PCM, 24 bits, 48 kHz, 2 ch
    • Processing: Mixer: 4 ch x 2 (Delay: Maximum 250 ms, Audio Follow)

      Others

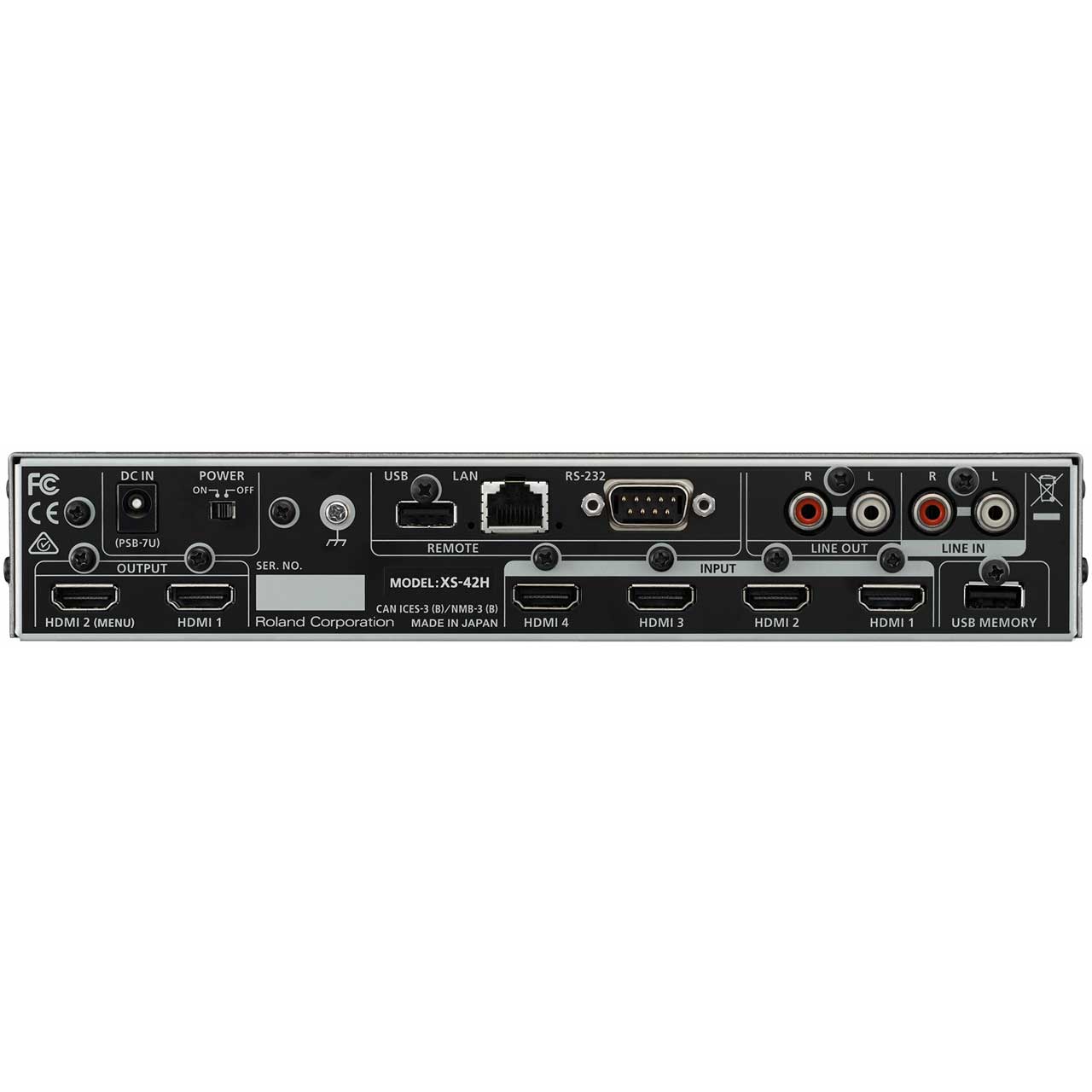

    • External Connectors: REMOTE: RS-232: DB-9 type (Male) x 1; LAN: RJ45 x 1; USB: USB A type x 1 (Use for future expansion); USB MEMORY: USB A type x 1 (Use for USB Memory)
    • Functions: Scene Memory: 10; Test Pattern Generator; Test Tone Generator; EDID Emulator
    • Power Supply: AC Adaptor
    • Current Draw: 2.1 A
    • Power Consumption: 25 W
    • Operation Temperature: +0 to +40 degrees Celsius; +32 to +104 degrees Fahrenheit
    • Dimensions: 242 (W) x 125 (D) x 44 (H) mm; 9-9/16 (W) x 4-15/16 (D) x 1-3/4 (H) inches
    • Weight: 1.2 kg; 2 lbs 11 oz

  • Item Includes:

    • Owner's Manual
    • Leaflet "Using The Unit Safely"
    • AC adaptor
    • Power cord
    • Rubber feet (4 pcs.)
    • Rack mount angle set

  • GTIN:

    0761294513316
