AJA HDR-IMGYZR-12G 1RU 12G-SDI HDR Image Analyzer for Real Time HDR Analysis with Waveform/Histogram & Vectorscope

Name: AJA HDR-IMGYZR-12G 1RU 12G-SDI HDR Image Analyzer for Real Time HDR Analysis with Waveform/Histogram & Vectorscope
Brand: AJA Video
SKU: AJA-HDRIMGYZR12G
Price: 21599.00 USD
Availability: InStock

ITEM #: AJA-HDRIMGYZR12G MFG #: HDR-IMGYZR-12G

AJA Video

Our Price:

$21,599.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

HDR-IMGYZR-12G - Overview

The AJA HDR Image Analyzer 12G delivers a comprehensive array of tools for the effective analysis of up to 4x 4K/UltraHD signals, utilizing both 12G-SDI and NDI connectivity.

Analyze HLG, PQ, Rec.2020, Rec.709, and native camera Log color spaces – from 8K/UltraHD2/4K/UltraHD/2K/HD content in a powerful, real time, 1RU device.

Developed in partnership with Colorfront, the AJA HDR Image Analyzer 12G supports a wealth of inputs from camera Log formats to SDR (Rec. 709), PQ (ST 2084), and HLG and offers Wide Color Gamut (WCG) support for BT.2020 alongside traditional BT.709 and P3, with Dolby Vision dynamic metadata inspection and analysis for advanced HDR mastering and QC applications. AJA hardware prowess ensures high reliability and performance, with 4x 12G-SDI inputs, dual 10 GigE, and DisplayPort connections.

Specifically designed to be used wherever high performance color analysis is needed, the 1RU form factor excels in a range of environments, providing the confidence you need for consistent and predictable HDR production and mastering.

Features:
- HDR Waveform, Histogram, and Vectorscope Monitoring
- Multi-channel signal analysis of up to 4x 4K/UltraHD HDR/WCG simultaneously via 4x 12G-SDI inputs
- Single channel signal analysis of 8K/UltraHD2 HDR/WCG
- Mix and match SDI and NDI signal monitoring and analysis
- UltraHD UI for high resolution picture display including PQ support for HDR capable displays via integrated DisplayPort
- Configurable layouts allow you to put the tool you need in the window you need it
- Support for display referred SDR (Rec.709), HDR ST 2084/PQ, and HLG analysis
- Support for scene referred ARRI, Canon, Panasonic, RED and Sony camera color spaces
- Dolby Vision dynamic metadata inspection and presentation
- Precision CIE graph, vectorscope, waveform, and histogram support
- False color mode to easily spot out of gamut/out of brightness pixels
- NIT levels and audio phase metering
- Line mode to focus a region of interest onto a single horizontal or vertical line
- File base error logging with timecode
- Scope LUT applies a 3D LUT to signal being analysed
- Display LUT applies a 3D LUT to only the monitoring display
Specifications:
- Video Format:
- (8K) 8192x4320p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- (UltraHD2) 7680x4320p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 48, 50, 59.94, 60
- (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1080i 50, 59.94, 60
- (HD) 720p 50, 59.94, 60
- Log/SDR/HDR Image Analysis Tool: Multi-channel HDR Waveform, Histogram, and Vectorscope monitoring
- Video Codec NDI SpeedHQ (High Bandwidth)
- Audio Streams/Codec: NDI (uncompressed float), SDI (PCM)

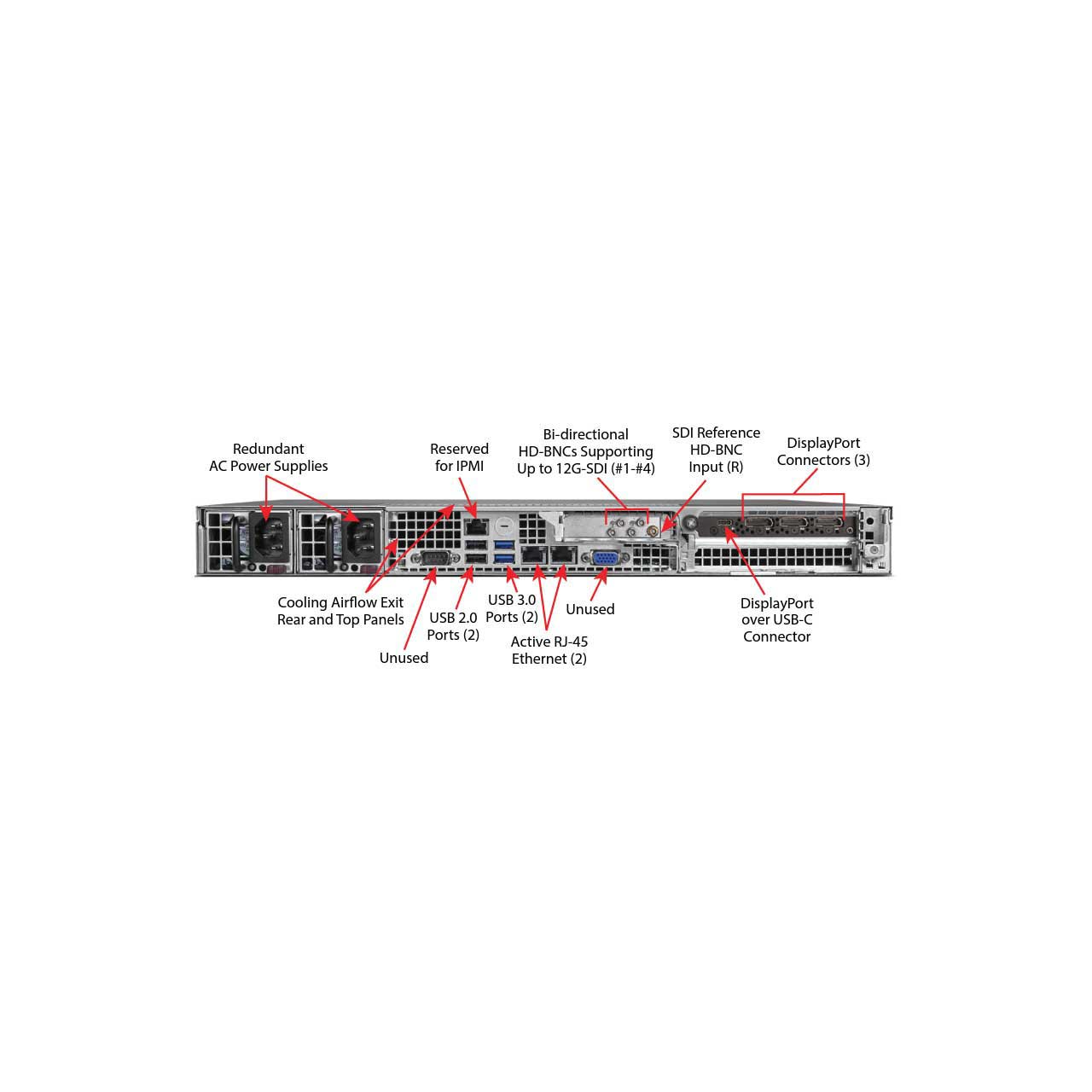

- SDI Video Input/Output Digital: 4x 12G-SDI BNC, 12G-SDI, SMPTE-259/292/296/424/425/2081/2082/2036, 12-bit, 10-bit, and 8-bit
- NDI Video Input: 2x 10 GigE RJ-45, 4x NDI (approx. 105-250Mbit/s per channel), UYVY, 4:2:2, 10-bit and 8-bit, UYVA, 4:2:2, 10-bit and 8-bit
- Video Inputs: SDI connections are input only, 8K/UltraHD2 with 12G-SDI, all four connections are used, 4K/UltraHD with 12G-SDI, all four connections can be used, 4K/UltraHD with 3G-SDI, all four connections are used, 2K/HD with 3G-SDI, all four connections can be used
- Audio Input/Output Digital: 16-channel, uncompressed float, 48 kHz sample rate, per NDI connection
- Computer Monitor Output: 4x Display Port Outputs
- Network Interface: 2x RJ-45, 10 GigE, Embedded web server for remote control, Remote Desktop Protocol (RDP)
Item Includes:
- 1x AJA HDR Analyzer
Warranty:
- 3-Year Warranty
