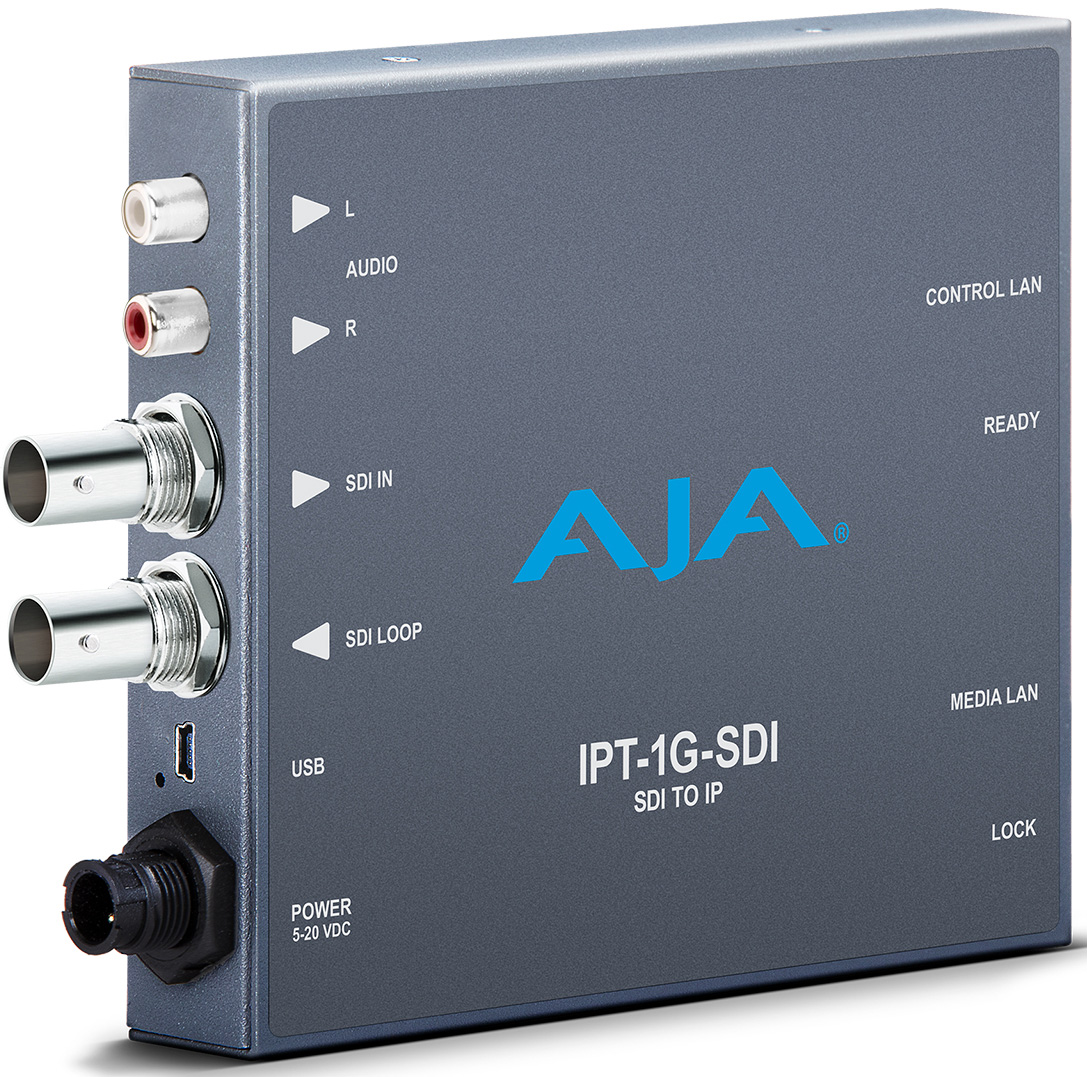

AJA IPT-1G-SDI 3G-SDI Video and Audio to JPEG 2000 Converter

IPT-1G-SDI - Overview

• Features:

  • 1 x 3G-SDI BNC input with 4:2:2 10-bits/pixel
  • 1 x 3G-SDI BNC loop through out with 4:2:2 10-bits/pixel
  • Essence support: VSF TR-01 and other JPEG 2000 MPEG-2 workflows
  • Rugged, fanless design
  • Audio input via embedded 3G-SDI or analog RCA (selectable)
  • Full 10-bit pixel processing pipeline
  • Network (LAN) control and status
  • Quick network setup with AJA eMini-Setup software


• Specifications:

  • Video Formats
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920 x 1080i 50, 59.94
  • (HD) 1280 x 720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94

    Video Input Digital
  • 1 x 3G SDI BNC
  • 4:2:2 10-bits/pixel
  • 1 x 3G SDI BNC loop through

    Audio Input Digital (User Selectable)
  • 2-Channel SDI embedded audio, 24-bit per channel, 48 kHz synchronous

    Audio Input Analog (User Selectable)
  • 2 x RCA analog audio (2-Channel)
  • Levels at -10 dBu (nominal)

    Essence Output
  • 1 x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet (IEEE 802.3-2012)
  • VSF TR-01 and other JPEG 2000 MPEG-2 TS workflows

    User Controls
  • 1 x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet (IEEE 802.3-2012)
  • HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235)
  • Web and REST clients supported
  • 1 x USB 2.0 Mini-B (IEC 62680-1) connector
  • AJA eMini-Setup of network parameters

    Size (w x d x h)
  • 5.53" x 4.48" x 0.954" (140.46 x 113.79 x 24.23 mm)

    Weight
  • 0.6Lbs (0.3kg)

    Power
  • Uses AJA power supply model DWP-U-R1, included with purchase
  • 100-240V, 50/60 Hz Universal input
  • +5 to 20V DC regulated, 12 watts max

    Environment
  • Safe Operating Temperature: 0° to 40°C (32° to 104°F)
  • Safe Storage Temperature (Power OFF): -40° to 60°C (-40° to 140°F)
  • Operating Relative Humidity: 10 to 90% non-condensing
  • Operating Altitude: <3,000 meters (<10,000 feet)


• GTIN:

  0812321030532
