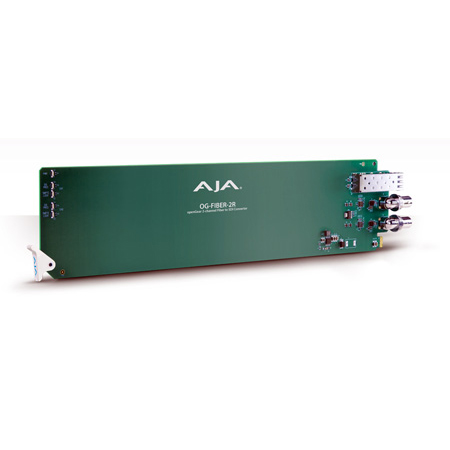

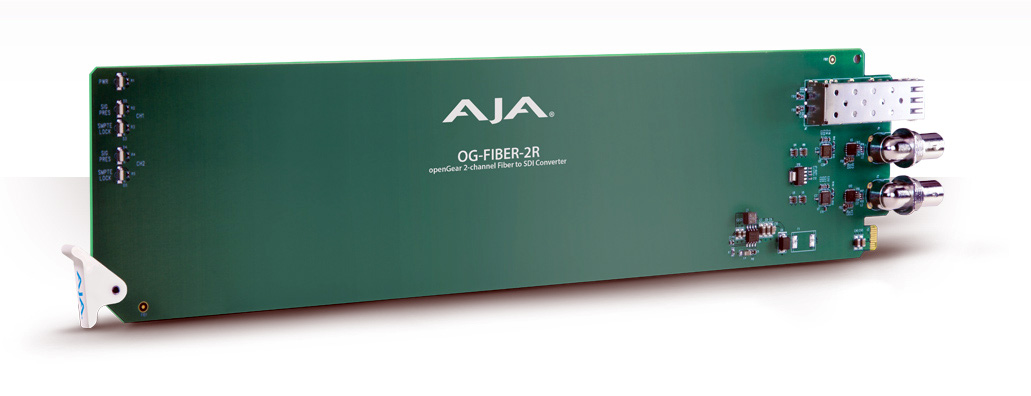

The AJA OG-FIBER-2R receiver is a state-of-the-art, openGear-compatible, two-channel Fiber to 3G-SDI converter, enabling SDI signals to be extended up to 10km over standard single-mode fiber optic cable. The two fiber inputs are completely independent allowing different SDI rates to be carried on each channel. Paired with the OG-FIBER-2T transmitter and you have one of the industries most powerful HD/SD/3G SDI extenders.
openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.
Connectivity
The fiber inputs are re-clocked with best-in-class input jitter tolerance. SDI rates of 270Mb, 1.5Gb, and 3Gb are supported. The fiber connector is attached to the main card for added reliability and cost savings.
Fiber input connection is 2 channel LC singlemode.
Please Note! Although this is a 1 slot card, the connectors and Rear Mounting Board take up 2 slot spaces in the AJA OG-3-FR openGear Frame. Current AJA openGear cards do not integrate with Dashboard.
