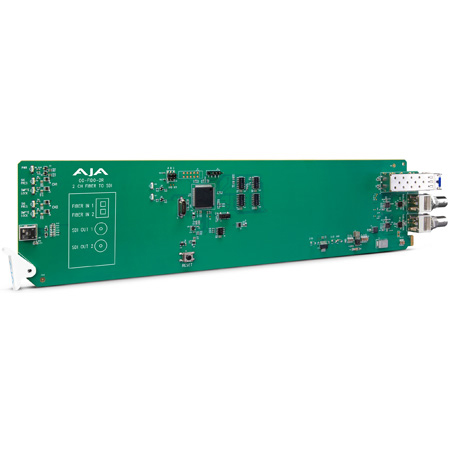

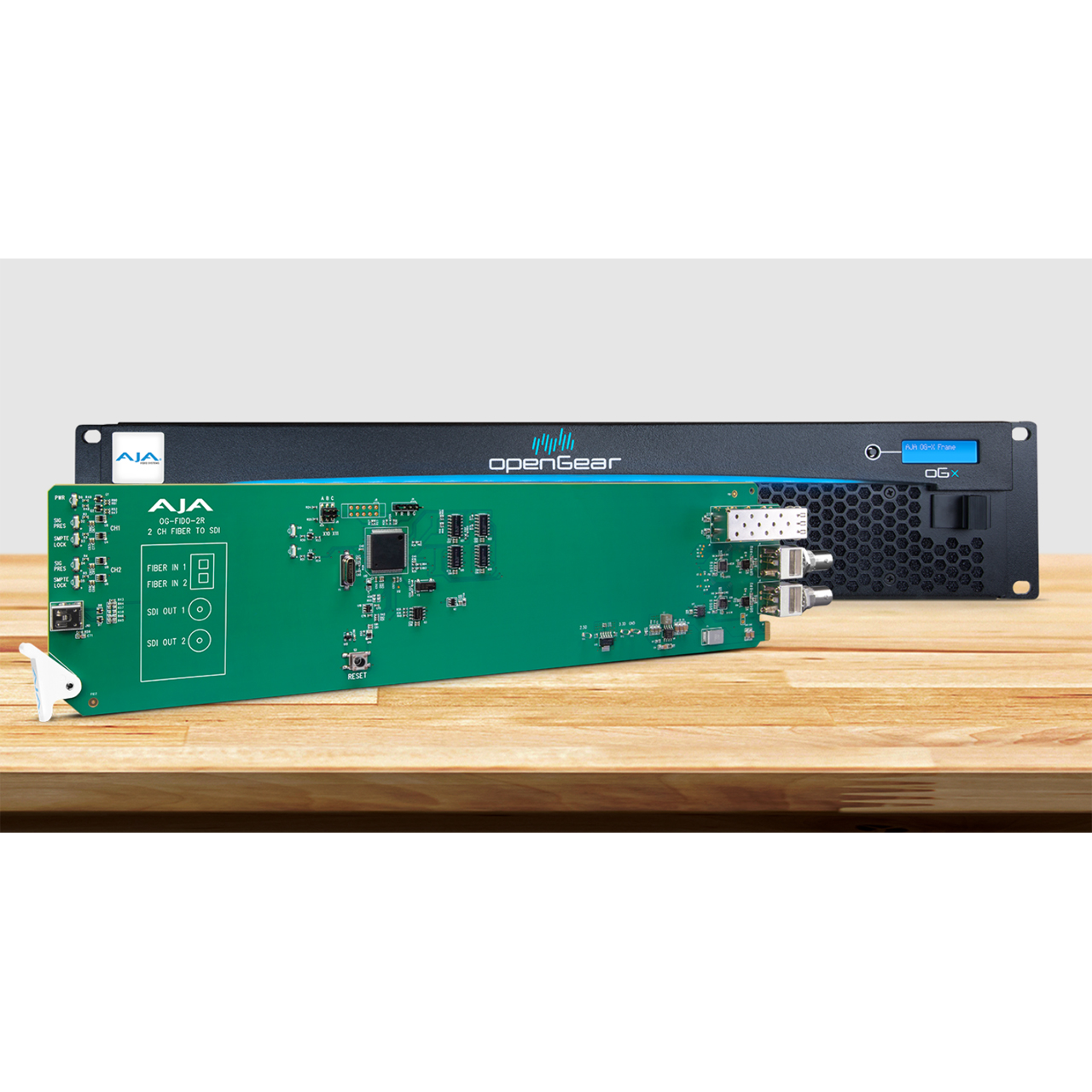

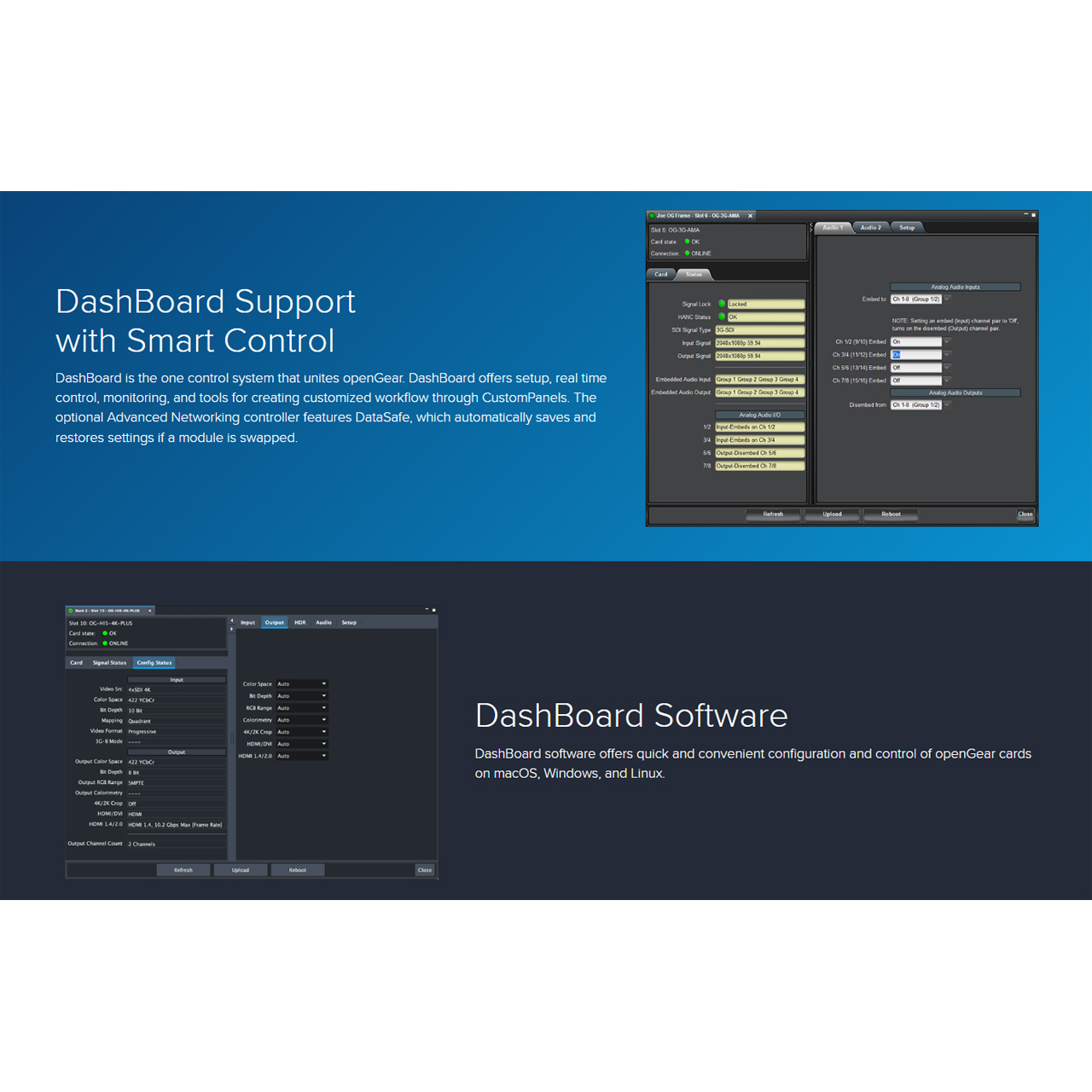

AJA OG-FIDO-2R 2-Channel Single Mode LC Fiber to 3G-SDI Receiver - DashBoard Support

OG-FIDO-2R - Overview

• Features:

  • 2-Channel Single Mode LC Fiber to 3G-SDI Receiver
  • Duplex connection (LC connector)
  • Dual, independent 3G/HD/SD-SDI outputs
  • Both Fiber-to-SDI paths are completely independent
  • Uses 5-20VDC power (DWP-U-R1 universal power supply included)


• Specifications:

  • Video Formats
  • 150 Mbps - 3 Gbps, format agnostic

    Video Input Digital
  • 2-Channel independent Single Mode LC Fiber Outputs, SMPTE-297
  • Nominal Wavelength: 1260 - 1620 nm
  • Optical Sensitivity: -18dBm (min)
  • Overload Power: -3dBm (min)

    Video Output Digital
  • 2-Channel independent 3G-SDI BNC Outputs, SMPTE-259/292/424

    Reclocking
  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
  • All other rates are passed through and not reclocked

    Dimensions
  • 4.6" x 1.71 " x.85" (117 x 43.5 x 21.6mm)

    Power
  • 3 Watts Max
  • Uses 5-20VDC power (DWP-U-R1 Power Supply Included)

    Environment
  • Safe Operating Temperature: 0° to 40°C (32° to 104°F)
  • Safe Storage Temperature (Power OFF): -40° to 60°C (-40° to 140°F)
  • Operating Relative Humidity: 10 to 90% non-condensing
  • Operating Altitude: <3,000 meters (<10,000 feet)


• Warranty:

  • Five year warranty


• GTIN:

  0812321031911
