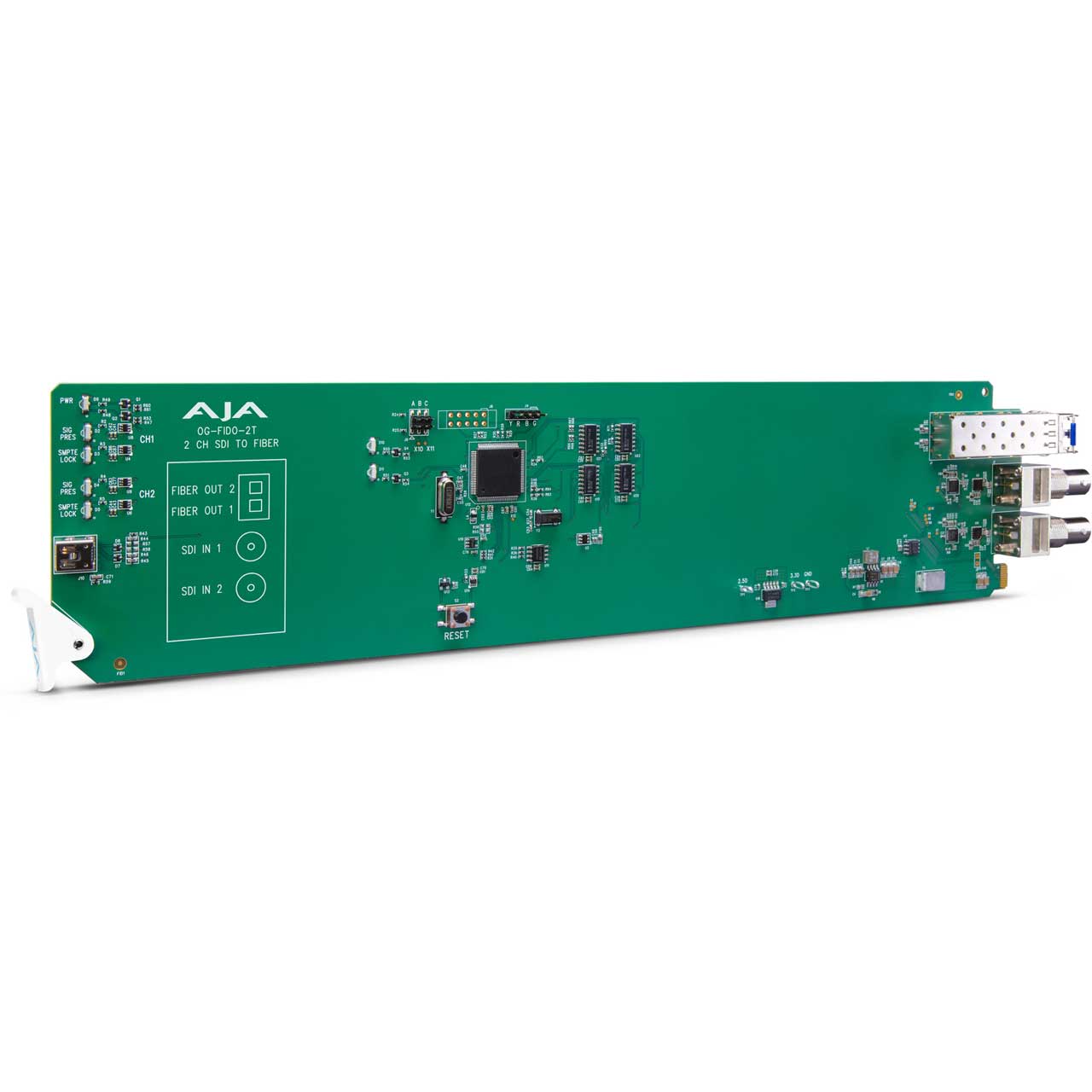

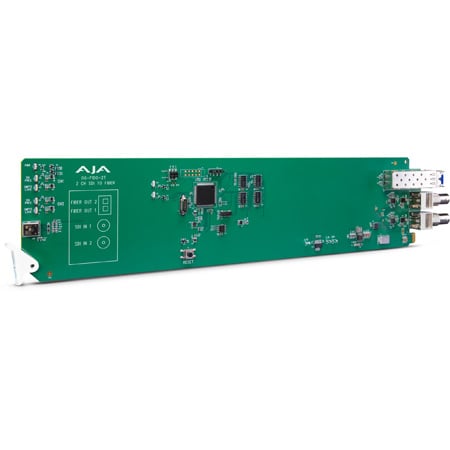

AJA OG-FIDO-2T openGear 2-Channel 3G-SDI to Single Mode LC Fiber Transmitter

OG-FIDO-2T - Overview

• Features:

  • Video Formats: 150 Mbps - 3 Gbps, format agnostic
  • Inputs: 2x Independent 3G-SDI Inputs, BNC connectors
  • Outputs: 2x Independent single mode optical fiber, LC connectors
  • Monitor via openGear DashBoard
  • Input Present and Input SMPTE Lock LEDs
  • Automatic detection and re-clocking
  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
  • All other rates are passed through and not reclocked
  • Wavelength: 1310 nm
  • Optical Power: -5dBm (min), 0dBm (max)
  • Power: 2.5 watts
  • Hot-swap capable
  • Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames


• Specifications:

  • Video Formats
  • 150 Mbps - 3 Gbps, format agnostic

    Video Input Digital
  • 2-Channel independent 3G-SDI BNC Inputs, SMPTE-259/292/424

    Video Output Digital
  • 2-Channel independent Single Mode LC Fiber Outputs, SMPTE-297
  • Nominal Wavelength: 1310 nm
  • Optical Power: -5dBm (min), 0dBm (max)
  • Extinction Ratio: 7.5dB (Typ)

    Reclocking
  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
  • All other rates are passed through and not reclocked

    User Interface
  • openGear DashBoard network control software via Windows, macOS or Linux

    Size (w x d x h)
  • openGear standard form factor, front slot and rear card. Two slots required for each card.

    Weight
  • 0.5 lb (0.3 kg)

    Power
  • openGear frame compatible, 2.5 watts max per card

    Environment
  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)


• Warranty:

  • 5 Year Warranty


• GTIN:

  0812321031898
