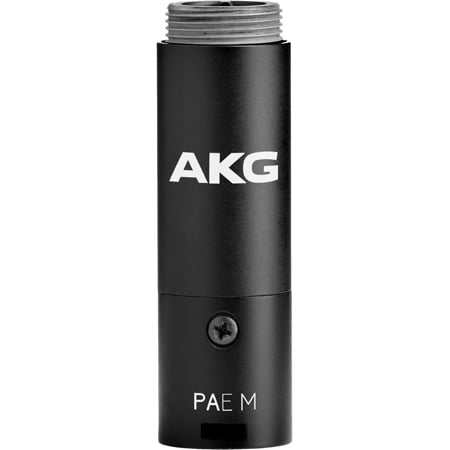

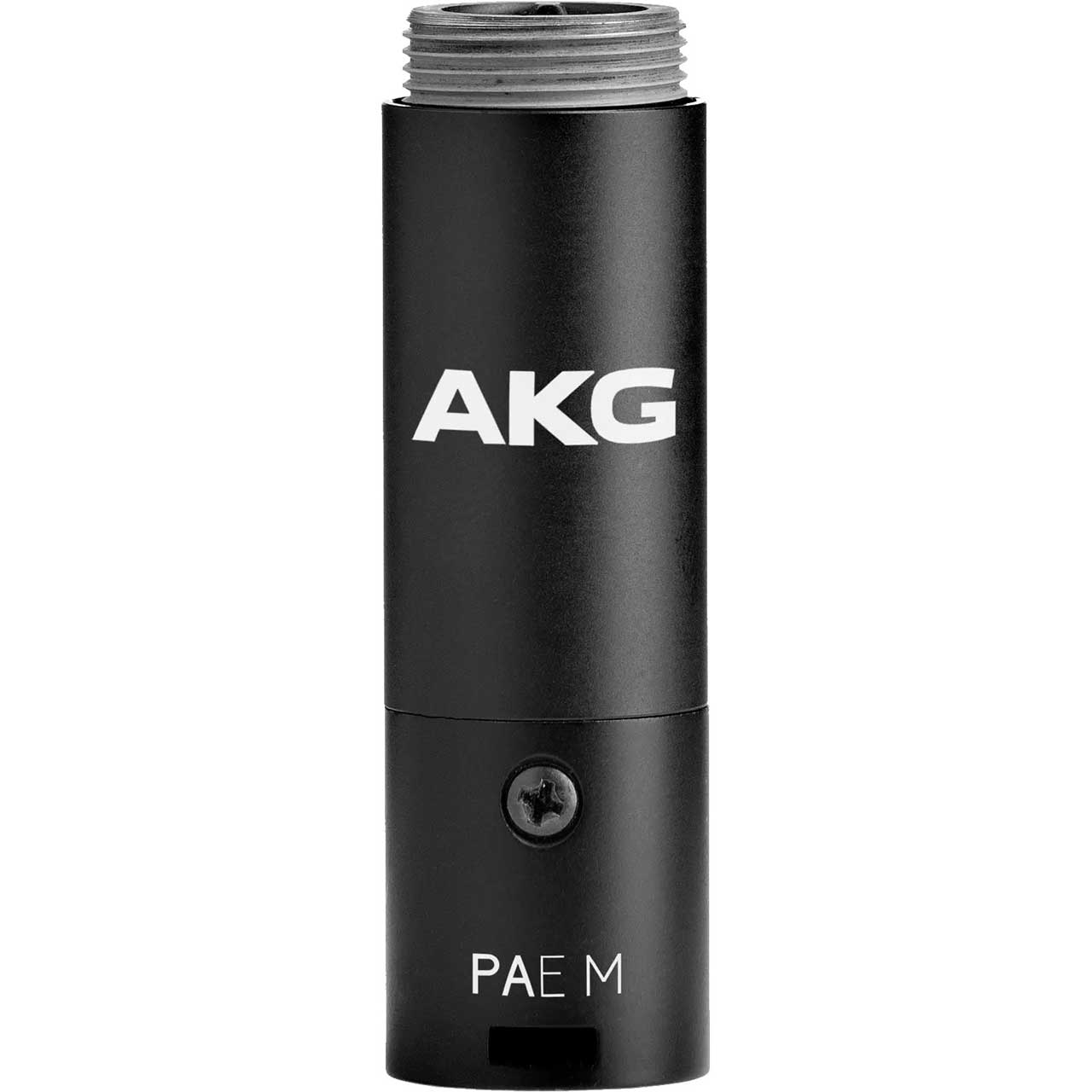

AKG PAE M Phantom Power Adapter for DAM+ Series Mics - 3pin-XLR

Name: AKG PAE M Phantom Power Adapter for DAM+ Series Mics - 3pin-XLR
Brand: AKG Acoustics
SKU: AKG-PAE-M
Price: 75.00 USD
Availability: PreSale

ITEM #: AKG-PAE-M MFG #: PAE M

AKG Acoustics

List Price:

$95.52

Our Price:

$75.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

PAE M - Overview

Executive Modularity
The AKG PAE M reference phantom power module for fixed and mobile installation provides a gold-plated three-pin XLR connector. With its wide voltage range the module will fit most available microphone mixers. The module also features a 250 Hz bass roll off for reduction of structure-borne noise. The PAE M comes with an integrated system connector with gold- plated contacts. This unique connection securely fits all available gooseneck modules of the DAM+ Series as well as the HM1000 M hanging module.

Applications:
Houses of worship
Conferencing
Theaters

Features:
- Feeds all Modular Plus Series capsules for highest flexibility
- RFi Shield technology provides high immunity to radio-frequency interference
- Accepts 9-52 V input for almost any available mixer inputs
- Switchable bass roll off for reduction of body noise and proximity effect
- Highly reliable contacts to mounting modules prevent contact problems and ensure extra-long life
Specifications:
- General Specifications
- Audio frequency bandwidth: 20 - 20000 Hz
- Bass cut filter: 150 Hz
- Electrical impedance: < 600 Ohms
- Recommended load impedance: > 2000 Ohms

  Dimensions
- Height: 2.58 in
- Diameter: 0.75 in
- Net Weight: 1.51 oz

  Audio Output
- Type: Balanced XLR
- Gender: Male
- Contacts: 3-pin

  Powering Interface
- Voltage: 9 to 52 V
- Current: 3.5 mA
Item Includes:
- 1x AKG PAE M Phantom Power Adapter for DAM+ Series Mics - 3pin-XLR

PAE M - Recommended Accessories

Sescom Mic Cable Canare Star-Quad 3-Pin XLR Male to 3-Pin XLR Female - Black - 10 Foot
SC10XXJ
Our Price: $19.49
Sescom Pro Audio Hum Eliminator Inline with Isolation
IL-19
Our Price: $50.49
SoundTools SSXLR Sniffer/Sender 3-Pin XLR/Phantom Power Test Set - DMX Compatible
ST-XLR-SS
Our Price: $60.00
Mackie MTEST-1 7-IN-1 Cable Tester
MCK-MTEST-1
Our Price: $34.99
AKG C214 Professional Large-Diaphragm Condenser Microphone
AKG-C214
After Savings: $349.00
AKG C3000 Studio Condenser Mic with Shock Mount
AKG-C3000
Our Price: $349.00

PAE M - Reviews

PAE M - Attachments

Please see the PAE M Quick Start Guide (pdf)
Please see the PAE M Users Manual (pdf)
