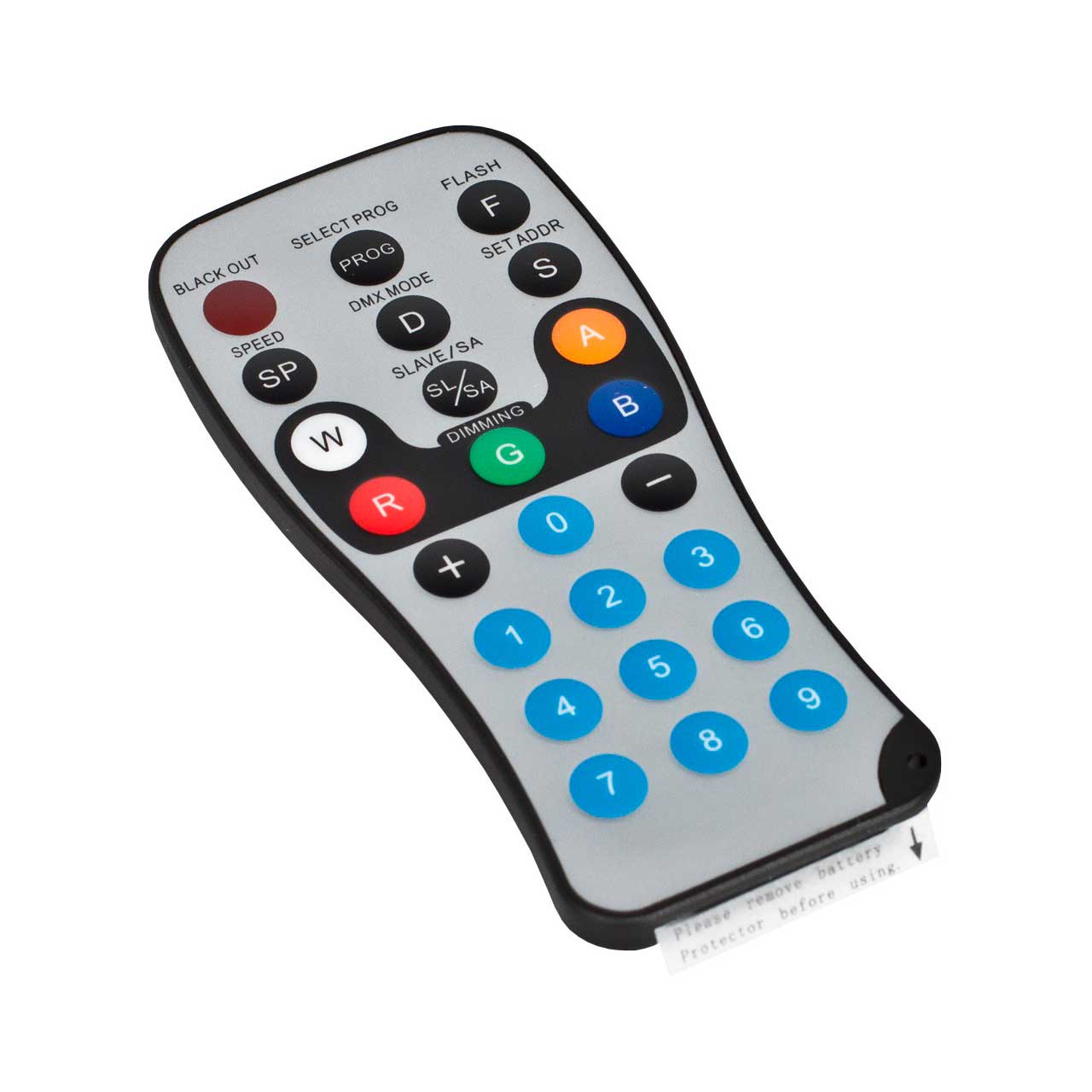

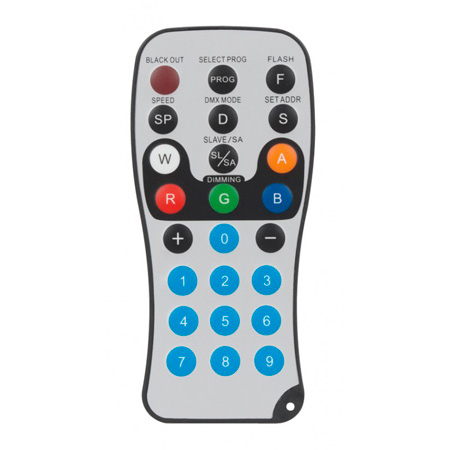

ADJ LED RC2 Wireless Infrared Remote with RGBWA Control

ADJ LED RC2 - Overview

• Features:

  • BLACKOUT - Pressing this button will blackout the fixture.
  • AUTO RUN - This button will run an automatic program. You can control the speed of the Auto Run by pressing the SPEED button first and then pressing the "+" and "-" buttons.
  • PROGRAM SELECTION - This button will let you access one of the seven static color selections.
  • Pressing this button and then press the "+" or "-" to navigate through the seven programs.
  • FLASH - This button will activate the strobe effect. You can control the flash rate by pressing the "+" and "-" buttons. Press this button again to exit strobe mode.
  • SPEED - Press this button and use the "+" & "-" buttons to adjust the speed of the Auto run.
  • DMX MODE - This button will let you select which DMX mode you want to use. Some fixtures will come with different DMX channel modes. This button will switch between the different modes.
  • SOUND ACTIVE - This button activates sound active mode. Sound active mode will not work for outdoor LED lights.
  • SLAVE - This designates the fixture as a slave fixture in a master/slave configuration.
  • SET ADDRESS - Press this button to set the DMX address. Press this button first, then press the numbers to set the address. Example: DMX Address 1 Press "S001" DMX Address 245 Press "S245"
  • R G B A W- Press either one of these buttons, and then press the "+" and "-" to adjust the brighness. "+" and "-" - Use these buttons to adjust the flash rate, speed of the Auto Run, dimming, and program selection.


• Warranty:

  • 1 Year Warranty
