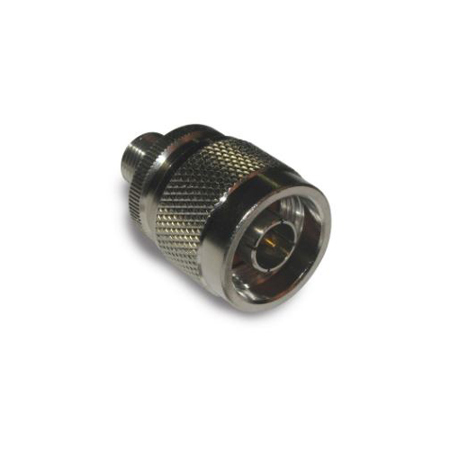

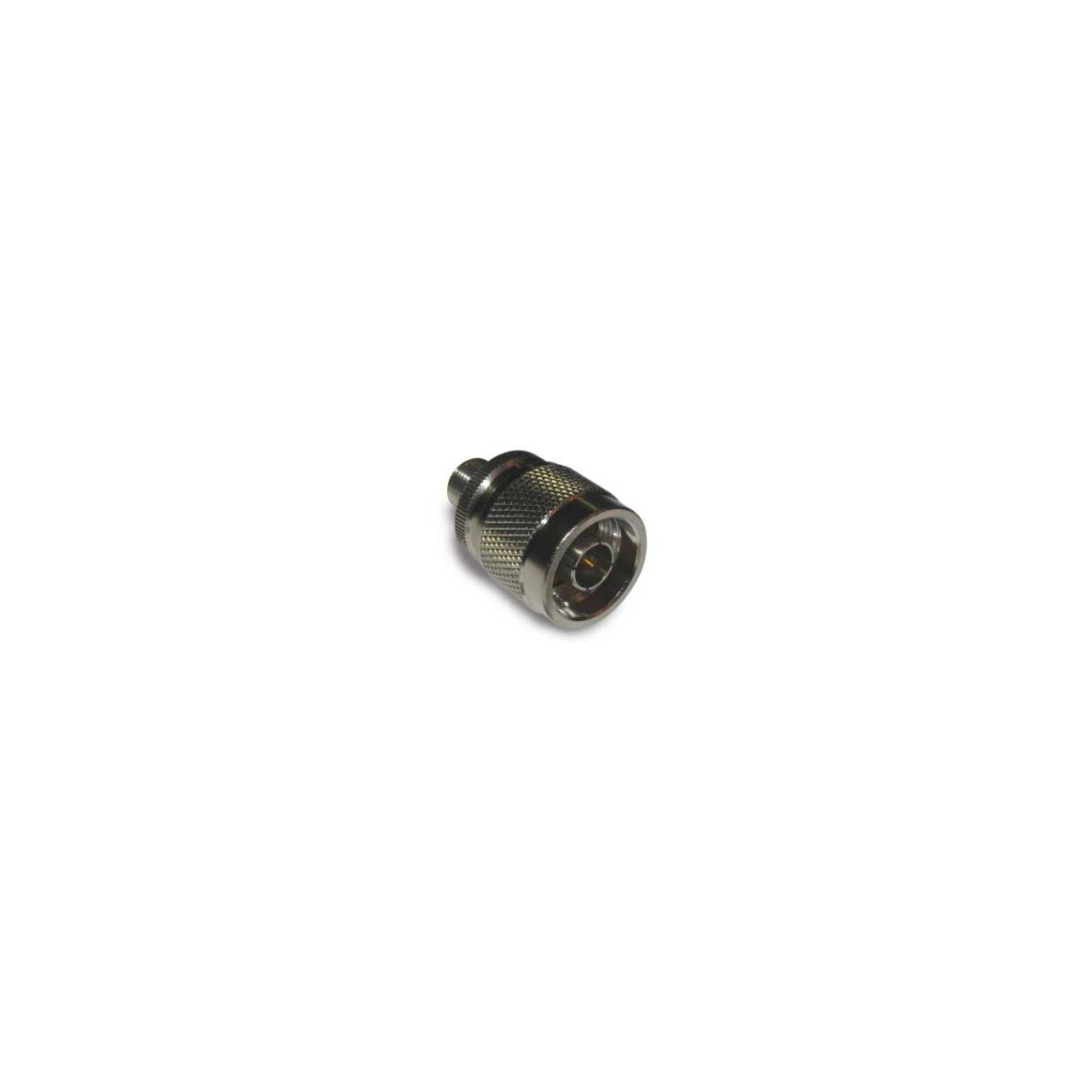

Amphenol 242156 F-Type Jack to N-Type Plug Adapter 50 Ohm Straight

ITEM #: AMP-242156 MFG #: 242156

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AMP-242156

242156 - Overview

The 242156 is a Between Series Nickel/Brass F-Type Jack to N-Type Plug Adapter, 50 Ohm, Straight. Amphenol between series adapters are used to join two connectors of different series. They are designed to offer the lowest VSWR rating of the two series involved.

  • Specifications:

    • Adapter Configuration: F-Type Jack to N-Type Plug
    • Adapter Type: Between-Series
    • Alias: NM-FF2-NT3G-50
    • Body Finish: Nickel
    • Body Material: Brass
    • Contact Finish: Gold
    • Contact Material: Beryllium Copper
    • Export Control Classification Number: EAR99
    • Frequency (Max GHz): 2
    • IP Rating: Not Rated
    • Impedance (Ohms): 50
    • Insulator Material: PTFE
    • Isolated: No
    • Low PIM: No
    • Mil Qualified: No
    • Non Magnetic: No
    • Orientation: Straight
    • Panel Mounting Feature: Not Applicable
    • Temp (Max Degrees Celsius): 165
    • Temp (Min Degrees Celsius): -65
