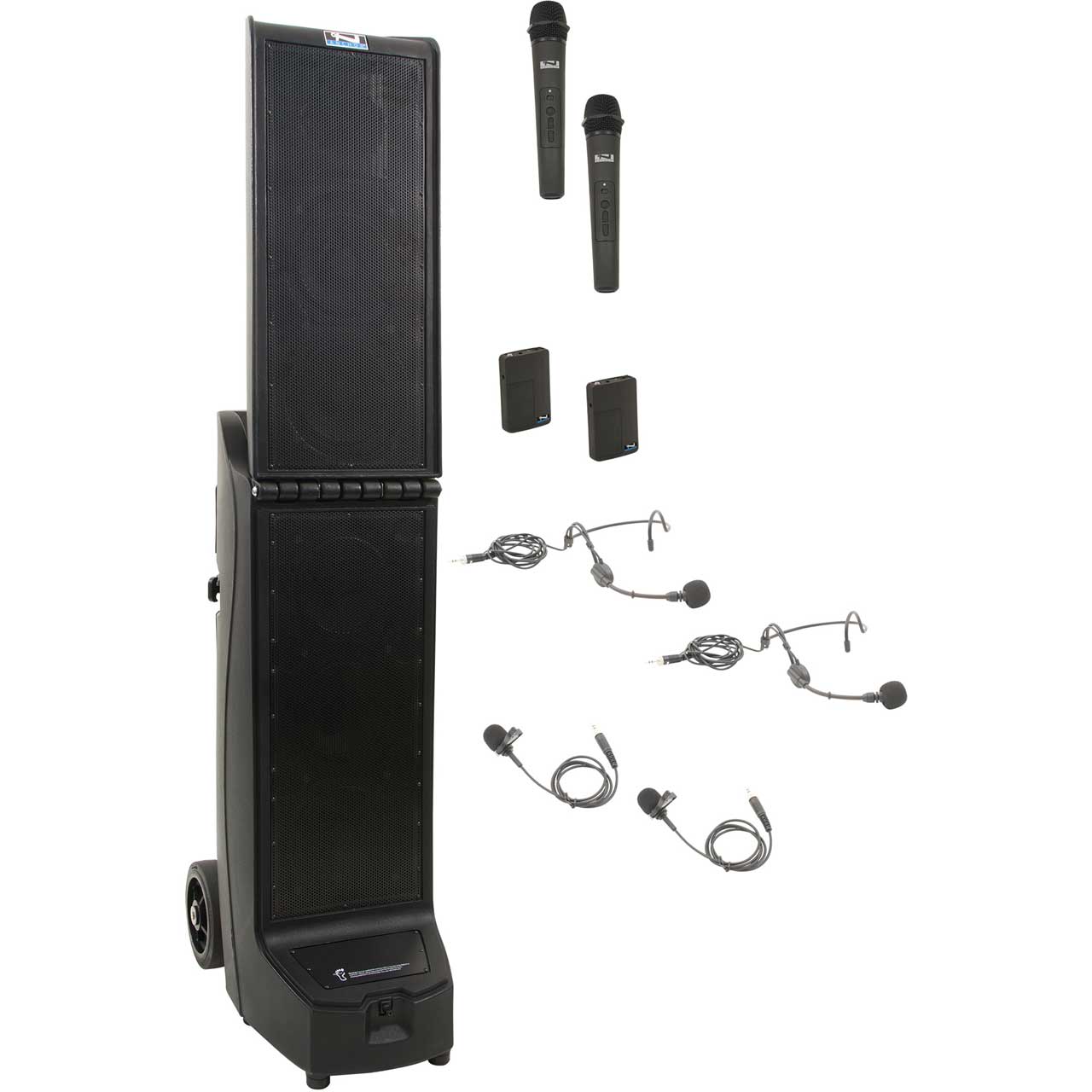

Anchor BIG-QUAD-HHBB Bigfoot Quad Package with BIG2-XU4 & 2 WH-LINK Handheld Mics & 2 WB-LINK W/2 Lapel & 2 Headset Mics

ITEM #: AN-BIG-QUAD-HHBB MFG #: BIG-QUAD-HHBB

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$7,599.00

Our Price:

$6,499.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipped truck freight.


BIG-QUAD-HHBB - Overview

The BIG-QUAD-HHBB Bigfoot Quad Package comes with the BIG2-XU4 sound system with built-in bluetooth AIR wireless transmitter & dual wireless mic receiver. This unit also inclues 2 WH-LINK wireless handheld mics and 2 WB-LINK Bodypack Transmitters with 2 lapel and 2 headset mics. The Bigfoot BIG2-XU4's built-in Bluetooth receiver streams music from a smartphone, laptop or tablet. Non Bluetooth devices, wired mics and more get connected with the two XLR combo jacks, 1/4 inch line input and a 3.5mm stereo mini jack. The unit features 2 dual wireless mic receivers that allow you to connect up to 4 wireless mics, integrated mixer functions with volume control, 2 band EQ and a balanced 1/4 inch out for routing to additional PA's.

  • Features:

    • Reaches Crowds of up to 5000 People
    • Integrated Handle and Rolling Wheels
    • Built-In Bluetooth Receiver
    • AIR Wireless Transmitter
    • Two Dual Wireless Mic Receivers
    • 400W of Rated Output Power
    • Five 8" Woofers & Compression Driver
    • Integrated Mixer & 2-Band Equalizer
    • Built-In Rechargeable Batteries
    • XLR, 1/4" & 3.5mm Inputs, 1/4" Output

  • Specifications:

    • LF Driver: 5 x 8" / 20.3 cm Neodymium woofers
    • HF Driver: 1x Neodymium compression driver
    • Rated Power Output: 400 W (AC/DC mode)
    • Maximum SPL: 130 dB at 1 m
    • Inputs: 2 x XLR/1/4" combo (balanced) 1x 1/4" TRS balanced, 1x 1/8" / 3.5 mm stereo
    • Outputs: 1x 1/4" TRS
    • Frequency Response ± 3dB: 100 Hz to 15 kHz
    • Input Sensitivity: Lo-Z Microphone: -52 dBV (2.5 mVrms)
    • Hi-Z Microphone: -43 dBV (7.5 mVrms)
    • Auxiliary: -14 dBV (200 mVrms)
    • Input Impedance: Lo-Z: 1 kOhm
    • Hi-Z: 10 kOhms
    • Bluetooth: Class-1
    • Wireless Frequency Wireless Microphone: 1.9 GHz DECT
    • AIR Receiver/Transmitter: 902 to 928 MHz
    • Wireless Range: Up to 300' (line of sight)
    • Phantom Power: 12 VDC

  • Item Includes:

    • 1x Anchor BIG-QUAD-HHBB Bigfoot Quad Package with BIG2-XU4 & 2 WH-LINK Handheld Mics & 2 WB-LINK W/2 Lapel & 2 Headset Mics

  • GTIN:

    0819941015390
