DP-1X4-II - Overview

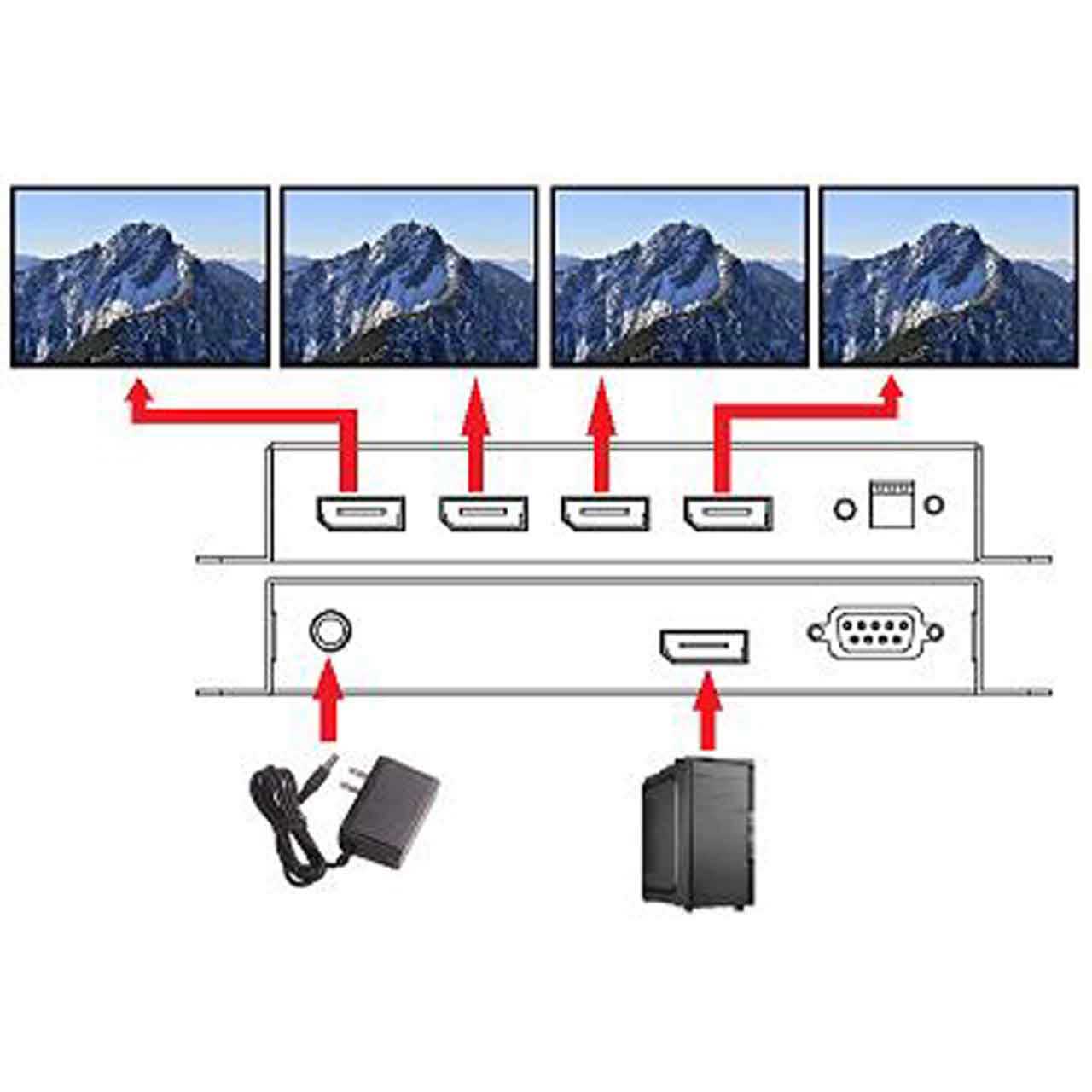

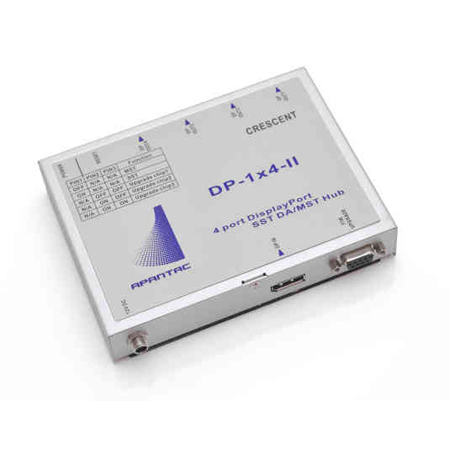

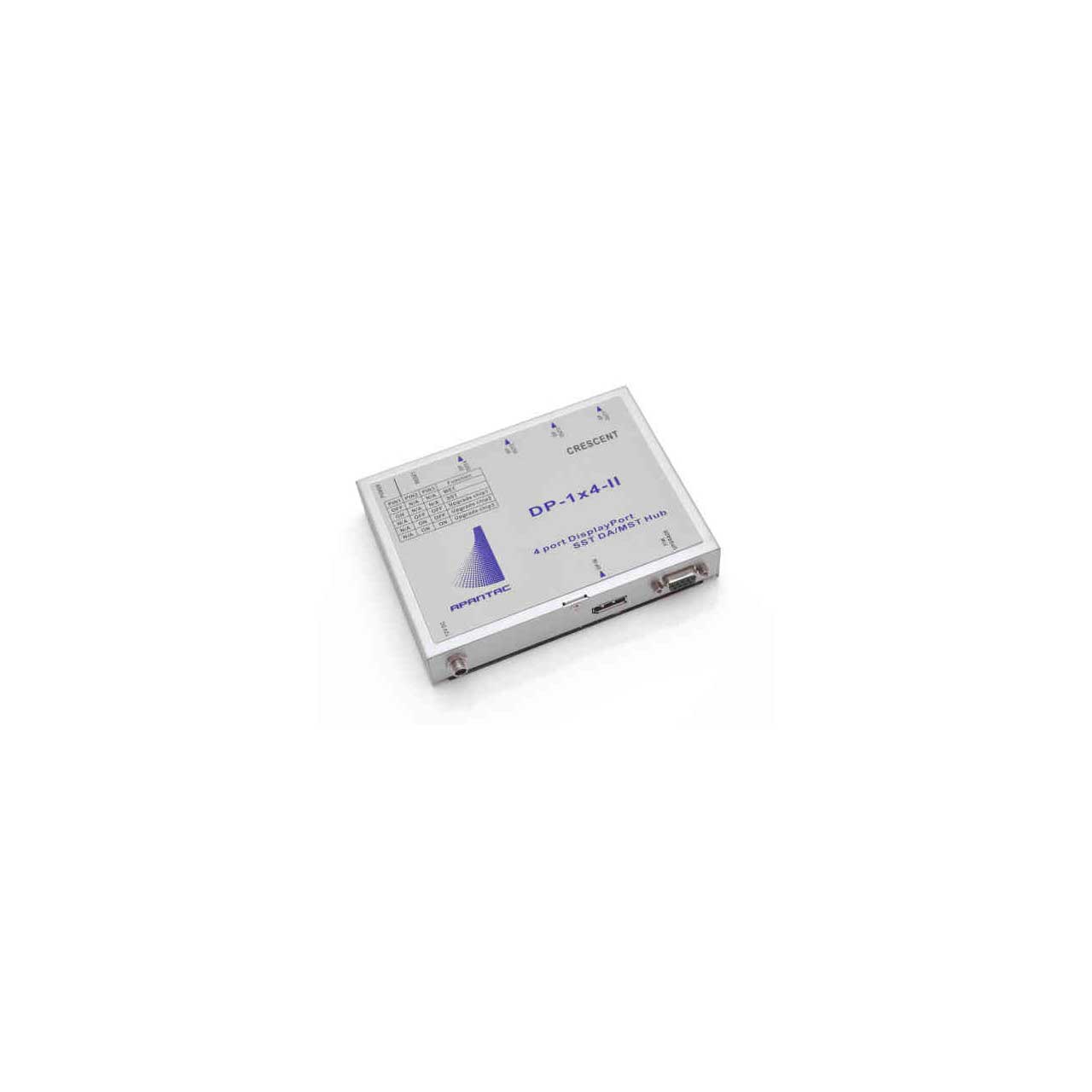

The Apantac DP-1x4-II is a high-speed 4 port DisplayPort splitter/distribution amplifier targeted for audio/video de-multiplexing and in distribution for applications such as notebook computers, docking stations, video hub, 4K2K TV/displays, daisy chainable monitors, digital signages and more. It consists of one DisplayPort input and two dual mode output ports, that are configurable as either DisplayPort or HDMI.

Features:
- Supports DisplayPort 1.2a
- Supports Displayport HDCP 1.3
- Supports HBR2/HBR/RBR
- Maximum bandwidth of 21.6GHz
- Support SST and MST Mode
- Compliant with DisplayPort 1, 2 or 4 lanes
Specifications:

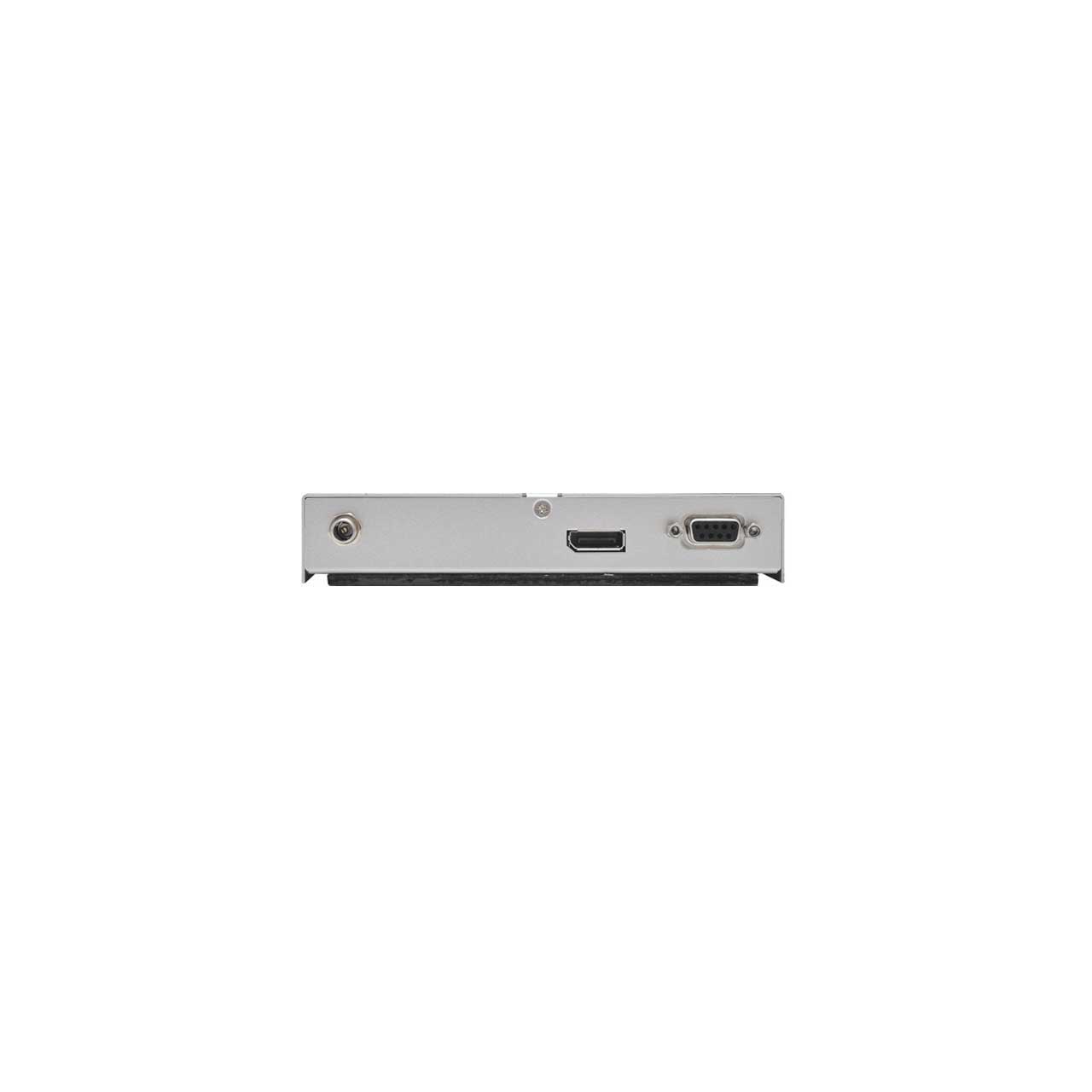

- Input: 1x DP

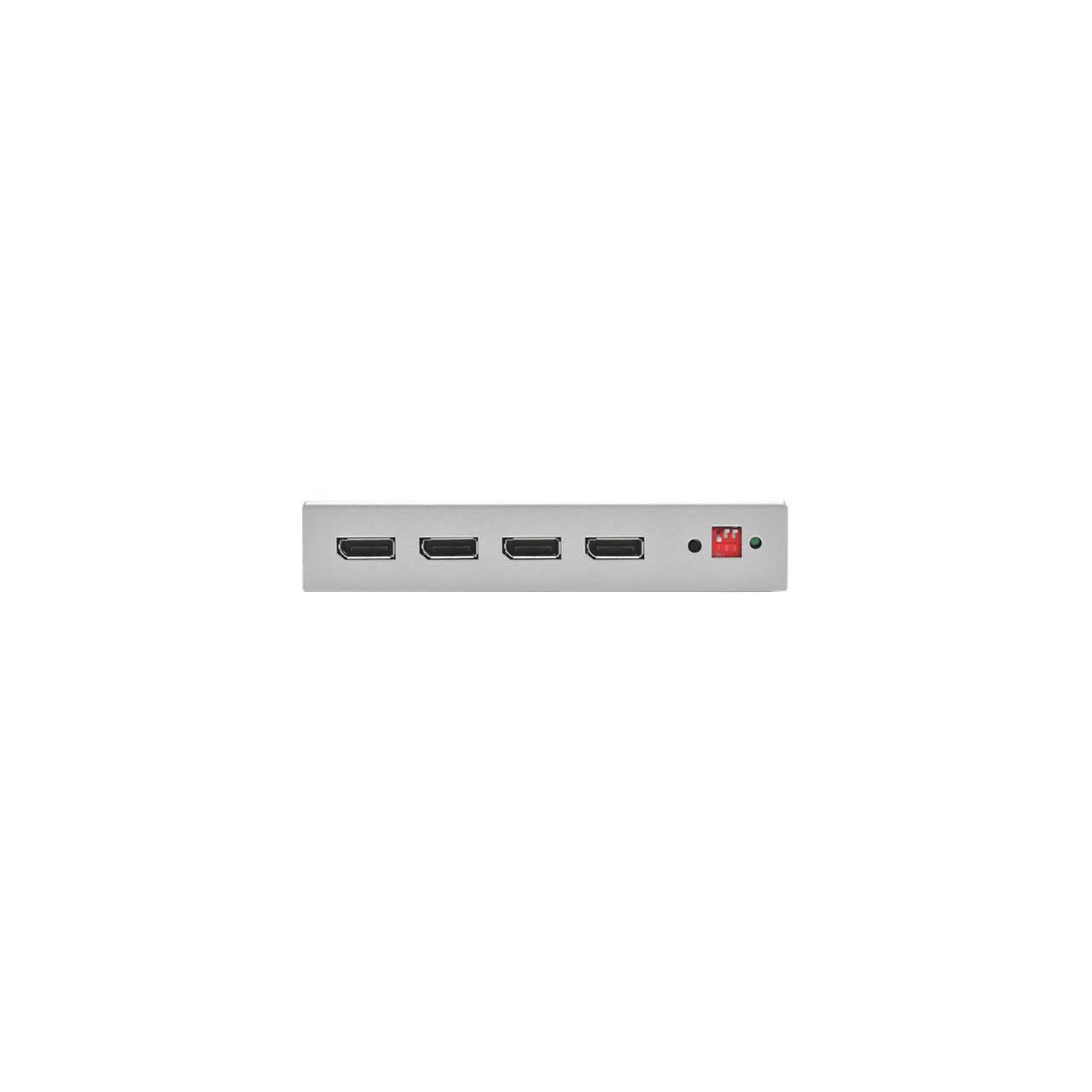

- Output: 4x DP
- Maximum Date Rate: 21.6 Gpbs
- Link Rate: HBR2, HBR, RBR

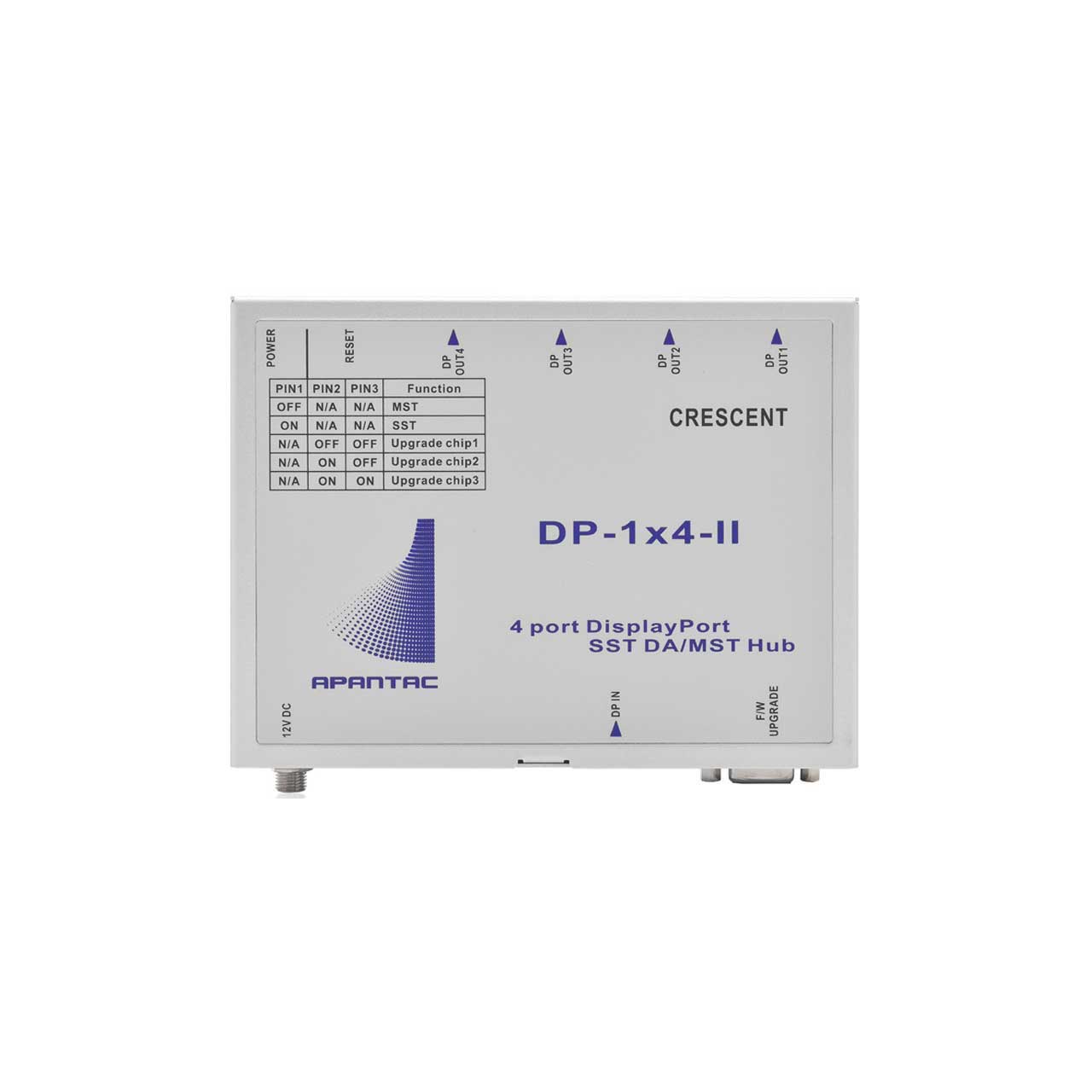

- Dip Switch: 2 pin: SST/MST selectionE
- Reset Key: 1x TACT SW
- Power Status: 1x Green LED
- Power: 12V DC 1A
- Weight: .68 lbs (310 g)
- Dimensions (LxWxH): 5.9" x 4.4" x .98" (152 mm x 114 mm x 25 mm)
- Operating temperature: 32°F ~ 104°F (0°C ~ 40°C)
- Storage temperature: -4°F ~ 140°F (-20°C ~ 60°C)
- Humidity: 0 - 80% RH (non-condensing)
Item Includes:
- 1x Apantac DP-1x4-II
- 1x User manual
- 1x Power adapter DC12V with lock
- 1x Mounting plate
Warranty:
- 1-Year Limited Warranty
GTIN:
0818252072733
