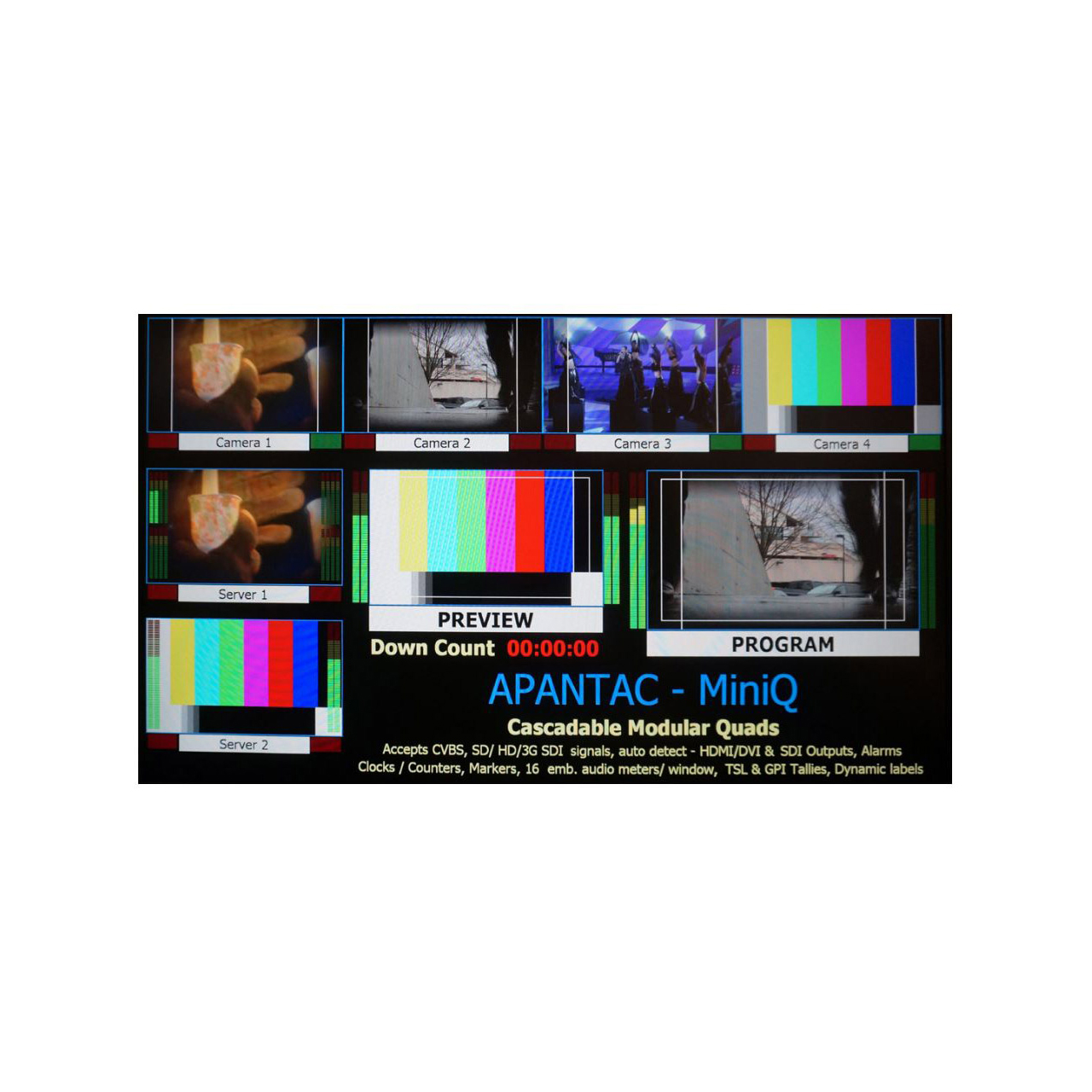

Standalone or Cascadable 4 SDI Input Multiviewer

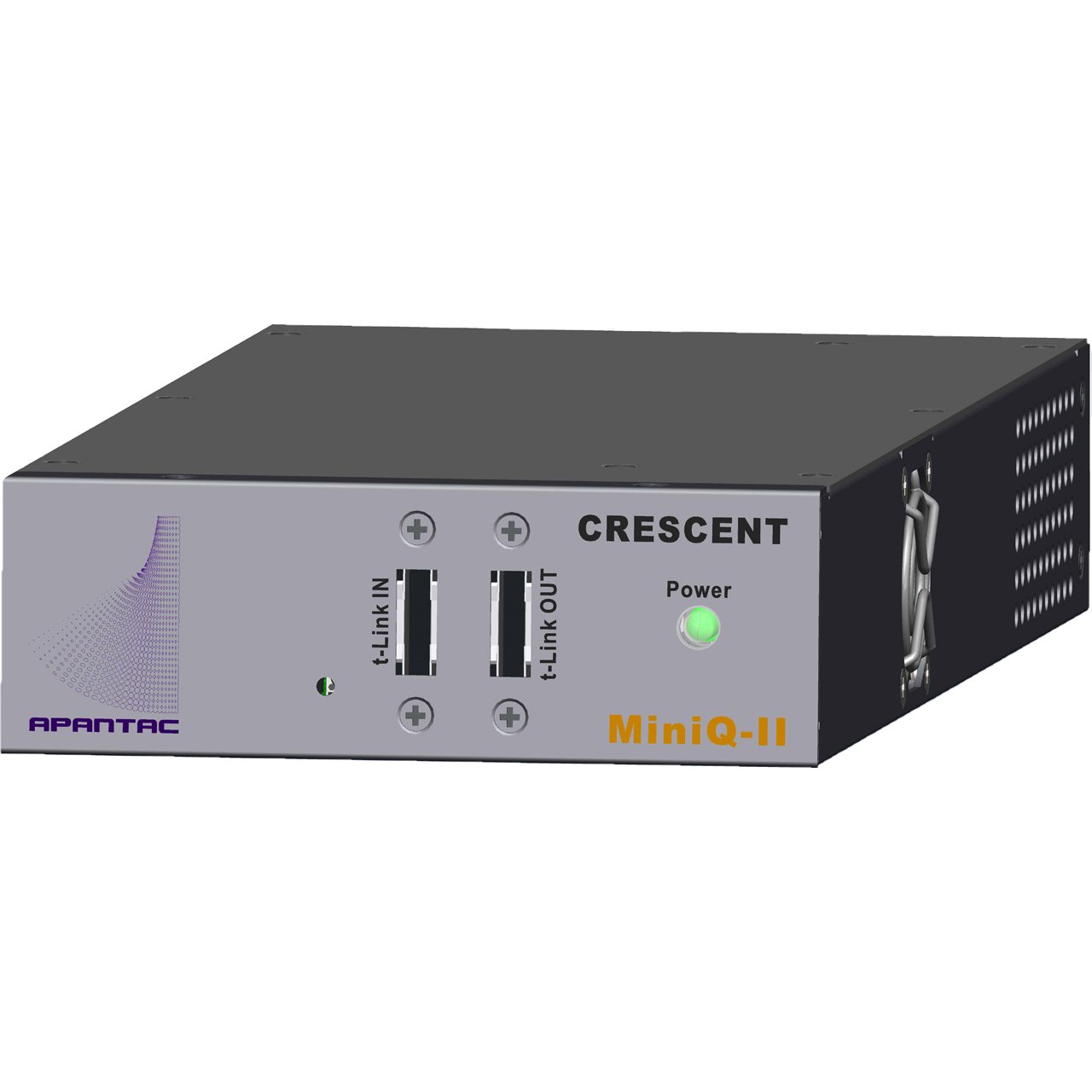

Apantac CRESCENT MiniQ-II is a 4x1 Composite 3G/HD/SD-SDI Video Multiviewer with Cascading.
-
- 4 auto-detect 3G/HD/SD-SDI, PAL/NTSC inputs
- Low power consumption - 15W
- Cascadable to allow more inputs
- Single frame processing delay
- Decode up to 16 embedded audio per SDI input
- Ethernet for configuration, dynamic labels & Tallies (TSL)
- Simultaneous HDMI and SDI outputs
- 2 GPI tallies per window
- 8 GPI contacts, can be configured for tally or ASCII protocol
- Borders can be turned on or off
- One 32 character label per window
- Text and background colors have adjustable transparency
- Safe area markers
- Visual Alarm tags for audio and video presence
- Dynamic (TSL) UMD/Label MiniQ-II
- Stereo analog audio monitoring output
- HDMI and SDI outputs have embedded stereo audio pair
- 3 year limited warranty
- Power supply included
-
- Total Windows: 4

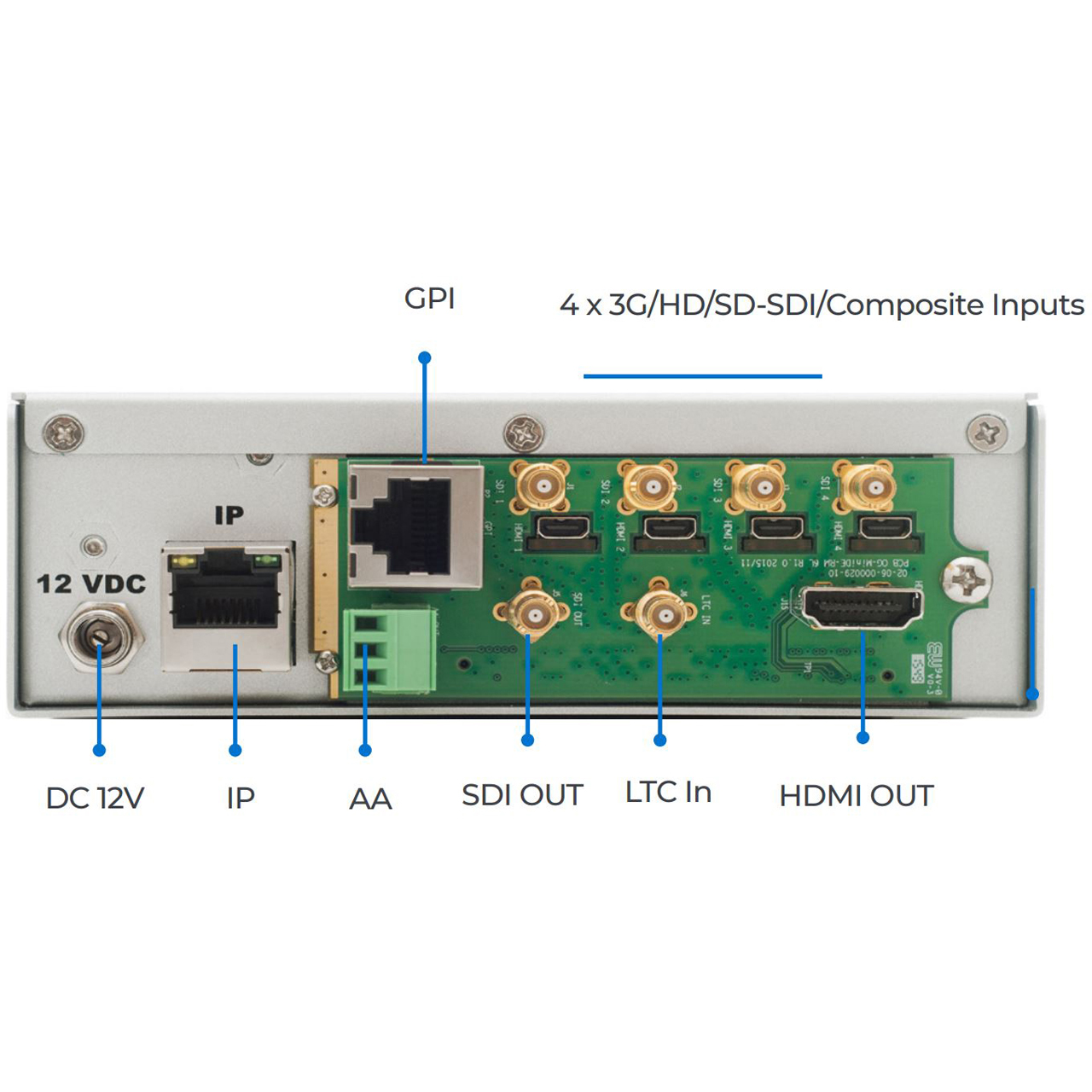

- Output: 1x HDMI/DVI, 1x SDI
- Inputs: 3G/HD/SD-SDI/Composite
- HDMI: 800x480 to 1920x1200 (1080p)
- Serial Digital: 480i/576i, 720P/1080i, 1080P 50/59.94/60Hz. 3G Level A only
- SDI: Matching the HDMI output resolution up to 3G
- Equalization: 120m at 2.97 Gbps, 140m at 1.48 Gbps, 400m at 270 Mbps with Belden 1694A On Screen Display Borders, Labels, Tallies, Audio meters, Alarm tags, Safe area markers
- Return Loss: > 15db up to 1.485 Gbps, > 10db up to 3G GPI 8 for tally or AXP (ASCII command)
- Embedded Audio: SMPTE-272M-A IP 100 Base-T, TSL, AXP_Lite protocol
- Composite: NTSC (SMPTE-170M), PAL (ITU624-2) DC Offset 0V, + - 0.1V
- Signal Level: 1V nominal Return Loss 40dB up to 5MHz
- Impedance: 75 ohm Power Consumption 15 W
-
- 1x DC 12V power supply
- 1x RJ50 to DB9 for GPI
- 1x Breakout terminal block
- 1x RJ45 to DB9 for serial
- 5x HDBNC-BNC cables
-
