SDM-FIB-R - Overview

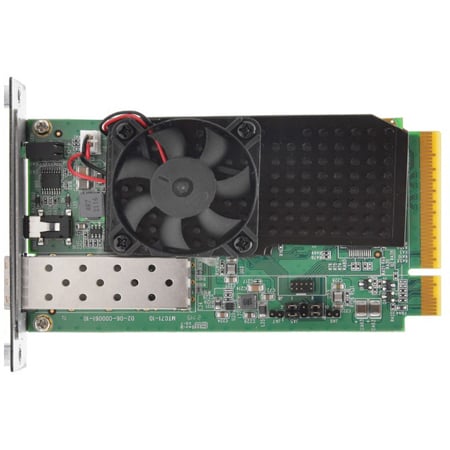

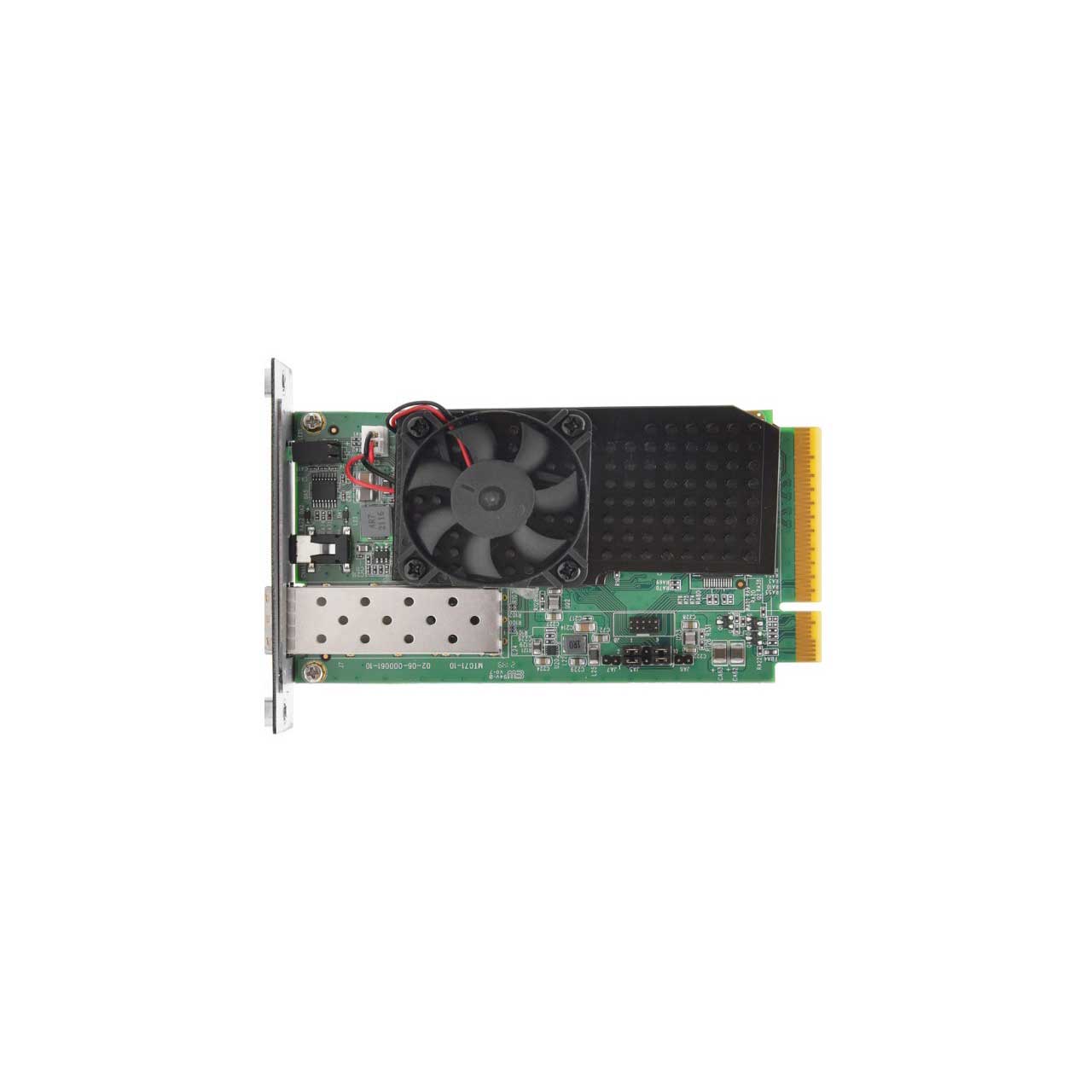

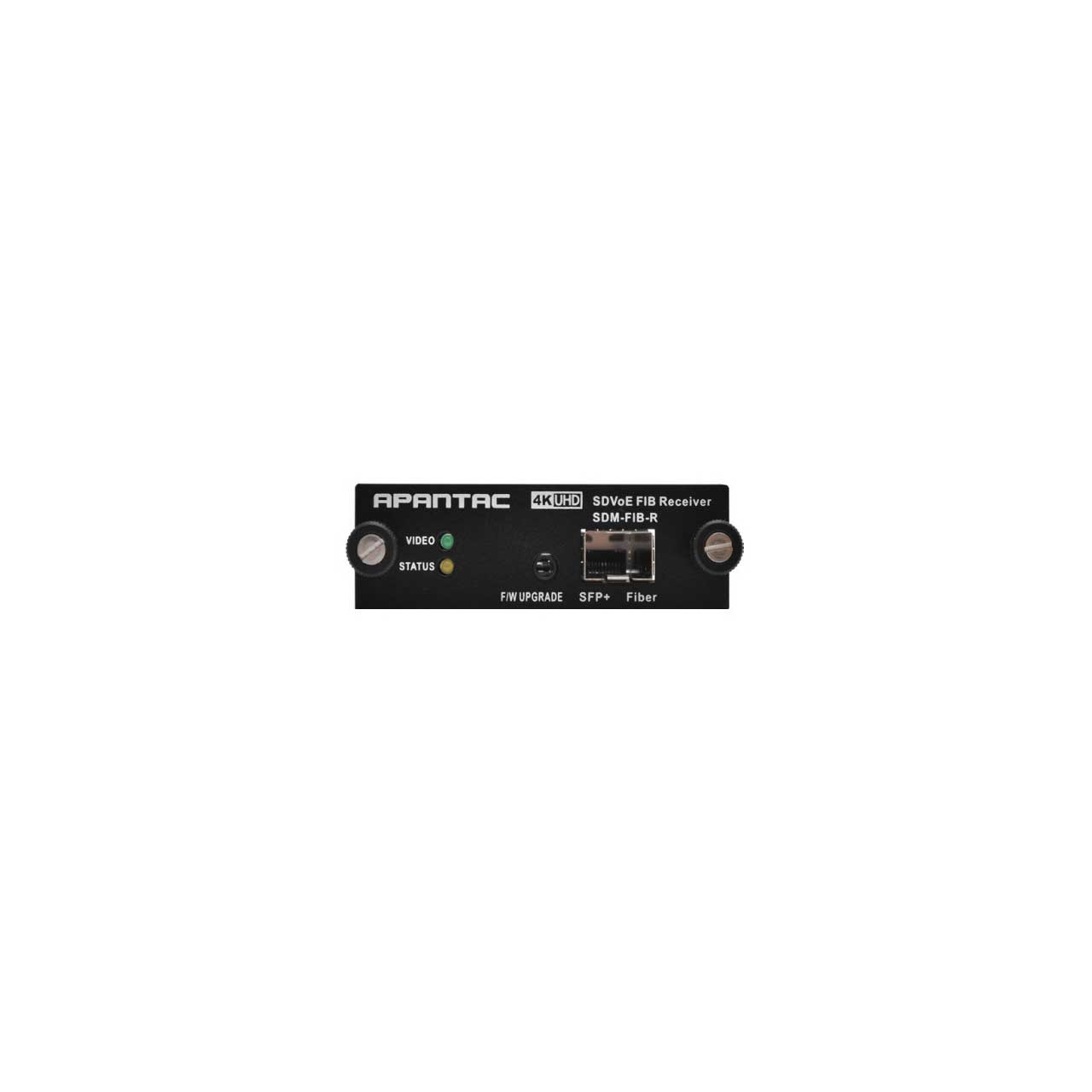

The Apantac SDM-FIB-R is a Smart Display Module SDVoE Over Multi-Mode Fiber Receiver for LCD monitors.

Apantac SDM-FIB-R display interfaces employ Intel's "Smart Display Module" (SDM) platform and reduce power and cabling requirements while providing a streamlined connection system for video walls, displays, and projectors. SDM is designed to be scalable into the future as video formats change and evolve. In addition, Apantac SDM interfaces provide critical information about display performance. With details such as the power being drawn and the amount of cooling needed, you get a better sense of system stability and a larger toolset for ensuring the ongoing reliability of your installed displays."

  • Features:

    • SDVoE over fiber receiver for SDM-S
    • Uses LC fiber connectors, supports up to 300 m on multi-mode fiber
    • Supports HDMI 2.0/HDCP 2.2/1.4
    • Supports UHD RGB/4:4:4 8 bit, 4:2:0 10 bit and 12 bit HDR
    • Supports all resolutions up to 594 MHz
    • Supports CEC pass-through
    • Supports up to 8 channels of audio, including PCM, Dolby True-HD and DTSmaster audio
    • Supports HDR pass through
    • Supports RS-232
    • 10Gbps Ethernet Interface
    • 1Gbps pass-through Ethernet Interface

  • Specifications:

    • Input: 10Gbps Ethernet Interface
    • Output: SDM Connector
    • Dimensions: 80 mm Width x 112 mm Depth
    • Power Consumption: Up to 10 W

      Environment:
    • Operating temperature: -20C ~ 60C
    • Humidity: 10%~90% / non-condensing

  • Warranty:

    • 3 Years
