ADJ VS1C Vision Series 19.68 x 9.8 Inch Curved LED Accessory Panel - 1.95mm Pixel Pitch and 4-in-1 MiniLED Configuration

ITEM #: AMDJ-VS1C MFG #: VS1C

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,999.95

Our Price:

$2,149.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


VS1C - Overview

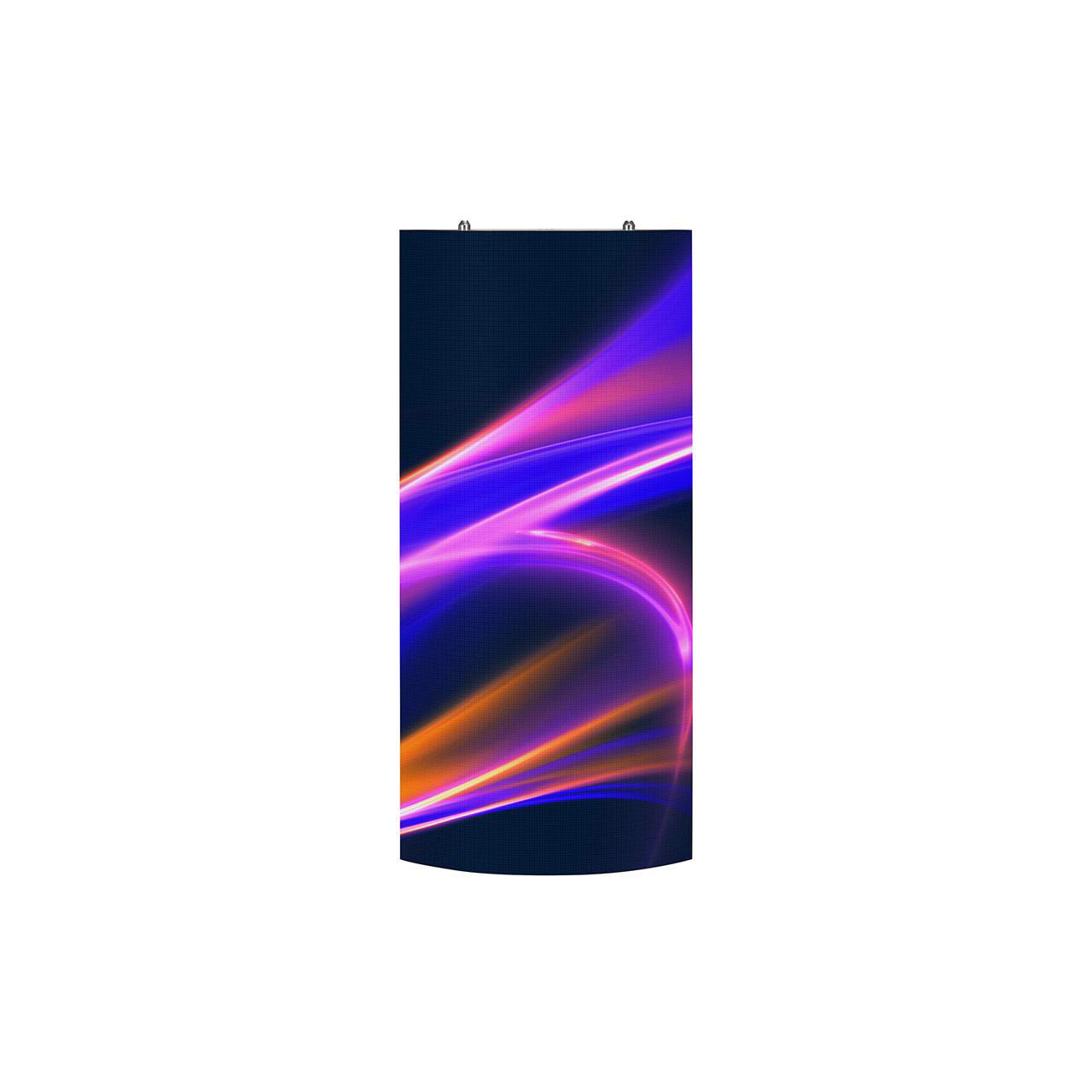

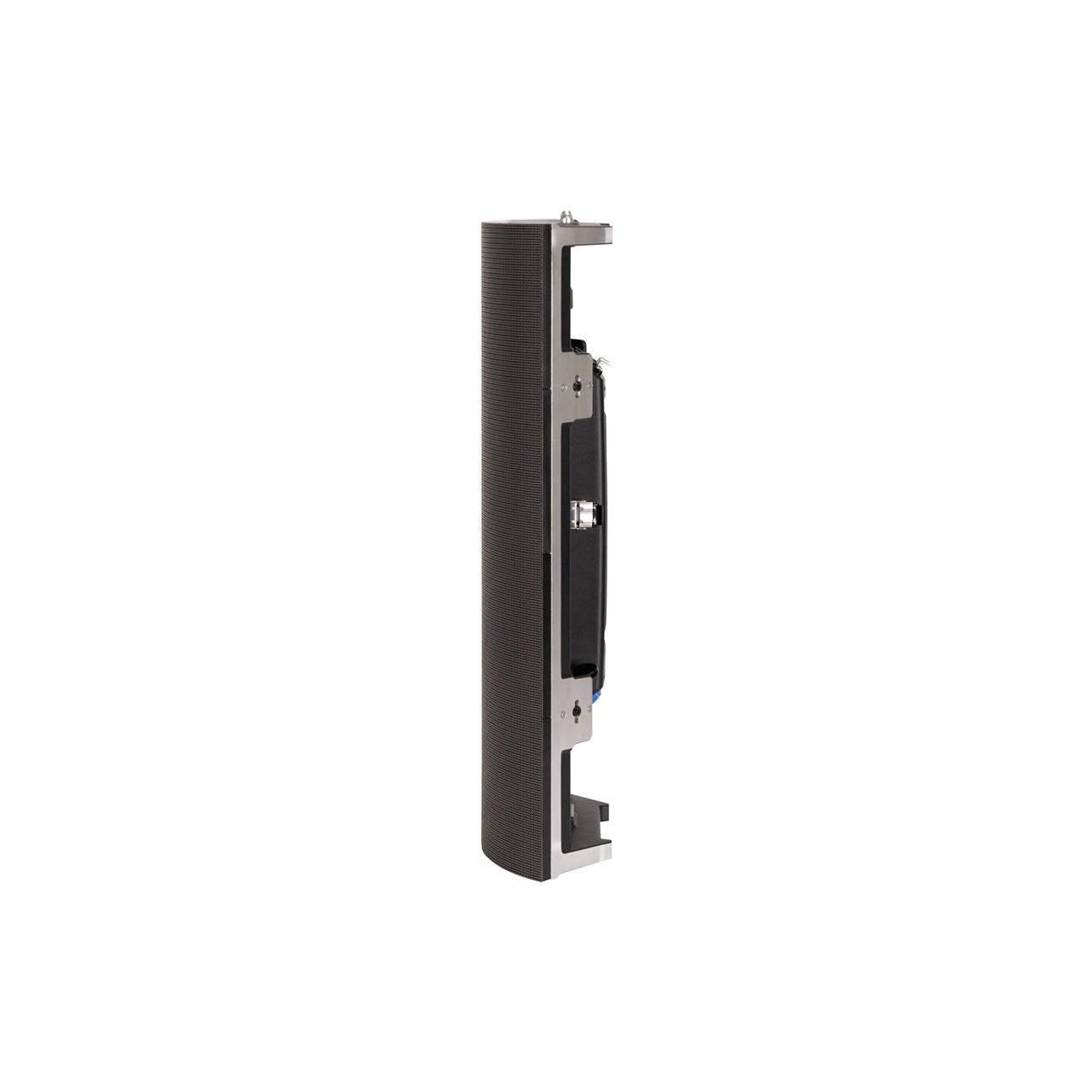

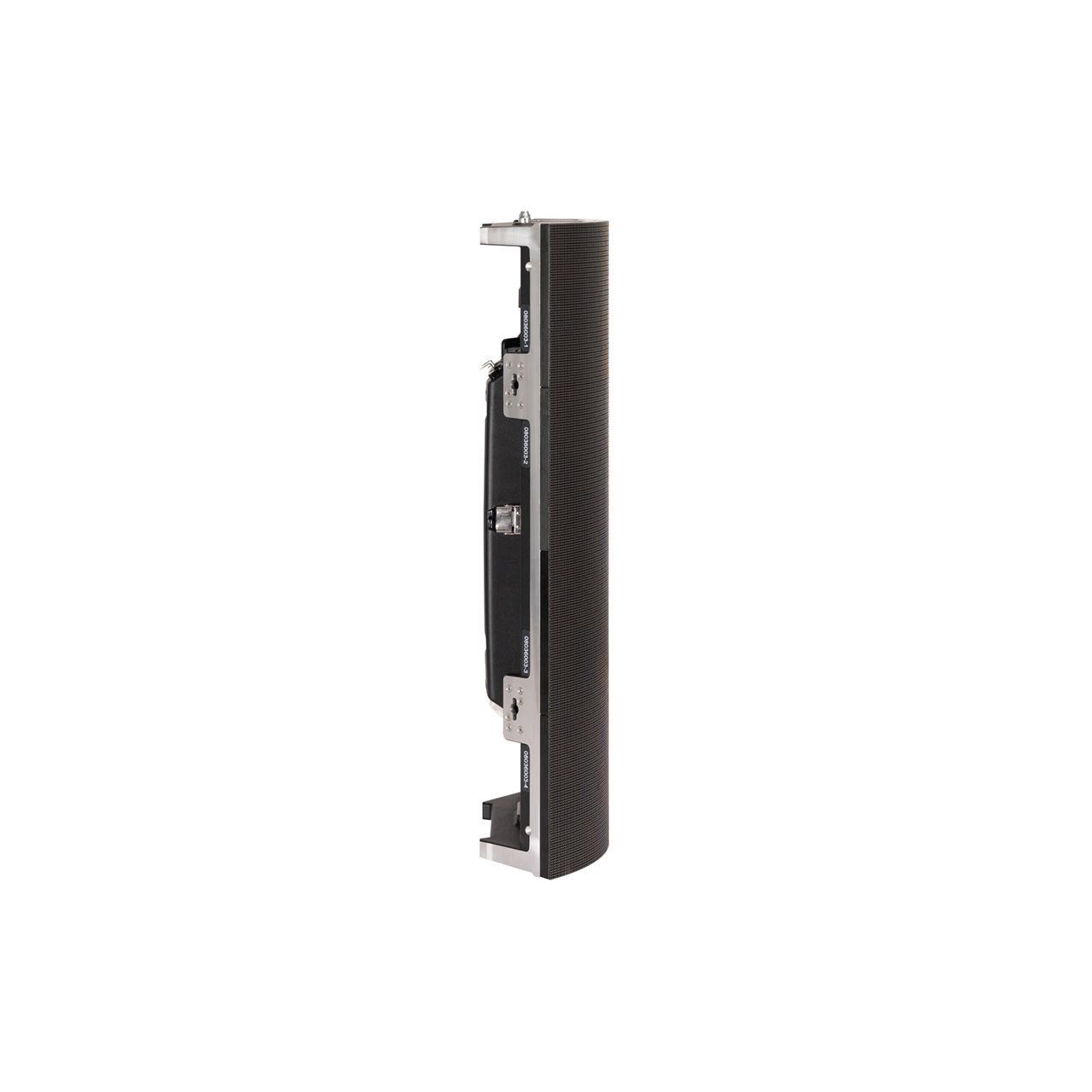

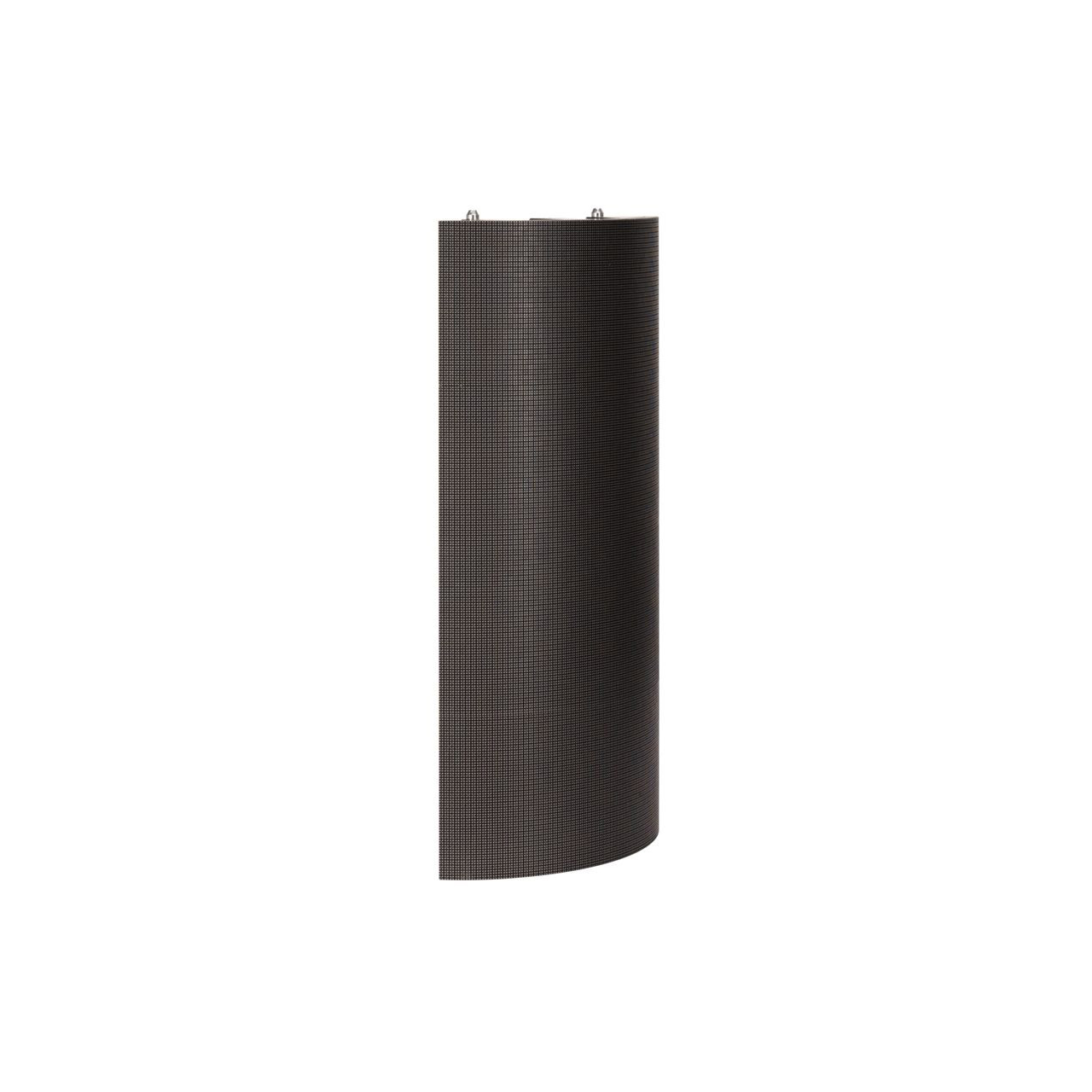

An accessory to the VS1, Vision Series LED panel, the ADJ VS1C is a 1.95mm curved LED panel section designed to sit between two VS1 panels to create a seamless 90-degree corner.

The ADJ VS1C is a 1.95mm curved LED panel section designed as a seamless accessory for the VS1 panel. Perfect for creating 90-degree corners, it adds a new dimension of creative flexibility to LED displays for stages, events, concerts, and permanent architectural designs.

Featuring a 4-in-1 MiniLED configuration and a pixel density of 256x256, the VS1C delivers stunning visuals with 1500 NITS brightness, a high contrast ratio of 5000:1, and a wide 110° viewing angle. The panel is rear serviceable, with four easily replaceable modules and an independent power box for simplified maintenance.

Its quick-lock system allows effortless assembly with VS1 panels, enabling unique corner configurations. With a refresh rate of 3840Hz and compatibility with Nova Star's control systems, the VS1C ensures smooth performance and vibrant image quality. Compact, lightweight, and easy to handle, the VS1C is an ideal solution for creative LED video panel setups.

  • Features:

    • Rear serviceable: Video modules on each panel can be easily replaced.
    • The box is equipped with quick locks on the top, bottom, left, and right sides, enabling quick assembly with the VS2 panel.
    • Each panel contains four easily replaceable modules after full box maintenance.

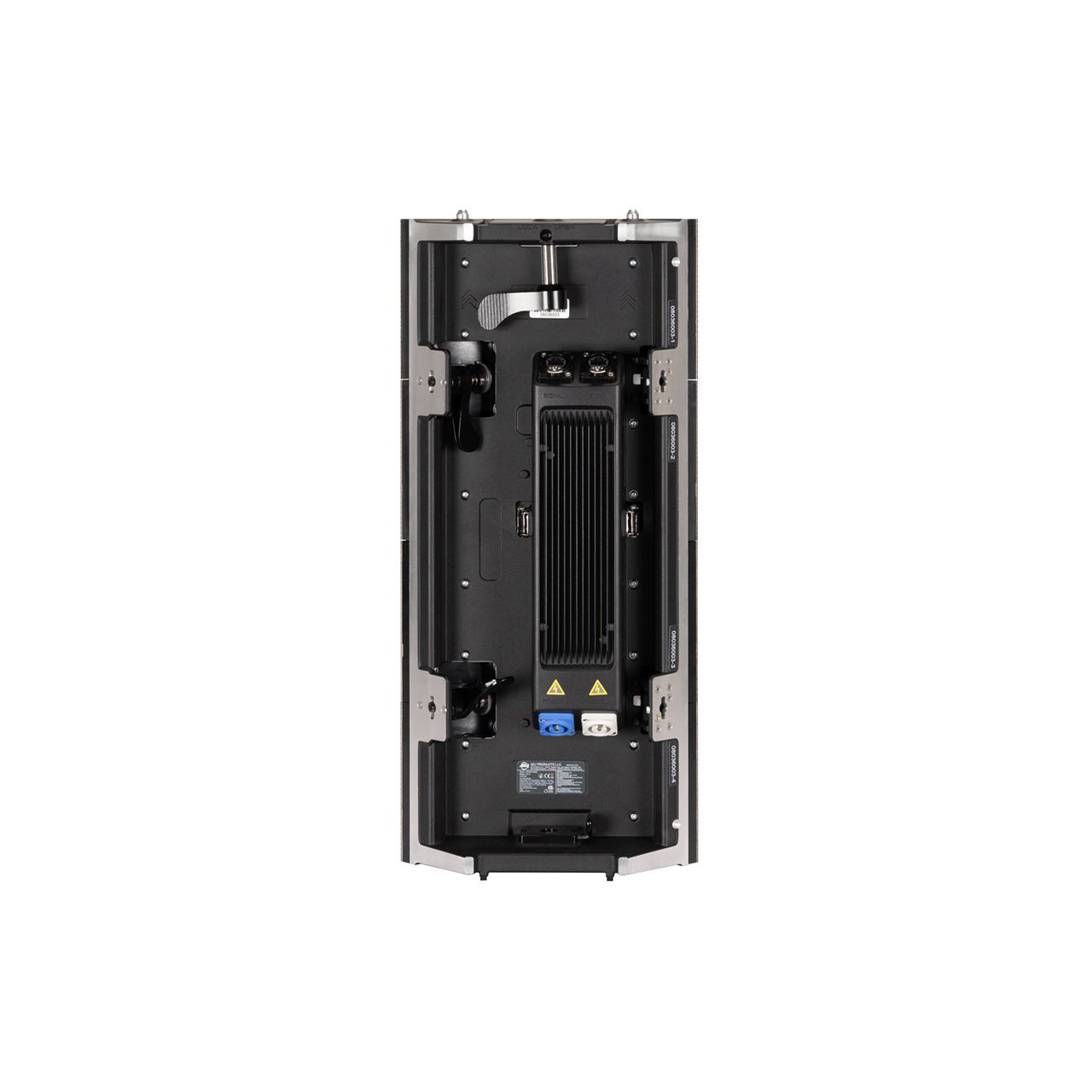

    • The power box can be disassembled and assembled independently, ensuring simple and convenient installation and maintenance.

  • Specifications:

    • Pixel Pitch: 1.95mm (0.07")
    • LED Configuration: MiniLED 4-in-1
    • Pixel Density: 256x256; 262144 per square meter
    • Size : 9.8" x 19.68" x 3.86" (250mm x 500mm x 98mm)
    • Module Quantity: 4
    • Weight: 9.5lbs (4.3kg)

      Mechanical Ratings
    • Surface Flatness: Gaps<0.2mm

      Optical Ratings
    • Brightness: 1500 NITS
    • View Angle: Based on the center of the lamp bead, Horizontal 110°/Vertical 110°
    • Gray Scale: ≥14-bit
    • Display Color: 256
    • Brightness Adjustment: 0% - 100% 100 Levels
    • Contrast ratio: 5000:1
    • Processing: 14-bit

      Power Supply
    • Operation Power: 100V - 240V 50-60Hz
    • Max. Power Consumption: 75W/per panel
    • Ave. Power Consumption: 30W/per panel
    • Connections Power/Data: PowerLock In/Out; DataLock In/Out

    • Control System
    • Control Mode: Nova Star Synchronous System with Control via DVI
    • Frame Update Frequency: 50-75Hz
    • Scan Mode: 1/21
    • Refresh Rate: 3840Hz
    • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
    • Control Distance: Ethernet Cable <120m or Fiber Optic>120m
    • Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
    • Brightness Correction: Pixel, Module, Cabinet

      Environmental
    • Operating Temp: -4°F - 104° (-20°F + 40°F)
    • Humidity: 10% - 90% (No Condensation)
    • Operating Life/MTBF: 50,000 Hours/5,000 Hours
    • Protection Level: IP20 (Front and Back)
    • Out of Control Rate: <0.02%
    • Listings: cETLus (Pending)

      Cables
    • Cabinet to Cabinet Data Link Cables (Ethernet Locking Connectors)
    • Power Locking Link Cables
    • Power Locking Main Power Cables

      Certifications
    • cETLus (Pending)

  • Item Includes:

    • 1x ADJ VS1C Vision Series 19.68x9.8 Inch Curved LED Accessory Panel - 1.95mm Pixel Pitch & 4-in-1 MiniLED Configuration

  • GTIN:

    0810087374389
