AudioPressBox APB-D100R On-wall AudioPressBox Drive Unit 1-Channel Dante Input & 12 Line/Mic Outputs - PoE Powered

APB-D100R - Overview

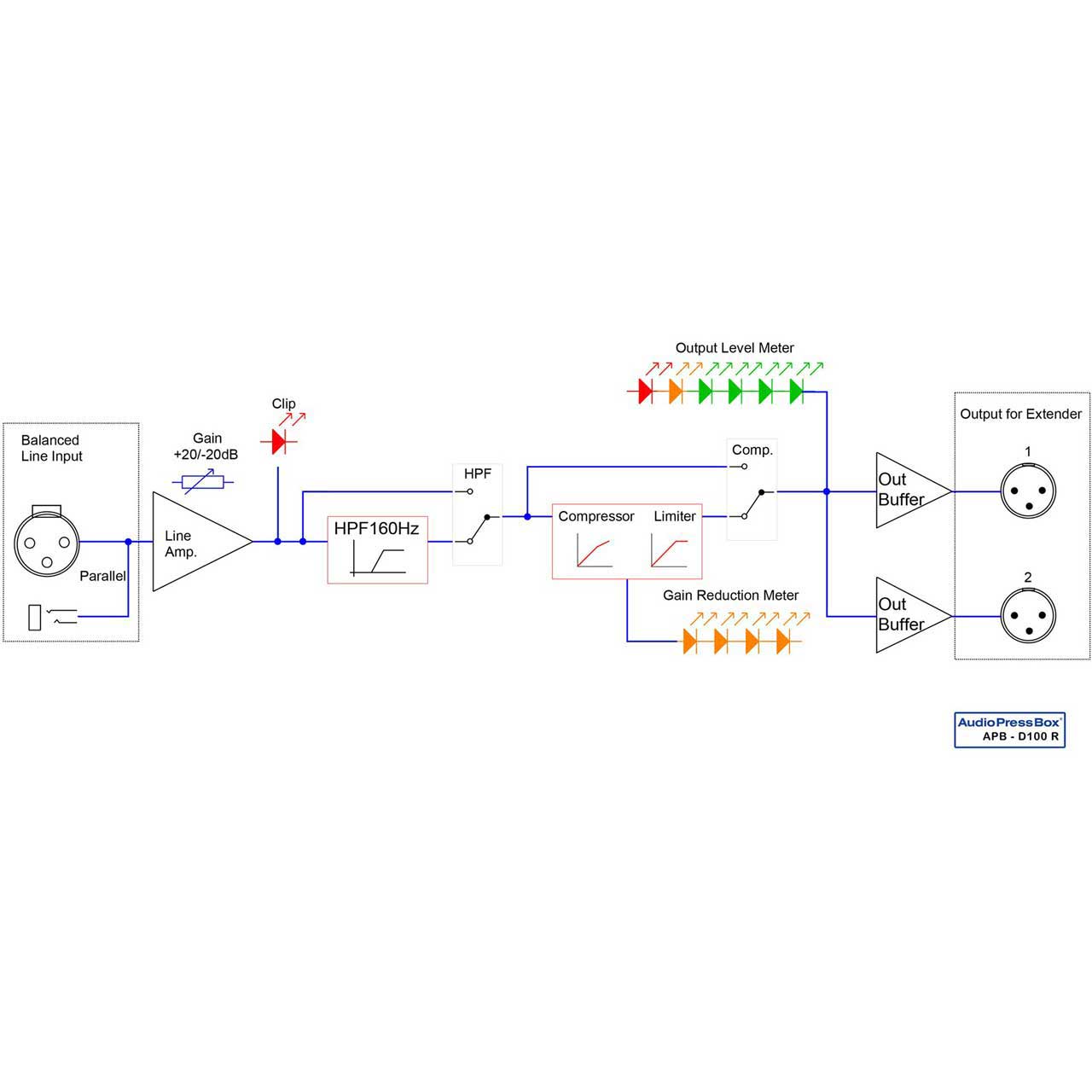

• Features:

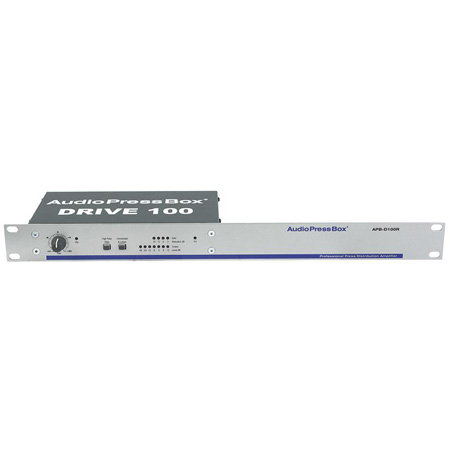

  • Professional active 19" rack AudioPressBox Drive unit
  • 1 Balanced LINE Input
  • Switchable High-Pass filter
  • Switchable Compressor and Limiter for Input channel
  • 2 separately buffered Outputs that can drive 6x APB-008 or 2x APB-024 Output expanders.
  • Maximum drive capacity 48 Line or Mic Outputs.


• Specifications:

  • Type: 1 IN/ 2 Drive OUT for 6xAPB 8-Output expanders or 2xAPB 24- Output expander
    Note: Total capacity - 48 Line/Mic outputs (6x APB-008 xx-EX or 2x APB-024 R-EX) or 576 Mic Outputs (48x APB-P112 SB)
  • Inputs: 1
  • Input connectors: Balanced, XLR
  • Max. input level: Line: +32/+2dBu
  • Input Impedance: >5kOhm

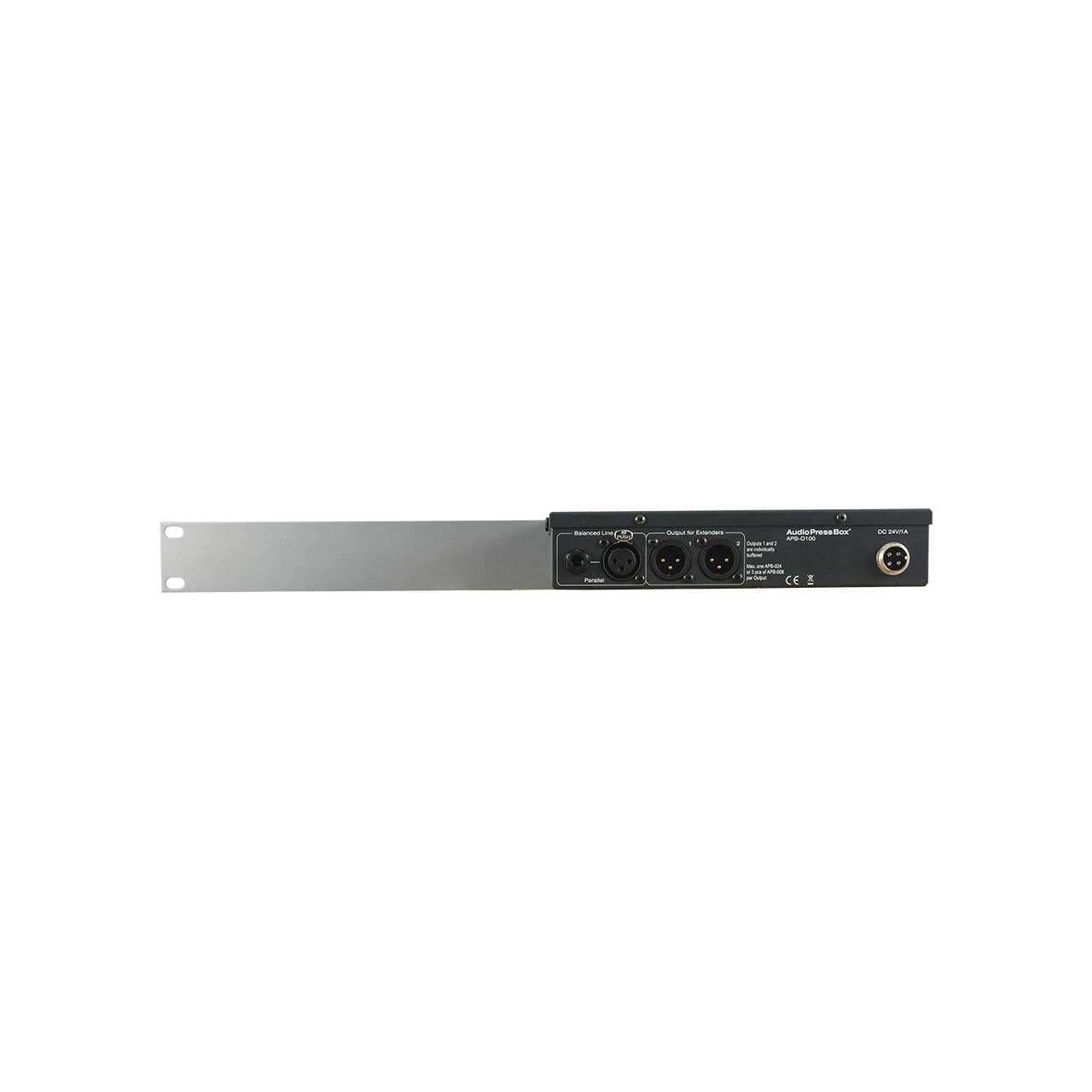

  • Outputs: 2 separately buffered, balanced outputs for AudioPressBox expanders
  • Output Connectors: Balanced, XLR
  • Nominal Output Level: +6 dBu
  • Maximum Output Level: +20dBu with 48 Outputs in use / +16dBu (600kOhm)
  • Output Impedance: Mic: 220 Ohm: Line: 600 Ohm
  • Transformer Isolated Outputs: Yes (each EXPANDER output is Independant Transformer Isolated)
  • SNR: 86dB at 0dB Gain / 78dB at +20dB Gain
  • Frequency Response: 30/160Hz (filter) to 60kHz/-1dB
  • Controls: Input gain, Compressor and Limiter, High Pass Filter, Power
  • Indicators: Input clip, Output level, Gain reduction, Power

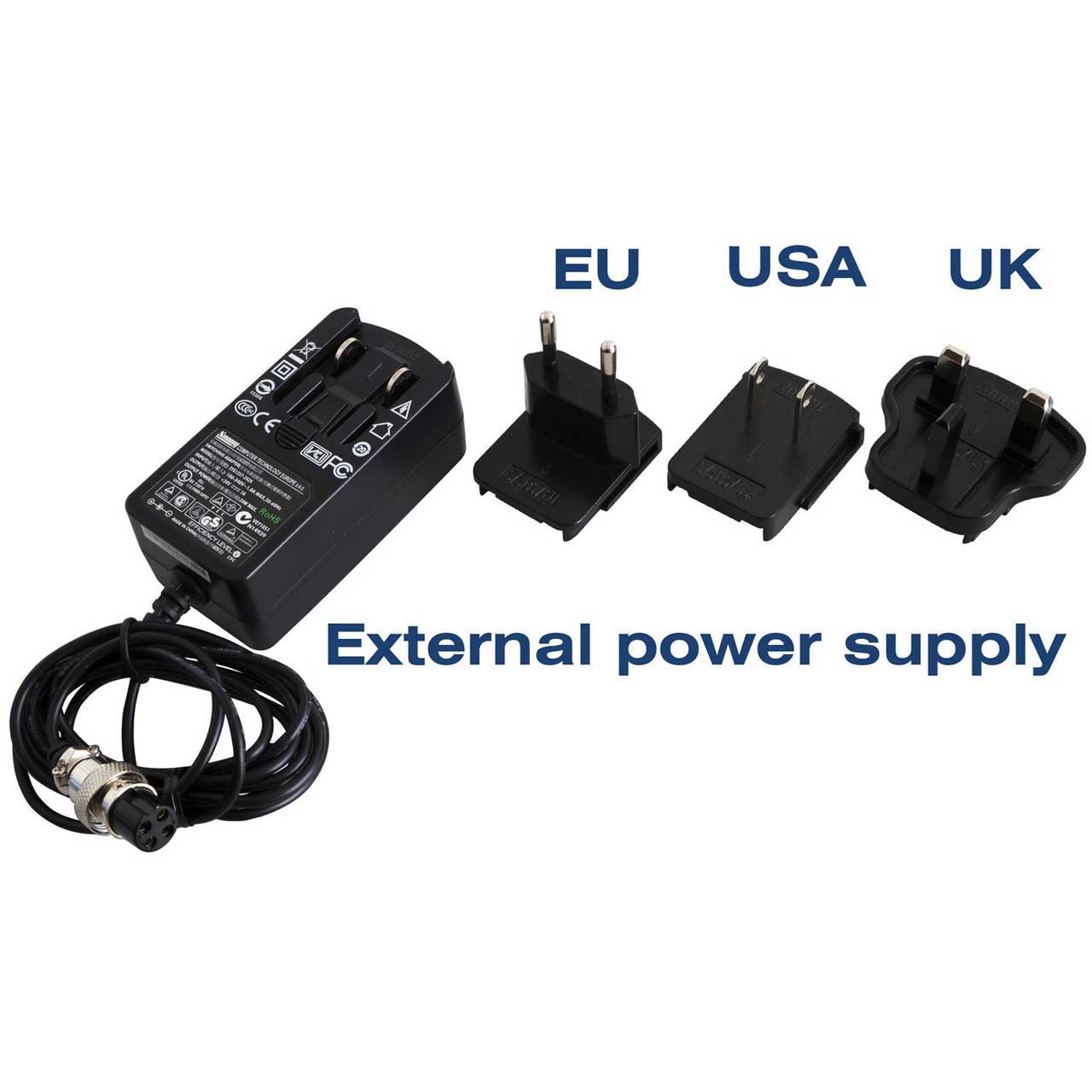

  • Power Supply: 24V DC, 300mA external adaptor
  • Dimensions (WxHxD): 480x120x44mm
  • Weight: 1210g


• Item Includes:

  • 1x AudioPressBox APB-D100R On-wall Active Pro AudioPressBox with 1-Channel Dante Input & 12 Line/Mic Outputs - PoE Powered


• Warranty:

  • 2 Year


• GTIN:

  8588007614144
