AudioPressBox APB-112-SB-D Portable Active Professional AudioPressBox with 1 Channel Dante Input/12 Line/Mic Outputs

ITEM #: APB-112-SB-D MFG #: APB-112-SB-D

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
AudioPressBox
Free Shipping with $49 Minimum Order

Our Price:

$2,345.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

APB-112-SB-D - Overview

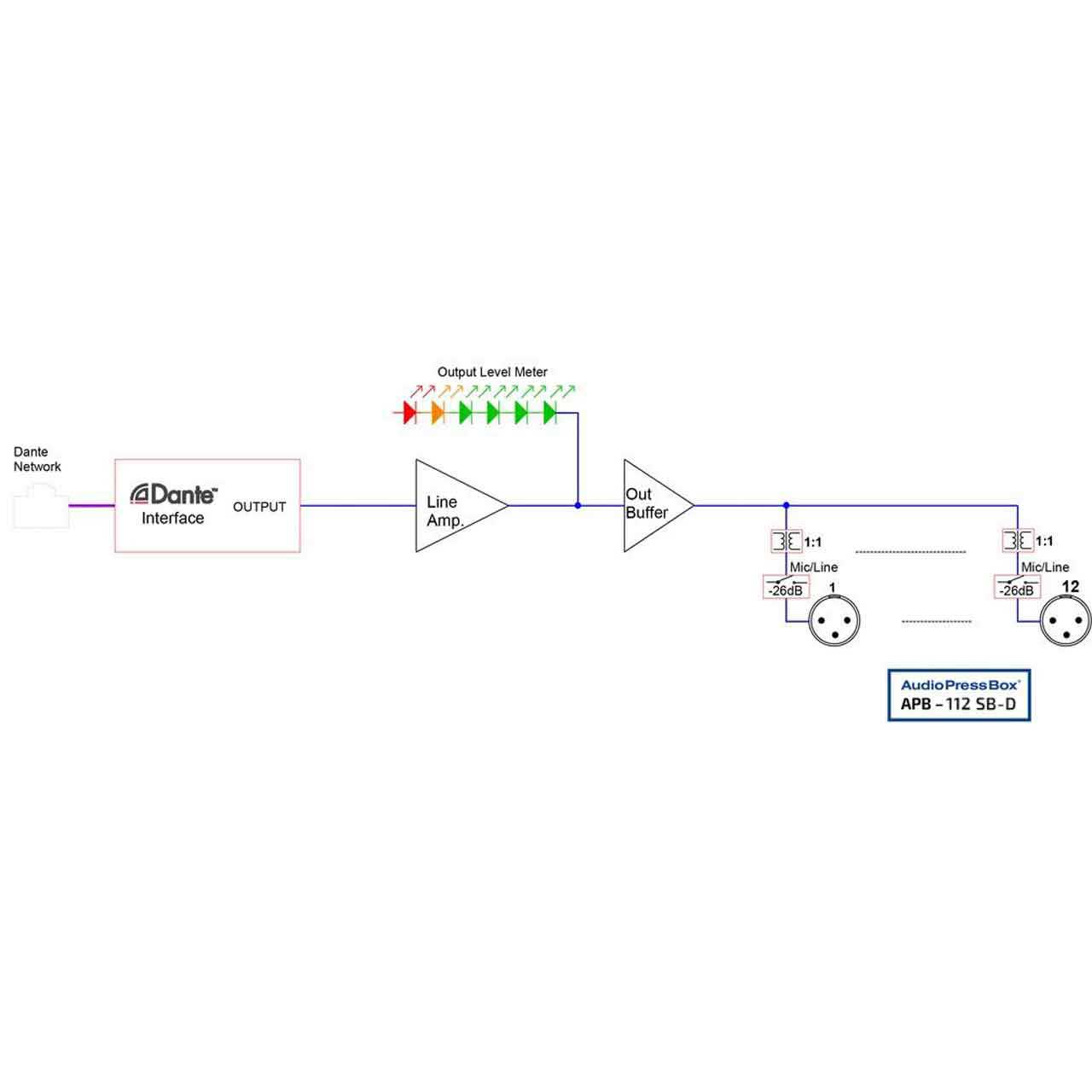

The AudioPressBox APB-112 SB-D is a portable, professional, active Audio Press Box with a one channel RJ45 DANTE input and 12 Line/Mic outputs. Powered by POE (Power Over Ethernet) you only need ONE cable for both signal and power. The AudioPressBox APB-112 SB-D features high quality individually balanced and isolated transformer outlets and each output is switchable between Mic or Line Levels. Plug and Play means super quick set-up anywhere abd thanks to DANTE patching you can easily expand channels and outputs by adding another AudioPressBox APB-112 SB-D.

  • Features:

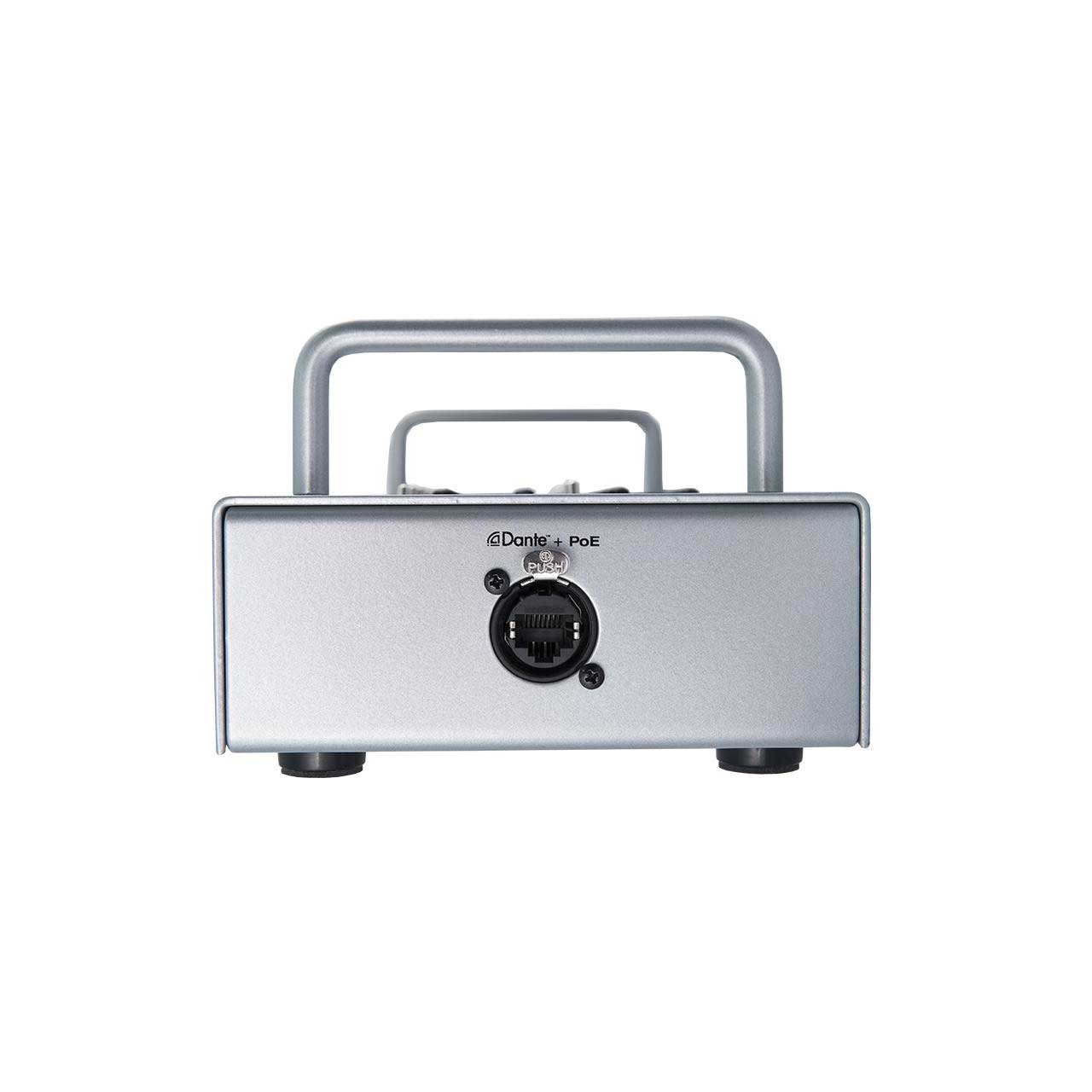

    • 1 channel DANTE input - RJ45 ethercon
    • 12 high quality balanced, individually transformer isolated outputs.
    • Each output is switchable between Line or MIC level.
    • The unit is powered only via PoE from DANTE network
    • Thanks to DANTE patching you can easily expand number of channels or number of outputs by adding other APB-112 SB-D


  • Specifications:

    • Type: 1 In 12 Out
    • Groups: 1
    • Inputs: 1
    • Input Connectors: RJ45 - Dante
    • Outputs: 12 Line/MIC level
    • Output Connectors: Balanced, XLR
    • Nominal Output Level: +6dBu (front outputs)
    • Maximum Output Level: +20dBu (no load) +14dBu (600Ohm)
    • Output Impedance: Mic: 220 Ohm: Line: 600 Ohm
    • Individually Transformer Isolated Outputs: Yes (each output)
    • SNR: >70 dB
    • Frequency Response: 20Hz to 20kHz/-3dB
    • Indicators: Output level, Power
    • Power Supply: PoE, Class 3
    • Dimensions (WxHxD): 295x138x100mm
    • Weight: 2800 g


  • Item Includes:

    • 1x AudioPressBox APB-112-SB-D Portable Active Professional Audio PressBox with 1 Channel Dante Input/12 Line/Mic Outputs


  • Warranty:

    • 2 Year


  • GTIN:

    8588007614434
