Sescom 6-Channel Passive Broadcast Press Box

ITEM #: SES-PRESSBOX MFG #: SES-PRESSBOX

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$314.95

Our Price:

$299.95

Availability: In Stock
iAvailability Description Popup


SES-PRESSBOX - Overview

Ensure clear audio delivery to members of the media with the Sescom PressBox, the "mult box" with a versatile design that simplifies audio distribution. It accepts a single 3-pin XLR line-level audio input and distributes the signal to as many as six (6) mic level output channels. Ideal for sports teams, government press briefings, corporate events, and hotel conference rooms, the Sescom PressBox allows the press to patch into your sound system and capture high-quality audio right from the source instead of secondary capture methods.

By reducing the need for multiple microphones at the podium, the Sescom PressBox also helps maintain a clean and professional appearance, ensuring that the focus remains on the speaker or presenter. The outputs are isolated to eliminate potential sound issues caused by the other's patched in cables.

Need More Mic Outputs?
No problem! The Sescom PressBox has a built-in looping output.This isolated line-level output allows you to daisy-chain multiple PressBoxes in order to get all the mic outputs you need. Compact, reliable, and easy to use, it's the go-to solution for your press events.

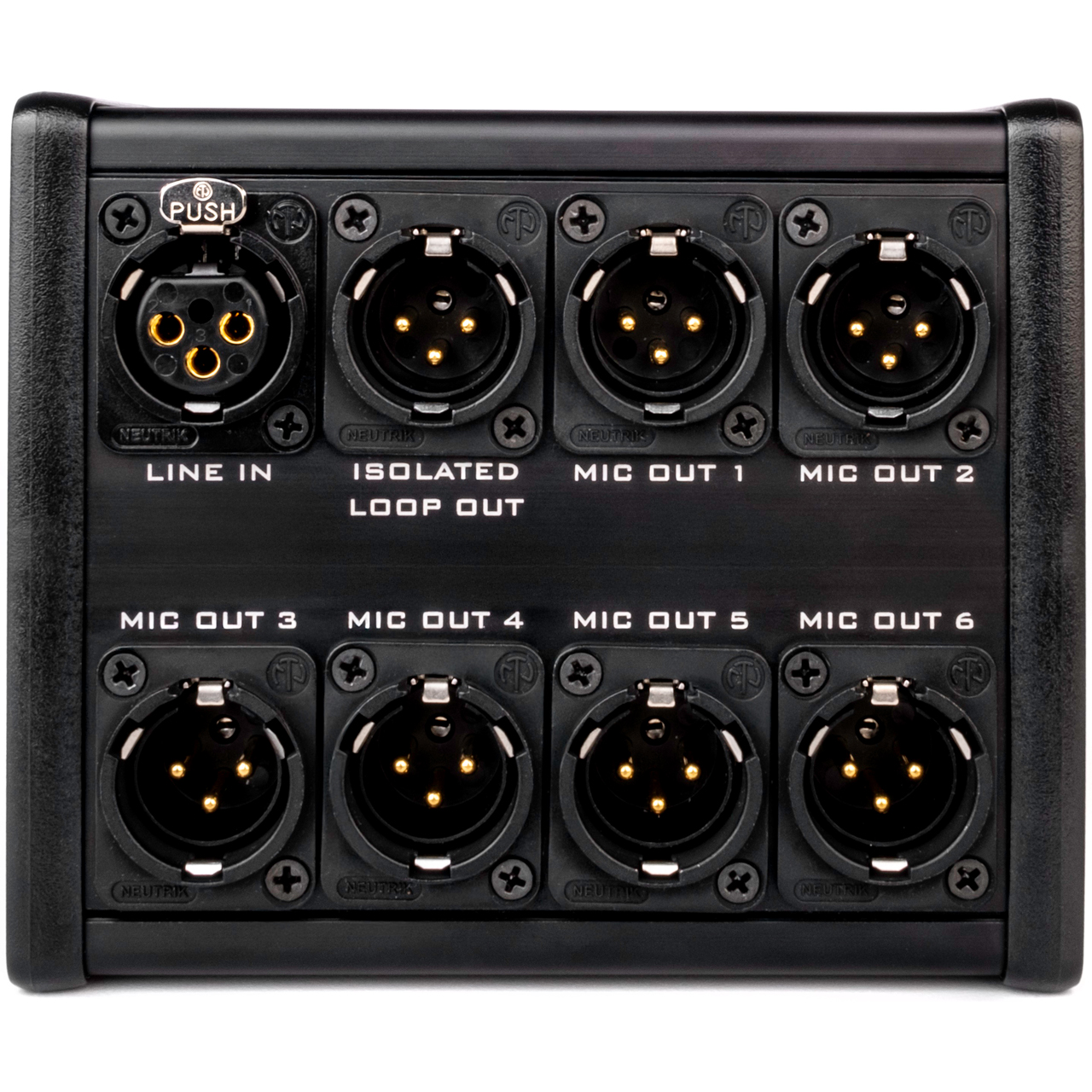

  • Features:

    • 8 High-Quality Neutrik XLR Connectors
    • Rugged Aluminum Housing
    • 1 Balanced Line Level Audio Input
    • 1 Isolated Line Level Looping Output
    • 6 Microphone Level XLR Outputs

  • Specifications:

    • Frequency Response Deviation (20Hz-20kHz):
      -Through: +/-2.299 dB
      -Loop Out: +/- 2.231 dB
    • Signal to Noise Ratio at 0dBFS, A-weighted:
      -Through: 87.3 dB
      -Loop Out: 108.2 dB
    • Total Harmonic Distortion at 1kHz, 0dBFS:
      -Through: 0.06%
      -Loop Out: 0.05%
    • Maximum Input Level:
      -Through: +18 dBV
      -Loop Out: +18 dBV
    • Maximum Output Level:
      -Through: -13 dBV
      -Loop Out: 17 dBV
    • Dynamic Range:
      -Through: 74.3 dB
      -Loop Out: 126.2 dB
    • Gain:
      -Through: -31dB
      -Loop Out: -0.8 dB
    • Common Mode Rejection (balanced devices only):
      -Through: 70 dB
      -Loop Out: 82.4 dB
    • Input Impedance (ohms):
      -Through: 1.1K
      -Loop Out: 1.1K
    • Output Impedance (ohms):
      -Through: 800
    • -Loop Out: 320
      Phase Deviation (analog only):
      -Through: +3.27 deg
      -Loop Out: 3.179 deg

  • Warranty:

    • 1 Year
