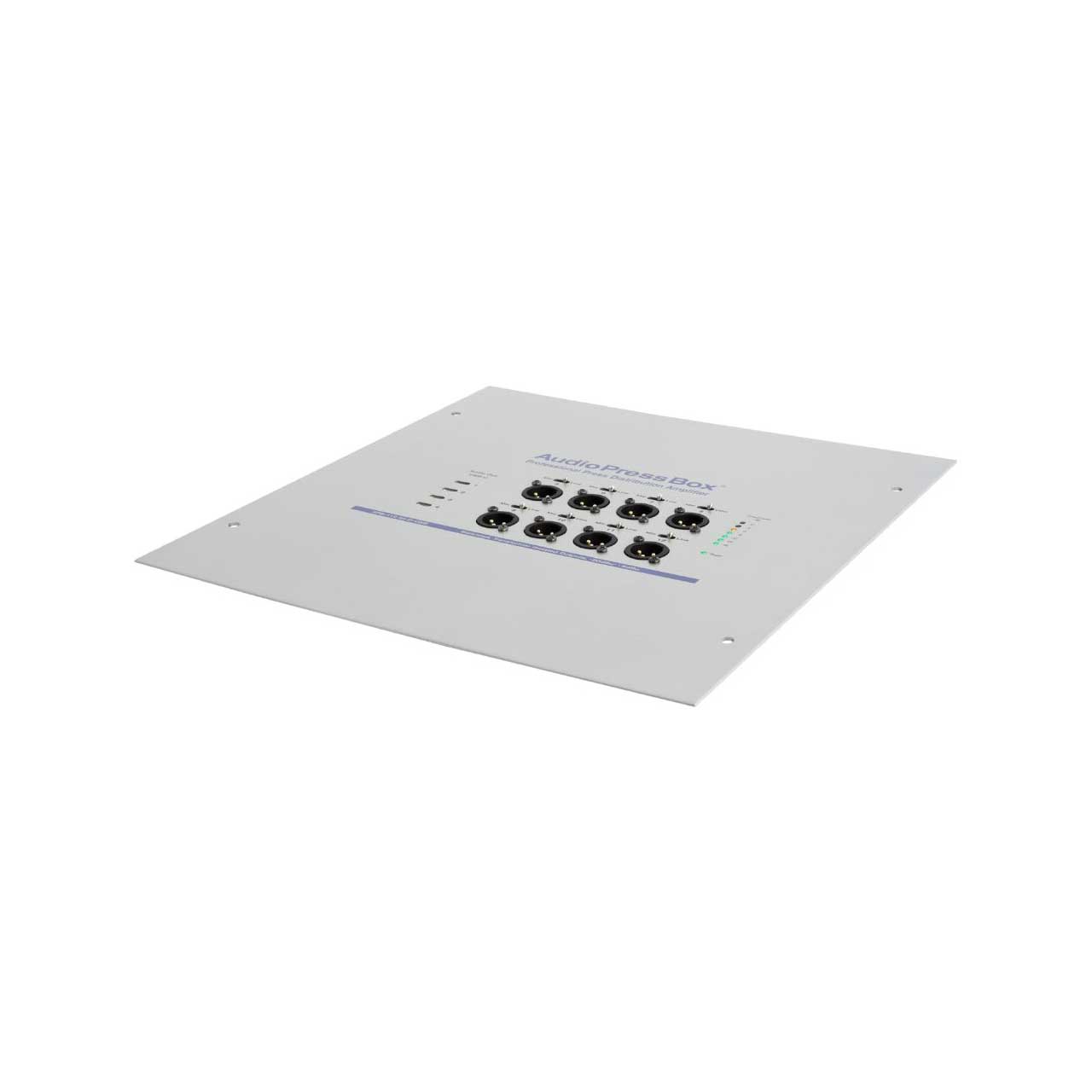

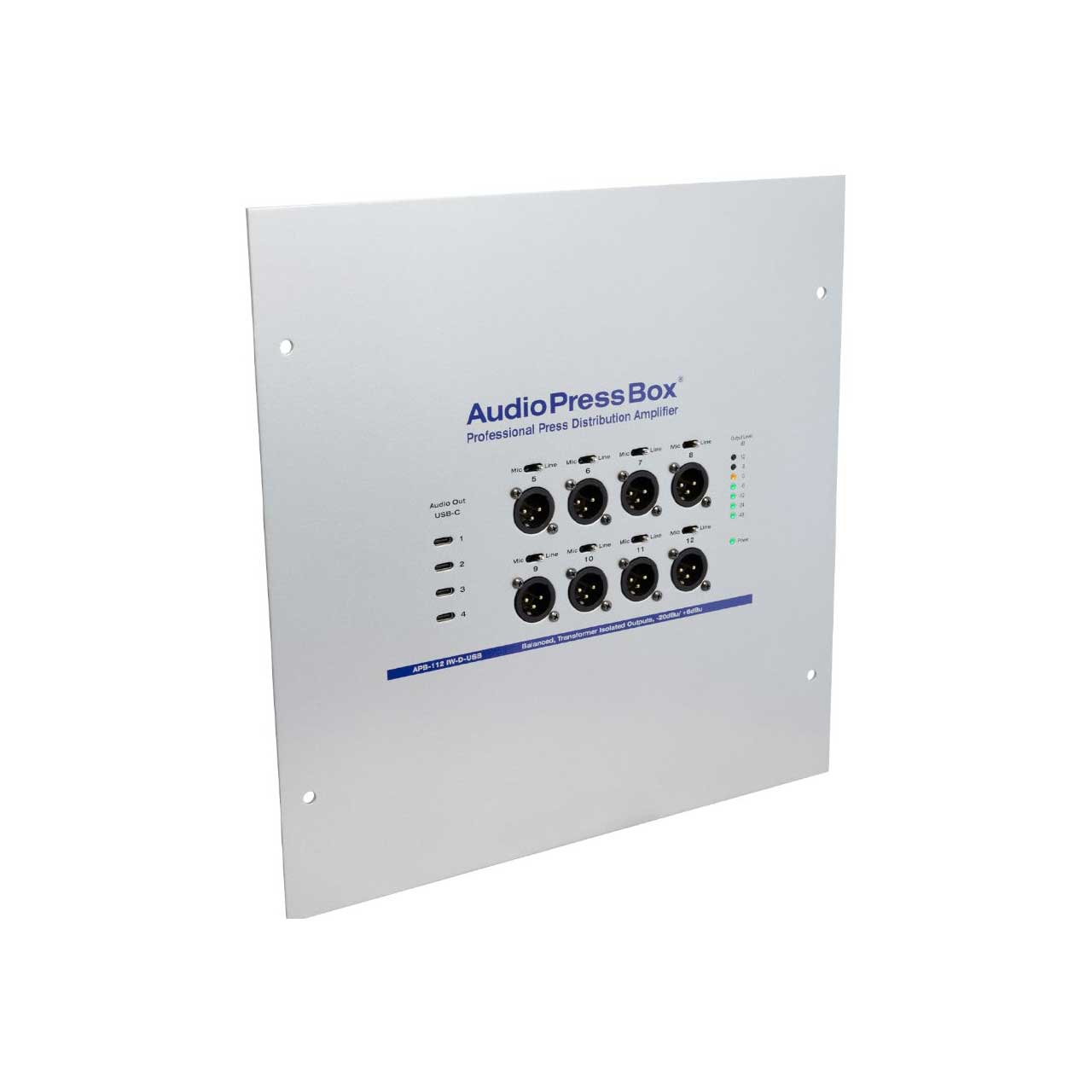

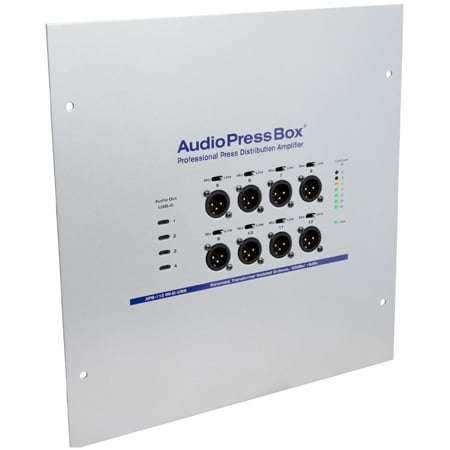

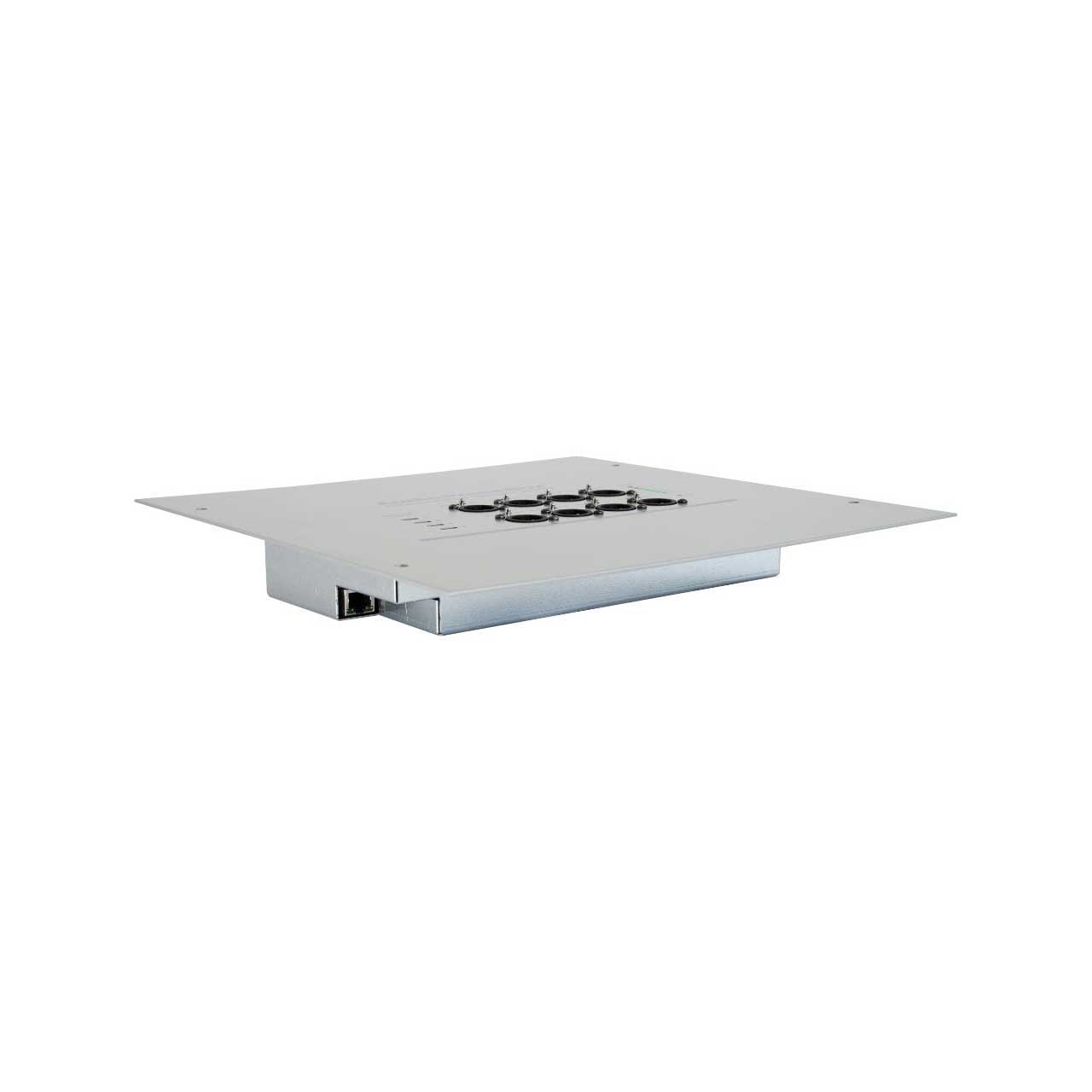

AudioPressBox APB-112 IW-D-USB-US Professional In Wall Active Unit w/1 Channel DANTE Input - 8 LINE/Mic & 4 USB-C Output

APB-112 IW-D-USB-US - Overview

• Features:

  • 1 Channel DANTE input - RJ45 ethercon
  • 8 high quality balanced, individually transformer isolated XLR outputs switchable between Line or MIC level
  • 4 USB-C outputs
  • Powered only via PoE from DANTE network
  • Thanks to DANTE patching you can easily expand the number of channels or number of outputs by adding other APB-112 OW-D-USB or APB-112 OW-D
  • US standard NEMA BOX 12124


• Specifications:

  • Type: 1 In 12 Out
  • Groups: 1
  • Input Section:

    Inputs: 1
  • Input connectors: RJ45 - Dante
  • PoE Requirement: YES
  • Reference level: -18dBFS

    Analog Outputs:
  • Outputs: 8 Line/MIC level
  • Output Connectors: Balanced, XLR
  • Nominal Output Level: +6dBu (front outputs)
  • Maximum Output Level: +20dBu (no load)/+14dBu (600Ohm)
  • Output Impedance: Mic: 220 Ohm; Line: 600 Ohm
  • Transformer Isolated Outputs: Yes (each output)
  • SNR: >70 dB
  • Frequency Response: 20Hz to 20kHz/-3dB

    Digital Outputs:
  • Output Connector: 4x USB Type C
  • Compliant USB Specification: USB 2.0
  • Supported Sampling Rates: 8kHz, 11.025kHz, 16kHz, 22.05kHz, 32kHz, 44.1kHz, 48kHz
  • Bit Depth: 16-Bit
  • Interface Powering: Bus powered (from connected USB host device)
  • Charging Capability: No

    Indicators:
  • Output Section: Output level, Power

    Power:
  • Power Supply: PoE (Type 1, Class 3 (12.95W))

    Mechanical:
  • Dimensions (WxHxD): 280x138x54mm
  • Weight: 2400 g


• Item Includes:

  • 1x APB-112 IW-D-USB-US


• Warranty:

  • 2 Years
