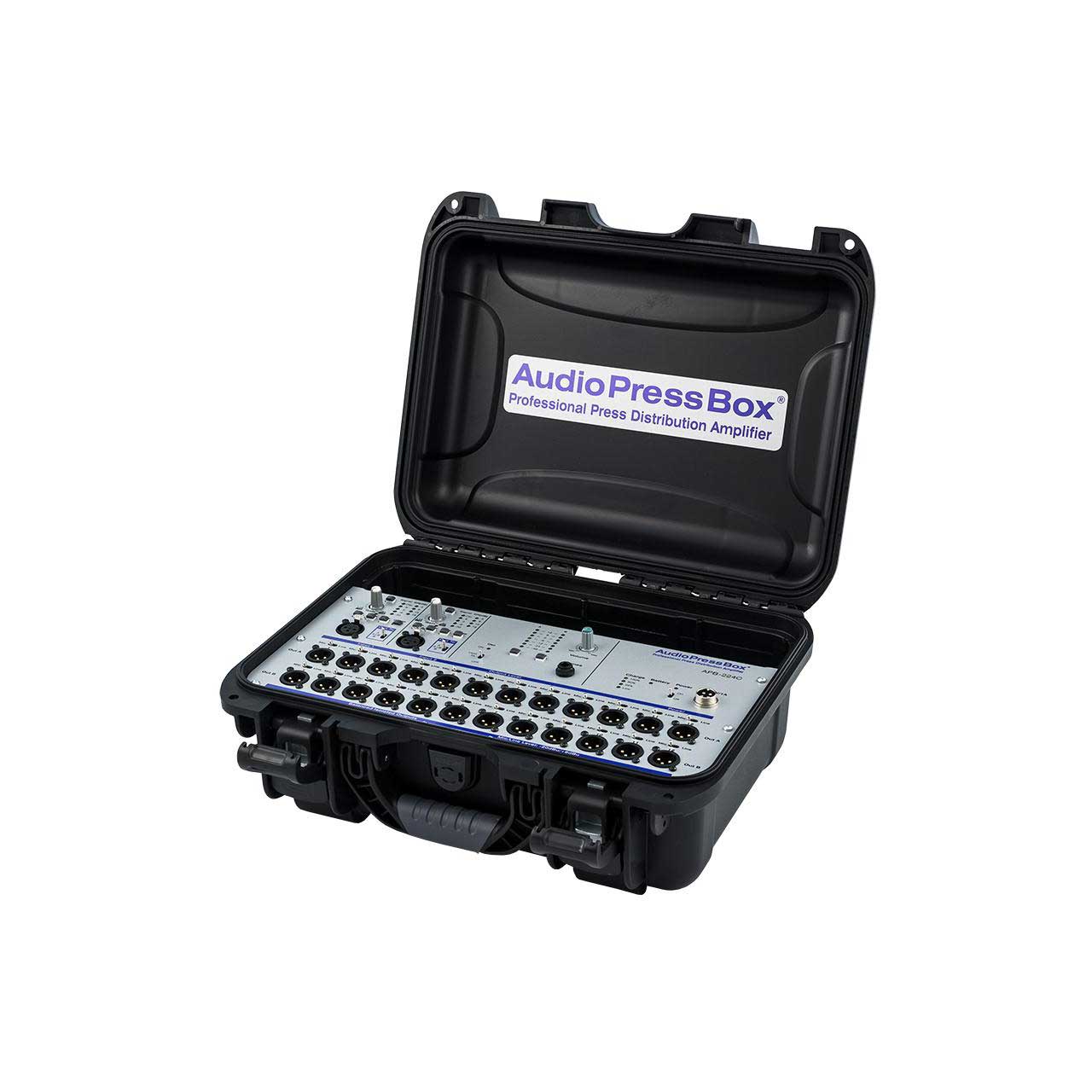

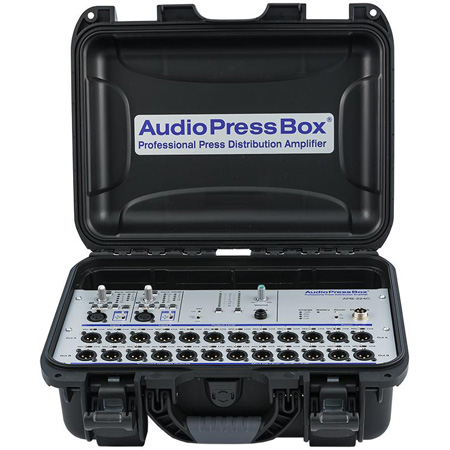

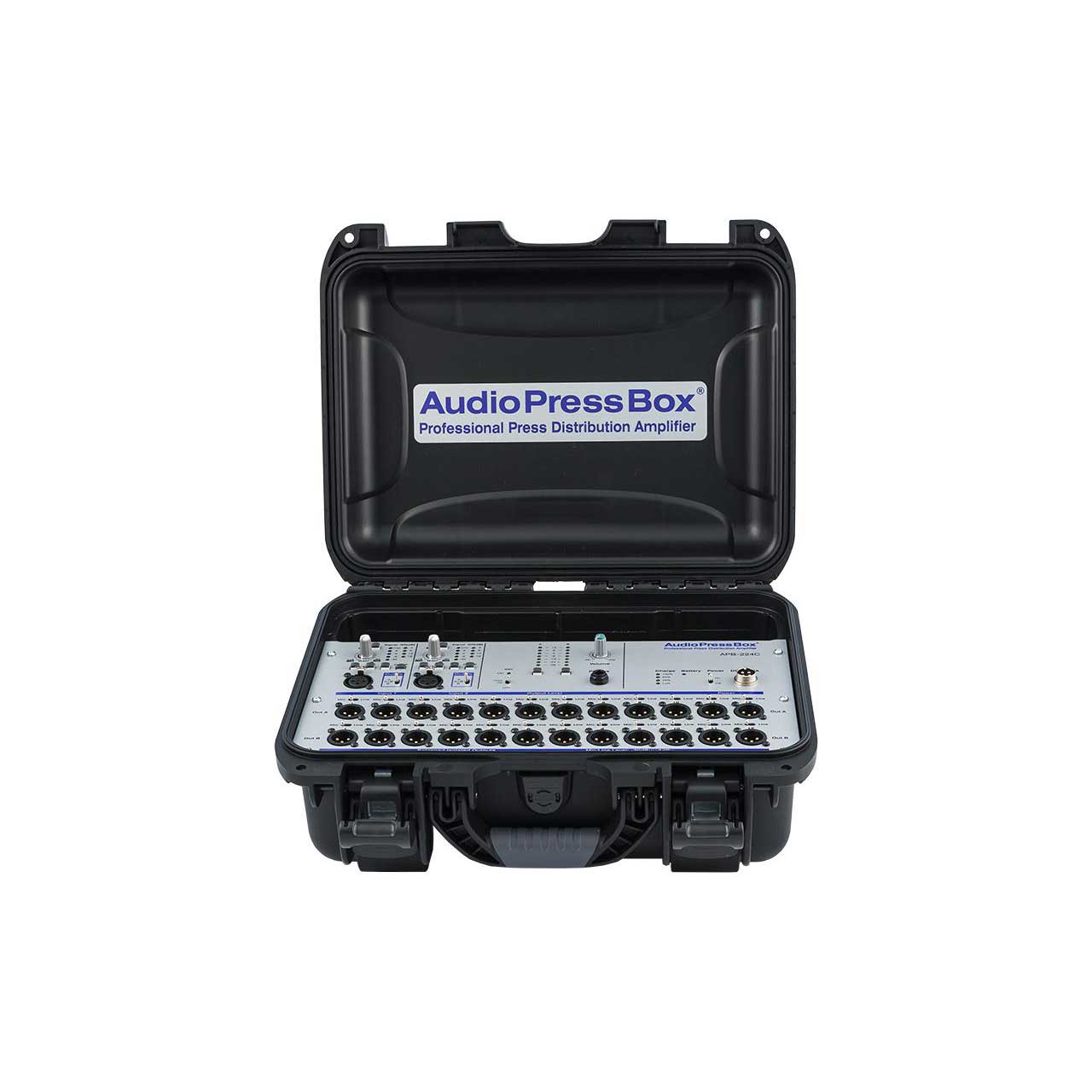

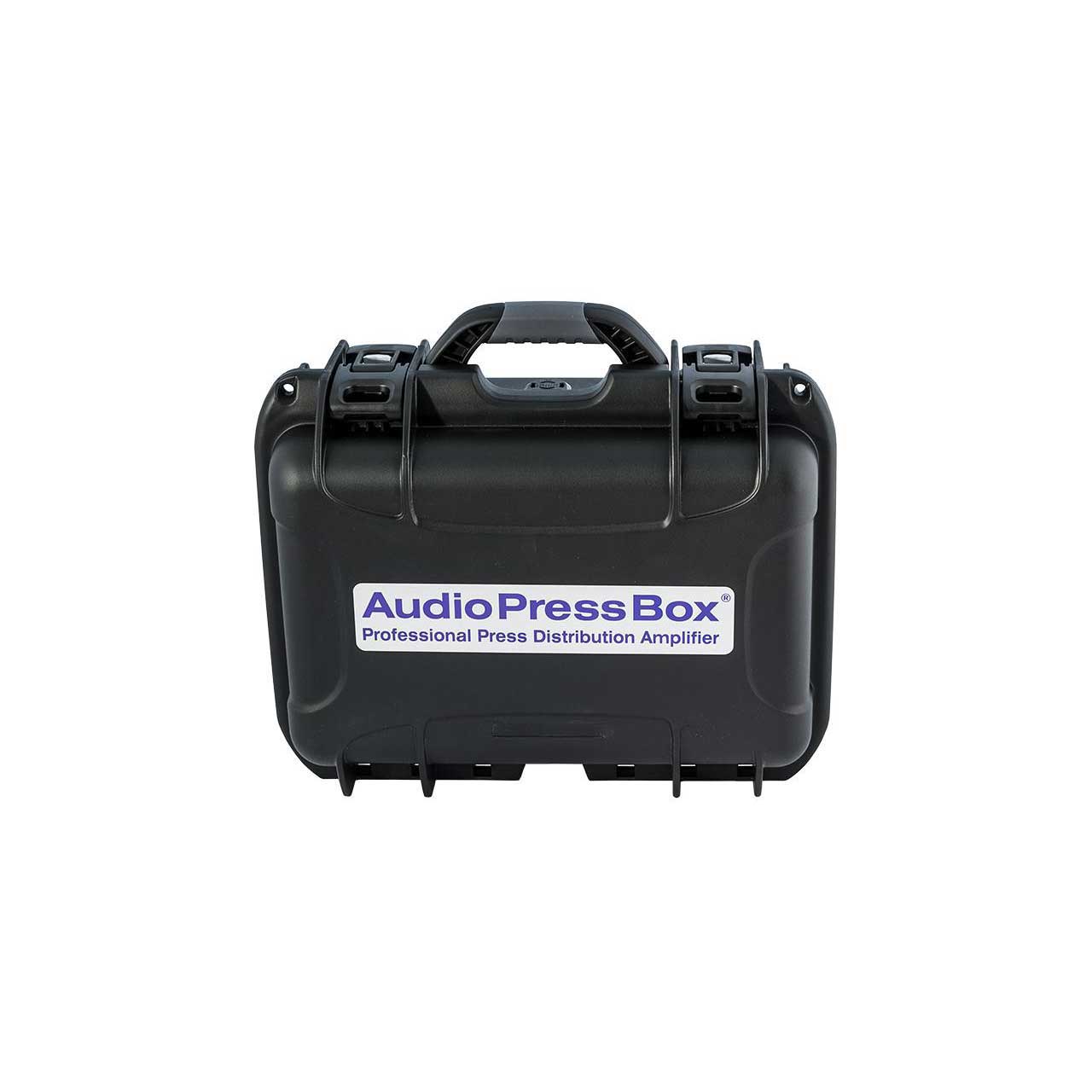

AudioPressBox APB-224-C Portable 2 Channel ActivePressbox with 2 Line/Mics Inputs & 24 Line/Mic Outputs in Carry Case

APB-224-C - Overview

• Features:

  • 2 MIC (phantom power) / LINE Inputs - balanced with gain control and 26dB PAD
  • Each Input is routable to A/(A+B)/B Outputs Group
  • 24 balanced and individually transformer isolated outputs
  • Each Output is switchable between MIC or LINE output level
  • 2 internal Output Groups: 12x Output A and 12x Output B
  • Switchable High-Pass filter for each Input channel
  • Switchable Compressor and Limiter for each Input channel
  • PFL/AFL for each Input/Output channel
  • Constant level Test signal oscillator with no mistake switch operation
  • Headphones control Output for PFL/AFL
  • Li-Ion AccuPack with microprocessor controlled battery management
  • 10 hours battery operation time. Note: AccuPack is placed (built-in) inside the unit


• Specifications:

  • Type: 2 in 24 out
  • Groups: 2
  • Inputs: 2
  • Input Connectors: Balanced, XLR
  • Input Gain: Mic +22/+62 dB: Line -4/+36 dB
  • Max. Input Levels:
    Limiter ON Mic: -10/-30dBu / Line: +36/-4dBu
    Limiter OFF Mic: -2/-42dBu / Line: +24/-16dBu
  • Phantom Voltage: 48V
  • Input Impedance: Mic: 2,4 kOhm: Line: 3,5 kOhm
  • Outputs: 24 Line/Mic level (12x Output A, 12x Output B),
  • Output Connectors: Balanced, XLR
  • Nominal Output Level: +6dBu
  • Maximum Output Level: +20dBu (no load) / +14dBu (600kOhm)
  • Output Impedance: Mic: 220 Ohm / Line: 600 Ohm
  • Transformer Isolated Outputs: Yes (each output)
  • SNR: 86dB
  • Frequency Response: 30/160Hz (filter) to 30kHz/-1dB
  • Controls: Input section: 26dB PAD, Input gain, Phantom, High-pass filter, Compressor, PFL, routing switch - Output Oscillator, Output level for bus A and bus B, AFL for Bus A and Bus B, Phones level, Power, Output PAD
  • Indicators: Input section: Input clip, Phantom power, Input level, Gain reduction, PFL - Output level for Bus A and Bus B, Oscilator, Power,Battery status

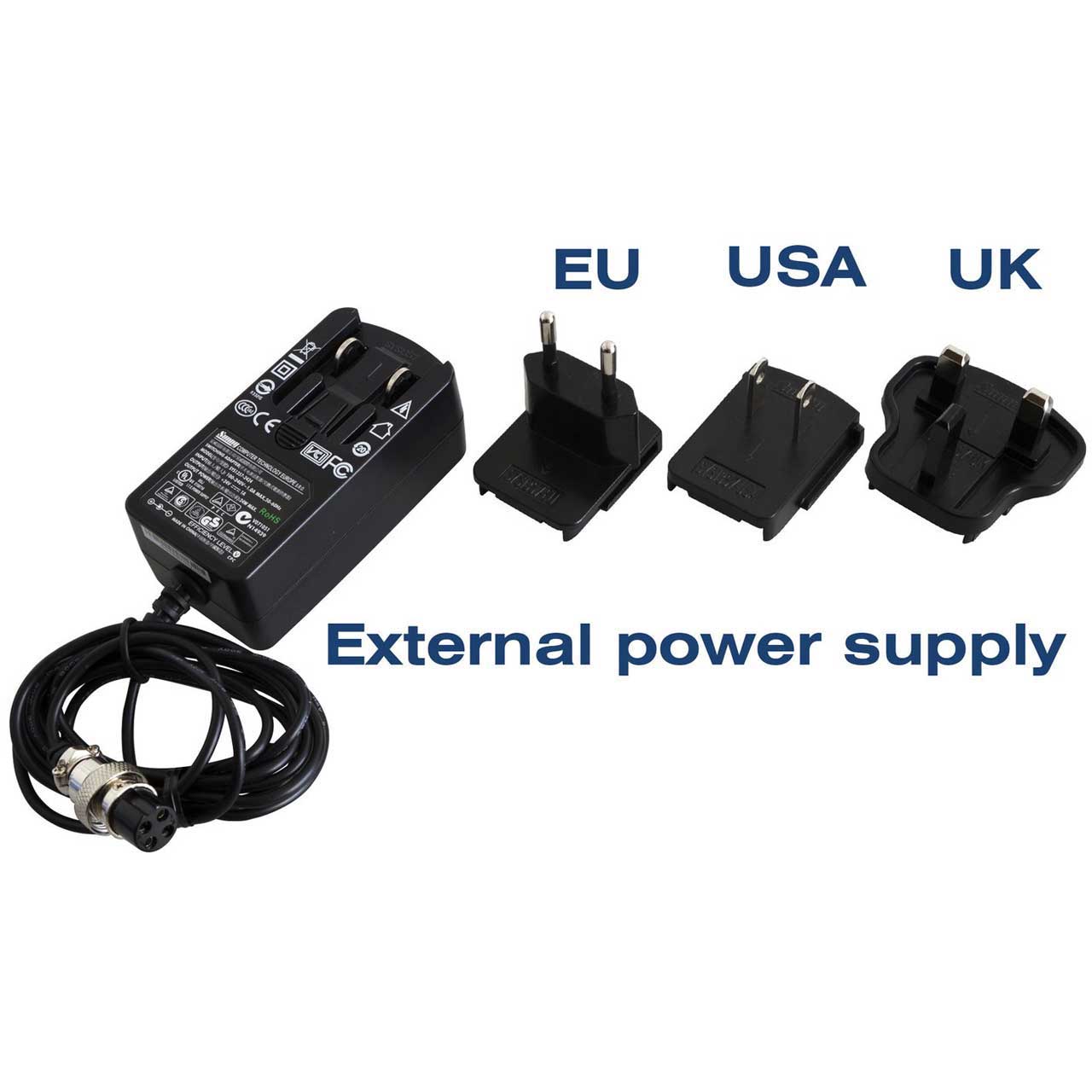

  • Power Supply: 24V DC, 300mA external adaptor
  • Battery: Li-Ion, 14,4 V 2200mAh
  • Battery Operation Time: up to 8 hrs
  • Dimensions (WxHxD): 390x315x175mm
  • Weight: 7 kg


• Item Includes:

  • 1x AudioPressBox APB-224-C Portable 2 Channel ActivePressbox with 2 Line/Mics Inputs & 24 Line/Mic Outputs in Carry Case with built-in charger.


• Warranty:

  • 2 Year


• GTIN:

  8588007614083
