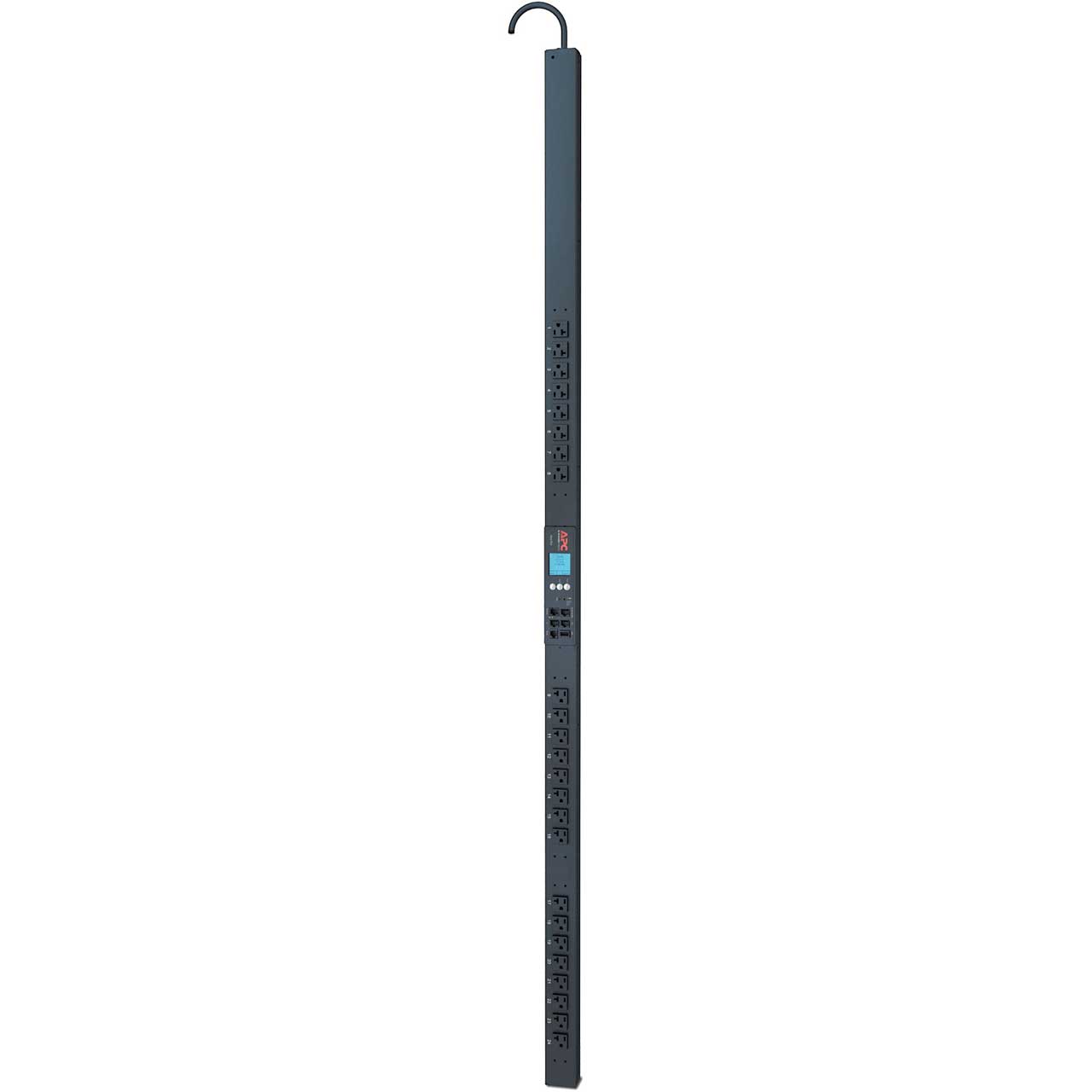

APC AP8830 Rack PDU 2G Metered ZeroU 20A 100-120V (24) 5-20R

ITEM #: APC-AP8830 MFG #: AP8830

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,005.00

Our Price:

$779.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipment of this item is subject to a separate oversized-package carrier surcharge.


AP8830 - Overview

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

  • Features:

    • Load indicator LED
    • Alarm Thresholds
    • Local and web-based monitoring
    • Local Current Monitoring Display
    • Wide range of input and output connections
    • Single input power source
    • Wide range of input and output connections
    • Rack-Mountable
    • Remote Management Capabilities
    • Flash Upgradeable
    • Integrates with StruxureWare Data Center Expert

  • Specifications:

    • Output
    • Nominal Output Voltage: 100V , 120V
    • Overload Protection: No
    • Output Connections: (24) NEMA 5-20R (Battery Backup)

      Input
    • Nominal Input Voltage: 100V , 120V
    • Input frequency: 50/60 Hz
    • Input Connections: NEMA L5-20P
    • Cord Length: 9.84 feet (3 meters)
    • Acceptable Input Voltage: 100-120VAC
    • Number of Power Cords: 1
    • Load Capacity: 1920VA
    • Maximum Input Current: 20A
    • Regulatory Derated Input Current (North America): 16A

      Physical
    • Maximum Dimensions (H x W x D): 70.5" x 2.18" x 1.72" (1791 x 55 x 44 mm)
    • Net Weight 12.3 lbs. (5.59KG)
    • Shipping weight 16.28 lbs. (7.4KG)
    • Shipping Dimensions (H x W x D): 78.98" x 6.48" x 4.26" (2006 x 164 x 108 mm)
    • Color: Black

      Environmental & Conformance
    • Operating Temperature 23 - 113 °F (-5 - 45 °C)
    • Operating/Storage Relative Humidity 5 - 95 %
    • Operating Elevation 0-10000ft (0-3000 meters)
    • Storage Temperature -25 - 65 °C
    • Storage Elevation 0-50000ft (0-15000 meters)
    • Approvals cUL Listed, FCC Part 15 Class A, ICES-003, UL 60950-1, UL Listed
    • Standard warranty 2 years repair or replace

      Sustainable Offer Status
    • RoHS: Compliant
    • REACH: REACH: Contains No SVHCs
    • Battery Directive: Compliant
    • Battery Notes: ts_Battery_Note

  • Warranty:

    • 2 Year

  • GTIN:

    0731304307310
