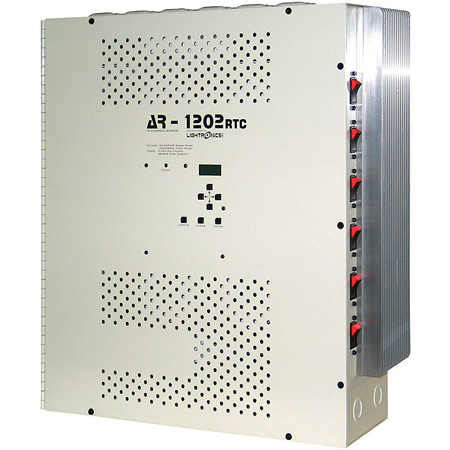

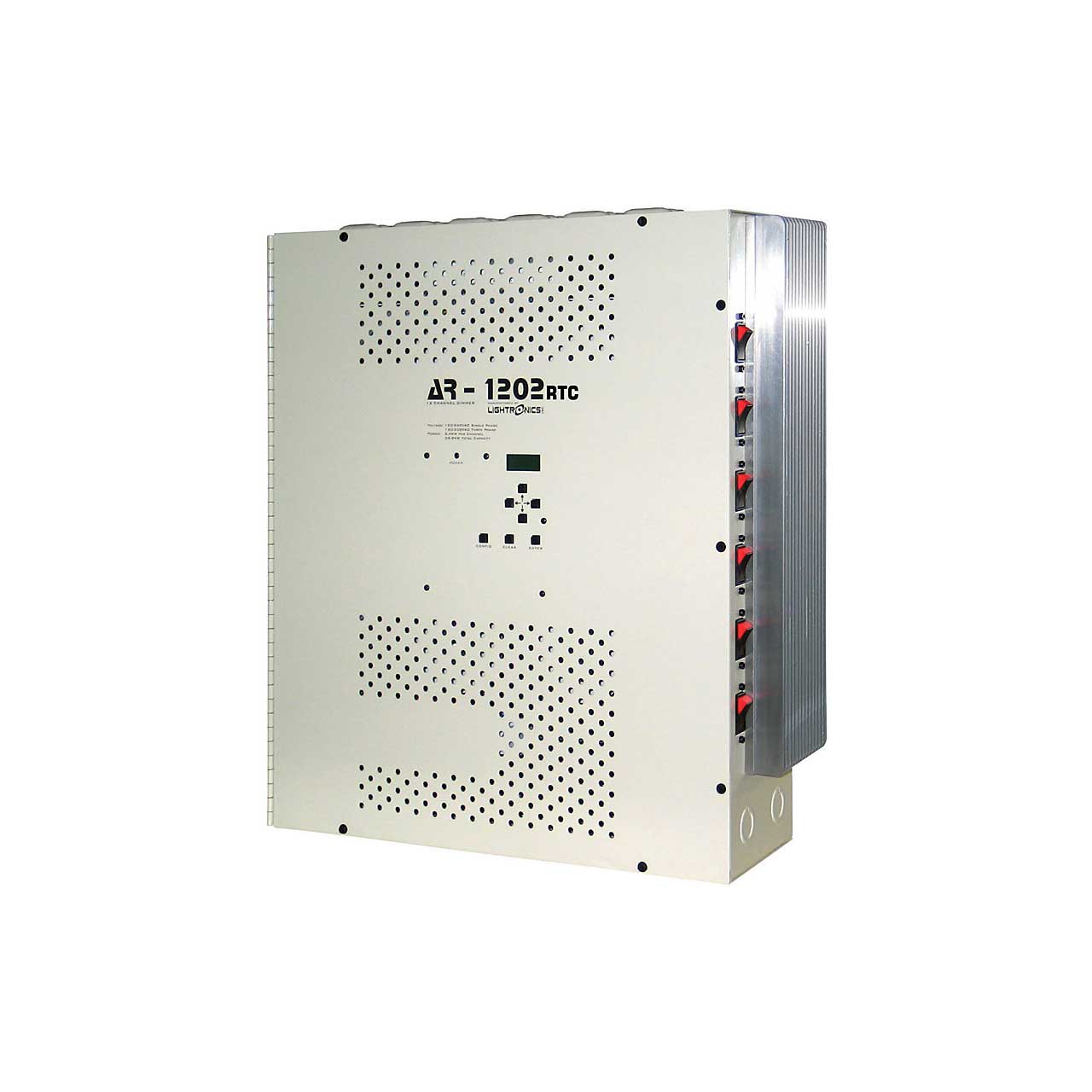

Lightronics AR-1202RTC 12 Channel 2400W Architectural Wall Mount Dimming System

Name: Lightronics AR-1202RTC 12 Channel 2400W Architectural Wall Mount Dimming System
Brand: Lightronics
SKU: AR1202
Price: 2999.25 USD
Availability: InStock

ITEM #: AR1202 MFG #: AR1202

Lightronics

List Price:

$3,999.00

Our Price:

$2,999.25

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

AR1202 - Overview

The Lightronics AR-1202RTC is a 12 channel x 2400 Watts per channel dimmer. It accepts DMX-512 signals and allows remote station control of preset scenes. The unit operates from either single or three phase power. The highly versatile AR-1202RTC may utilize remote stations to activate specific user programed scenes pre-stored in the unit. Several various remote types may be used. TheAR-1202RTC meets UL and CSA requirements and is listed by MET Laboratories.

Features:
- 12 Channels
- 2400W per Channel
- Single or Three Phase
- DMX Input with Softpatch
- 100 Programmable Scenes
- 64 Scene Memory
- Calendar Clock / Event Scheduler
- "Snapshot" Recording of Scenes
- UL-508 Compliant
- 2600W Available
Specifications:
- Channels / Capacity: 12 @ 2400 Watts each
- Power Requirements: 120/208VAC Three Phase, 80 Amps each Leg OR 120/240VAC Single Phase, 120 Amps each Leg
- Power Devices: Dual 65 Amp SCRs
- Power Connector: Terminal Strip
- Channel Output: Terminal Strip
- Circuit Breakers: 20 Amp Fast Acting
- Minimum Load: 15 Watts
- Curve: Modified Square Law
- Filter Rise Time: 600 Usec. Minimum
- Output Function: Dimmer or Relay Circuit Selectable
- Remote Network: RS-485, 62.5 Kbaud, Bidirectional 9 Bit Network
- Control Input: DMX-512 USITT Standard with Softpatch
- Front Panel Controls: 8 Char. x 2 Line LCD Display and Keypad
- Local Presets: 100 Scenes Standard, Expandable to 255 Scenes
- Remote Stations: Total of 32 Remote Stations with Unique System Addresses
- Slave AR1202 Units: Up to 31 Additional AR1202 Units may be Added (384 Channels)
- Size: 20.5"W x 21"H x 6.25"D
- Weight: 70 Pounds

AR1202 - Recommended Accessories

Lightronics AK1005 Unity Architectural Lighting Control Remote Station
LGT-AK1005
Our Price: $276.75

AR1202 - Reviews

AR1202 - Attachments

See Lightronics AR1202 Manual/Specs (PDF)
See Lightronics AR1202 Specifications (PDF)
