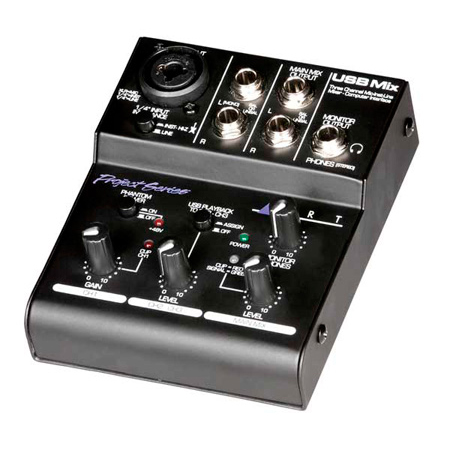

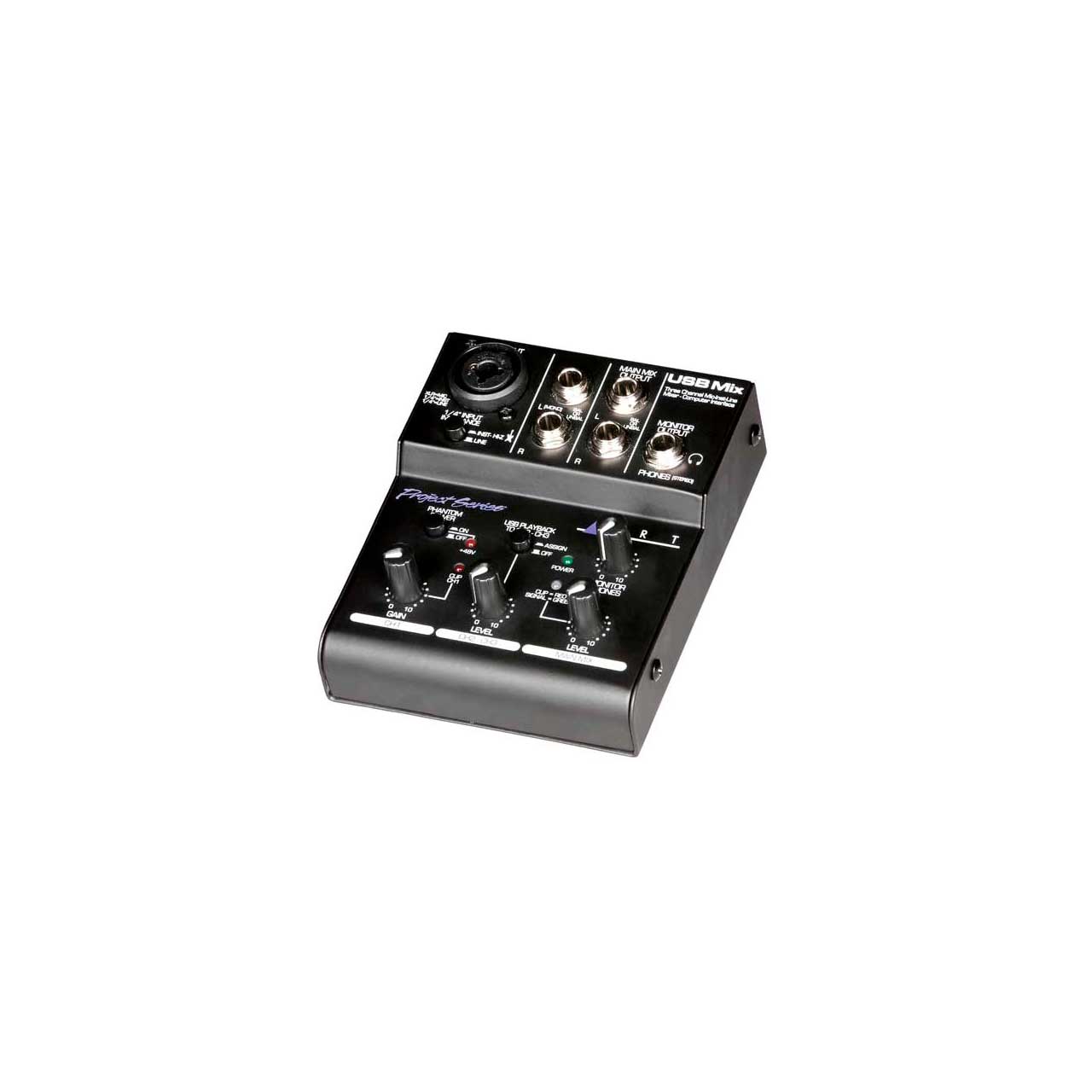

ART USB MIX Three Channel Microphone Instrument & Line Mixer

USB MIX - Overview

• Features:

  • USB powered, no external power supply needed when used with a computer
  • Balanced XLR or unbalanced ¬-inch Instrument inputs with switchable impedance
  • Switchable low noise +48V phantom power
  • Balanced 1/4-inch TRS inputs for stereo or mono line-level sources
  • 1/4-inch TRS output jacks work with balanced or unbalanced lines
  • Stereo 1/4-inch TRS headphone jack with independent level control for output monitoring
  • Independent controls for both sets of inputs, main output, and headphone monitor
  • Green/Red LED signal/clip indicator
  • Switchable assignment of USB playback to channels 2 and 3
  • USB 2.0 compliant
  • USB cable, AC adapter, and Audacity recording software included


• Specifications:

  • Input Connections:
  • XLR balanced / 1/4" unbalanced "Combo" jack (ch1 input)
  • 1/4" balanced or unbalanced (Ch2-Ch3 inputs)
  • Output Cannections:
  • 1/4" TRS balanced (Main Mix outputs)
  • 1/4" TRS stereo (Monitor output)
  • Input Impedance:
  • 240k Ohms (Inst-HiZ), 20k Ohms (Line) (Ch 1, Ch2-Ch3 1/4" inputs)
  • > 4k Ohms (Ch1 XLR input)
  • Output Impedance:
  • <1k Ohms (balanced 1/4"), <500 Ohms (unbalanced 1/4")
  • 100 Ohms (Monitor output)
  • Frequency Response: 20 Hz - 20 kHz (+0, -1 dB)
  • THD: <0.01% @ 1 kHz
  • CMRR: > 54 dB typical
  • Phase Response: All connections are phase coherent
  • Signal to Noise Ratio: > 90 dB typical (Ref 0 dBu)
  • Equivalent Input Noise: -120 dBu typical (XLR balanced, max gain), -100 dBu typical (1/4")
  • Maximum Input Level: +4dBu (XLR input), +14dBu (1/4" input)
  • Maximum Output Level: +14dBu (Main Mix Outputs), +13dBu (Monitor output)
  • Maximum Gain (In to Main Out):
  • +53dB (XLR), +32dB (1/4") Ch1 input
  • +10dB (1/4") (Ch2-Ch3 inputs)
  • Maximum Gain (In to USB):
  • +44dB (XLR), +23dB (1/4") (Ch1 input)
  • +1dB (1/4") (Ch2-Ch3 inputs)
  • Maximum Gain (USB to Out): +14dB (Main Mix outputs), +13dB (Monitor output)
  • Phantom Power: Switch selectable, +48V DC, filtered, current limited
  • A/D-D/A:
  • 16 Bit, 44.1 kHz or 48 kHz, USB selectable from computer
  • 0.4 ms A/D latency @ 44.1 kHz
  • Computer Interface:
  • USB 2.0 compliant, Windows 7, Vista, XP, 2000, ME, 98SE
  • Mac OS 9.1 / OS X computers with native USB support, Linux
  • Chassis Type: All steel black finish
  • Power Requirements: 5.0V DC @ <500 mA (external) or USB bus powered @ 150 mA typical
  • Dimensions: 1.6" x 4.0" x 4.75" (41mm x 101mm x 121mm)
  • Weight: 1.1 lbs (0.5 kg)
  • Notes:
  • 0 dBu = 0.775Vrms
  • Weight includes power supply and USB cable


• GTIN:

  0840402042983
