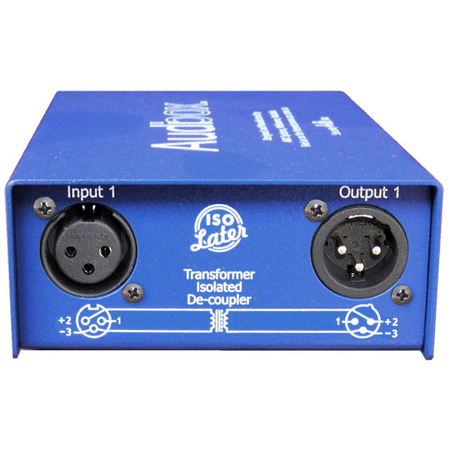

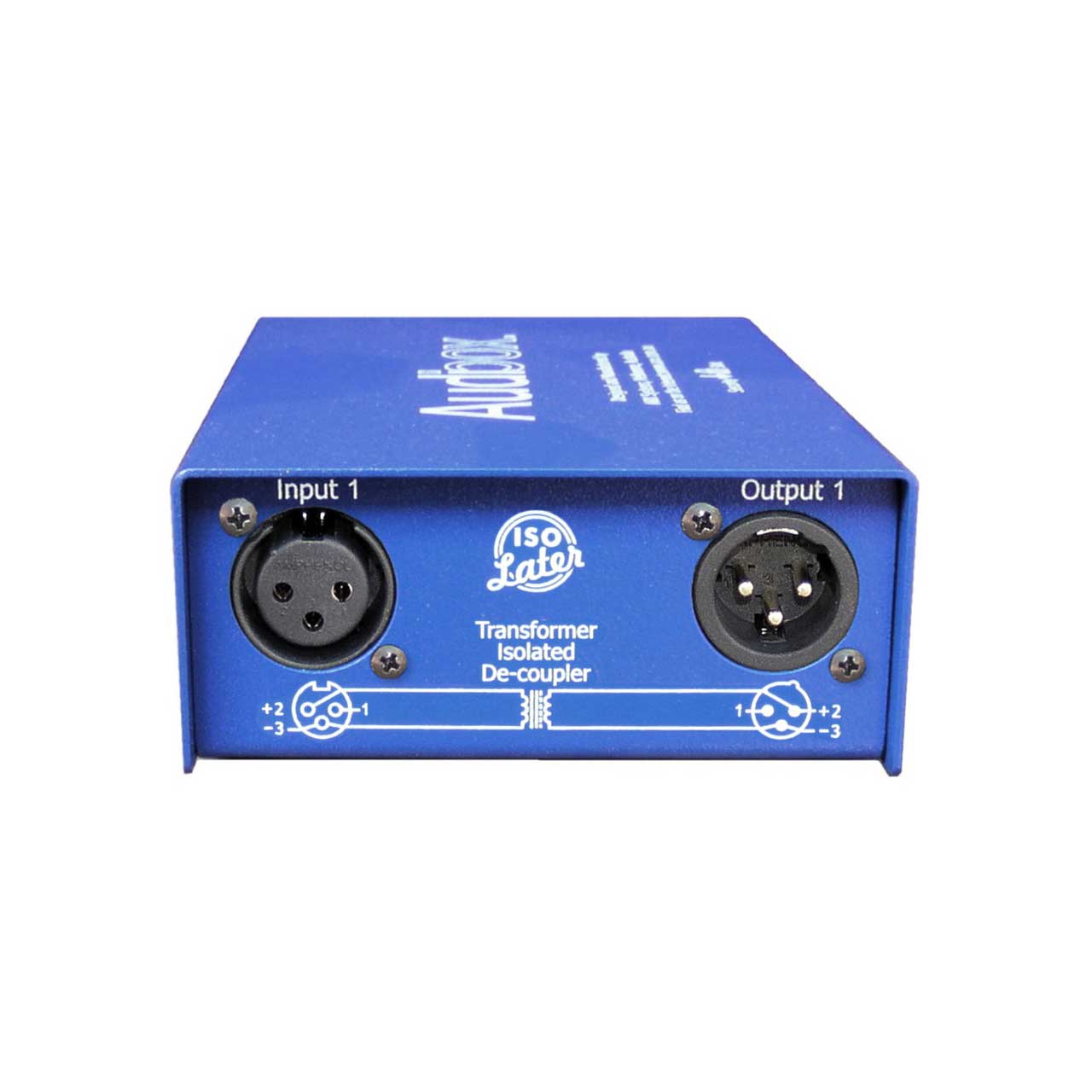

ARX IL-1 Mono Transformer Isolated De-coupler for Removing Ground Loop

ITEM #: ARX-IL-1 MFG #: ARX AUDIBOX ISO LATER

Primary Image
ARX America
Free Shipping with $49 Minimum Order

List Price:

$225.00

Our Price:

$198.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

ARX AUDIBOX ISO LATER - Overview

Single channel Transformer isolated de-coupler, for removing Ground loops and for use in applications where complete Galvanic isolation is required such as Broadcast feeds and remote recording. Mounted in a heavy duty all steel chassis, and available in Single Channel format. Needs no power.

  • Specifications:

    • Input Impedance: 600 Ohms.
    • Output Impedance: 600 Ohms.
    • Frequency Response: 20Hz - 20 KHz ± 0.1dB.
    • Maximum Output Level: + 24dBm.
    • THD at Max Output: 0.2% 30 Hz - 20KHz.
    • Insertion Loss: 0.75dB @ 1 KHz (600 Ohm source & load).
    • Input Connectors: 3 pin female XLR wired Pin 2 + Hot, Pin 3 - Cold.
    • Output Connectors: 3 pin male XLR wired Pin 2 + Hot, Pin 3 - Cold, Audio grounds are unconnected.
    • Ground Reference: Chassis is grounded to Output Pin 1; Duo version chassis is grounded to Channel 1 Output Pin 1.
    • Construction: All-steel chassis, fibreglass PCB, ultra low noise audio transformer .
