Audio-Technica ATW-A410P UHF Powered Wideband Antenna (470-990 MHz)

ITEM #: AT-ATW-A410P MFG #: ATW-A410P

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Audio-Technica
Free Shipping with $49 Minimum Order

Our Price:

$399.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

ATW-A410P - Overview

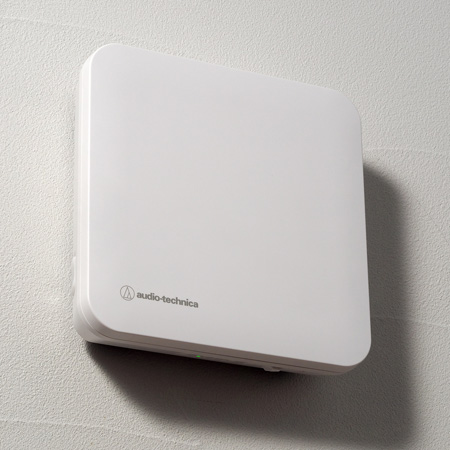

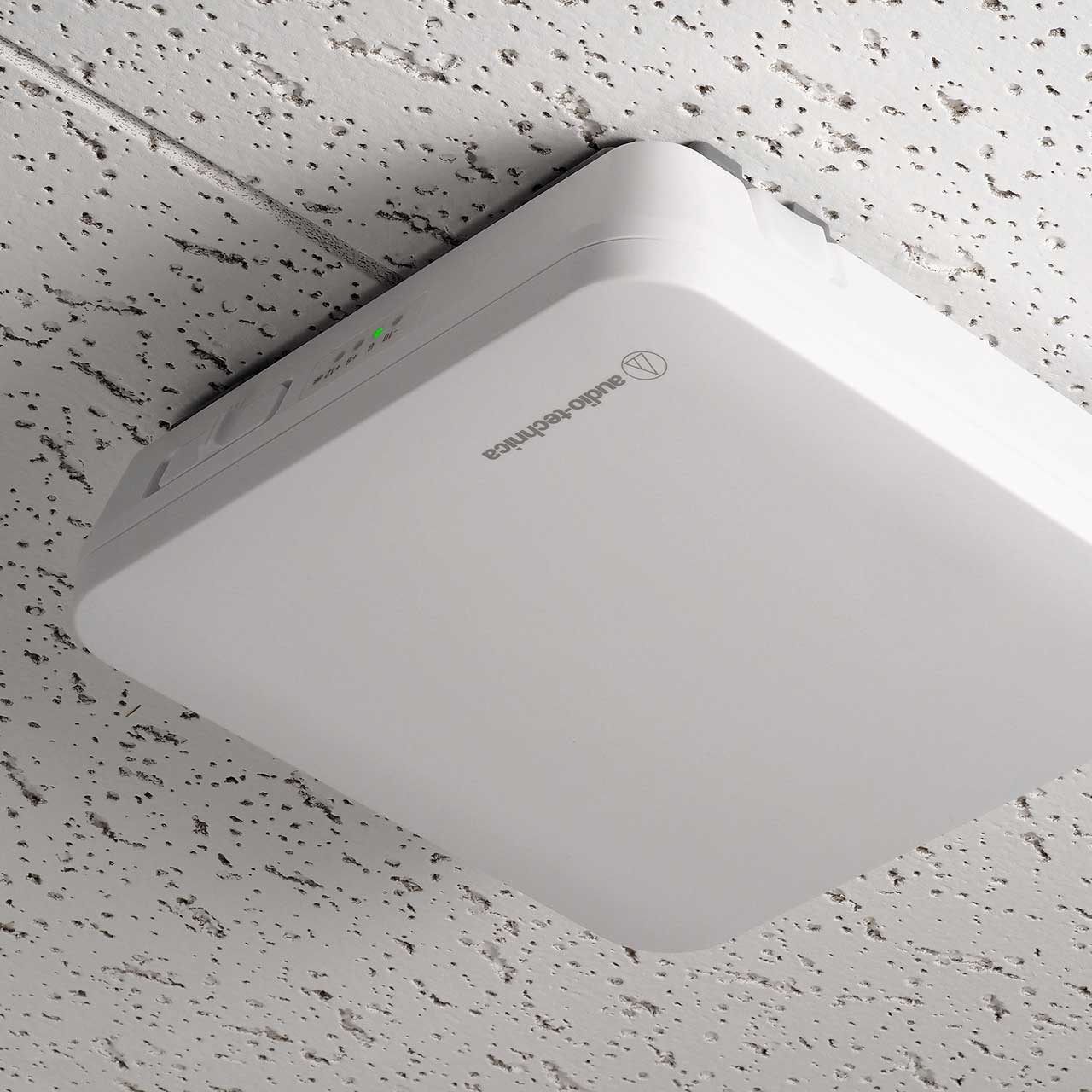

The Audio-Technica ATW-A410P is a low-profile UHF (470-990 MHz) antenna that mounts to a wall or ceiling. It features a 4-position switchable amplifier (-10 dB/0 dB/+6 dB/+12 dB) to compensate for cable loss, along with an LED indicator to display the current gain setting. To accommodate various installation environments, the antenna's BNC cable can be configured to exit from the top, side or rear of the antenna. Includes mounting bracket and screws.

  • Features:

    • Low-profile UHF antenna mounts to wall or ceiling
    • 470-990 MHz operating range
    • 4-position gain selector (-10 dB/0 dB/+6 dB/+12 dB)
    • LED gain setting indicator
    • BNC cable may be routed to the side, top or rear of the antenna


  • Specifications:

    • Frequency range: 470 to 990 MHz
    • Connector: BNC-J
    • Impedance: 50 ohms
    • Power requirement: +12V DC, 60 mA or less
    • OIP3: >30 dBm typical (within specified bandwidth)
    • Gain: -10 dB/0 dB/+6 dB/+12 dB
    • Operating temperature range: -10° C to 50° C (14° F to 122° F)
    • Dimensions: 175 mm (6.9") W x 175 mm (6.9") D x 50 mm (2.0") H (without bracket)
    • Weight: 390 g (13.8 oz) (without bracket)


  • Item Includes:

    • 1x ATW-A410P
    • 1x mounting bracket & screws


  • GTIN:

    4961310150457
