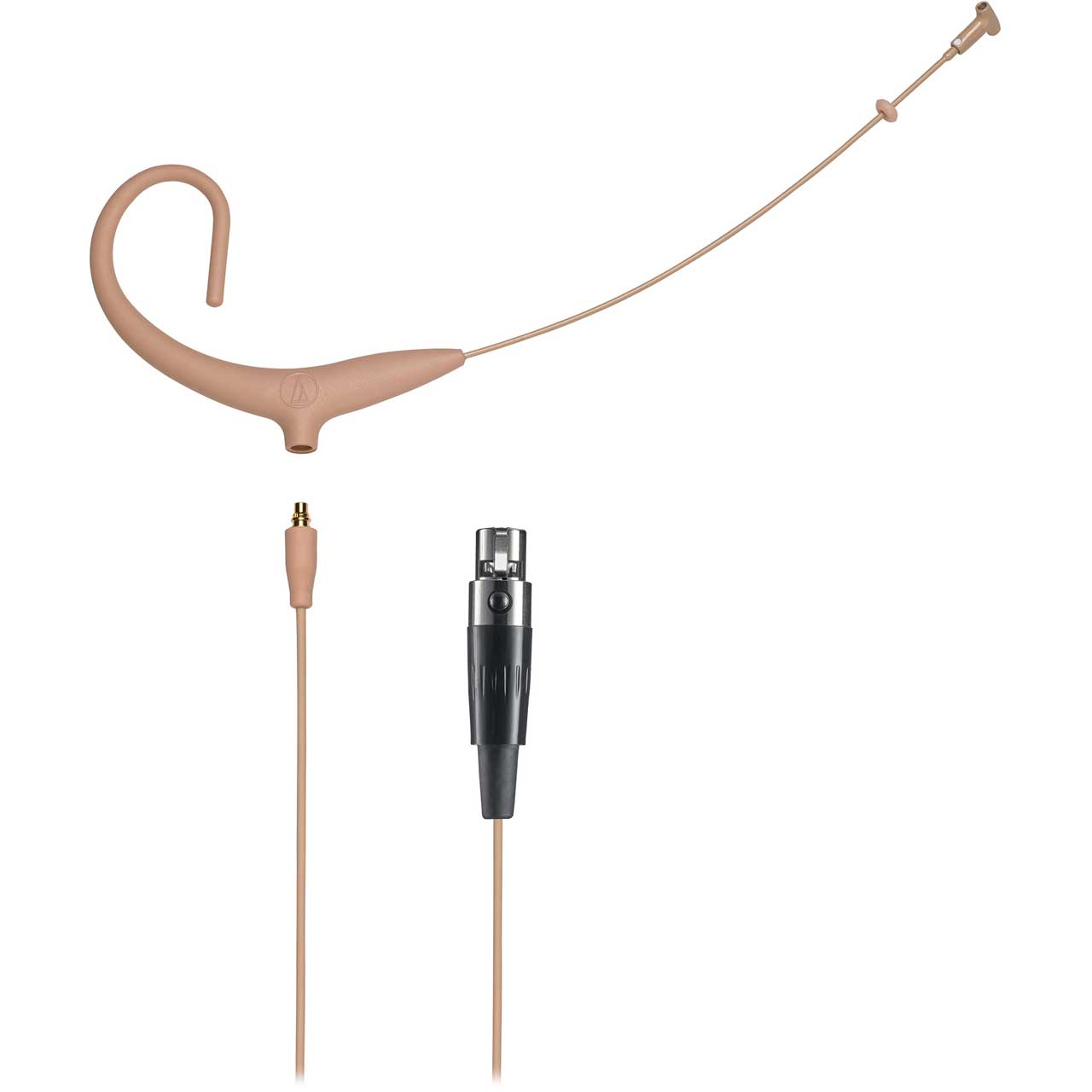

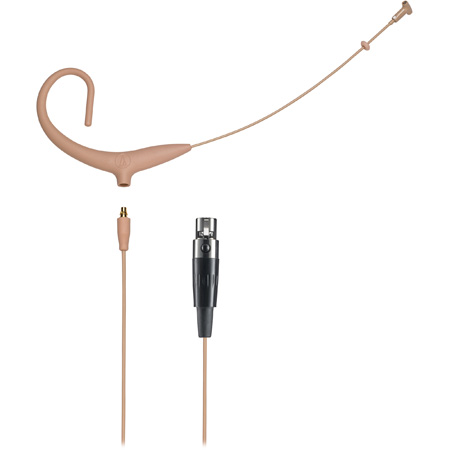

Audio-Technica BP894xcT4-TH MicroSet Cardioid Condenser Headworn Wireless Mic - Detach Cable w/ cT4 Connector - Beige

BP894XCT4-TH - Overview

• Features:

  • Features a rotating capsule housing with talk-side indicator for perfect polar pattern placement from either ear
  • Subminiature cardioid condenser capsule offers extremely intelligible, natural vocal reproduction
  • Inconspicuous, lightweight headset with capsule diameter of just 2.6 mm is ideal for applications requiring minimum visibility
  • Ergonomic under-ear design-the flexible, lightweight, contoured loop hooks behind the ear for an ultra-secure, comfortable fit even for those wearing glasses
  • BPCB-cT4-TH detachable, field-replaceable 1.4 m (55") cable terminated for Shurer wireless systems using TA4F-type connector
  • Handles high sound pressure levels with ease
  • Comes with the AT8464x-TH Dual-Ear Adapter Kit that converts the single-ear MicroSet to a unit that's worn on both ears for maximum stability and comfort
  • Constructed of hypoallergenic materials
  • Available in black and beige, wired and wireless models


• Specifications:

  • Element: Fixed-charge back plate, permanently polarized condenser
  • Polar Pattern: Cardioid
  • Frequency Response: 20-20,000 Hz
  • Low Frequency Roll-Off: 80 Hz, 18 dB/octave (wired only)
  • Open Circuit Sensitivity: -47 dB (4.3 mV) re 1V at 1 Pa
  • Impedance: 250 ohms (wired only)
  • Maximum Input Sound Level: 135 dB SPL, 1 kHz at 3% T.H.D.
  • Dynamic Range (Typical): 98 dB, 1 kHz at Max SPL (wired only)
  • Signal-To-Noise Ratio: 57 dB, 1 kHz at 1 Pa
  • Phantom Power Requirements: 11-52V DC, 2 mA typical (wired only)
  • Switch: Flat, roll-off (wired only)
  • Current Consumption: 0.25 mA typical at 5V (wireless only)
  • Voltage Range: 3.5-10V (wireless only)
  • Weight (Microphone): Microphone, boom & earpiece: 2.0 g (0.07 oz)
  • Weight (Power Module): 85 g (3.0 oz) (wired only)
  • Dimensions: Microphone: 9.67 mm (0.38") long, 2.6 mm (0.10") diameter / Boom: 98.4 mm (3.87") long, 1.07 mm (0.04") diameter
  • Dimensions (Power Module): 100.0 mm (3.94") long, 18.9 mm (0.74") diameter (wired only)
  • Output Connector (Power Module): Integral 3-pin XLRM-type
  • Cable: Detachable 1.4 m (55") long, 1.6 mm (0.06") diameter, 2- or 3-conductor shielded cable (termination dependent)

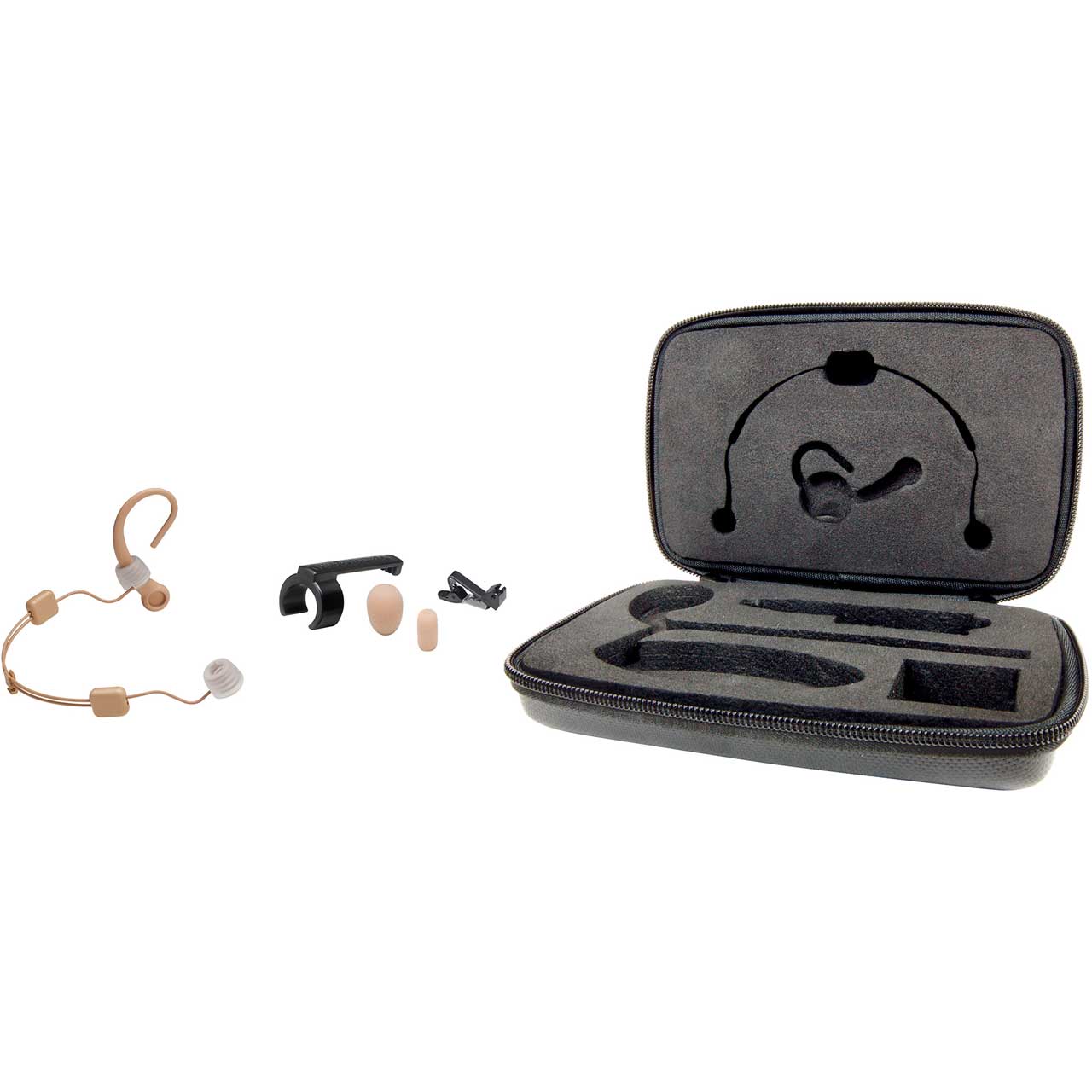

• Item Includes:

  • AT8464x-TH dual-ear adapter kit
  • AT8440 cable clip
  • AT8163-TH windscreen
  • AT8171-TH windscreen
  • Moisture guard
  • Carrying case


• GTIN:

  0042005199211
