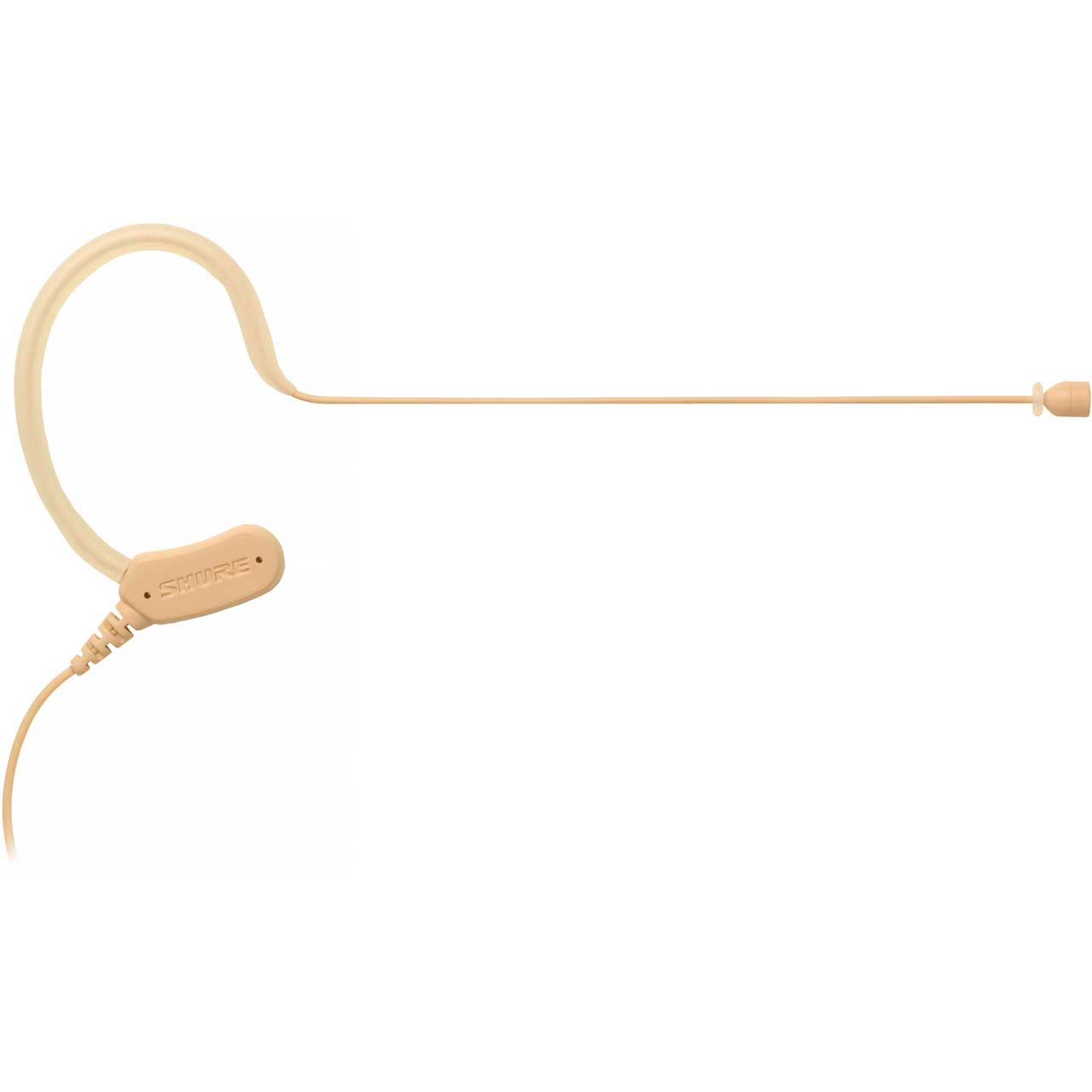

Shure MX153T/O-TQG Microflex Omnidirectional Headworn Microphone - Tan

ITEM #: SH-MX153TO-TQG MFG #: MX153T/O-TQG

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$362.00

Our Price:

$259.00

Availability: In Stock
iAvailability Description Popup


MX153T/O-TQG - Overview

The Shure Microflex MX153 provides outstanding clarity in an extremely comfortable over-the-ear design. This professional subminiature earset microphone is ideal for applications in which improved gain before feedback over lavalier microphones is desired. Delivering exceptional speech clarity, the MX153 is ideal for corporate presentations, houses of worship, A/V conferencing, and live sound reinforcement.

Utilized for everything fromauditoriums to band rooms, Microflex microphones have delivered exceptional audio quality to the hallowed halls of academia for years. By providing the educational institutions of the world with exceptional quality products, Shure tirelessly commits themselves to delivering unparalleled service and support.

Microflex microphones have adorned the podiums and committee rooms of government institutions around the world. From lavaliers to overheads to goosenecks, Shure audio products deliver exceptional sound and afford maximum flexibility in even the most acoustically challenging environments.

Proven reliable in installations worldwide, Microflex microphones are well suited to meet the diverse audio requirements of any House of Worship. Ideal for choirs, lecterns, and altars, all Microflex products are both attractive and inconspicuous and deliver the superior sound quality you can expect from Shure.

Microflex microphones provide solutions for meeting rooms, video conferences, large presentations or any other situation the business world throws at you. Gooseneck mics meet the needs of any size conference table while low-profile boundary mics are discreet and unobtrusive yet provide crystal clear audio. Additionally, CommShield technology guards against unwanted interference.

All Microflex models offer CommShieldTechnology, which guards against unwanted radio interference from consumer wireless devices such as cell phones and PDA's. Shure engaged their development teams to redesign Microflex microphones to be highly resistant to radio frequency interference such as might be experienced with GSM cell phone technology and to implement design techniques such as multilayer circuit boards, improved grounding techniques, tighter enclosures for improved shielding, and improved microphone cable and audio connectors. The combination of improved techniques is utilized to deliver Microflex microphones that are highly resistant to intense nearby radio signals.

NOTE: When connecting the microphone to anything other than a Shure wireless bodypack, make sure the device provides a regulated +5 V DC (130 µA minimum).

NOTE: To connect the MX153 earset to an XLR microphone input, use the RK100PK preamplifier (sold separately).

  • Features:

    • Subminiature omnidirectional cartridge offers superior clarity and enhanced plosive protection with no proximity effect
    • Terminated with TQG/TA4F connector for direct connectivity to Shure wireless bodypack transmitters
    • Ultra-lightweight, comfortable, flexible design is stable and easy to place over either ear
    • CommShield Technology guards against interference from cellular RF devices and digital bodypack transmitters
    • Kevlar reinforced soft flex cable
    • Includes protective storage pouch, 3 windscreens, and collar clip

  • Specifications:

    • Transducer Type: Electret Condenser
    • Polar Pattern: Omnidirectional
    • Frequency Response: 20Hz to 20kHz
    • Output Impedance: N/A
    • Sensitivity (open circuit voltage, @ 1 kHz, typical): -41 dBV/Pa (9 mV/Pa)
    • Maximum SPL (1 kHz at 1% THD): 2500Ω load: 107dB SPL, 1000Ω load: 107dB SPL
    • Signal-To-Noise Ratio: 60dB
    • Dynamic Range @ 1 kHz: 2500Ω load: 73dB, 1000 Ω load: 73dB
    • Self Noise (equivalent SPL, A-weighted, typica)l: 34dB
    • Common Mode Rejection (20Hz to 20kHz): N/A
    • Operating Temperature Range: 0°F - 135°F (-18°C - 57°C)
    • Polarity: Positive pressure on diaphragm produces negative voltage on pin 3 with respect to pin 1.
    • Power Requirements: +1-5 V DC (500µA max.)
    • Weight: 0.70oz (19.76g)

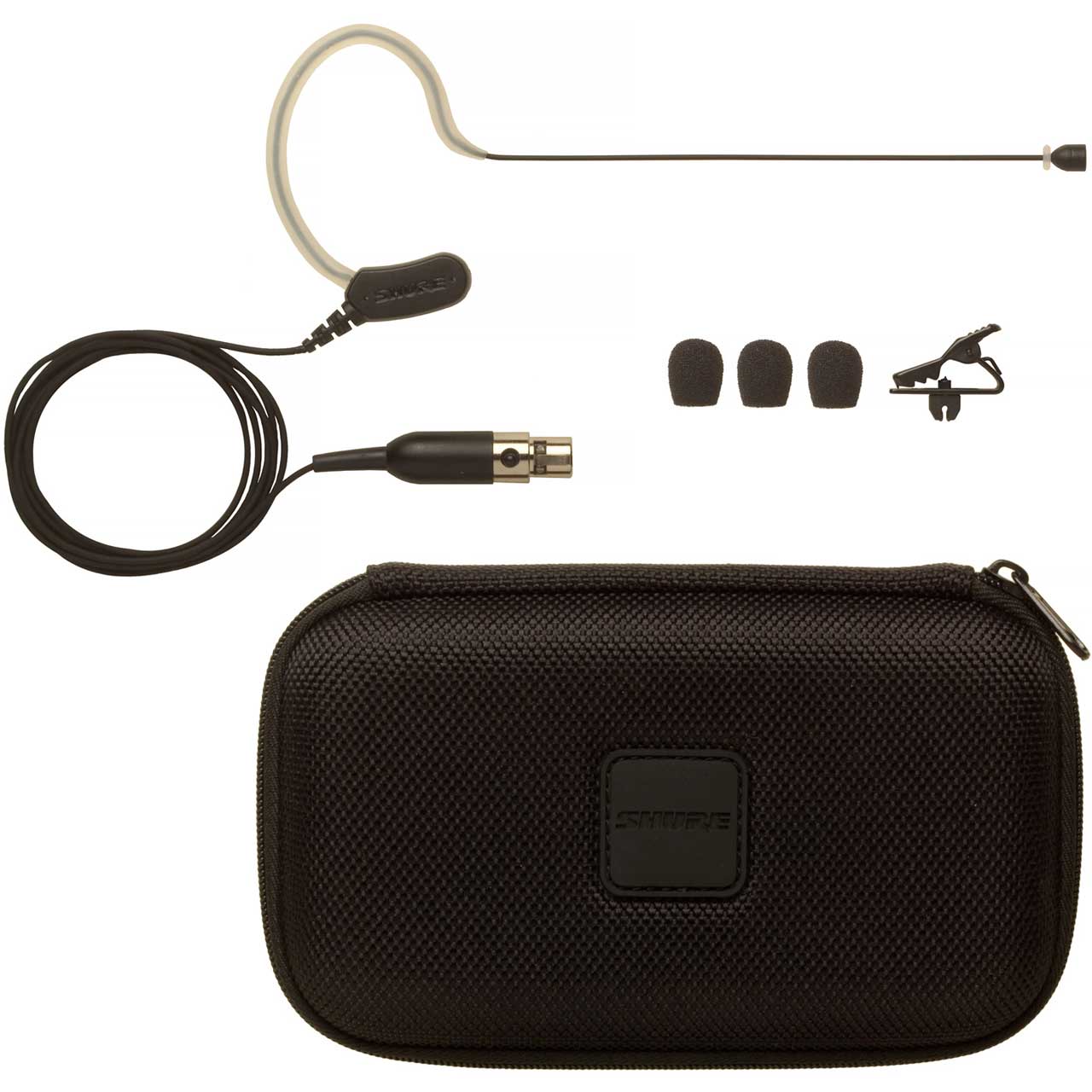

  • Item Includes:

    • MX153B/O-TQG headworn microphone
    • Accessory kit (3 windscreens, 1 collar clip)
    • Storage pouch

  • GTIN:

    0042406236140
