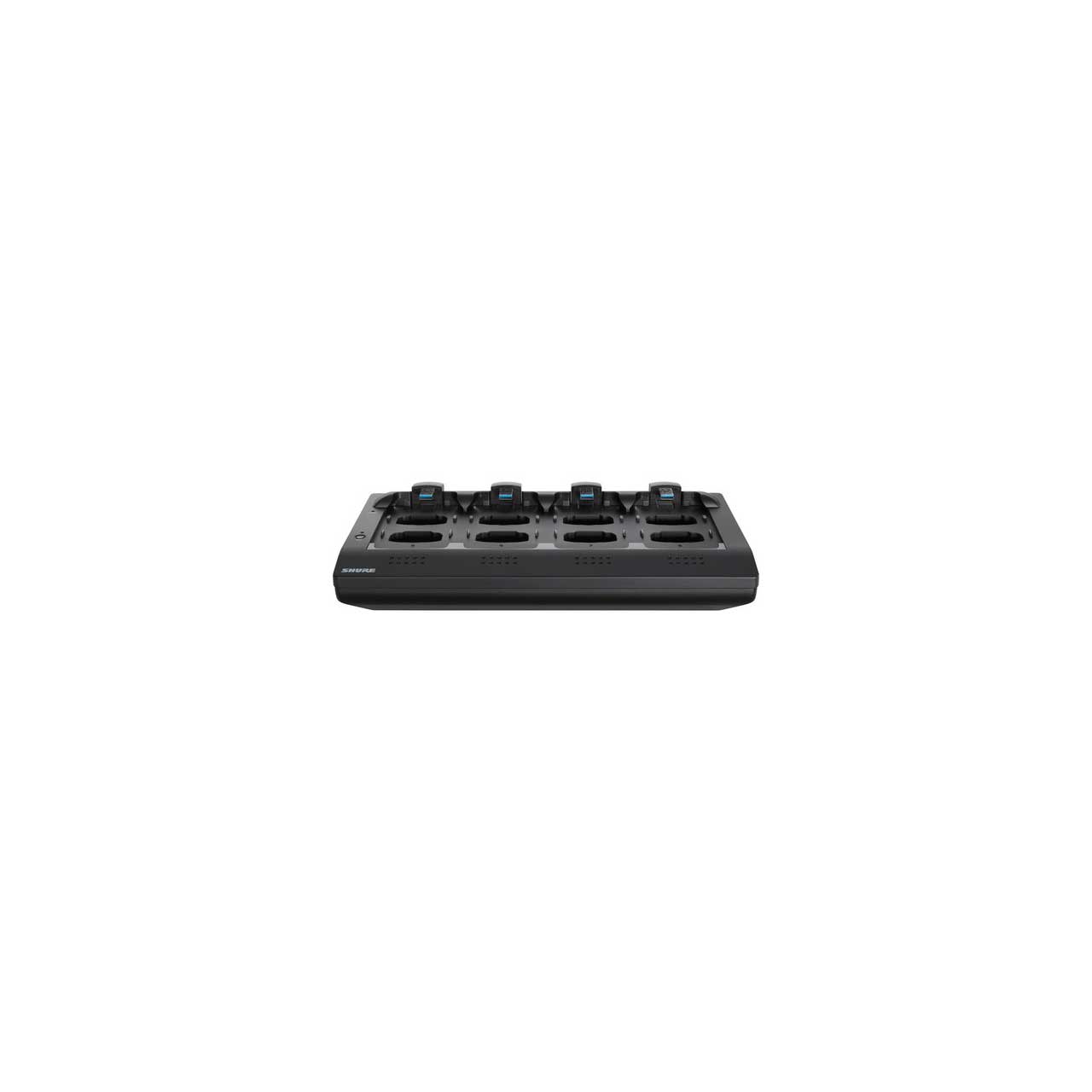

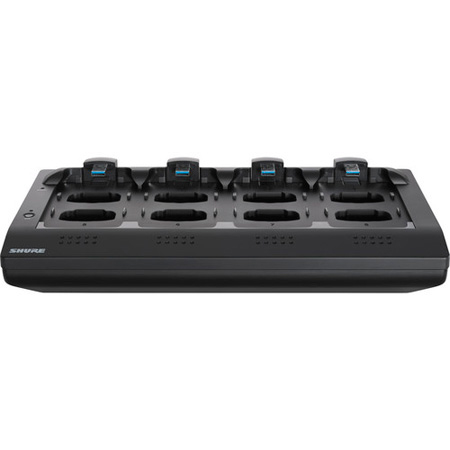

Shure MXWNCS8 8 Channel Networked Charging Station Microflex Compatible

MXWNCS8 - Overview

• Features:

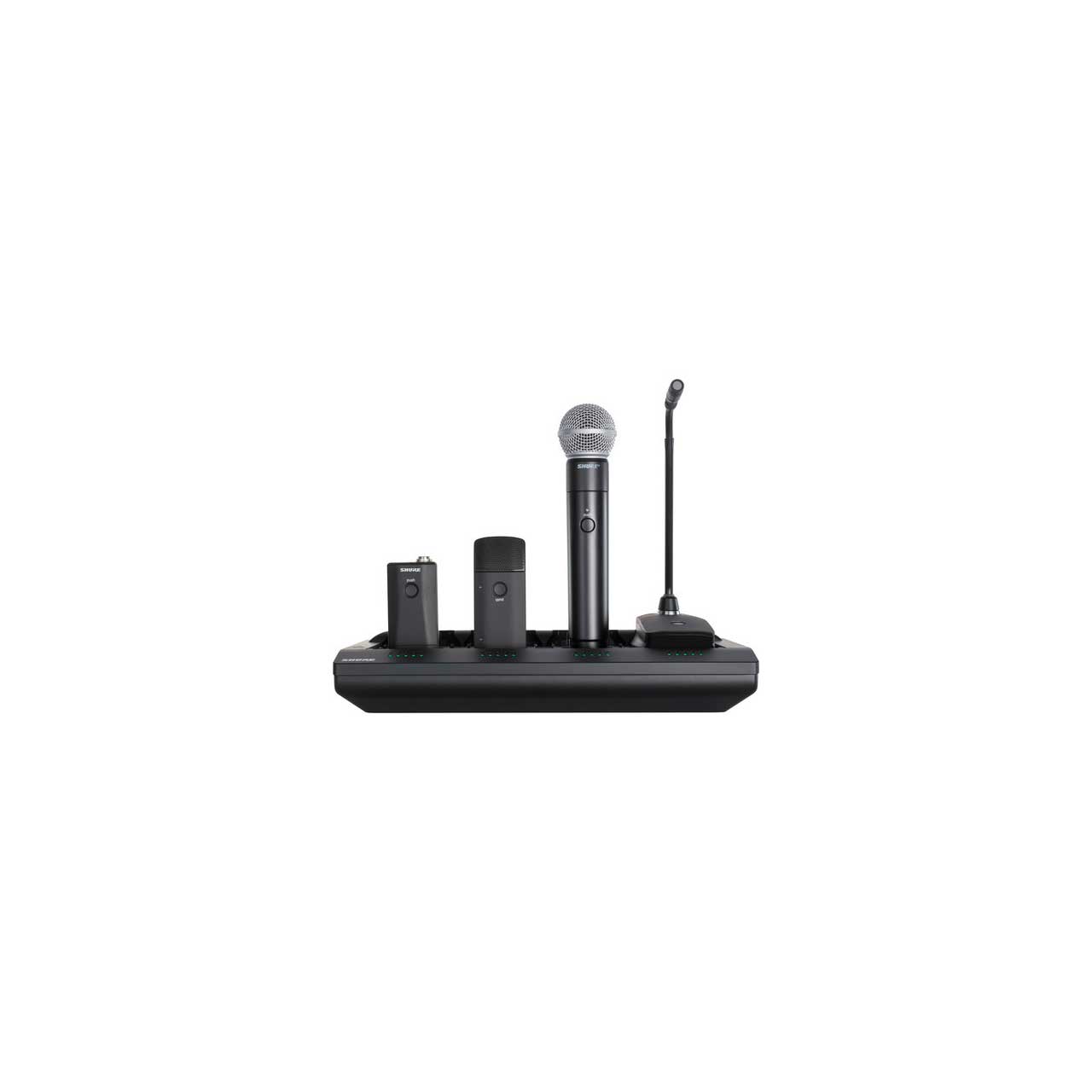

  • Versatile microphone docking: Each station accepts all Microfl ex Wireless transmitters
  • Charge status indicators: 5-segment LED's on the unit display charge status individually for every docked microphone
  • Remote charge status monitoring: Ethernet connection to the system enables remote monitoring of battery charge status in
  • hours and minutes via the control software or third party control systems
  • Easy transmitter linking: Assign docked wireless microphones to channels on an Access Point Transceiver by simply
  • pressing "link"
  • Rapid charge times: Reaches 50% charge in one hour and fully charges transmitters in two hours
  • Overcharge protection: Smart recharging circuitry safeguards against battery damage and extends life cycles


• Specifications:

  • Charge Time MXW1, MXW6, MXW8:
  • MXW2:
  • 50%=1 hour;
  • 100%=2 hours
  • 50%=1.5 hour;
  • 100%=3 hours
  • Network Interface 10/100 Mbps Ethernet
  • Power Requirement 15 V DC @ 3.3 A maximum, supplied by external power supply (tip positive)
  • Housing Molded Plastic, Cast Zinc
  • Dimensions NCS8: 68 mm x 343 mm x 184 mm (2.7 in. x 13.5 in. x 7.25 in.), H x W x D
  • NCS4: 68 mm x 191 mm x 184 mm (2.7 in. x 7.5 in. x 7.25 in.), H x W x D
  • Weight NCS8 2.9 kg (6.4 lbs)
  • NCS4 1.7 kg (3.7 lbs)


• GTIN:

  0042406249850
