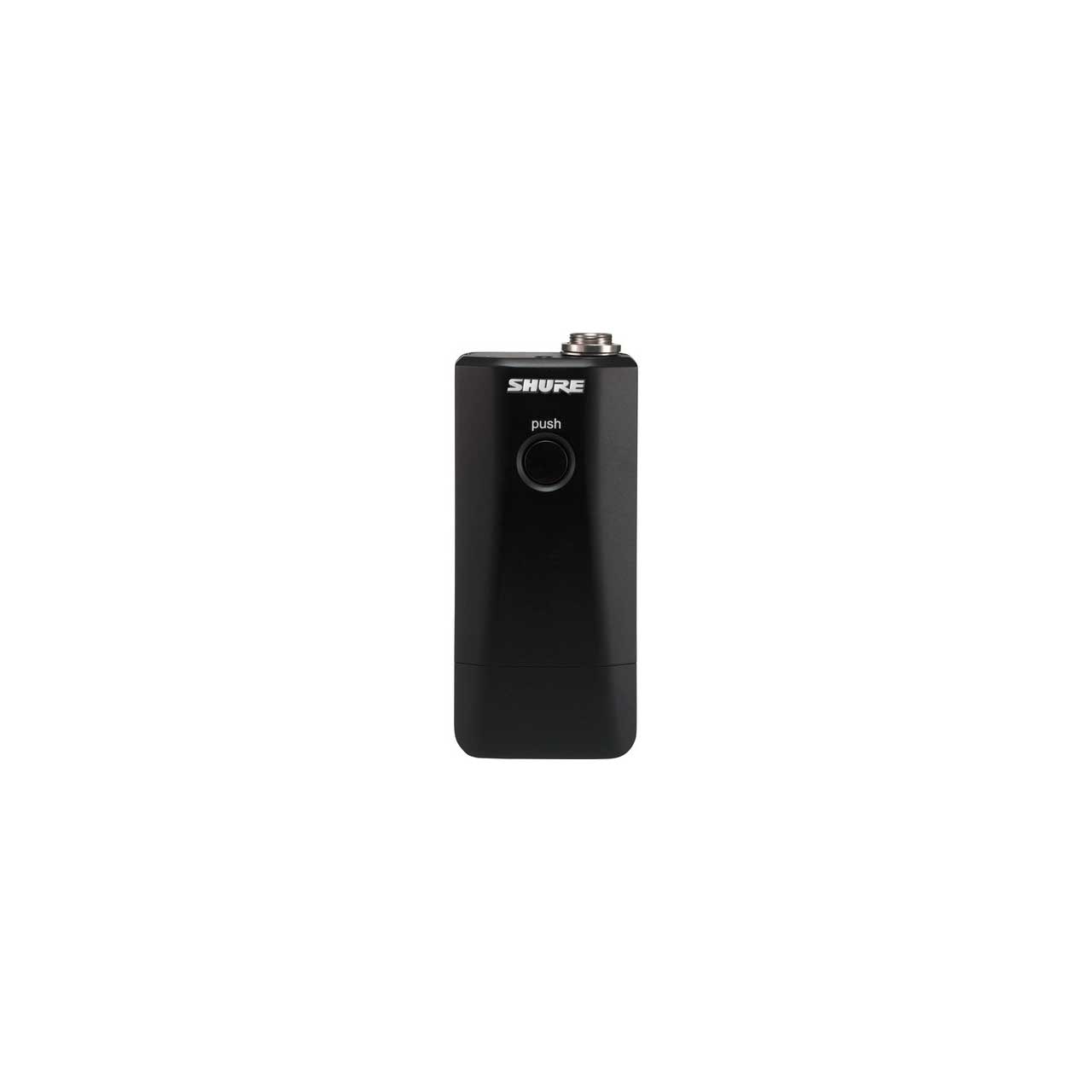

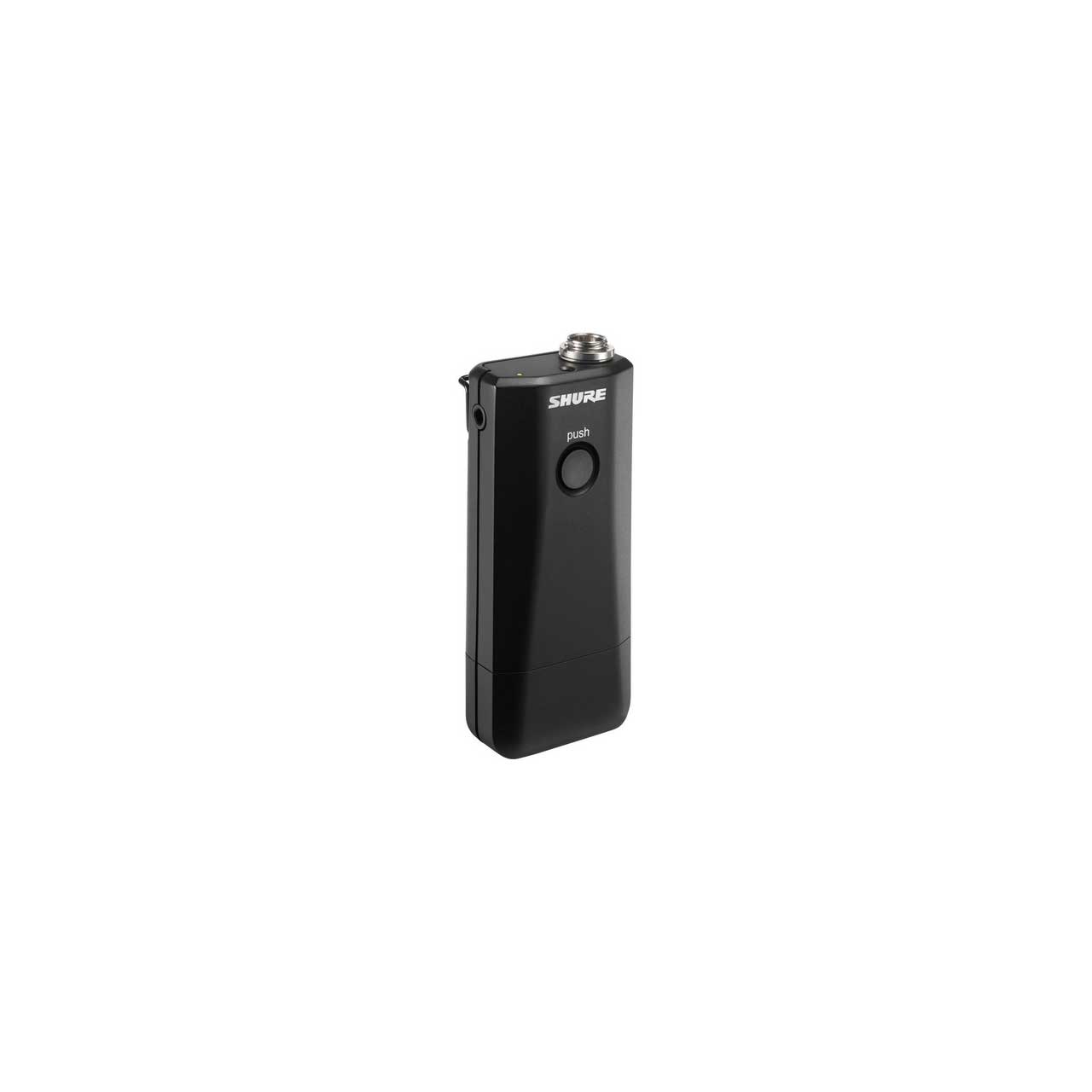

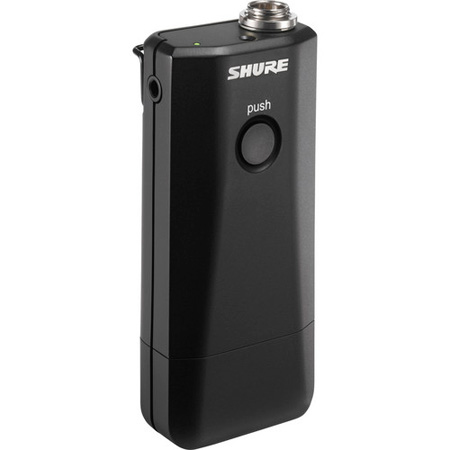

Shure MXW1/O Bodypack Transmitter with Integrated Omnidirectional Mic - Li-ion Battery Included

MXW1/O - Overview

Bodypack Transmitter with Integrated Omnidirectional Microphone

• Features:

  • Compact, low-profile design: Fits comfortably into a shirt pocket or attached to clothing
  • Integrated omnidirectional mic: Captures full-range audio without connecting an external microphone
  • External microphone input: For connecting multiple styles of ear-worn or lavalier condenser microphones
  • Bi-directional wireless: Enables return channel audio and real time remote control of all wireless microphone settings
  • Earphone output: Listen to audio from a return channel for translation, cueing, or program material
  • Programmable mute button: Customize local or remote muting behavior per application, with options including push-to talk, push-to-mute, and external control.
  • Standby mode: Enabled remotely during breaks or periods of inactivity to significantly extend battery life when not in use
  • Wide working range: Wireless coverage extends up to 160 feet (50 meters)
  • Out of range alert: Emits beeping sound when range limit is exceeded
  • Wide frequency response: Captures full-range audio for clear voice transmission
  • Easy transmitter linking: Assign the microphone to an Access Point channel by simply docking it into a Networked Charging Station and pressing "link"
  • Encrypted wireless: AES 256-bit encryption for secure transmission.
  • Li-ion batteries: Smart lithium-ion internal batteries provide up to 9 hours of continuous use, charge to full in 2 hours, and enable remote monitoring over the network of remaining runtime and charge status in hours and minutes
  • USB charging: Connects to any standard USB power source for "always on" usage


• Specifications:

  • Gain Adjustment Range -25 to 15 dB (in 1 dB steps)
  • Maximum Input Level -9 dBV (mic gain @ -16 dB)
  • Headphone Output 1/8" (3.5 mm) dual mono (will drive stereo headphones)
  • Output Power Headphone: 17.5 mW (1 kHz @ 1% distortion, peak power, @ 16 O)
  • Antenna Type Internal, spacial diversity, linear polarization
  • Battery Type Rechargeable Li-Ion
  • Battery Life Up to 9 hours (Calculated with a new battery. Runtimes vary depending on battery health)
  • Charge Connector USB 3.0 Type A
  • Housing Molded plastic
  • Temperature Range Recommended for Storage: 32 to 77°F (0 to 25°C)
  • Connector Microphone: 4-pin male mini connector (TA4M)
  • Input Impedance >20 kO (@ 1kHz)
  • Microphone Internal: Omnidirectional (20 Hz to 20 kHz)
  • Dimensions (HxWxD) 0.9 x 1.8 x 3.9" (22 x 45 x 99 mm)
  • Weight 3.0 oz (85 g) with batteries, without microphone


• Item Includes:

  • Belt Clip
  • Limited 2-Year Warranty


• GTIN:

  0042406268592
