Audio-Technica AT-LP140XP-BK Fully Manual Direct-Drive Professional DJ Turntable - Black (Phono Level Only)

ITEM #: AT-LP140XP-BK MFG #: AT-LP140XP-BK

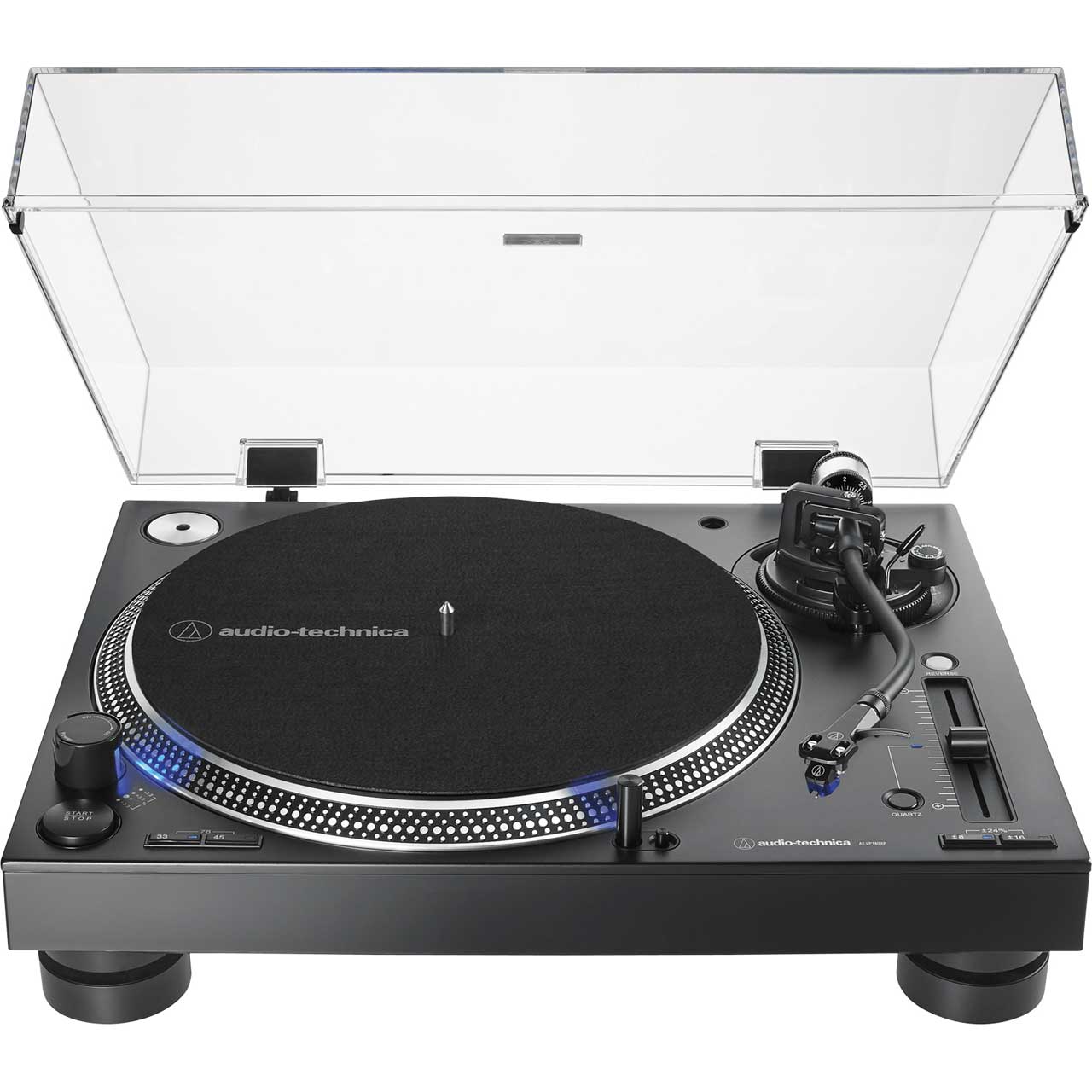

Primary Image

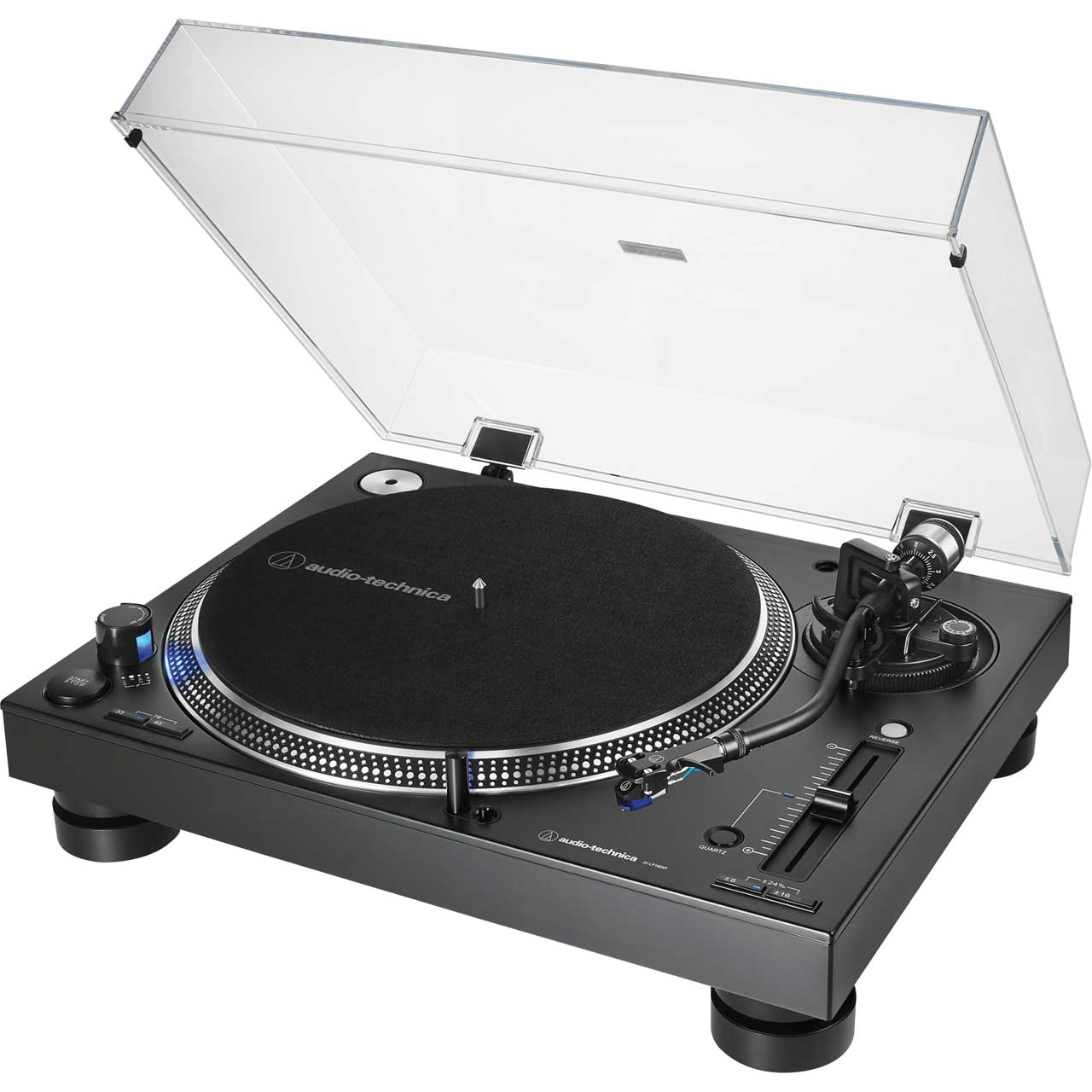

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


AT-LP140XP-BK - Overview

The AT-LP140XP fully manual professional DJ turntable features a high-torque direct-drive motor and anti-resonant, mass-damped, die-cast aluminum platter to ensure stable, on-axis rotation at 33-1/3, 45, and 78 RPM. It is equipped with an S-shaped tonearm with height adjustment, adjustable tracking force (counterweight) and adjustable dynamic anti-skate control.
Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the durable, high-output AT-XP3 DJ cartridge with 0.6 mil conical bonded stylus included with the turntable. It comes pre-mounted to an AT-HS6 universal 1/2"-mount headshell.

Designed to connect to components with a dedicated phono input, the turntable comes with a detachable dual RCA output cable and supplies a strong 5.5 mV output.

Additional professional features include a start/stop button; forward and reverse play; selectable high-accuracy quartz-controlled pitch lock and pitch change slider control with +/-8%, +/-16%, and +/-24% adjustment ranges; a stroboscopic platter with speed indicator; a popup stylus target light; and a removable hinged dust cover.

Available in black (AT-LP140XP-BK) and silver (AT-LP140XP-SV).

  • Features:

    • Experience high-fidelity audio and professional DJ performance
    • Direct-drive, high-torque servo motor with speed stabilization
    • Fully manual operation
    • Adjustable dynamic anti-skate control
    • Selectable 33/45/78 RPM speeds
    • Professional anti-resonance, mass-damped, die-cast aluminum platter with felt mat
    • AT-HS6 universal ½"-mount headshell and AT-XP3 DJ cartridge with 0.6 mil conical bonded stylus
    • Balanced S-shaped tonearm with hydraulically damped lift control, height adjustment, and lockable rest
    • Dedicated phono-level output (5.5 mV)
    • Stroboscopic platter with speed indicator
    • Forward/reverse operation and variable pitch control with quartz speed lock
    • Popup stylus target light for easier cueing in low light
    • Damped base construction for reduced low-frequency feedback coloration
    • Includes: detachable RCA output cable (dual RCA male to dual RCA male), power cable, 45 RPM adapter, counterweight, felt mat, and removable hinged dust cover
    • Available in black (AT-LP140XP-BK) and silver (AT-LP140XP-SV)

  • Specifications:

    • Type: 3-speed, fully manual operation
    • Motor: High-torque DC motor
    • Drive Method: Direct drive
    • Speeds: 33-1/3 RPM, 45 RPM, 78 RPM
    • Turntable Platter: Die-cast aluminum
    • Starting Torque: >2.2 kgf.cm
    • Wow and Flutter: <0.2% (WTD) @ 3 kHz (JIS)
    • Signal-to-Noise Ratio: >50 dB
    • Output Level: 5.5 mV nominal at 1 kHz, 5 cm/sec
    • Power Supply Requirements: 115/230V AC, 60/50 Hz
    • Dimensions: 17.80" W x 13.86" D x 6.24" H
    • Weight: 22 lbs, without dust cover
    • Pitch Variation: +/-8% or +/-16% or +/-24%
    • Tonearm type: Balanced S-shaped tonearm with detachable headshell
    • Effective arm length: 230.5 mm
    • Overhang: 16 mm
    • Tracking error angle: Less than 3 degrees
    • Applicable cartridge weight: 3.5-8.5 g
    • Anti-skating range: 0-4 g
    • Replacement Stylus: ATN-XP3

  • Item Includes:

    • 1x AT-LP140XP-BK Turntable
    • 1x AT-XP3 Phono Cartridge
    • 1x AT-HS6 Headshell
    • 1x Dual RCA (Male) To Dual RCA (Male) Cable With Ground Wire
    • 1x Counterweight
    • 1x Felt Mat
    • 1x Dust Cover
    • 1x 45 RPM Adapter

  • GTIN:

    4961310148867
