AT-LPW40WN - Overview

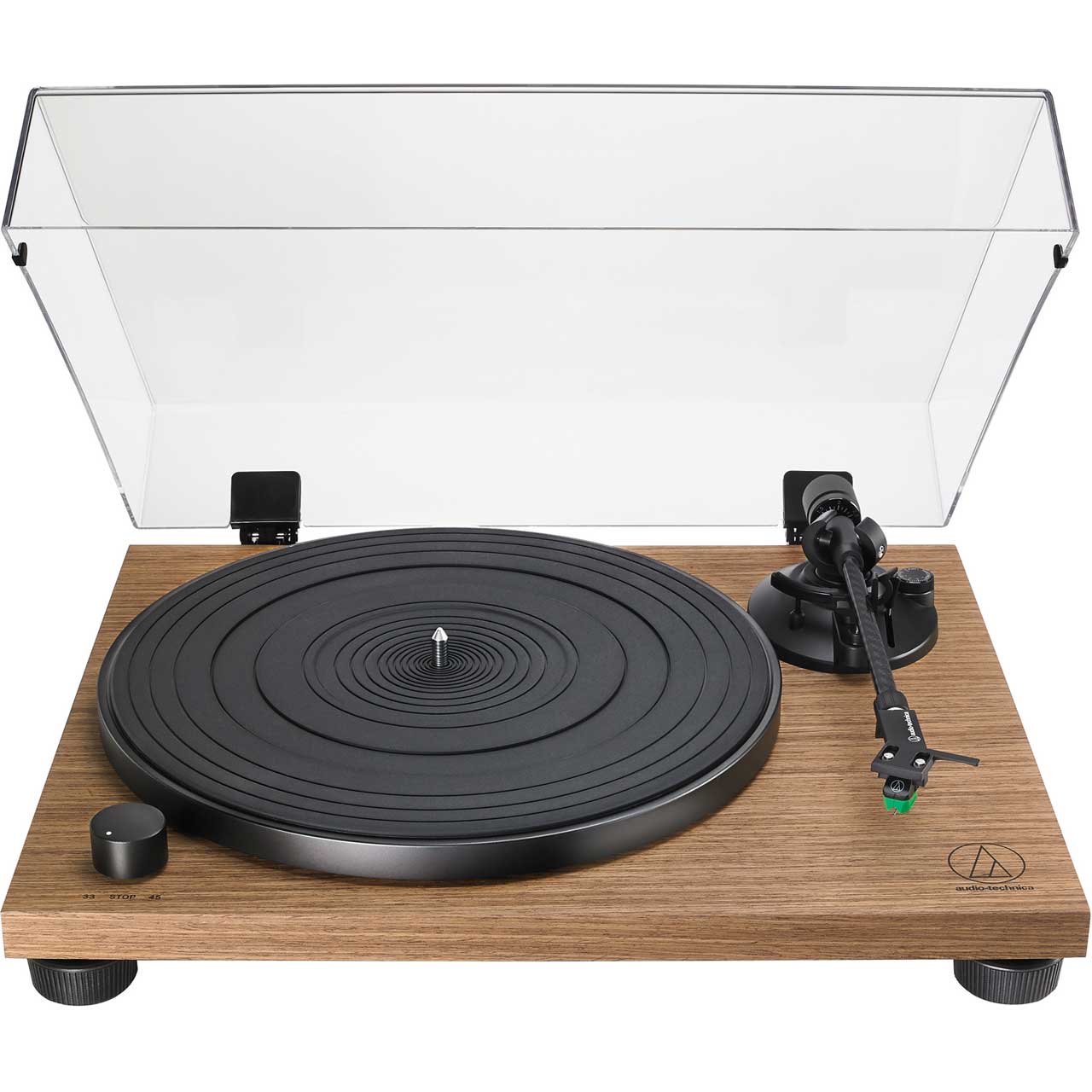

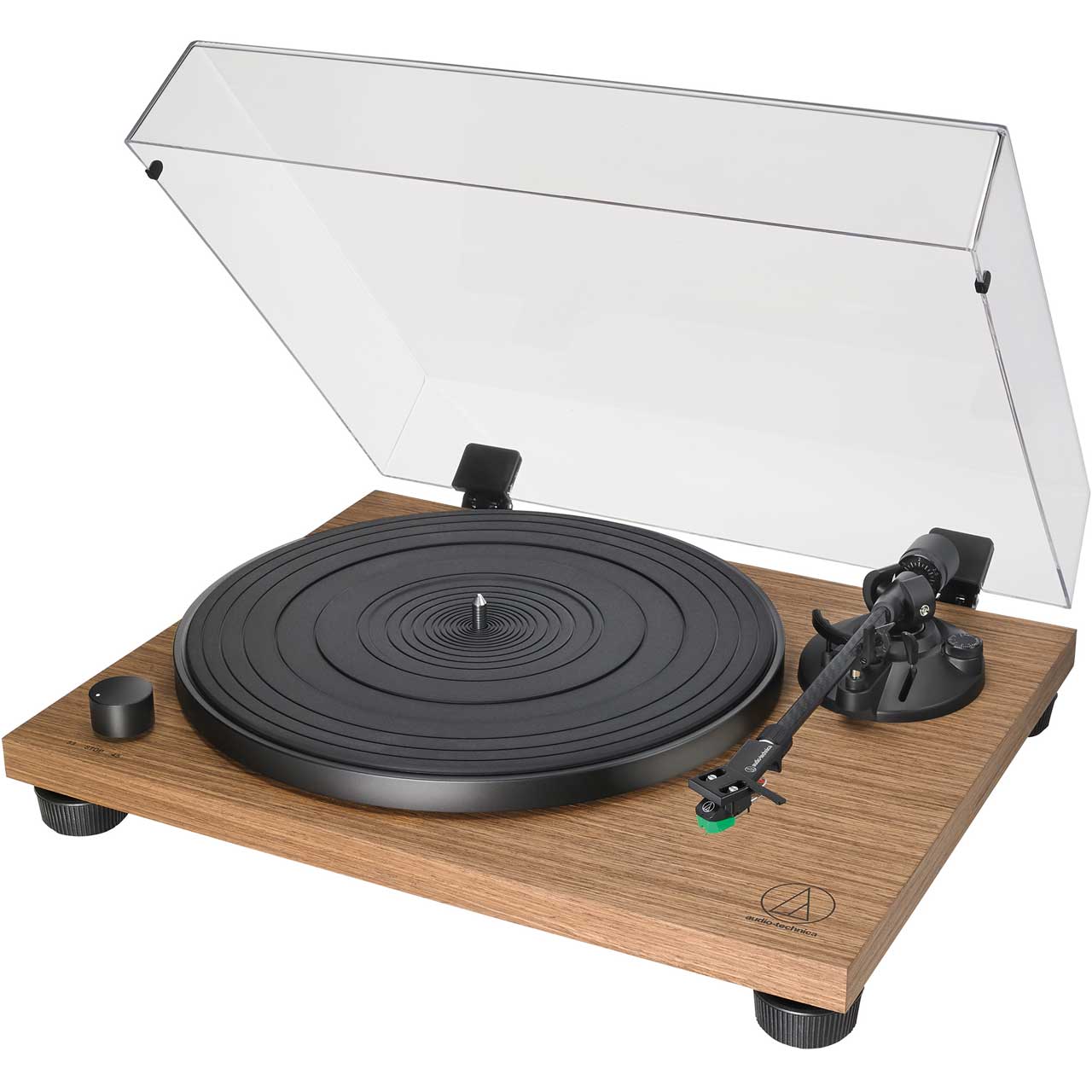

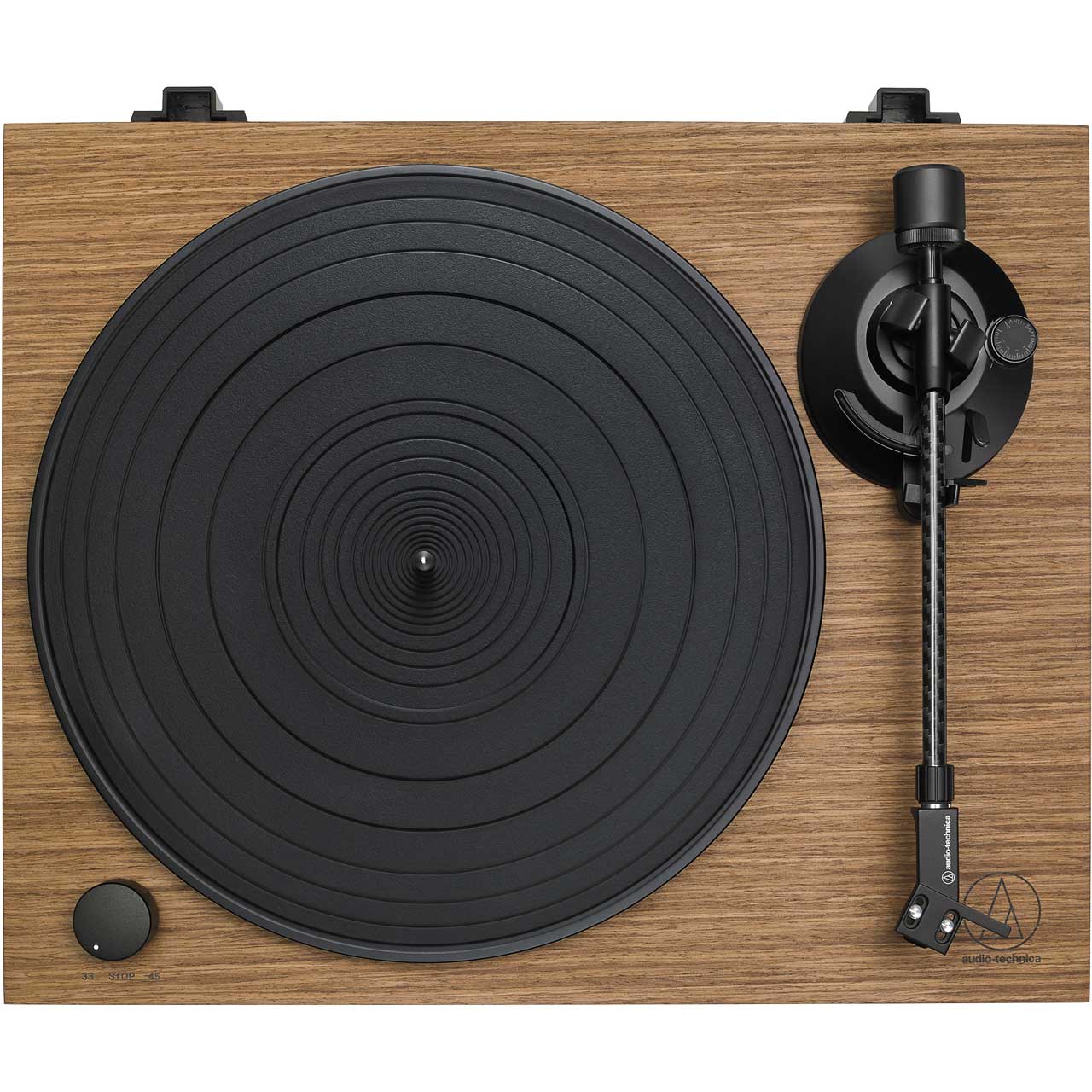

The AT-LPW40WN is a fully manual, belt-drive turntable designed to give you optimal high-fidelity audio reproduction from vinyl. It features an aesthetically pleasing anti-resonance MDF (medium density fiberboard) plinth with simulated walnut wood veneer to limit low-frequency acoustical feedback and a sensor-monitored motor to ensure accurate platter rotation speeds at 33-1/3 and 45 RPM.

The turntable includes a straight carbon-fiber tonearm with adjustable tracking force and an AT-HS4 universal ½"-mount headshell with an AT-VM95E Dual Moving Magnet phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E cartridge, which comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

The AT-LPW40WN is equipped with a built-in selectable phono preamp and a detachable dual RCA output cable to enable direct connection to components with or without a dedicated phono input.

  • Features:

    • Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
    • Motor features a speed-sensor system to maintain accurate platter rotation speed
    • Fully manual operation
    • Adjustable dynamic anti-skate control
    • Professional anti-resonance, die-cast aluminum platter with rubber mat
    • AT-HS4 universal ½"-mount headshell and AT-VM95E Dual Moving Magnet phono cartridge with 0.3 x 0.7 mil elliptical stylus
    • AT-VM95E cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
    • Straight carbon-fiber tonearm with hydraulically damped lift control and lockable rest
    • Anti-resonance MDF (medium density fiberboard) plinth with walnut simulated wood veneer
    • Built-in switchable phono pre-amplifier for phono or line-level output
    • AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
    • Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, rubber mat, and removable hinged dust cover

  • Specifications:

    • Turntable
    • Type: Belt-drive manual turntable
    • Motor: DC servo with Active Speed Stabilization
    • Drive Method: Belt drive
    • Speeds: 33-1/3 RPM, 45 RPM
    • Turntable Platter: Die-cast aluminum
    • Wow and Flutter: < 0.15% WRMS (33 RPM) at 3 kHz
    • Signal-to-Noise Ratio: >60dB
    • Output Level: Pre-amp "PHONO": 4.0 mV nominal at 1 kHz, 5 cm/sec
    • Pre-amp "LINE": 200 mV nominal at 1 kHz, 5 cm/sec
    • Phono Pre-Amp Gain: 35 dB nominal, RIAA equalized
    • Power Supply Requirements: 100-240 V, 50/60 Hz, 0.5 A Max.
    • Dimensions: 420.0 mm (16.53") W x 340.0 mm (13.38") D x 116.9 mm (4.6") H
    • Weight: 4.72 kg (10.40 lbs.) without dust cover
    • Tonearm type: Static balanced straight carbon tonearm
    • Effective arm length: 223.6 mm
    • Overhang: 18.6 mm
    • Tracking error angle: <2 degrees
    • Applicable cartridge weight: 12-17 g
    • Stylus pressure adjustment range: 0-3 g
    • AC Adapter: 12 V, 0.5 A

  • Item Includes:

    • 1x AT-LPW40WN
    • 1x Dust Cover
    • 1x Platter
    • 1x Turntable Mat
    • 1x Drive Belt
    • 1x Counterweight
    • 1x AT-HS4 Headshell
    • 1x AT-VM95E Stereo Cartridge
    • 1x 45-RPM Adapter
    • 1x RCA Audio Cable (approx. 1.0 m (3.3')
    • 1x AC Adapter (approx. 1.5 m (4.9') (AD-SA1205WE)
    • 1x Dust Cover Hinges

  • GTIN:

    4961310146160
