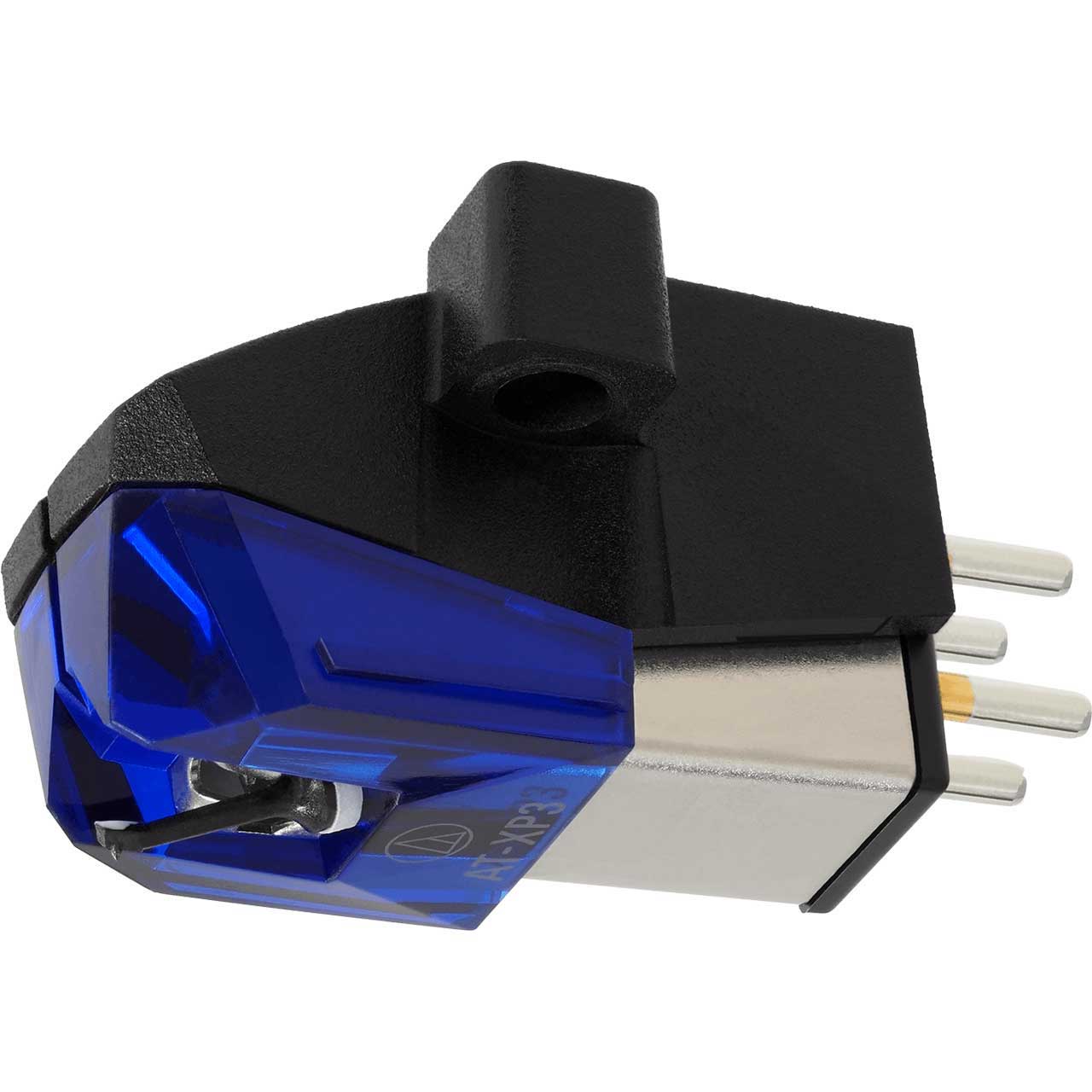

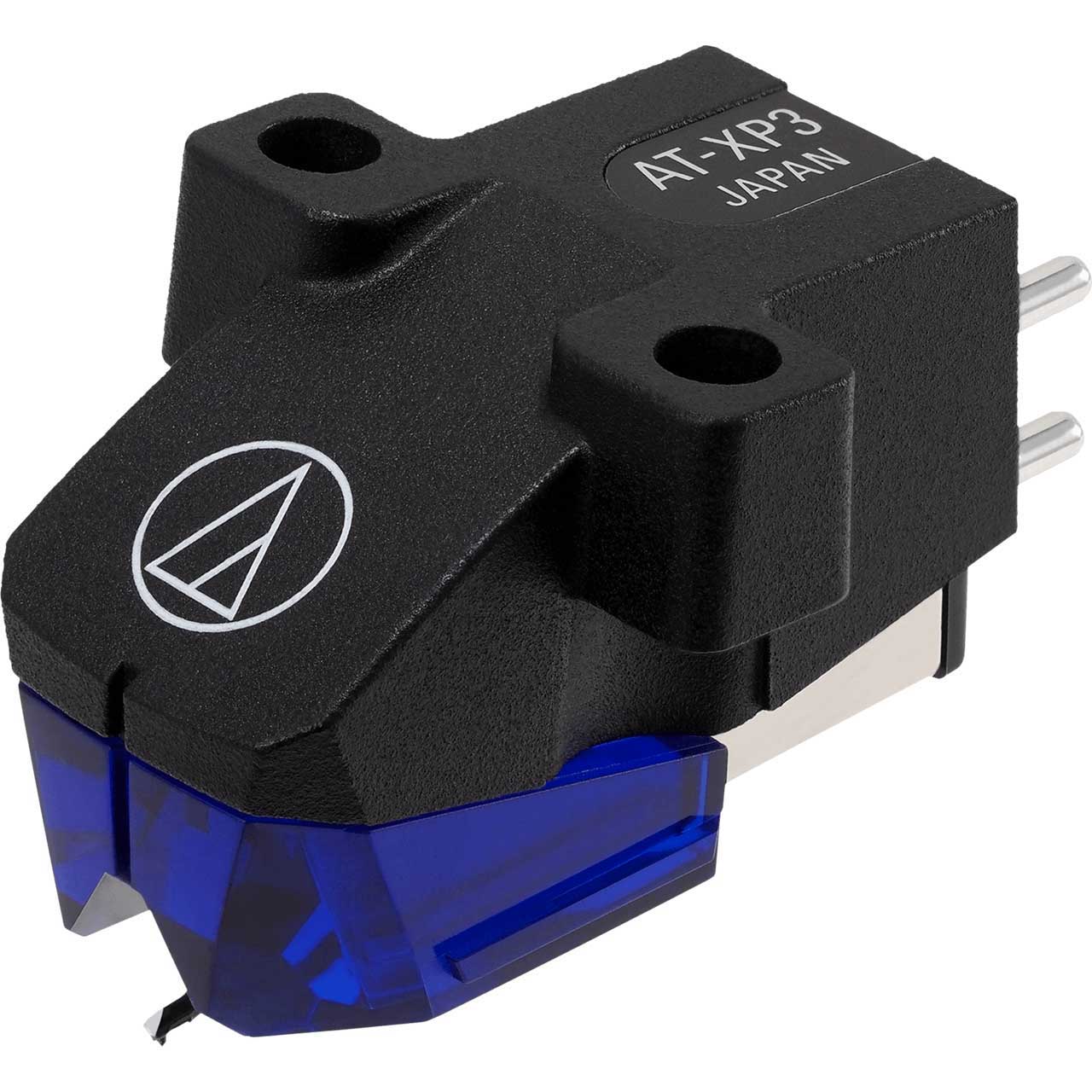

Audio-Technica AT-XP3 DJ Phonograph Cartridge

XP3 - Overview

• Features:

  • 0.6 mil conical bonded stylus tip
  • Highly-rigid polyphenylene sulfide (PPS)/glass fiber body
  • 5.5 mV high-level output
  • Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
  • Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
  • Design offers maximum visibility of the stylus tip
  • Great tracking and channel separation for high-fidelity sound
  • AT-XP3 cartridge is compatible with any XP or VM95 Series replacement stylus, offering a wide choice of options for every budget and application


• Specifications:

  • Frequency Response: 20-18,000 Hz
  • Channel Separation: 20 (dB at 1 kHz)
  • Vertical Tracking Angle: 20°
  • Vertical Tracking Force: 2.0-4.0 g (3.0 g standard)
  • Stylus Construction: Bonded round shank
  • Recommended Load Impedance: 47,000 ohms
  • Coil Impedance: 6.7 k ohms (1 kHz)
  • Coil Inductance: 550 mH (1 kHz)
  • Output Voltage: 5.5 mV (1 kHz, 5 cm/sec.)
  • Output Channel Balance: 2.0 dB (1 kHz)
  • Stylus Shape: 0.6 mil conical
  • Cantilever: Carbon fiber-reinforced ABS
  • Static Compliance: 20 x 10 - 6 cm / dyne
  • Dynamic Compliance: 6.0 x 10 - 6 cm / dyne (100 Hz)
  • Mounting: Half-inch
  • Cartridge Weight: 6.2g
  • Dimensions: 17.2 mm (0.68") H x 17.8 mm (0.67") W x 28.3 mm (1.20") D
  • Model: AT-XP3
  • Mounting Feature: Half-inch mount
  • Recommended Load Capacitance: 100 to 200 pF
  • Replacement Stylus: ATN-XP3
  • Stylus Size: 0.6 mil
  • Weight: 6.2 g (0.22 oz)


• Item Includes:

  • 2x 11 mm installation screws
  • 2x 8 mm installation screws
  • 2x Washers
  • 2x Nuts
  • 1x Non-magnetic screwdriver


• GTIN:

  4961310145613
