Audio-Technica AT-XP5 DJ Phonograph Cartridge

ITEM #: AT-XP5 MFG #: XP5

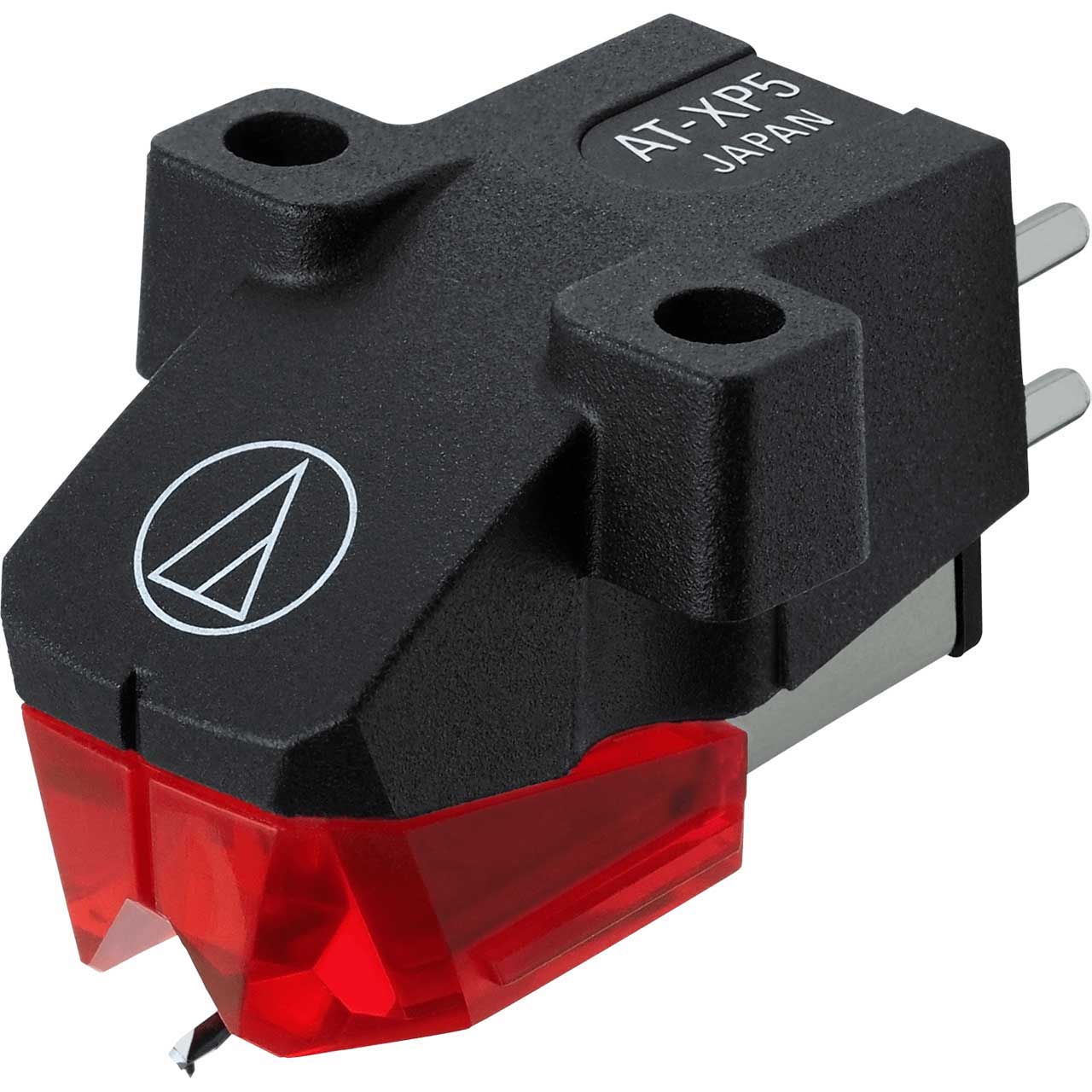

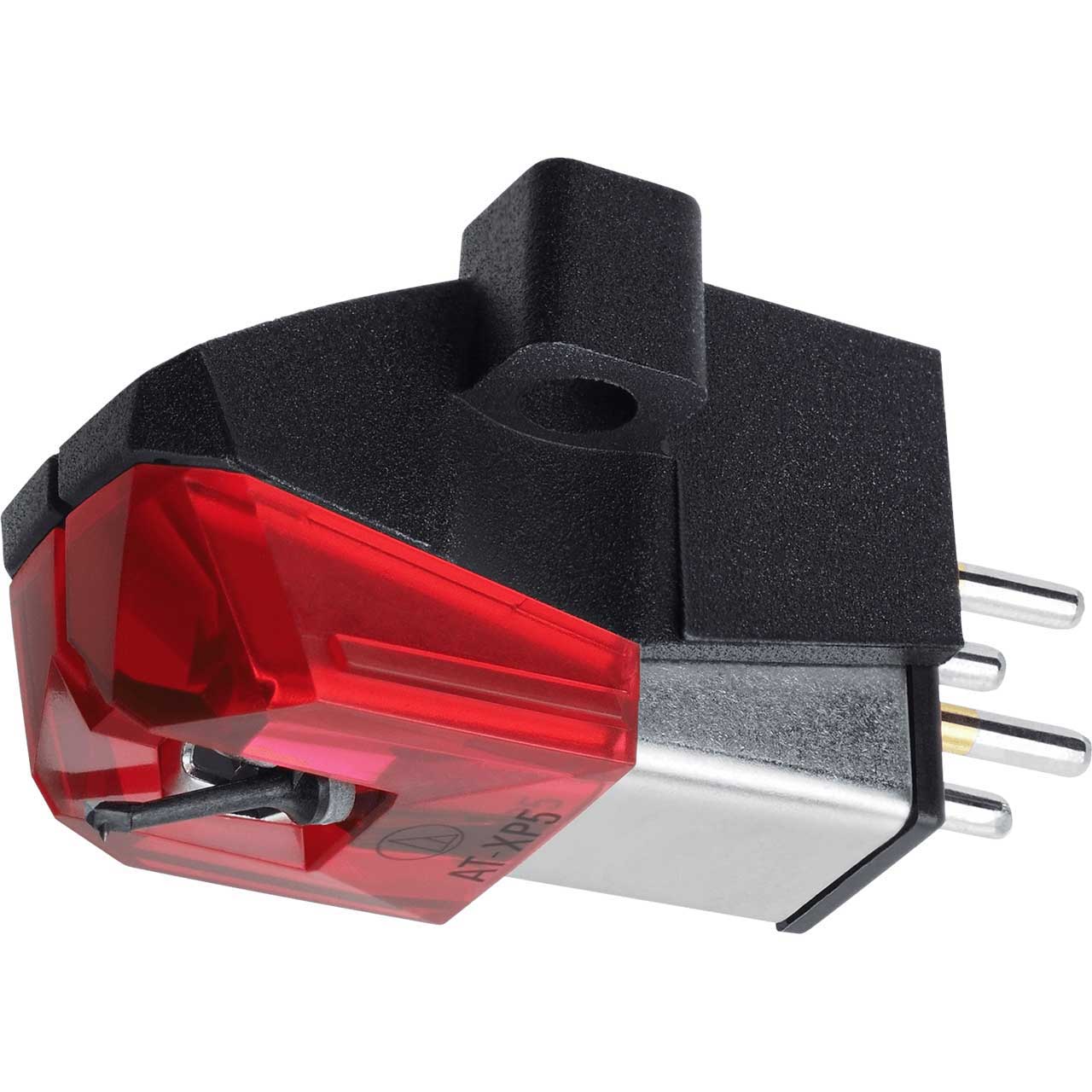

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$79.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


XP5 - Overview

The Audio-Technica AT-XP5 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 5.5 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.

  • Features:

    • Highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams
    • Powerful output level of 5.5 mV
    • 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction

  • Specifications:

    • Frequency Response: 20 - 18,000 Hz
    • Channel Separation: 20 dB at 1kHz
    • Vertical Tracking Angle: 20°
    • Vertical Tracking Force: 2.0 to 4.0 g (standard 3g)
    • Recommended Load Impedance: 47,000 ohms
    • Coil Inductance: 1.0 H (1 kHz)
    • Output Voltage: 5.5 mV (mV at 1 kHz, 5 cm/sec)
    • Output Channel Balance: 2.0 dB
    • Stylus Shape: Elliptical
    • Cantilever: Carbon Fibre Reinforced ABS
    • Static Compliance: 20 x 10-6 cm/dyne
    • Dynamic Compliance: 6.0x10-6cm/dyne (100Hz)
    • Mounting: Half-inch
    • Dimensions: H17.2 x W17.8 x D28.3mm
    • Recommended Load Capacitance: 100-200 pF
    • Replacement Stylus: ATN-XP5
    • Stylus Size: 0.3 x 0.7 mil
    • Type: VM Dual Magnet
    • Weight: 6.2g

  • Item Includes:

    • 2x Cartridge installation slotted screws 11.0 mm (0.43")
    • 2x Cartridge installation slotted screws 8.0 mm (0.31")
    • 2x Washer
    • 2x Round nut
    • 1x Non-magnetic screwdriver

  • GTIN:

    4961310142551
