Audio-Technica AT4022 Omnidirectional Condenser Microphone

ITEM #: AT4022 MFG #: AT4022

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$349.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


AT4022 - Overview

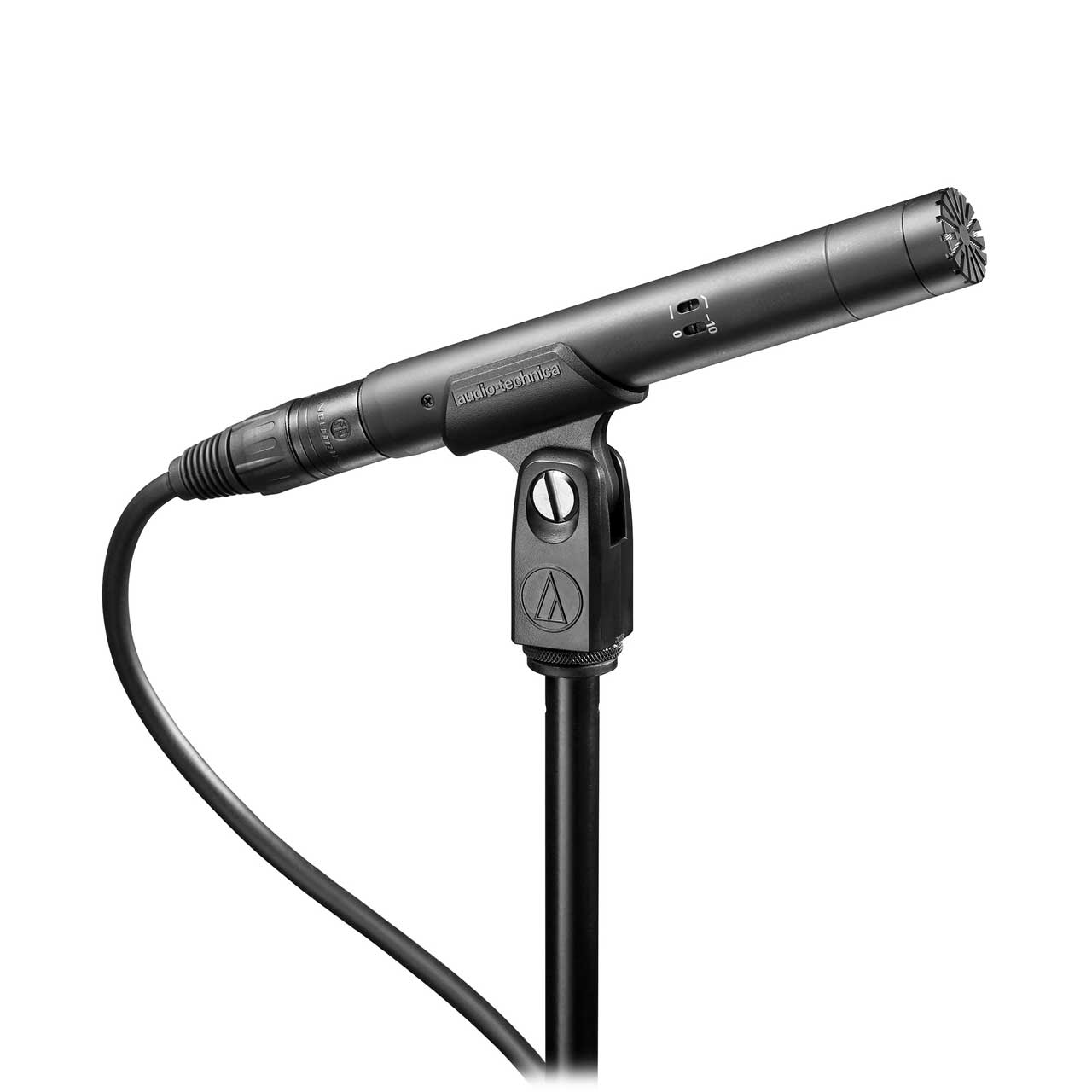

The Audio-Technica AT4022 is a low-profile omnidirectional condenser recording mic that is outstanding for piano, acoustic guitar, and other acoustic instruments. With a flat, extended frequency response and wide dynamic range ideal for critical studio and live applications, the AT4022 handles high SPLs with ease. The microphone's omnidirectional polar pattern preserves the "sound" of the recording location, delivers flat response and freedom from proximity effect. Its low-mass diaphragm improves transient response and reduces handling/mechanical noise transfer.

The AT4022 is intended for use in professional applications where remote power is available. It requires 48V DC phantom power, which may be provided by a mixer or console, or by a separate, in-line source such as the Audio-Technica AT8801 single-channel or CP8506 four-channel phantom power supplies.

  • Features:

    • Outstanding performance and rugged construction, ideal for critical studio & live applications
    • High SPL handling and wide dynamic range
    • Flat, extended frequency response
    • Switchable 80Hz hi-pass filter and 10dB pad
    • Omnidirectional polar pattern provides maximum ambient pickup
    • Low self noise perfectly suited for digital recording equipment
    • Exceptional reproduction of low frequency sounds
    • Low-mass element for superb transient response

  • Specifications:

    • Element: Fixed-charge back plate, permanently polarized condenser
    • Polar Pattern: Omnidirectional
    • Frequency Response: 20 - 20,000Hz
    • Low Frequency Roll-Off: 80Hz, 18dB/octave
    • Open Circuit Sensitivity: -34dB (19.9mV) re 1V @ 1Pa
    • Impedance: 250Ω
    • Maximum Input Sound Level: 146dB SPL, 1kHz @ 1% T.H.D.; 156dB SPL, with 10dB pad (nominal)
    • Noise: 13dB SPL
    • Dynamic Range (typical): 133dB, 1kHz @ Max SPL
    • Signal-To-Noise Ratio: 81dB, 1kHz @ 1Pa
    • Phantom Power Requirements: 48V DC, 3.0mA typical
    • Switches: Flat, roll-off; 10dB pad
    • Weight: 4.4oz
    • Dimensions: 5.67" long, 0.83" maximum body diameter
    • Output Connector: Integral 3-pin XLRM-type
    • Audio-Technica Case Style: S1

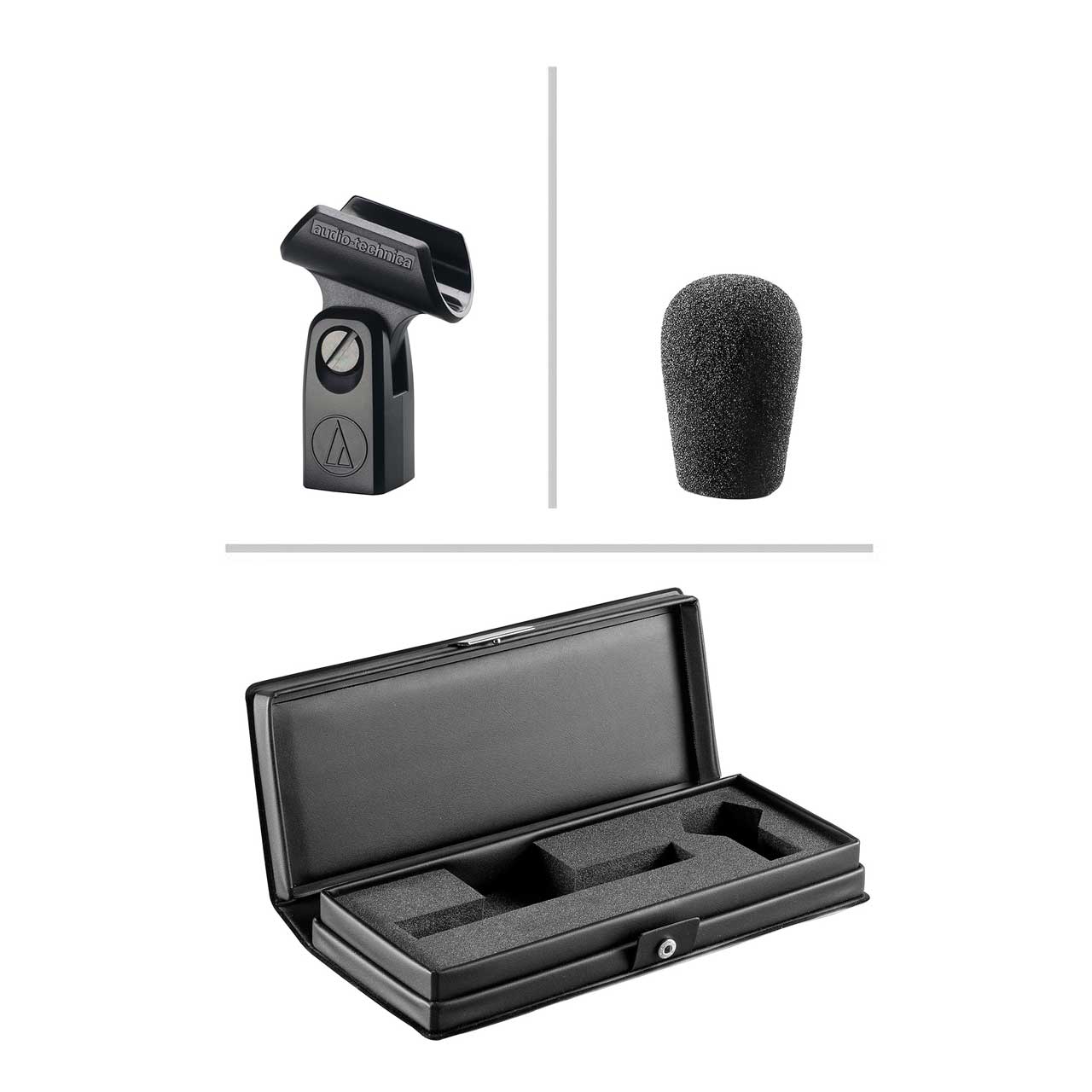

  • Item Includes:

    • AT8405a stand clamp for 5/8"-27 threaded stands
    • Windscreen
    • Protective carrying case

  • Warranty:

    • 5 Year Limited End-User

  • GTIN:

    0658700917045
