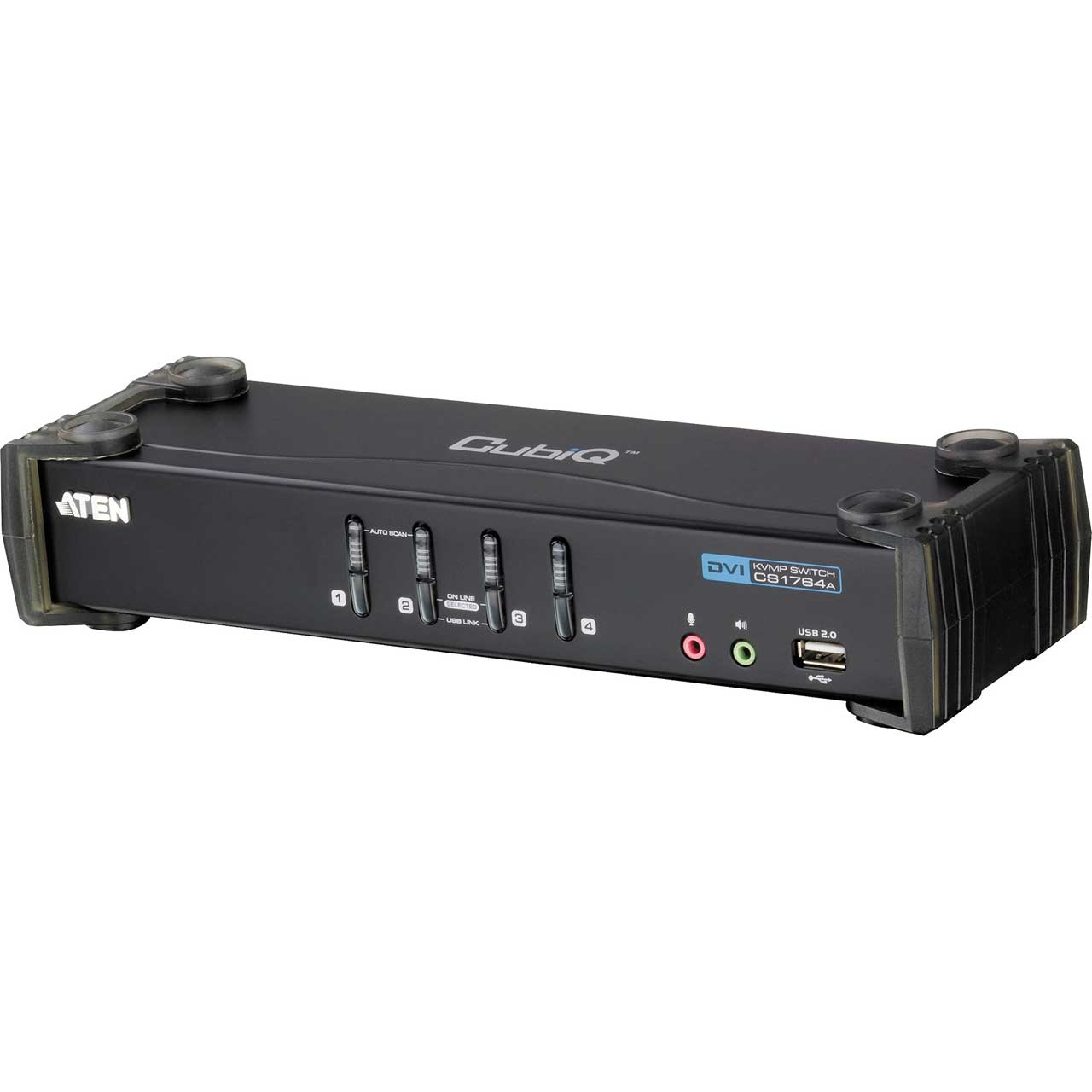

ATEN CS1764A 4-Port USB2.0 DVI KVMP Switch - Cables Included

ITEM #: ATEN-CS1764A MFG #: CS1764A

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$309.00

Our Price:

$293.55

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


CS1764A - Overview

The CubiQ CS1764A USB 2.0 DVI KVMP Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 4 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).

In addition, the CS1764A comes with ATEN's new Video DynaSync technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer.

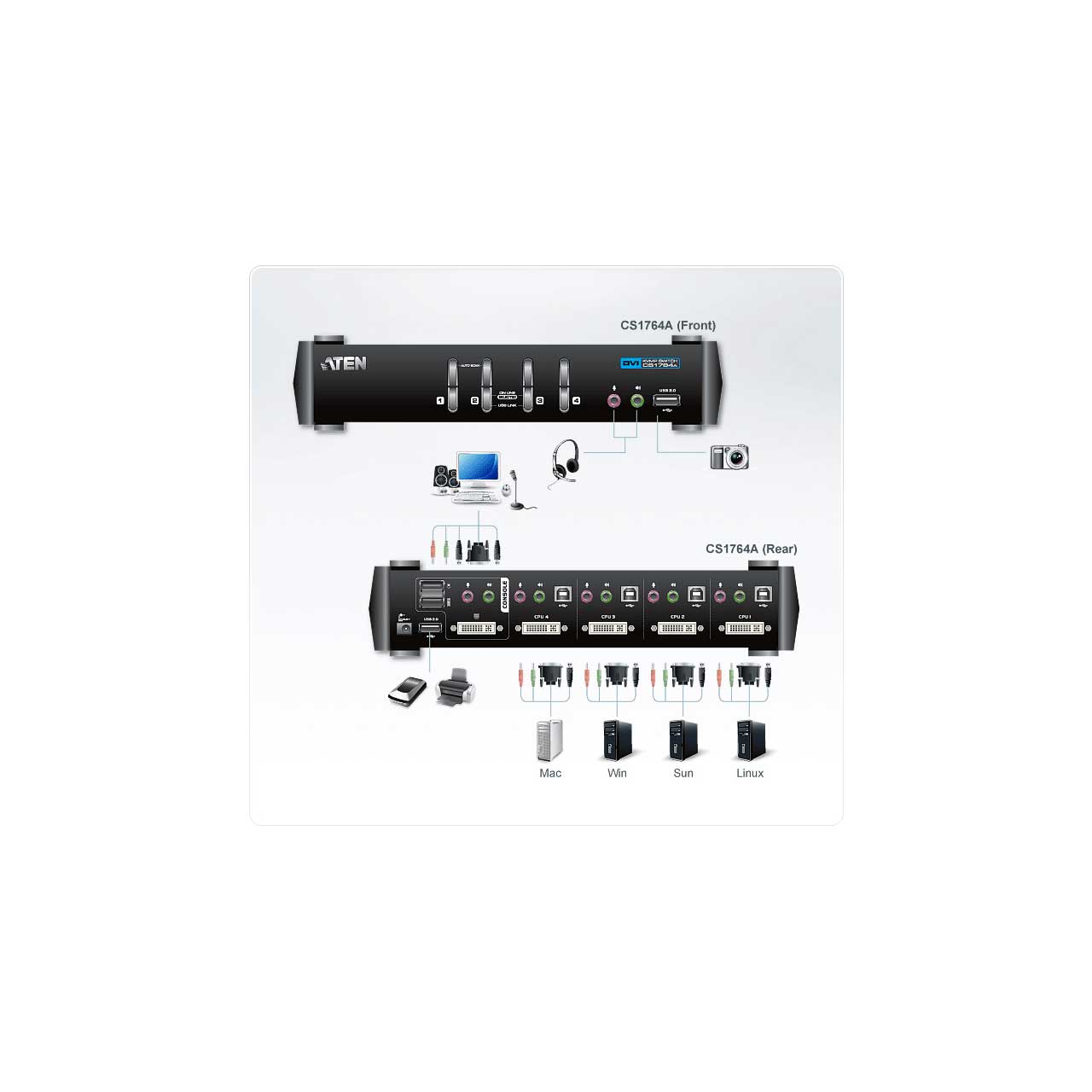

As a KVM switch, it allows users to access four computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a "one computer at a time" basis.

  • Features:

    • One USB console controls four DVI computers and two additional USB 2.0 devices
    • 2-port USB 2.0 hub built in
    • Fully compliant with the USB 2.0 specification
    • Computer selection via front panel pushbuttons and hotkeys
    • Audio enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
    • Multiplatform support - Windows, Linux, Mac and Sun
    • Superior video quality - 1920 x 1200, 60Hz; DDC2B
    • Independent switching of KVM, USB, and Audio focus
    • DVI digital and analog monitor support - fully compliant with the DVI specifications
    • HDCP compliant
    • Video DynaSync - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
    • Power on detection - if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer
    • Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
    • Sun /Mac keyboard support and emulation1
    • Auto Scan Mode for monitoring all computers
    • Firmware upgradable via USB
    • 1. PC keyboard combinations emulate Sun/Mac keyboards
    • 2. Sun/Mac keyboards only work with their own computers

  • Specifications:

    • Computer Connections: 4
    • Port Selection: Hotkey, Pushbutton, Mouse

      Connectors
    • Console Ports:
    • 2 x USB Type A Female (White; front panel)
    • 1 x DVI-I Female (White)
    • 2 x Mini Stereo Jack Female (Green; 1 x front panel; 1 x rear panel)
    • 2 x Mini Stereo Jack Female (Pink; 1 x front panel; 1 x rear panel)

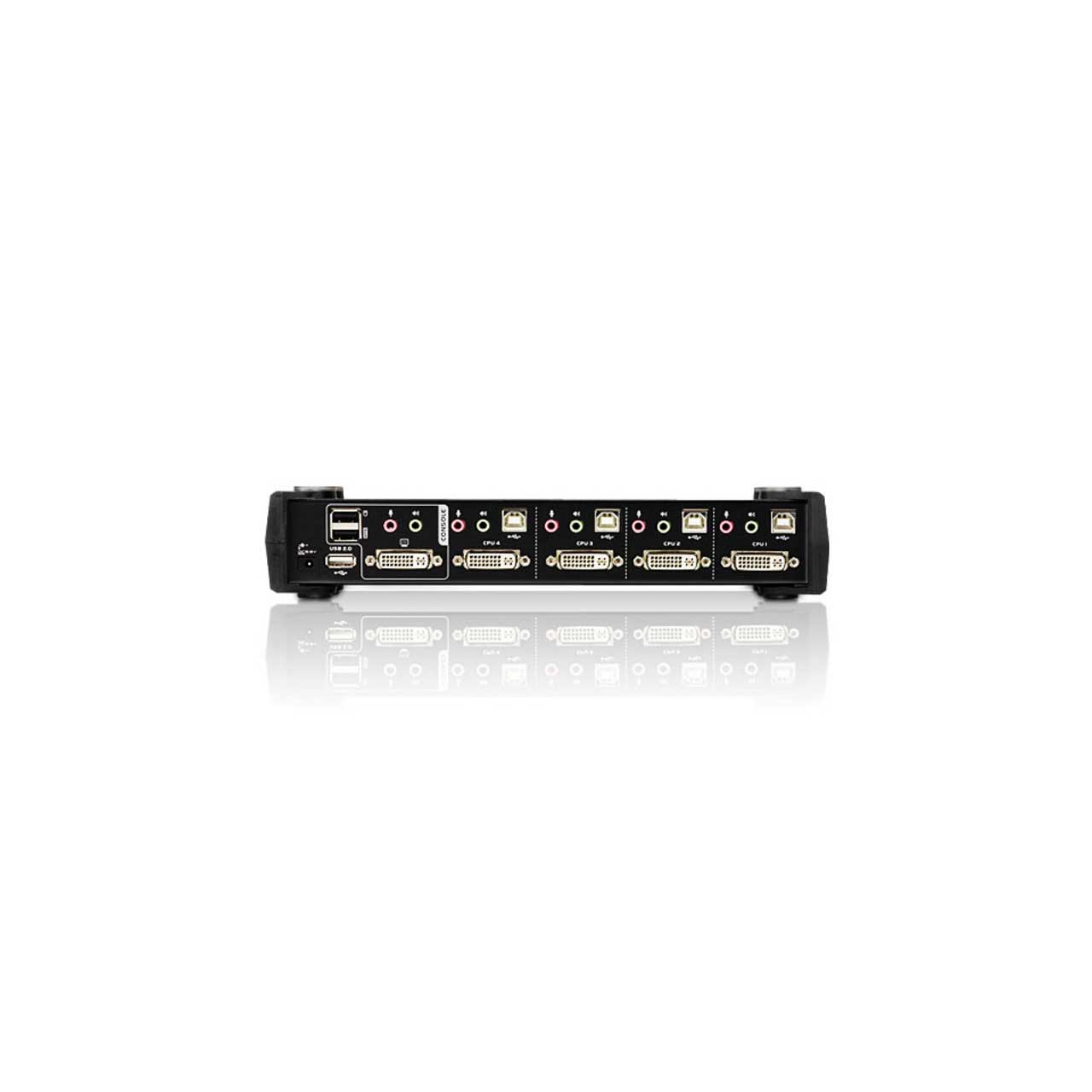

    • KVM Ports:
    • 4 x USB Type B Female (White)
    • 4 x DVI-I Female (White)
    • 4 x Mini Stereo Jack Female (Green)
    • 4 x Mini Stereo Jack Female (Pink)
    • Power: 1 x DC Jack
    • USB Hub

      Switches Selected: 4 x Pushbutton
    • USB Link LED: 4 (Green)
    • On Line /Selected LED: 4 (Orange)
    • Keyboard / Mouse Emulation: USB
    • Video: 1920 x 1200@ 60Hz; DDC2B
    • Scan Interval: 1-99 Seconds (Default: 5 sec.)
    • Power Consumption: DC5.3V, 10.7W

      Environmental
    • Operating Temperature: 0 - 50°C
    • Storage Temperature: -20 - 60°C
    • Humidity: 0-80% RH, Non-condensing

      Physical Properties
    • Housing: Metal
    • Weight: 0.94 kg
    • Dimensions (L x W x H): 27.00 x 8.80 x 5.55 cm

  • GTIN:

    0672792001987
