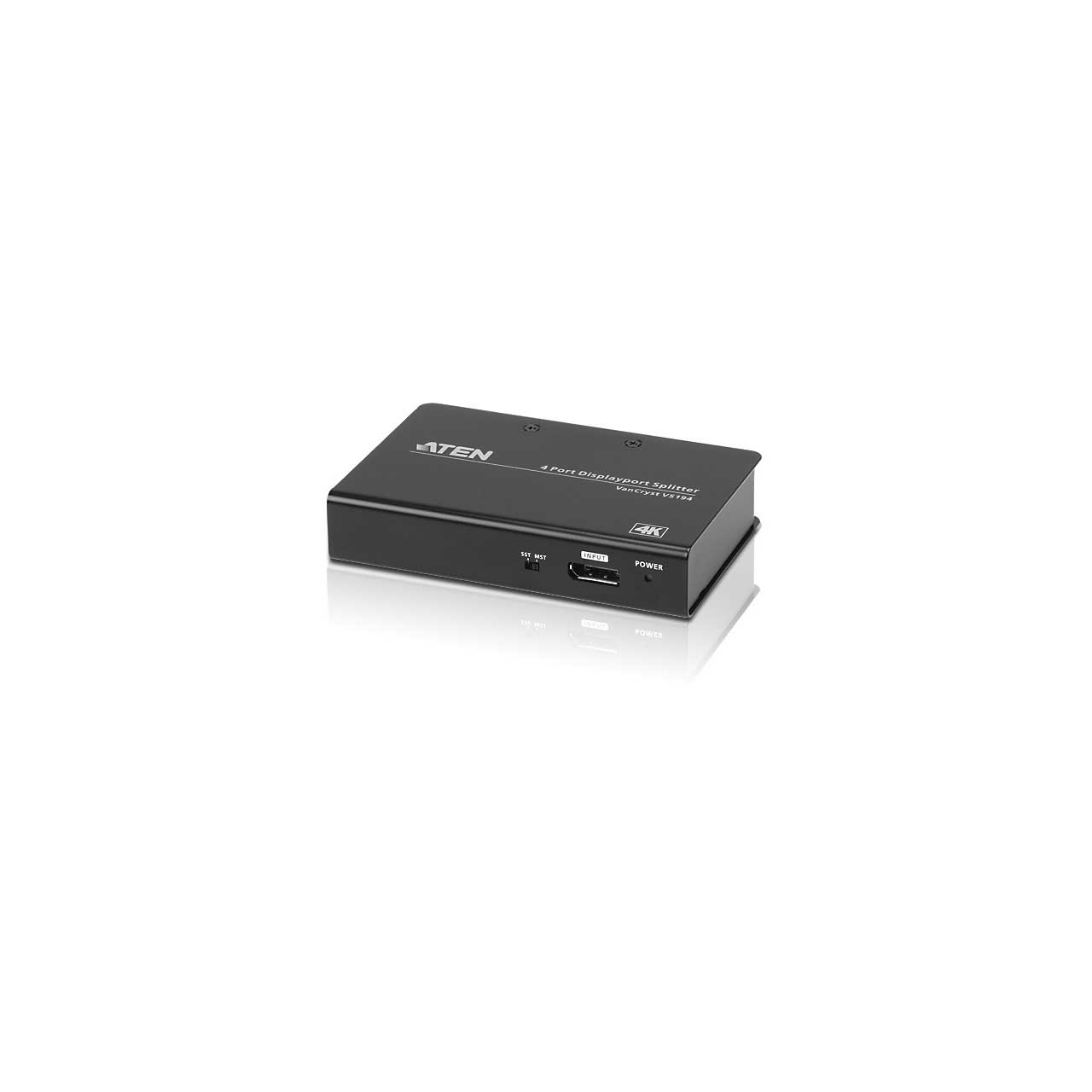

ATEN VS192 2-Port DisplayPort Splitter with MST/Extend Mode and SST/Split Mode

ITEM #: ATEN-VS192 MFG #: VS192

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
ATEN
Free Shipping with $49 Minimum Order

List Price:

$174.00

Our Price:

$165.30

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

VS192 - Overview

The VS192 2-Port 4K DisplayPort Splitter is the perfect solution for anyone who needs to send one source of DisplayPort high definition video to two or four DisplayPort displays. The VS192 can not only split but also expand DisplayPort audio/video signal on two or four DisplayPort monitors which is ideal for any multi-display application. The VS192 is compatible with DisplayPort 1.2a and can support up to 4K resolution at 60 Hz, making it effective and ideal for use with all DisplayPort displays in home theater applications, as well as in corporate, educational and commercial settings.

  • Features:

    • Connects one DisplayPort source to two or four DisplayPort monitors
    • Supports DisplayPort 1.2a; HDCP 1.3
    • Supports resolutions up to 4096 x 2160 / 3840 x 2160 @ 60 Hz

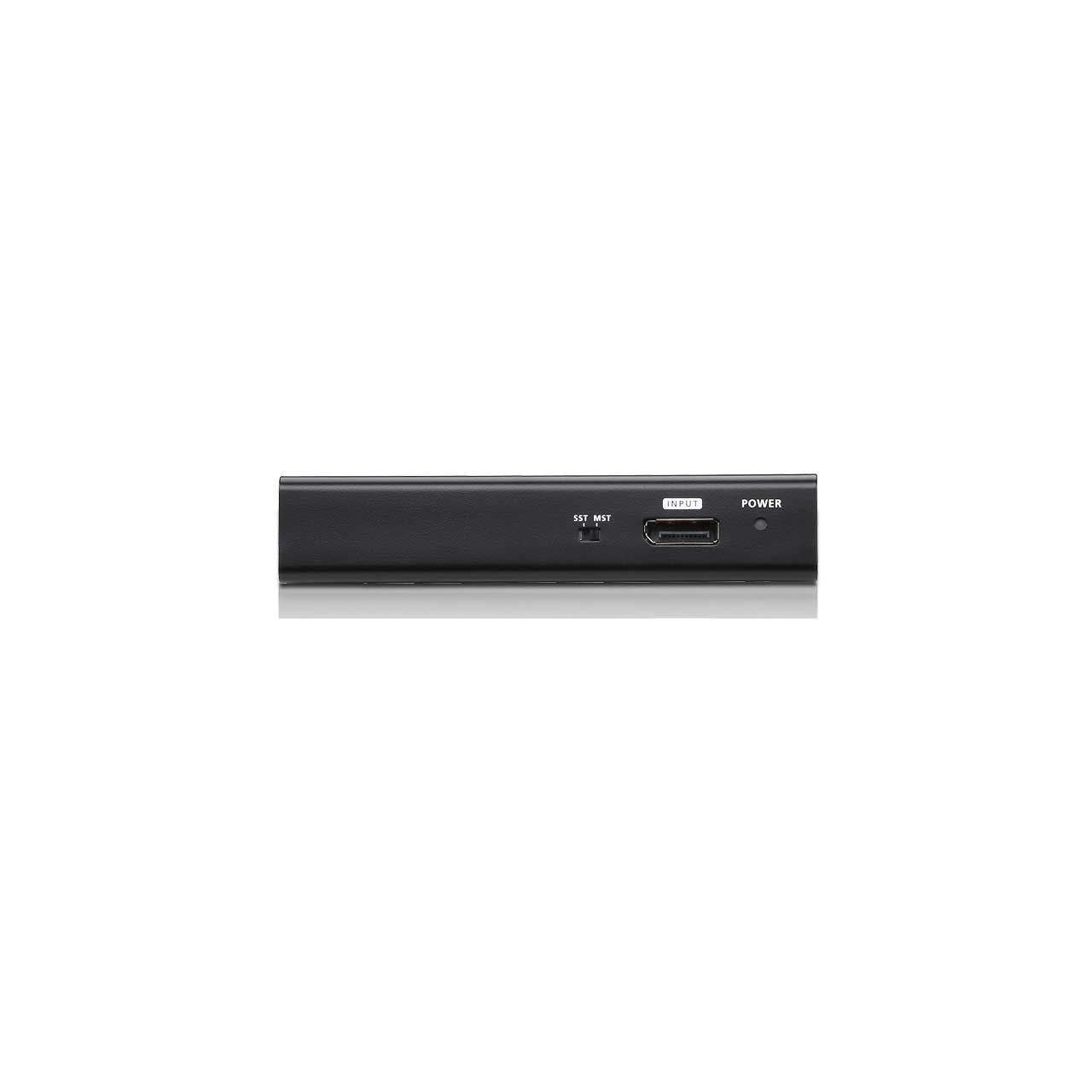

    • Supports MST/ Extend Mode and SST/ Split Mode


  • Specifications:

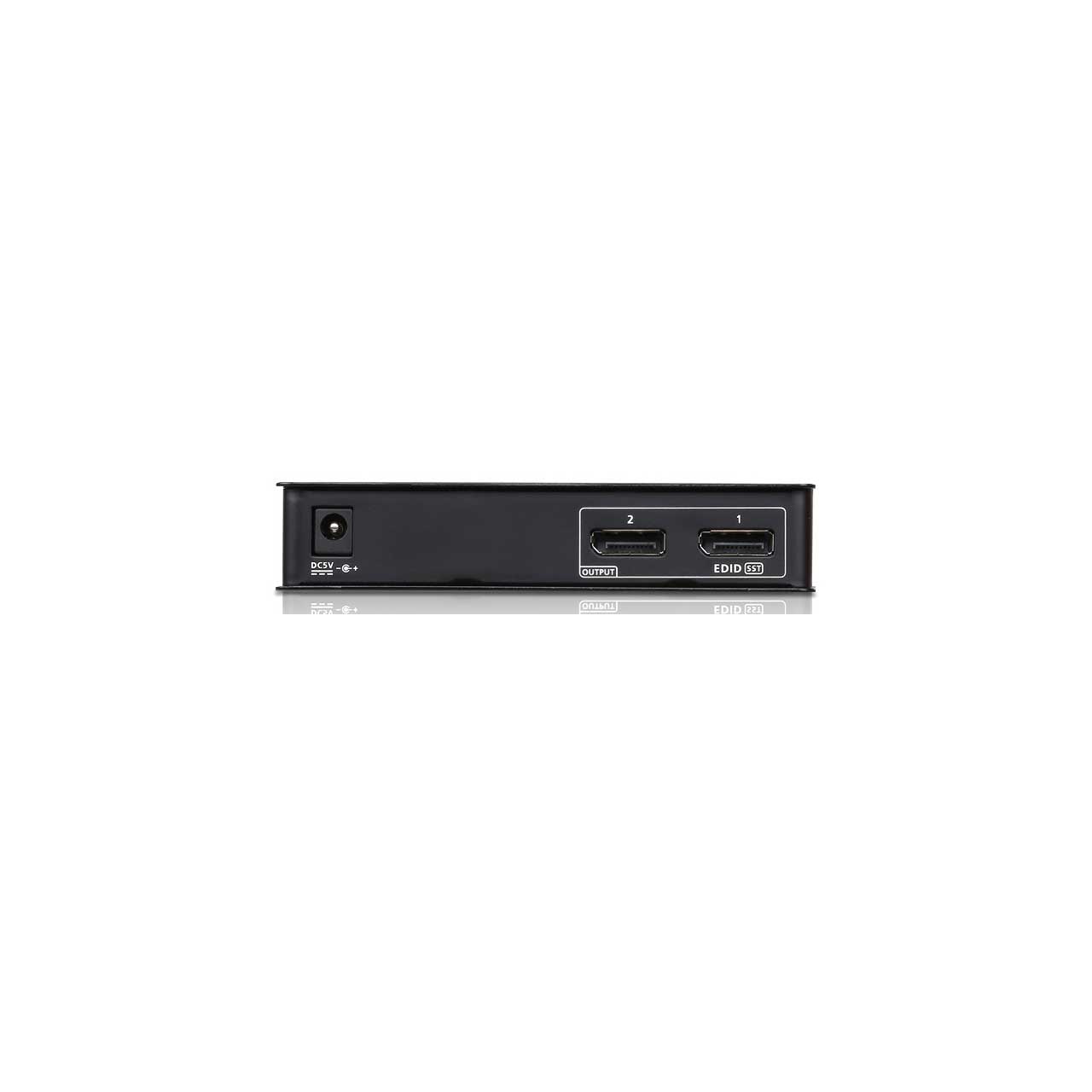

    • Interfaces: 2 x DisplayPort Female (Black)
    • Interfaces: 1 x DisplayPort Female (Black)
    • Compliance: DP 1.2a; HDCP 1.3
    • Max. Resolution: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz
    • Max. Data Rate: 21.6 Gbps (5.4 Gbps per lane)
    • Power: 1 x DC Jack
    • Power Consumption: 5 VDC, 1.185W
    • Operating Temperature: 0-40 °C
    • Storage Temperature: -20 - 60 °C
    • Humidity: 0 - 80% RH, Non-Condensing
    • Housing: Metal
    • Weight: 0.66 lb
    • Dimensions (L x W x H): 4.92 x 3.15 x 0.98 in


  • GTIN:

    0672792007200
